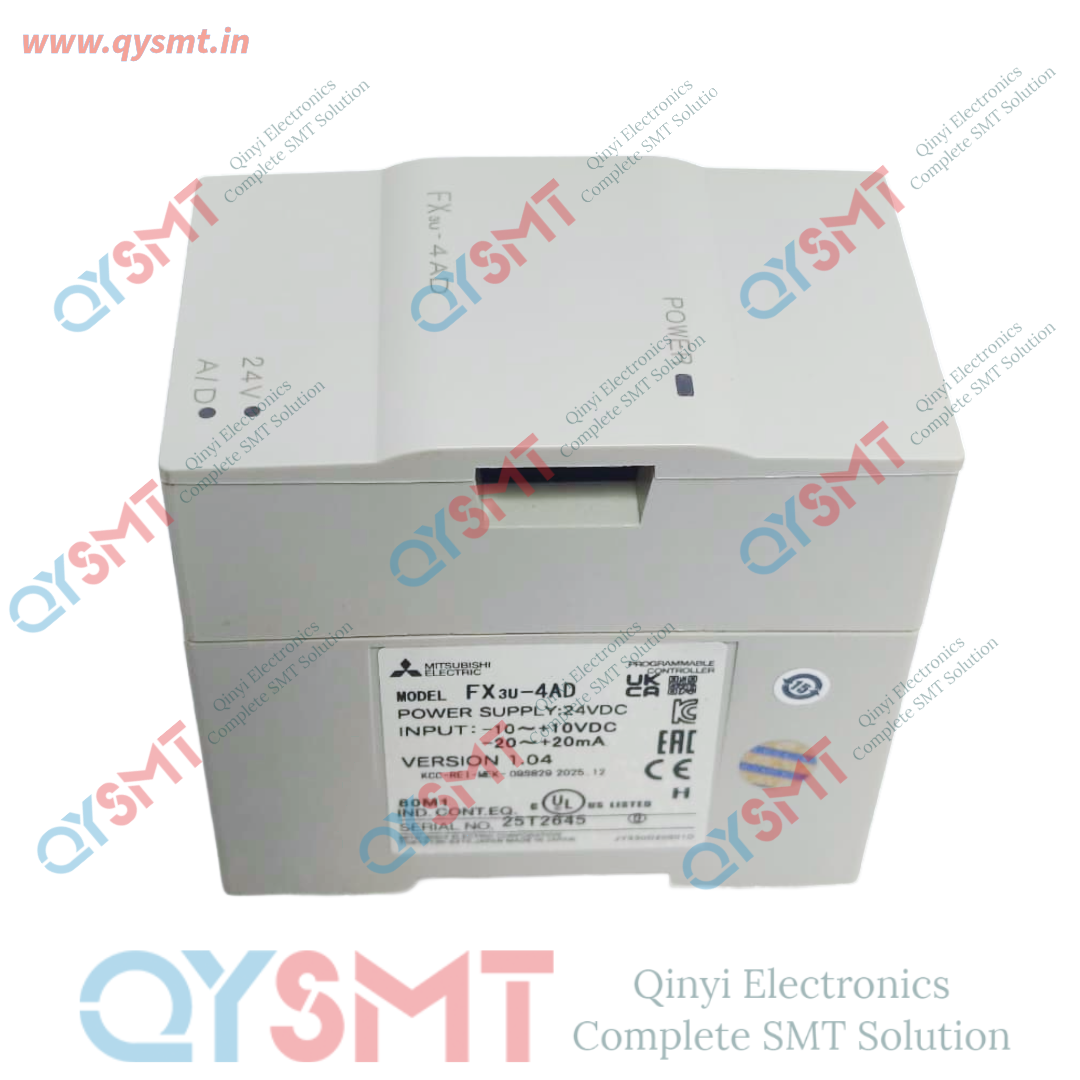

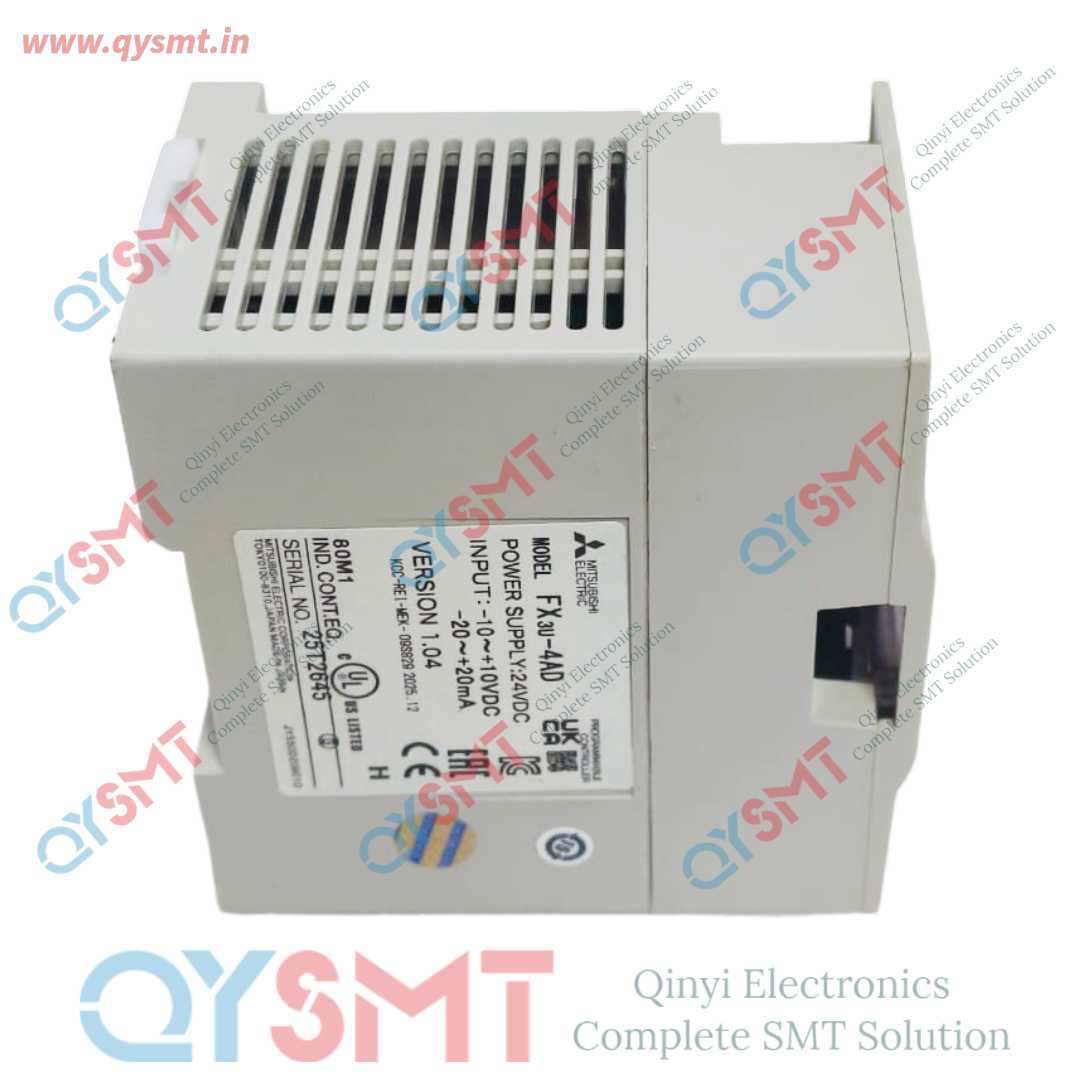

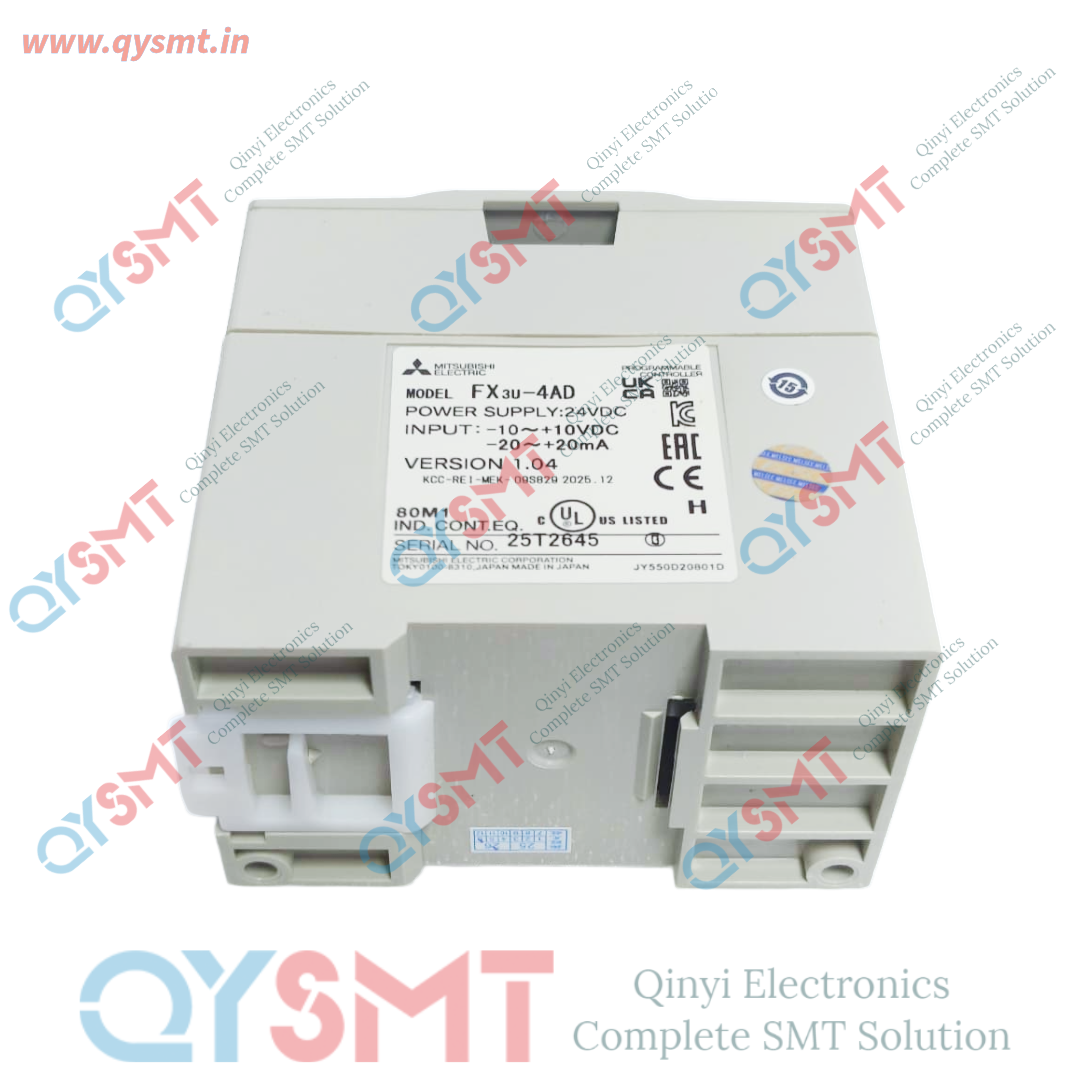

FX3U-4AD Power module

FX3U-4AD Power module
Power Supply Specifications

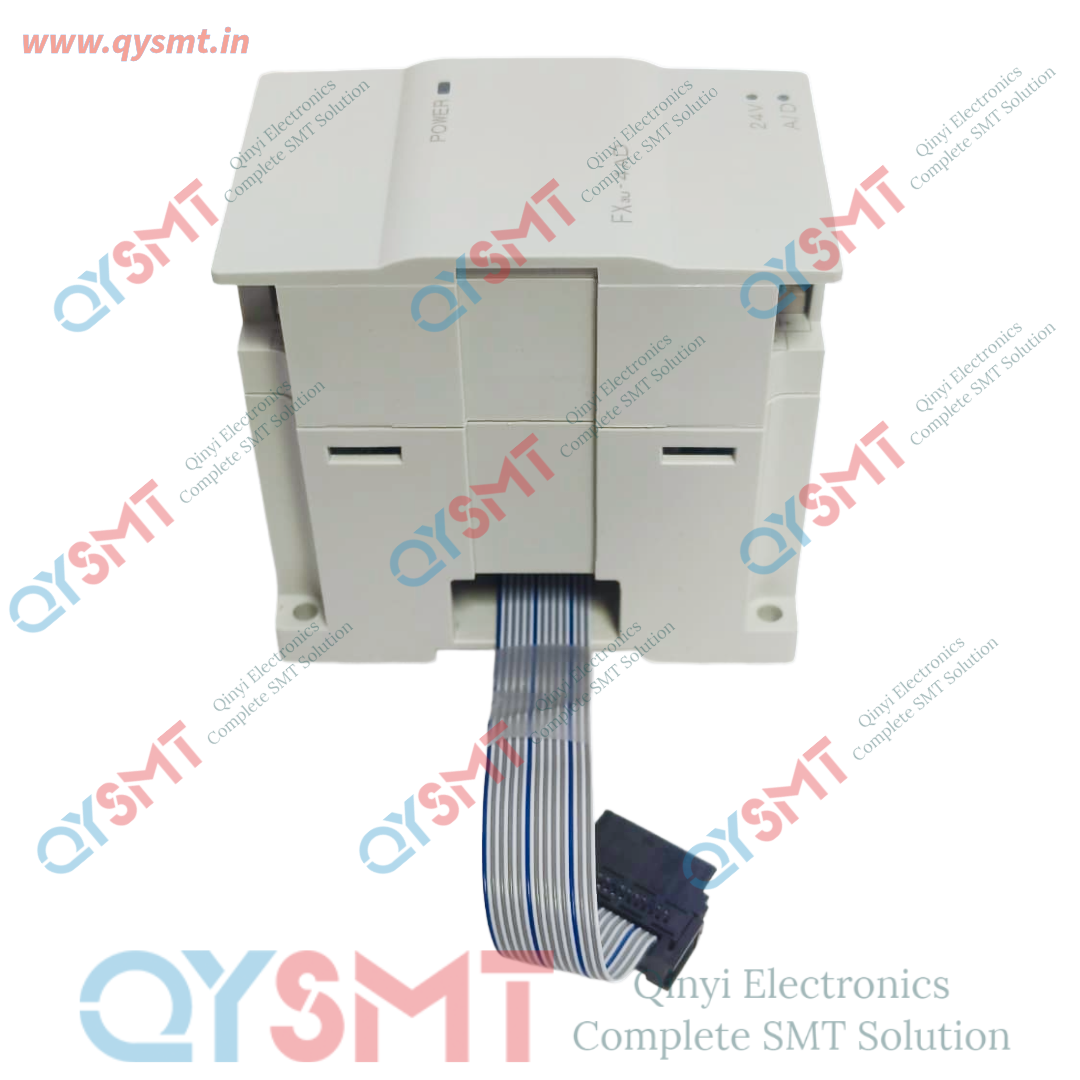

• Internal Power Drive: Draws 5V DC (15 mA) directly from the PLC base unit via the extension bus ribbon cable.
• External Power Drive: Requires an external 24V DC (+20% / -15%) power supply, drawing approximately 50 mA to drive its analog conversion circuitry.
• Isolation Infrastructure: Features a built-in phototransistor/photocoupler to insulate the analog inputs from the PLC core, and a DC/DC converter to isolate the analog electronics from the 24V DC power supply unit.

 Core Technical Specifications

• Input Channels: 4 independent channels (voltage or current can be configured per channel).
• Voltage Range: -10 to +10V DC (15-bit binary + 1-bit sign resolution).
• Current Range: -20 to +20 mA or 4 to 20 mA (14-bit binary + 1-bit sign resolution).
• Form Factor: Compact rectangular housing with integrated DIN rail mounting and screw-clamp terminal connections.
