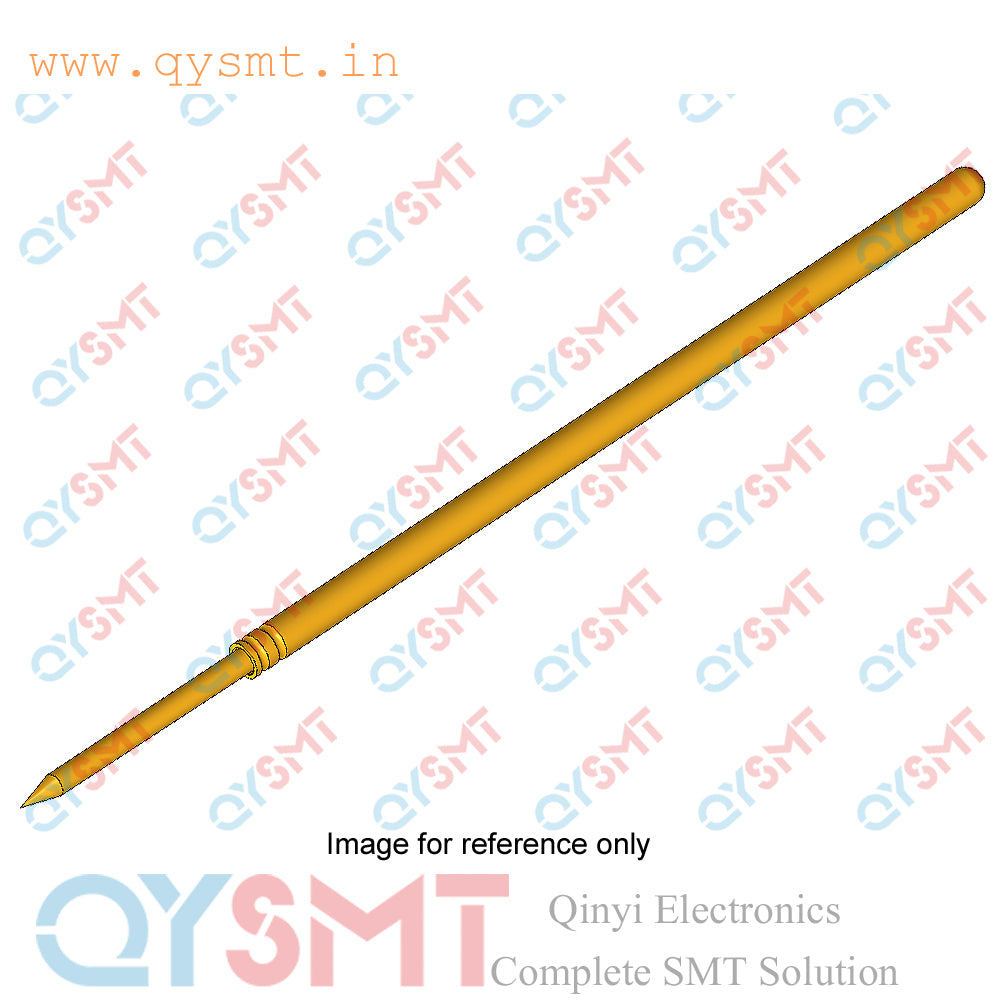

INGUN GKS-075 201 064 A 1500 Spring-loaded Test Probe (test needle)

INGUN Probe GKS 075 201 064 A 1500 Test Pin, GKS-075 201 064 A 1500 INGUN Test Needle, ICT/FCT in-circuit Function Testing Test Needle GKS 075 201 064 A1500, GKS 075 201 064 A 1500 33.1mm Long Circuit Test Needle

The GKS-075 201 064 A 1500 Test Probe is a specific model of a spring-loaded test probe manufactured by INGUN. It is primarily used for In-Circuit Testing (ICT) and Function Testing (FCT) of printed circuit boards (PCBs).

Specifications

• Manufacturer Series: GKS-075
• Application: Used for contacting test points (pads, vias, pins) on PCBs in test fixtures
• Installation: Push-in type, compatible with KS-075 receptacles
• Current Rating: 3 A
• Max. Contact Resistance: <20 mΩ
• Spring Force at Working Stroke: 1.5 N (approx. 5.39 ozf)
• Recommended Working Stroke: 4.3 mm

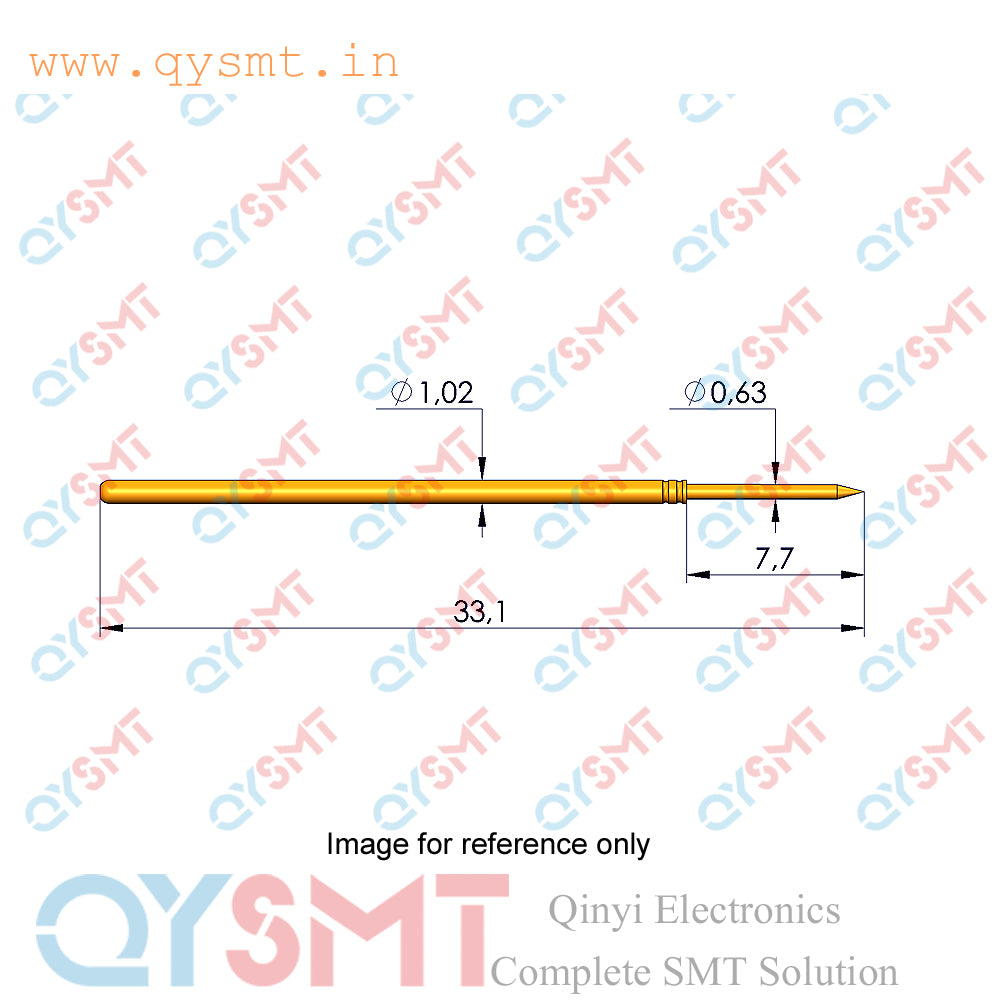

• Total Length: 33.1 mm
• Barrel Diameter: 1.02 mm

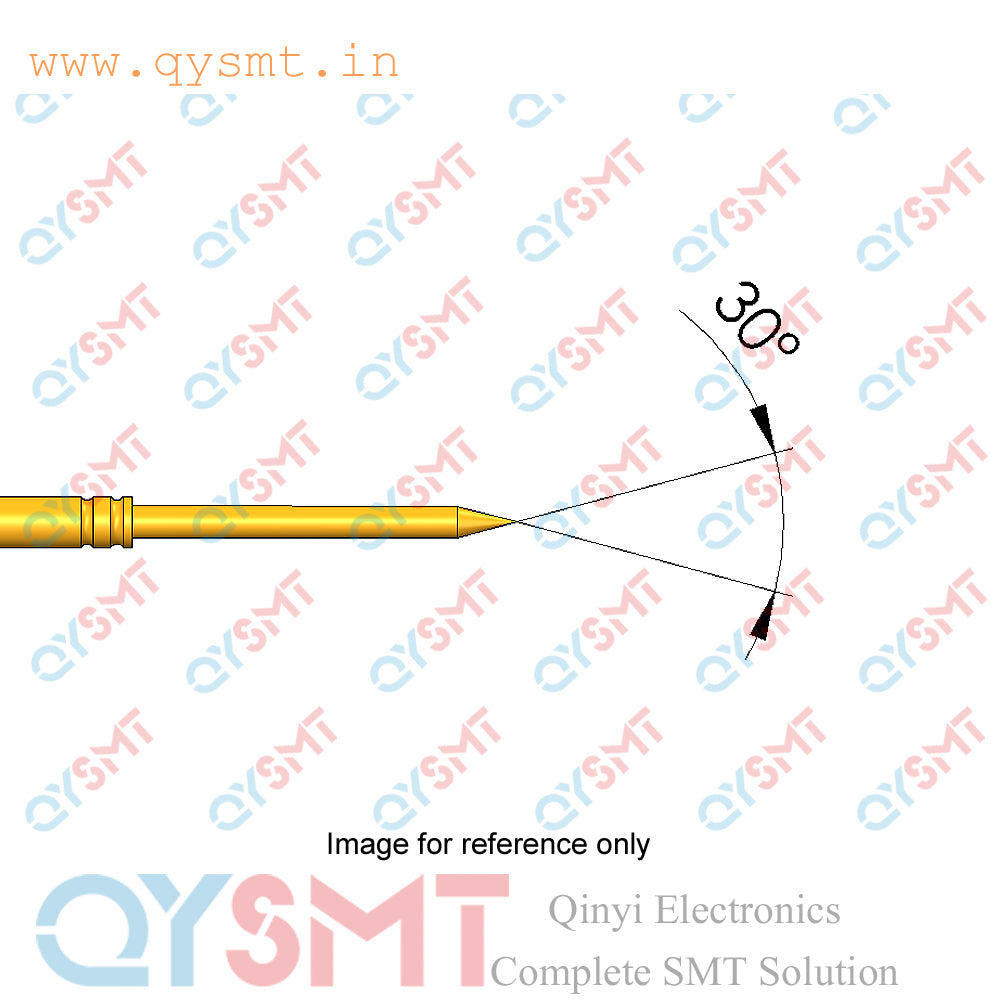

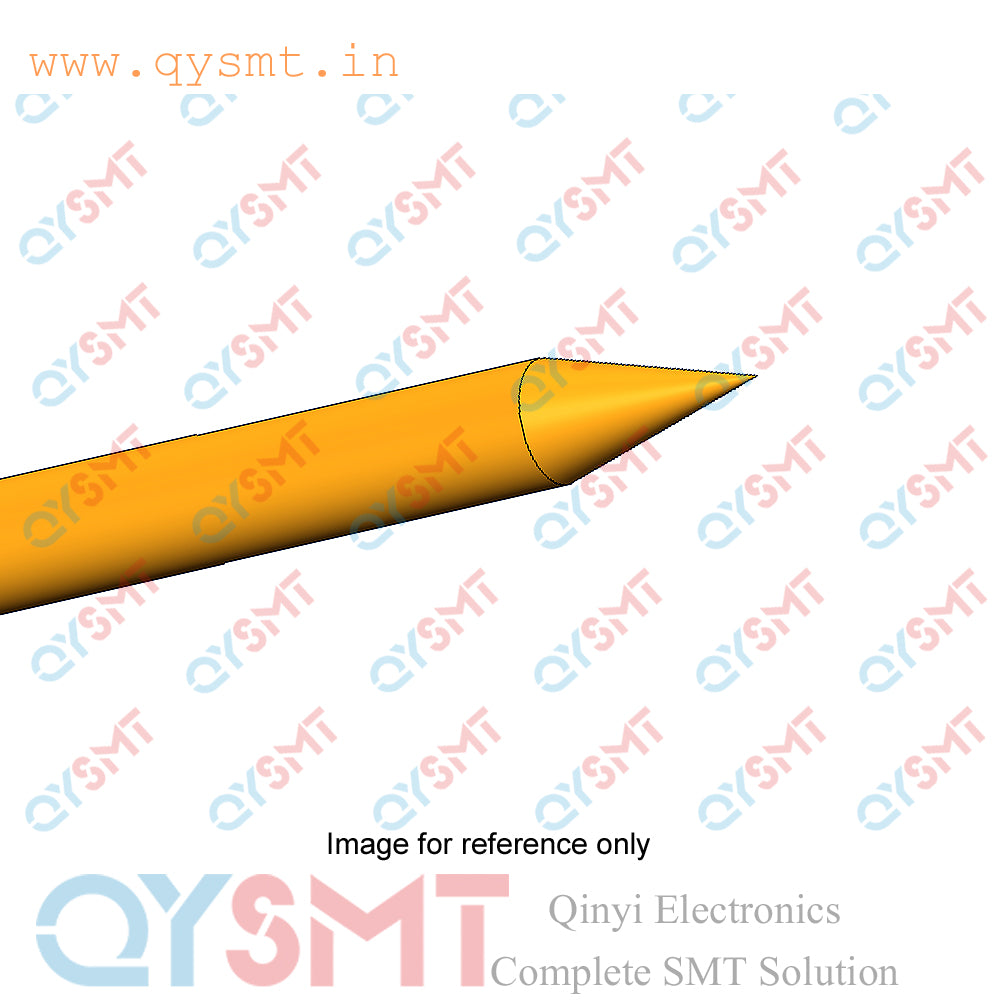

• Tip Style: 30° needle tip, self-cleaning, cone shape
• Tip Diameter: 0.64 mm
• Material and Plating:
  • Contact Material: Steel
  • Contact Plating: Gold-plated
• Operating Temperature: -40°C to 80°C
