INGUN GKS-100 291 090 A 2000 Spring-loaded Test Probe (test needle)

INGUN Probe GKS-100 291 090 A 2000 Test Pin, GKS-100 291 090 A 2000 INGUN Test Needle, ICT/FCT in-circuit Function Testing Test Needle GKS 100 291 090 A2000, GKS-100 291 090 A 2000 33.4mm Long Circuit Test Needle

The GKS 100 291 090 A 2000 Test Probe is a specific model of spring-loaded test probe manufactured by INGUN for use in in-circuit tests (ICT) and function tests (FCT) of printed circuit boards (PCBs).

Specifications

• Manufacturer: INGUN
• Series: GKS-100
• Tip Style: Dagger, elongated, self-cleaning
• Tip Diameter: 0.9 mm
• Contact Material: Steel, gold-plated
• Current Rating: 5 A
• Working Stroke: 4.3 mm
• Maximum Stroke: 6.35 mm
• Spring Force at Working Stroke: 2 N

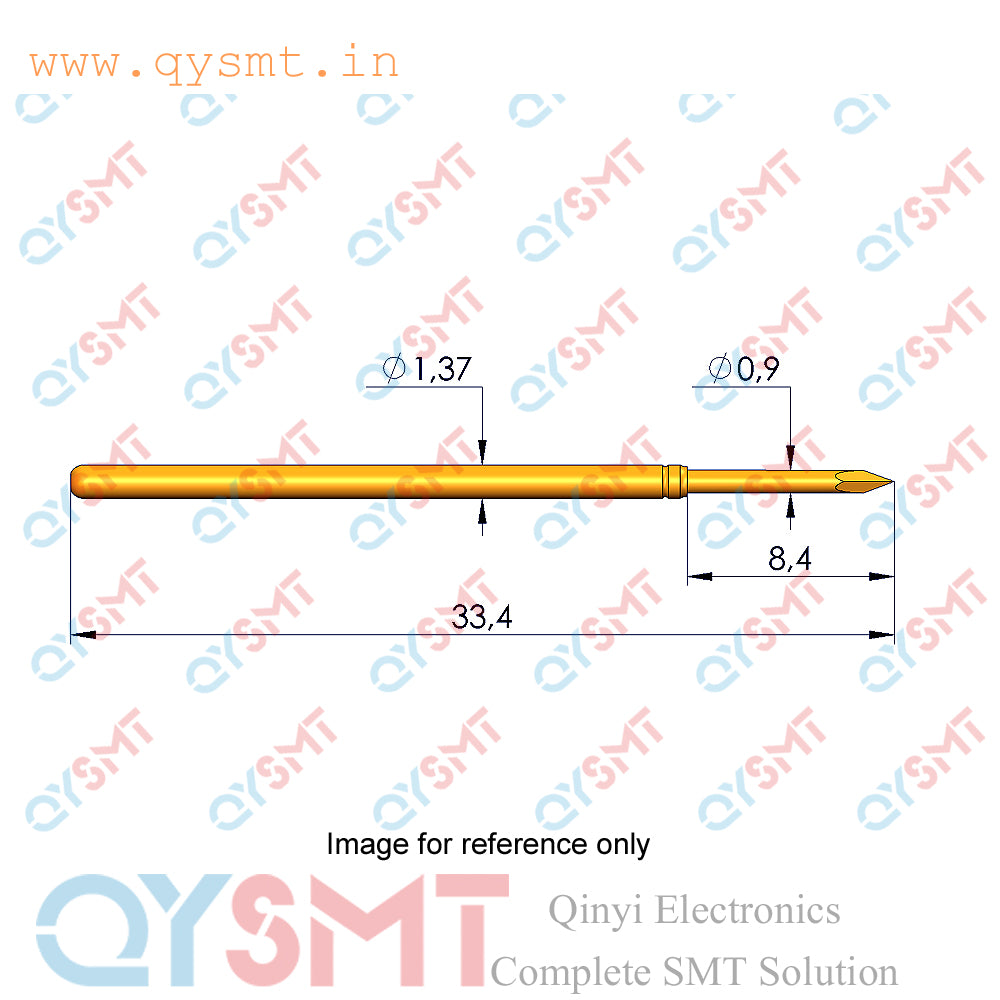

• Total Length: 33.4 mm
• Mounting: Push-in type, compatible with KS-100 series receptacles (e.g., KS-100WL, KS-10030G)
• Operating Temperature: -40°C to 80°C

Application

This probe is used for making optimal contact to test points such as pads, vias, and pins on PCBs. The plug-in design allows for quick replacement when a probe is worn or damaged.
