INGUN GKS-100 307 090 A 1500 Spring-loaded Test Probe (test needle)

INGUN Probe GKS 100 307 090 A 1500 Test Pin, GKS-100 307 090 A 1500 INGUN Test Needle, ICT/FCT in-circuit Function Testing Test Needle GKS-100 307 090 A1500, GKS-100 307 090 A 1500 33.4mm Long Circuit Test Needle

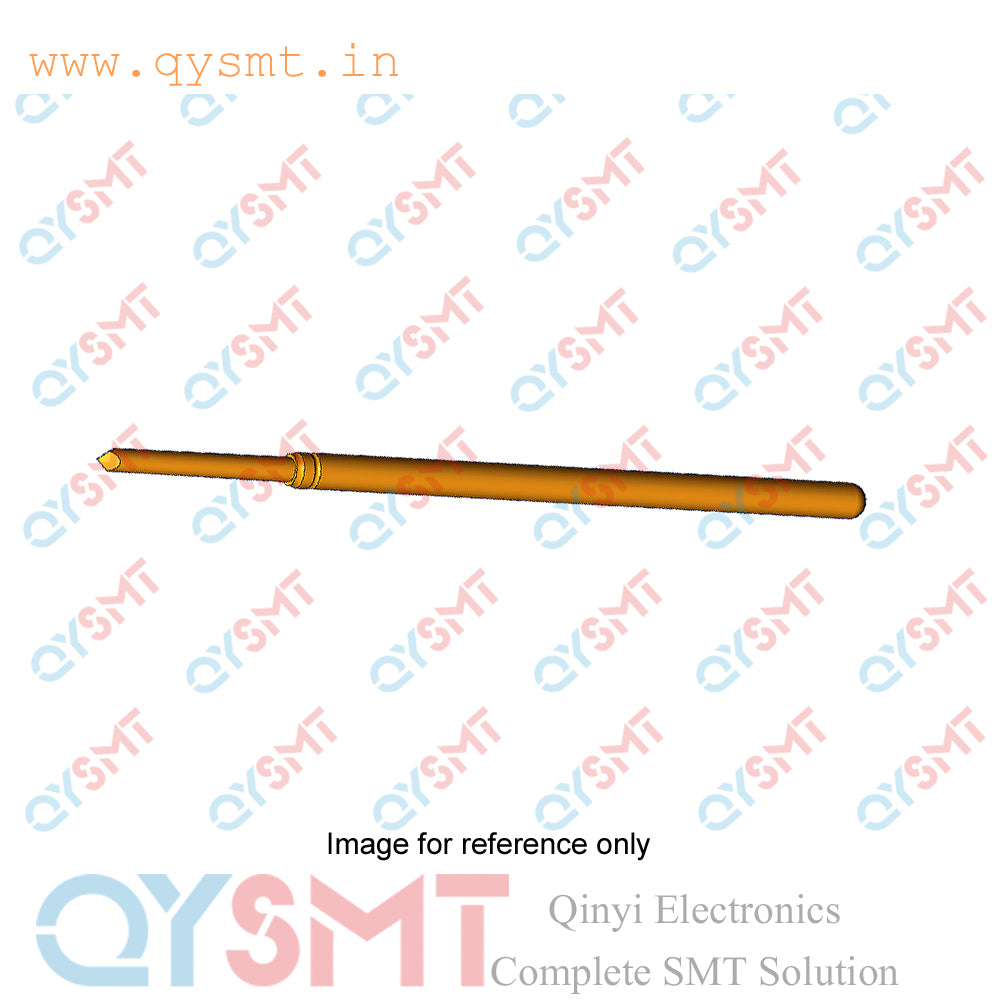

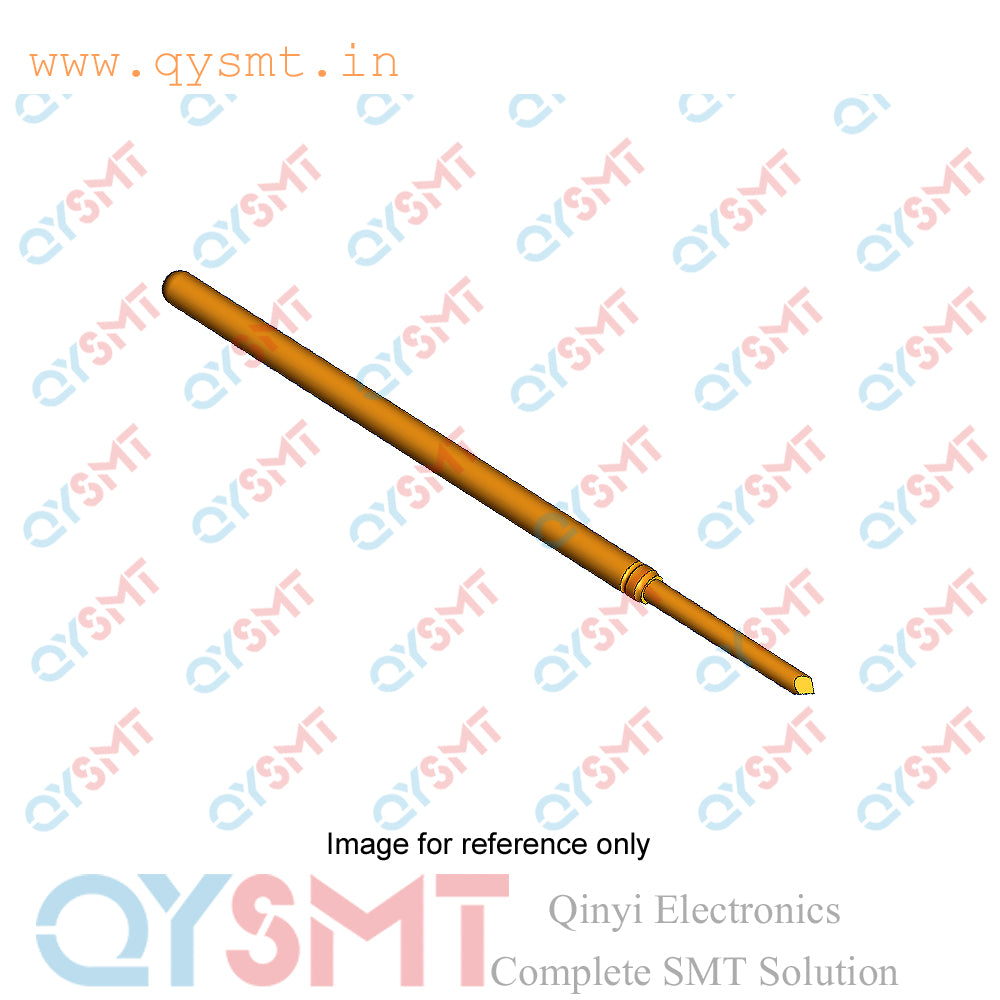

The GKS 100 307 090 A 1500 Test Probe is a specific model of spring-loaded test needle manufactured by INGUN. It is used for in-circuit testing (ICT) and function testing (FCT) of printed circuit boards (PCBs).

Specifications

• Manufacturer: INGUN
• Series: GKS-100
• Part Number (TME): GKS-100-0061
• Type: Test needle (contact probe)
• Spring Force at Working Stroke: 1.5 N
• Working Stroke: 4.3 mm
• Maximum Stroke: 6.35 mm
• Current Rating: 5 A
• Max. Contact Resistance: 20 mΩ
• Tip Diameter: 0.9 mm

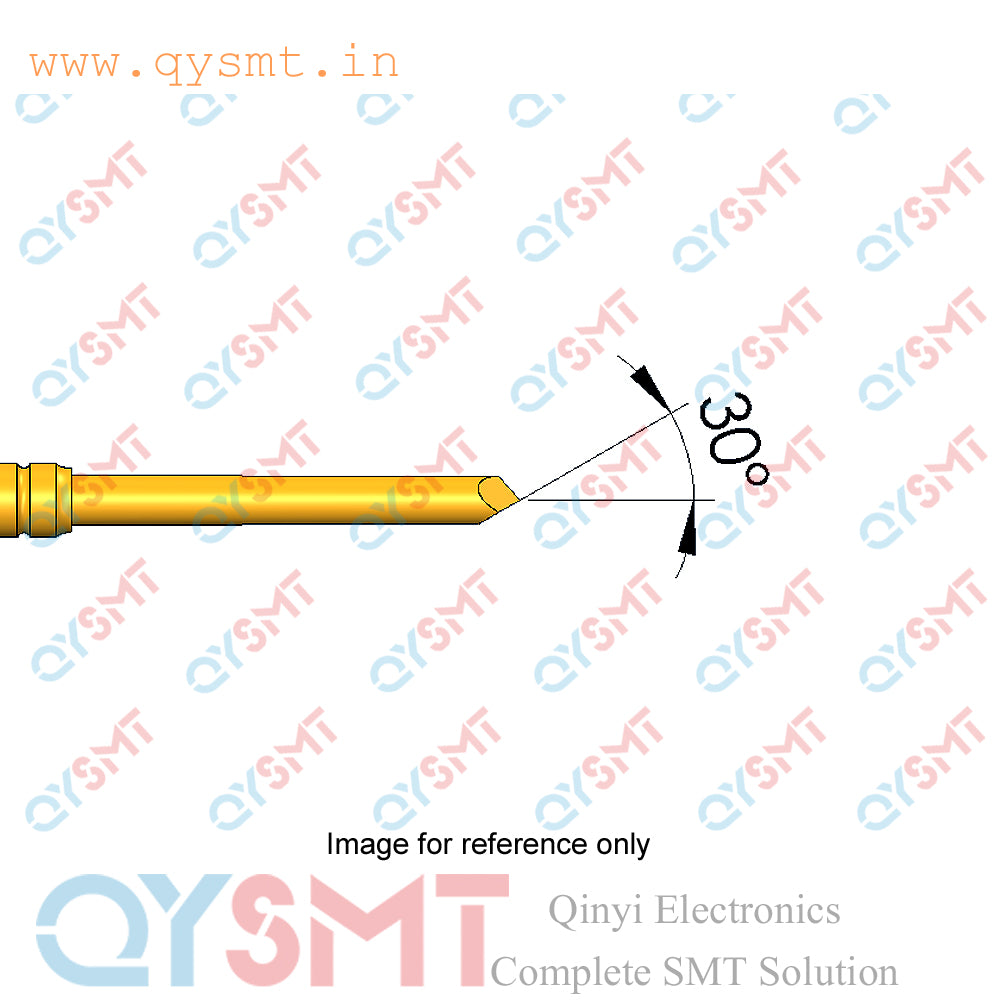

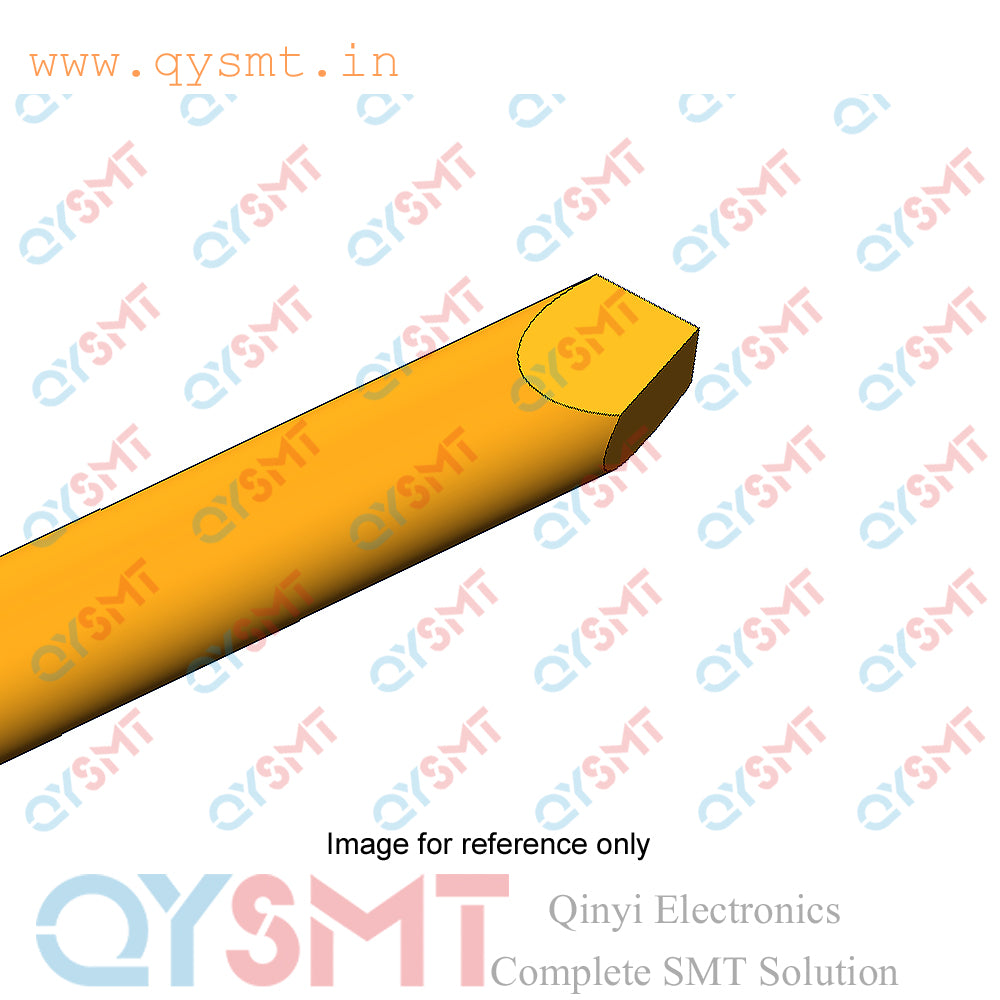

• Blade Tip Shape: Chisel
• Contact Material: CuBe (Copper Beryllium)
• Contact Plating: Gold-plated

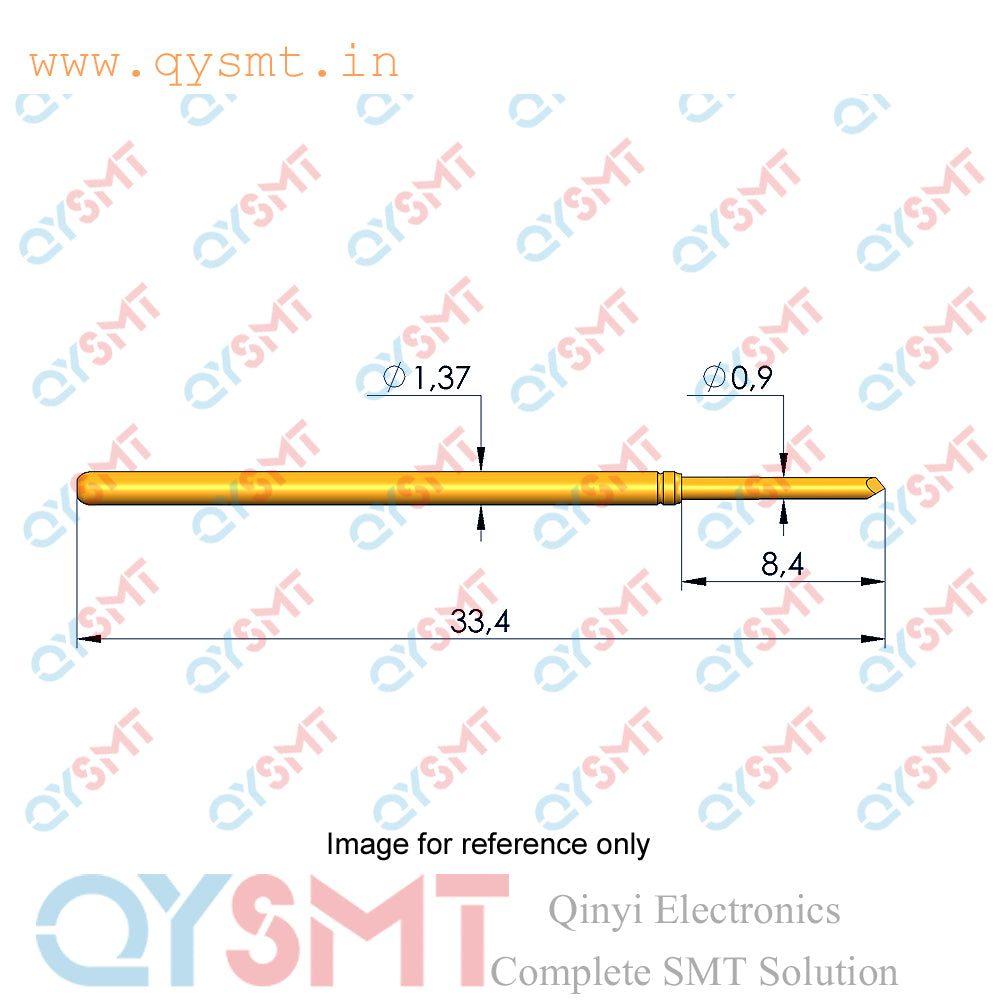

• Total Length: 33.4 mm
• Barrel Diameter: 1.37 mm
• Mounting: Push-in
• Operating Temperature: -40°C to 80°C

This probe is designed to be inserted into a corresponding receptacle (socket), such as the KS-100 series sockets.
