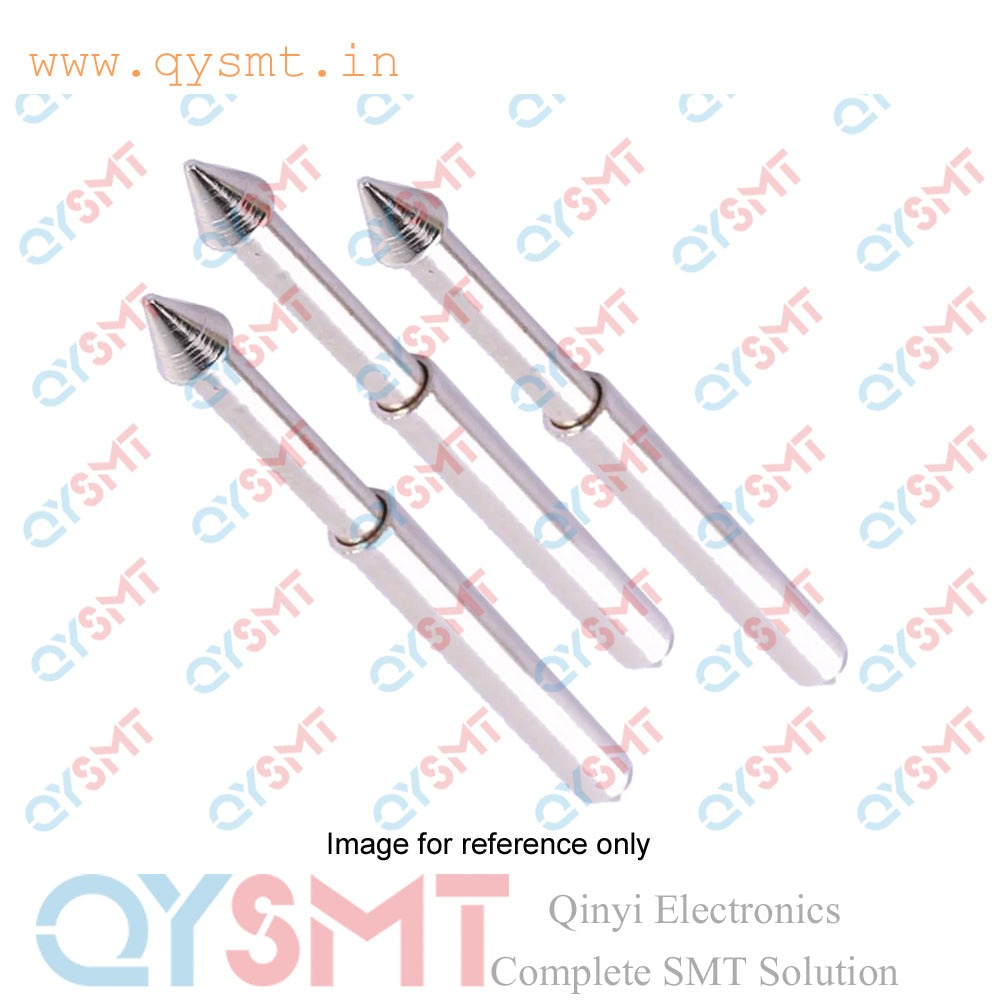

Guide Pin GP-2L Spring Loaded Pogo Guide Pin
GP-2L Dia. 5.0mm Pogo Guide Pin, Probe Iron Guide GP-2L Column Spring PCB Fixture
The GP-2L Guide Pin is a spring-loaded positioning pin primarily used for aligning Printed Circuit Boards (PCBs) within a test fixture or "bed of nails" assembly. It is designed to ensure proper orientation and alignment, preventing damage to pogo pins and the PCB during the testing process.
GP-2L Product specifications
- Model number: GP-2L
- Product type: Guide Pin with Spring, also known as a spring test probe
- Total length: 64mm
- Total size (L x Max. D): 64mm x 5mm
- Tip type: Umbrella shape
- Tip maximum diameter: 5.5mm
- Stroke: 20mm
- Spring force: 300g
- Material: Iron with nickel plating
- Mounting: Snap-fit design for permanent installation
Applications of the GP-2L Guide Pin
The GP-2L Guide Pin is used in various applications where precise alignment is critical:
- PCB test fixtures: The main use is in bed of nails test jigs to align a PCB accurately for connection with test probes (pogo pins), protecting against misalignment damage.
- Programming and test jigs: Ensures correct positioning for programming or testing electronic components.
- High-density applications: Its small and rugged design makes it suitable for use in high-density electronic assemblies.
- Reliability-critical applications: Can be used in industrial and medical devices that require consistent, reliable alignment for repeated connection cycles.
