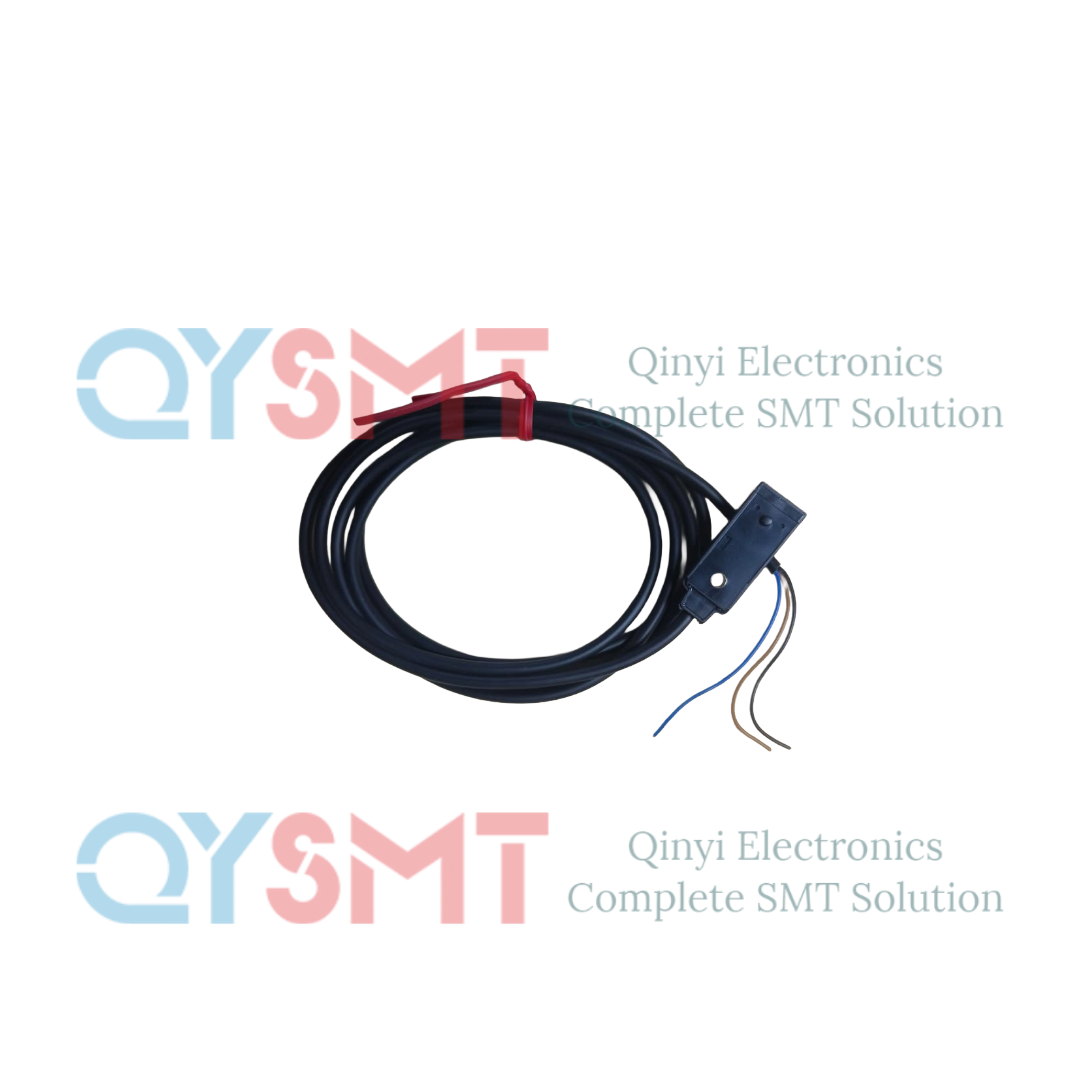

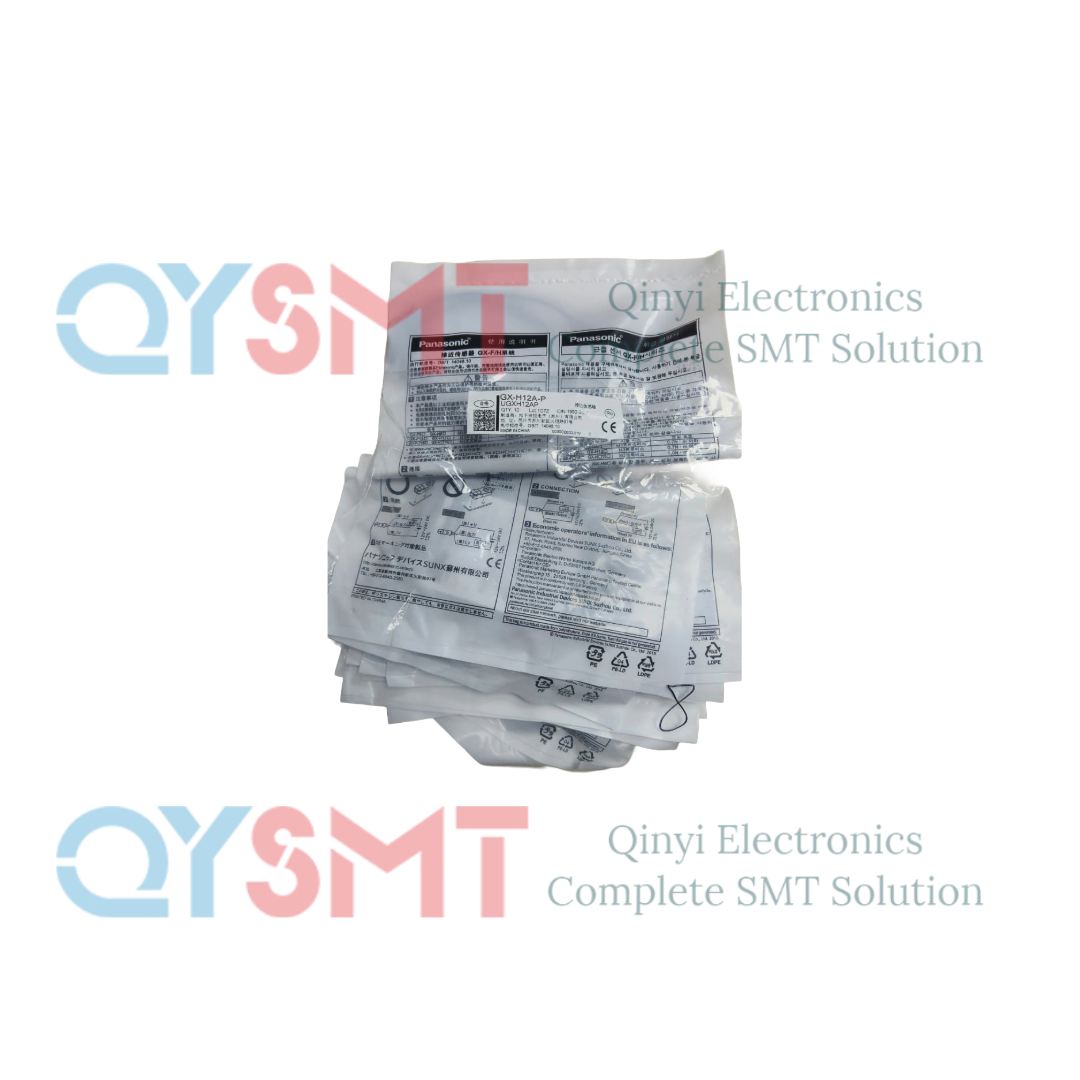

GX-H12A-P inductive proximity sensor

GX-H12A-P inductive proximity sensor

• Sensing Type: Top-sensing inductive proximity module
• Stable Sensing Range: 0 to 3.3 mm (Maximum operation distance: 4.0 mm)
• Standard Sensing Target: Iron sheet (20 × 20 × 1 mm)
• Output Type: PNP open-collector transistor
• Output Operation: Normally Open (NO)
• Supply Voltage: 12 to 24 V DC
• Response Frequency: 500 Hz
• Environmental Protection: IP68 (IEC) / IP68g (JEM) dust, water, and oil resistance
• Indicators: Bright orange integrated LED to show output status
• Connection: 1 meter pre-cabled oil, heat, and cold resistant cabtyre cable

Application & Design Benefits

• Temperature Stability: Features thoroughly revised coil and core designs to keep variations within ±8%, guaranteeing reliable detection across varying seasons or system temperatures.
• Easy Replacement: Highly controlled manufacturing sensitivity minimizes individual unit variations, drastically reducing adjustments required when a sensor is replaced.
• Structural Safety: Integrates built-in metal sleeves inside its mounting holes to prevent structural damage caused by over-tightening during installation.
• Common Uses: Ideally deployed for checking metal pallets, processing machinery alignment, or acting as a muting control element alongside light safety curtains.
