Hengstler Encoder RI41-0/2000ES.11KB-15S-5-S11

Hengstler RI41-0/2000ES-11KB-15S-5-S11 Encoder

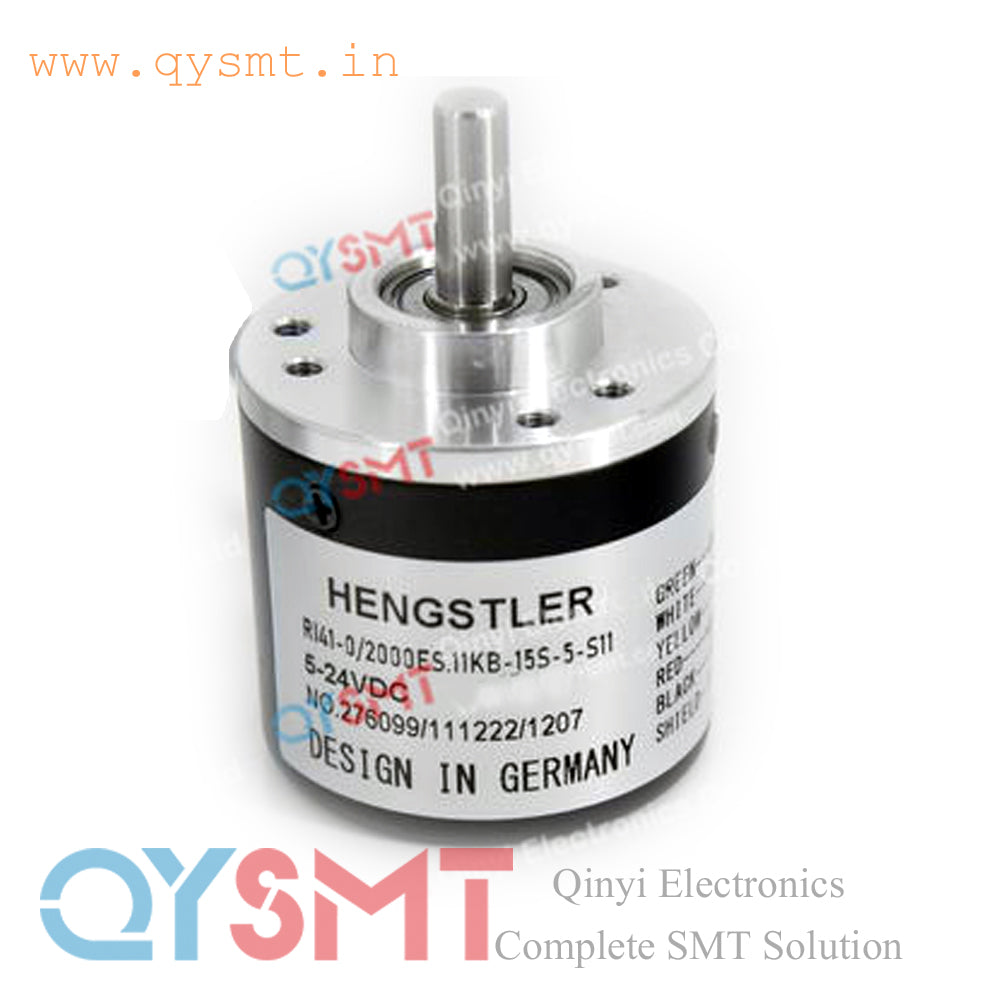

The RI41-0/2000ES.11KB-15S-5-S11 is an incremental rotary encoder manufactured by Hengstler. It is part of the RI41-O series and is designed for industrial applications requiring reliable performance and high pulse frequencies.

Key specifications

• Manufacturer: Hengstler
• Series: RI41-0
• Resolution: 2,000 pulses per revolution (PPR)
• Shaft type: Solid shaft
• Output signal: Push-pull
• Supply voltage: 5-24V DC
• Electrical connection: 1.5-meter radial cable is standard, but optional cable lengths are available.
• Number of channels: A, B, and N (index) channels
• Housing: 40 mm diameter, made of aluminum
• Maximum operating speed: 10,000 rpm
• Protection rating: IP40 for the shaft and IP50 for the housing
