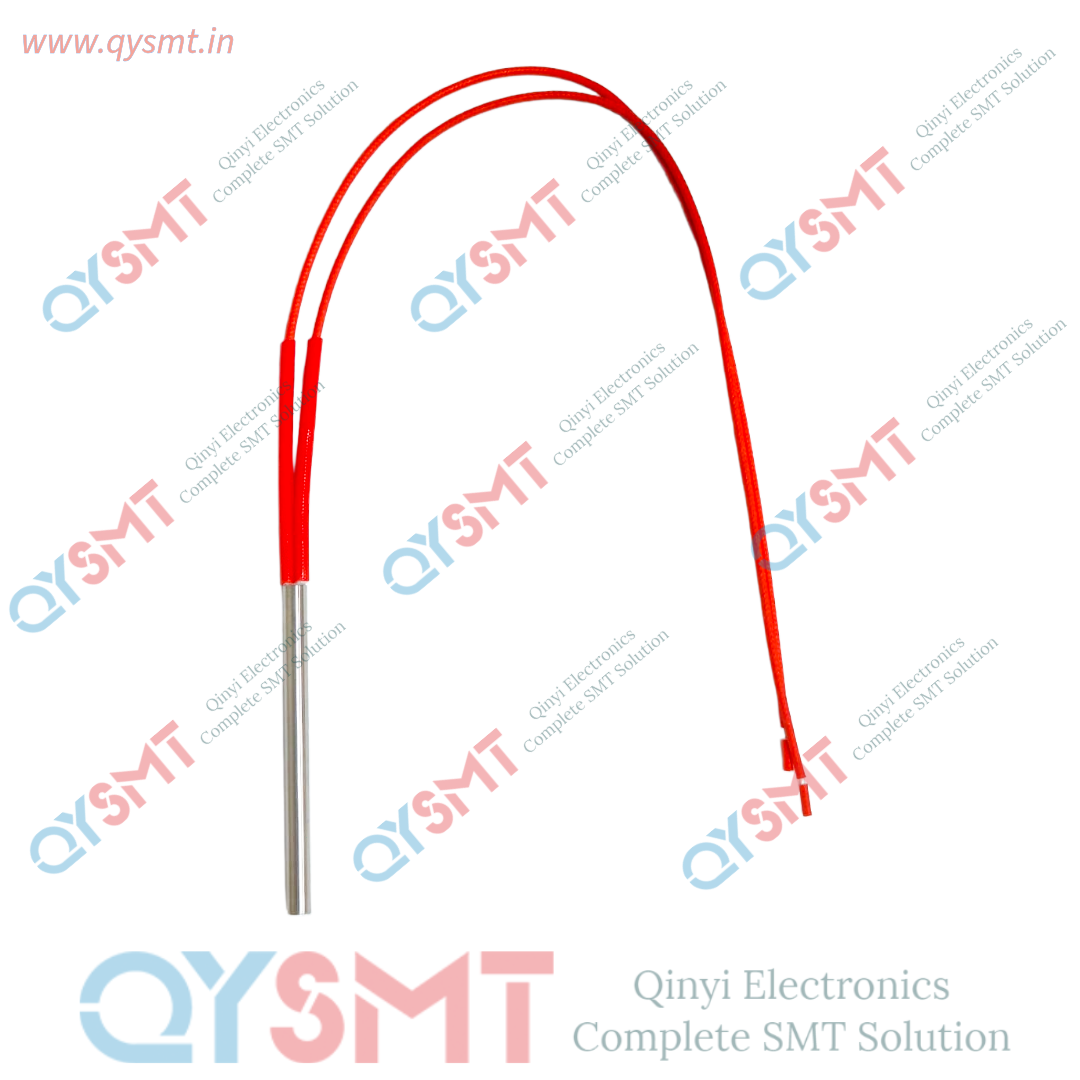

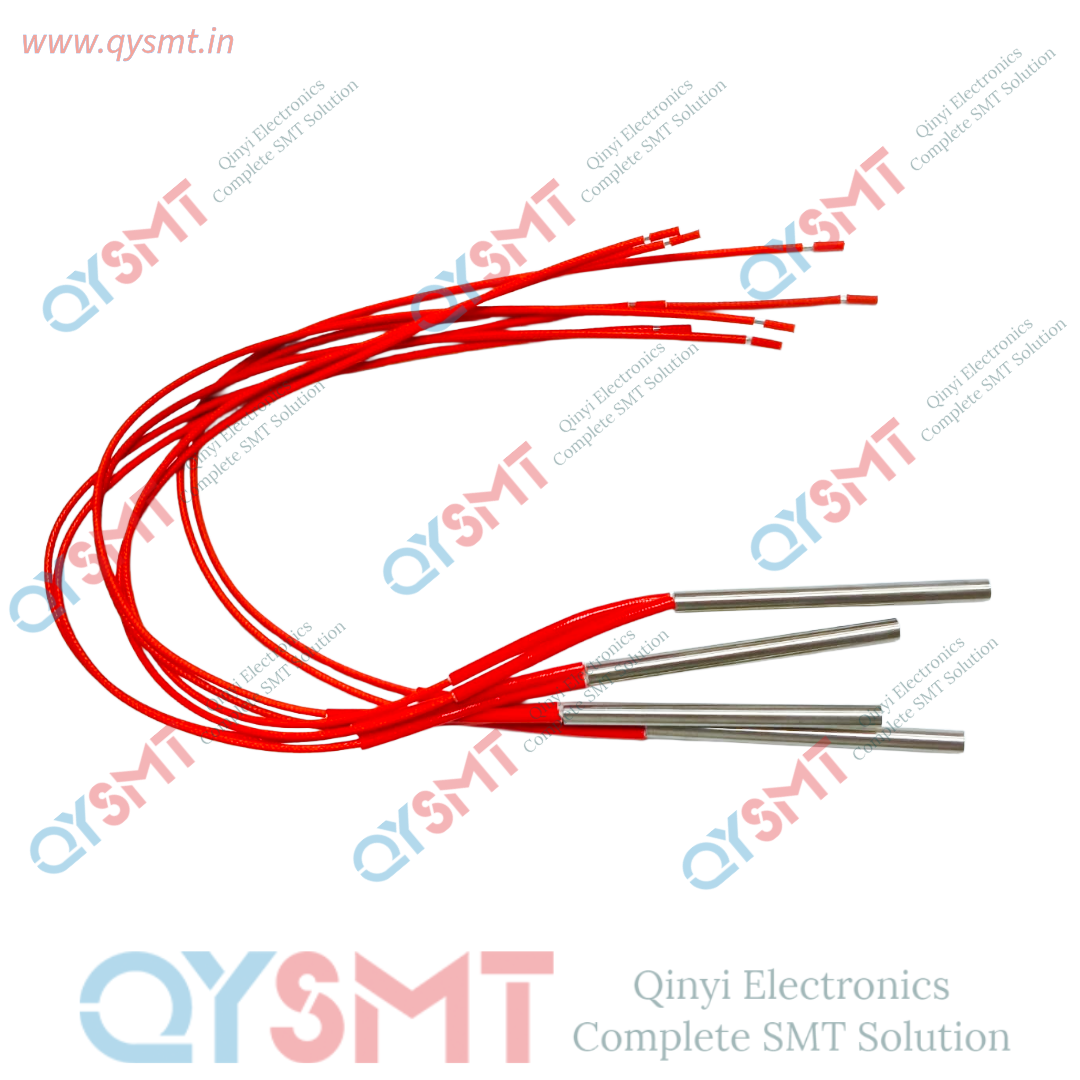

HG 110V2000W2306 Heating Element
Core Function & Anatomy
- Heating Element: Inside the metallic sheath sits a resistive heating wire wrapped around a ceramic core.
- Metal Sheath: The outer metallic tube provides structural protection and directly transfers heat to the surrounding material.
- Lead Wires: The red insulated wires supply electrical power to the internal resistance coil.
Common Applications
- 3D Printers: They heat up the extruder blocks to melt plastic filament.
- Injection Molding: They maintain optimal temperatures inside molds and dies.
- Packaging Equipment: They provide heat to sealing bars, hot knives, and glue guns.
- Medical Equipment: They are used to control temperature in laboratory testing and sterilization devices.
How to Test If They Work
If you need to verify if these heaters are functional, you can test them using a digital multimeter:
- Turn off power: Ensure the heater is completely disconnected from any electrical source.
- Set to Ohms (\(\Omega \)): Turn your multimeter dial to the resistance setting.
- Measure resistance: Place one probe on each of the stripped ends of the red wires.
-
Interpret the reading:
- Normal reading: A stable resistance value (usually between 10 to a few hundred ohms, depending on the wattage).
- Open circuit (\(\text{OL}\) or \(\infty \)): The internal heating element is broken, and the heater must be replaced.
- Short circuit (\(0\ \Omega\)): The internal insulation has failed, posing a safety hazard.
