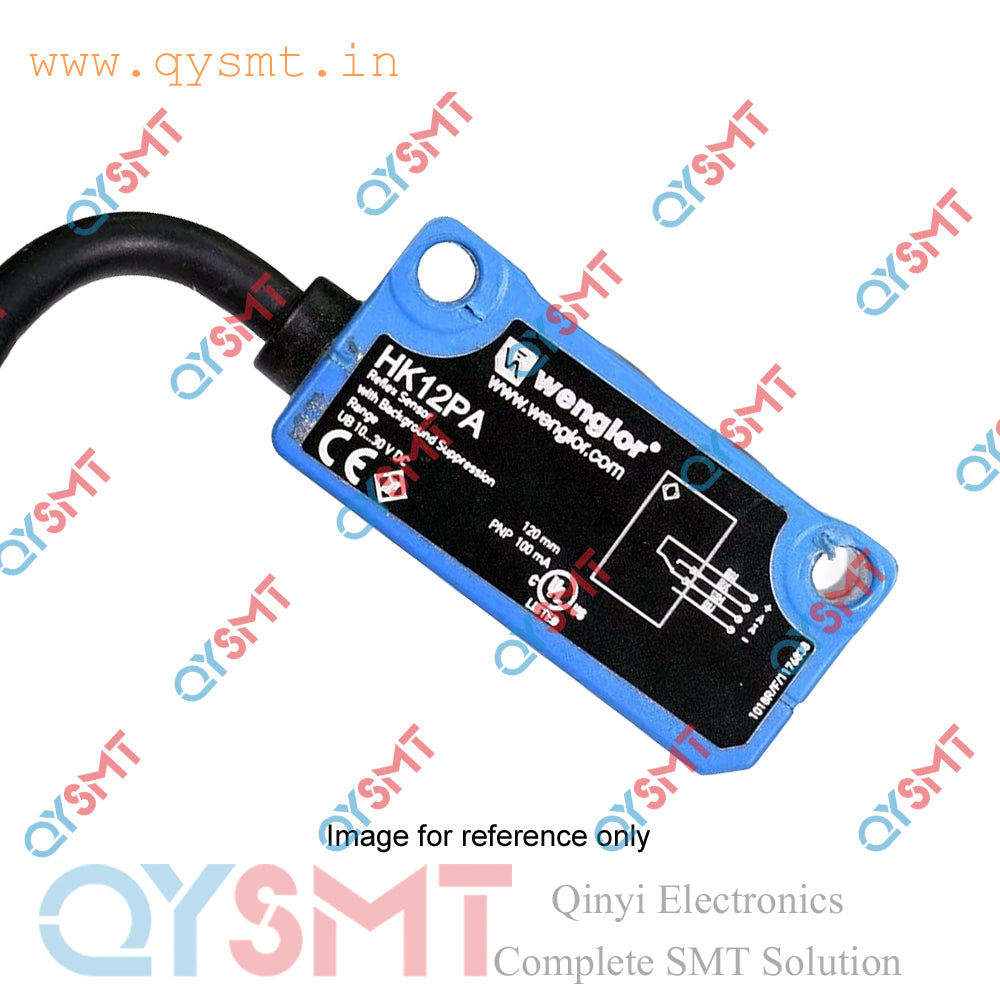

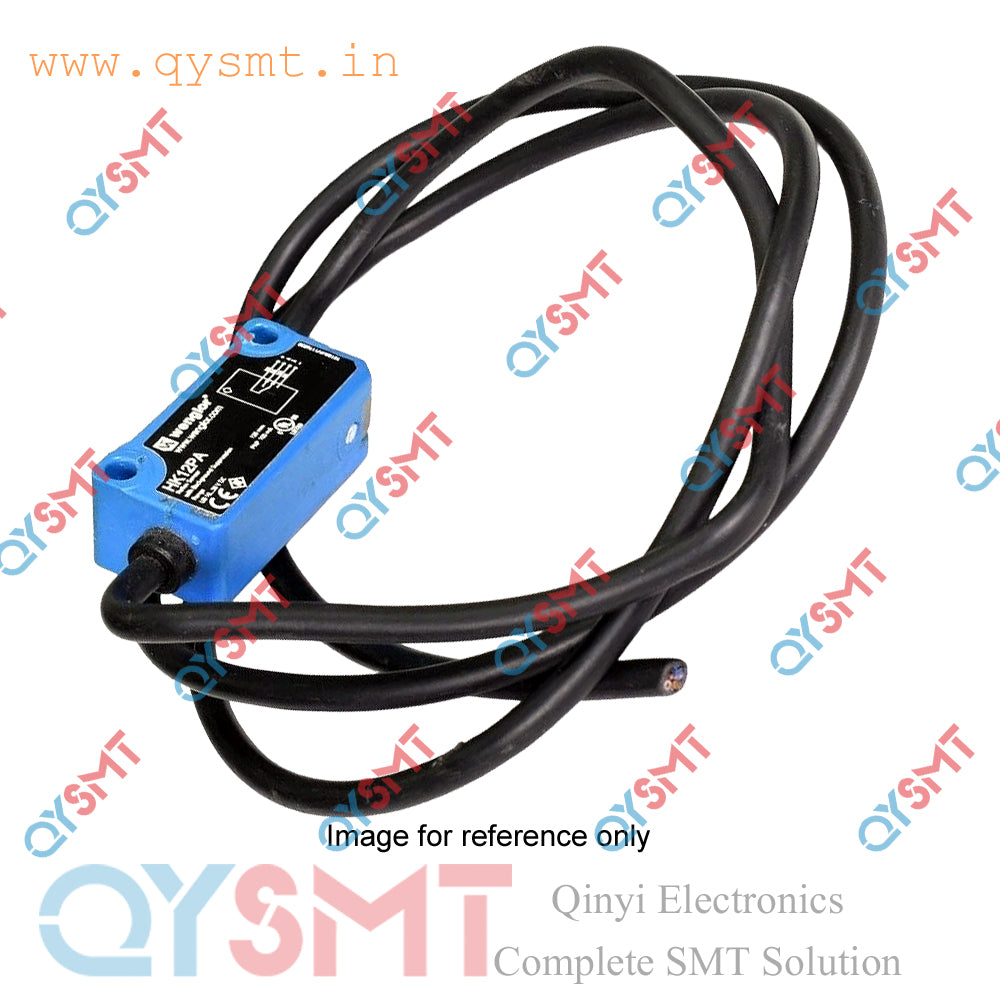

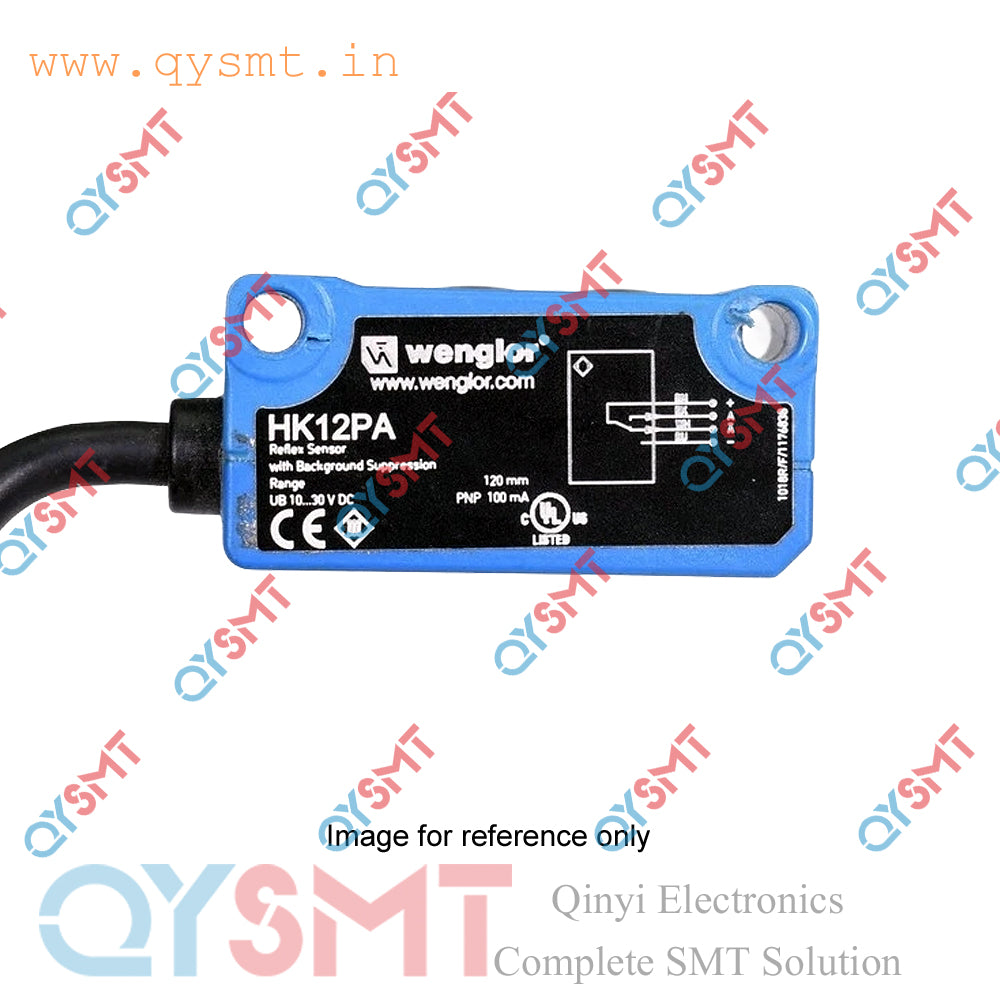

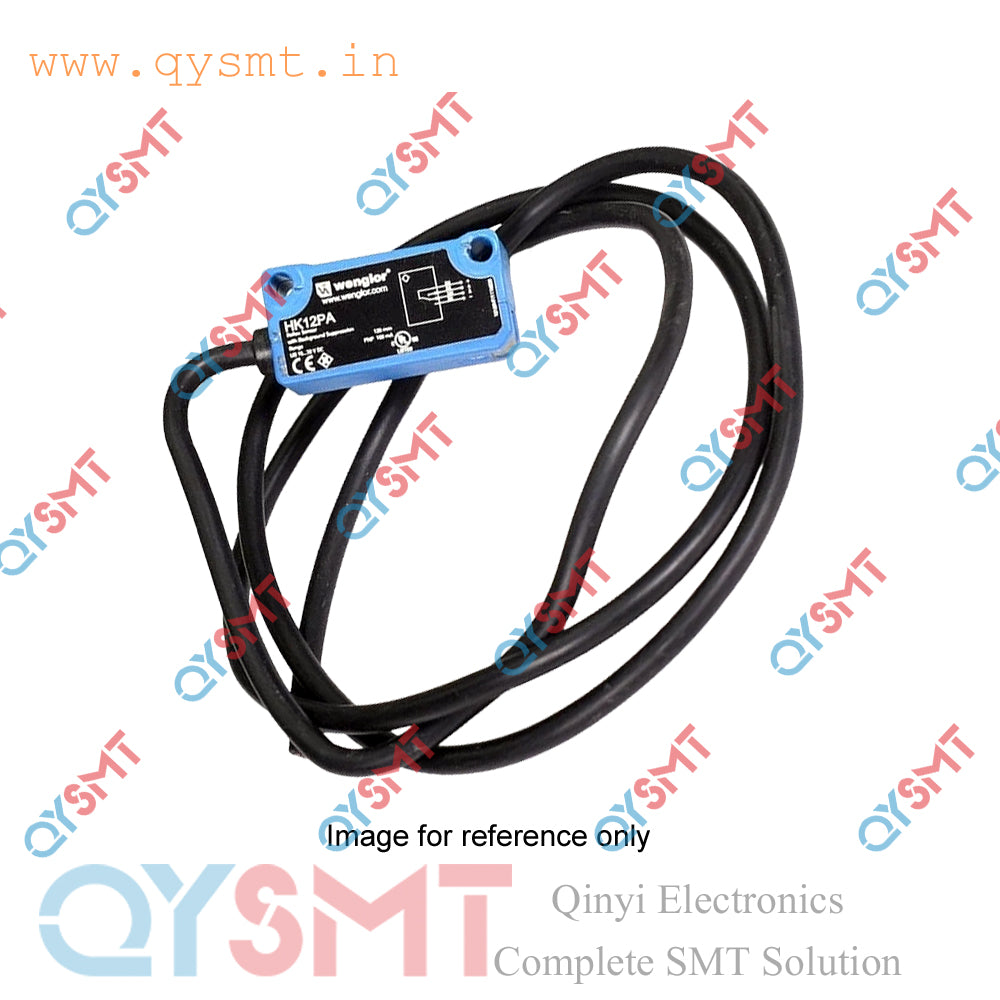

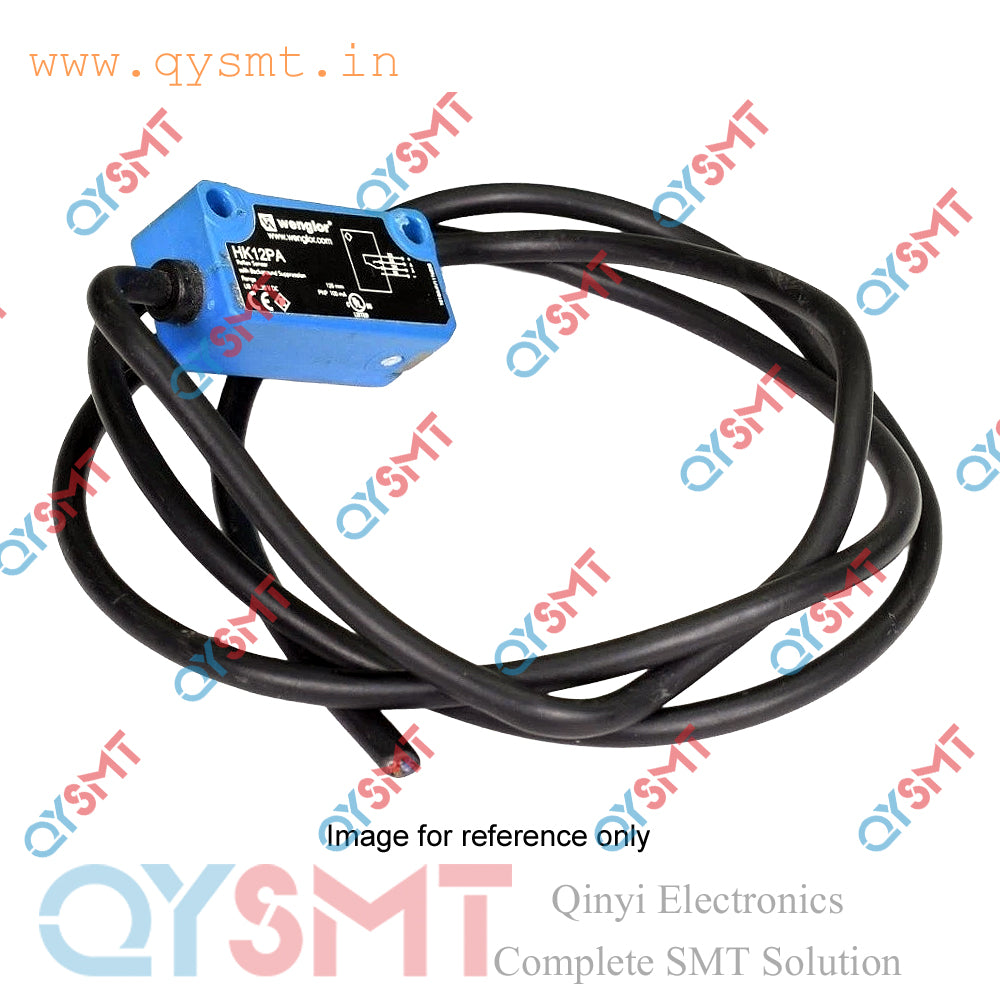

WENGLOR HK12PA REFLEX SENSOR

WENGLOR HK12PA Reflex Sensor with Background Suppression, Diffuse Reflection Photoelectric Sensor, 18 to 120 mm Sensing Range, Red Light, 10V to 30V DC Supply Voltage, 1300 Hz Switching Frequency, 385 µs Response Time, PNP NC, PNP NO Output, Potentiometer, Cable; 4-wire Connection, Plastic Housing, 2m Cable, IP67

Specification/Additional Details

• Sensor Type : Background Suppression
• Brand : Wenglor
• Model : HK12PA
• Sensing Range : 120 mm
• Sensing Setting Range : 18 to 120 mm
• Light Source : Red Light

• Light Spot Diameter : 4 mm, 6 mm, 10 mm

• Setting Method : Potentiometer

• Supply Voltage : 10 to 30 V DC

• Current Consumption (Ub = 24 V) : < 25 mA

• Switching Frequency : 1300 Hz

• Response Time : 0.385 ms

• Temperature Range : -25 to 60 °C

• PNP Switching Output/Switching Current : 100 mA

• Output : PNP NC, PNP NO

• Housing Material : Plastic

• Connection : Cable; 4-wire (2 m Cable Length)

• Degree of Protection : IP67
