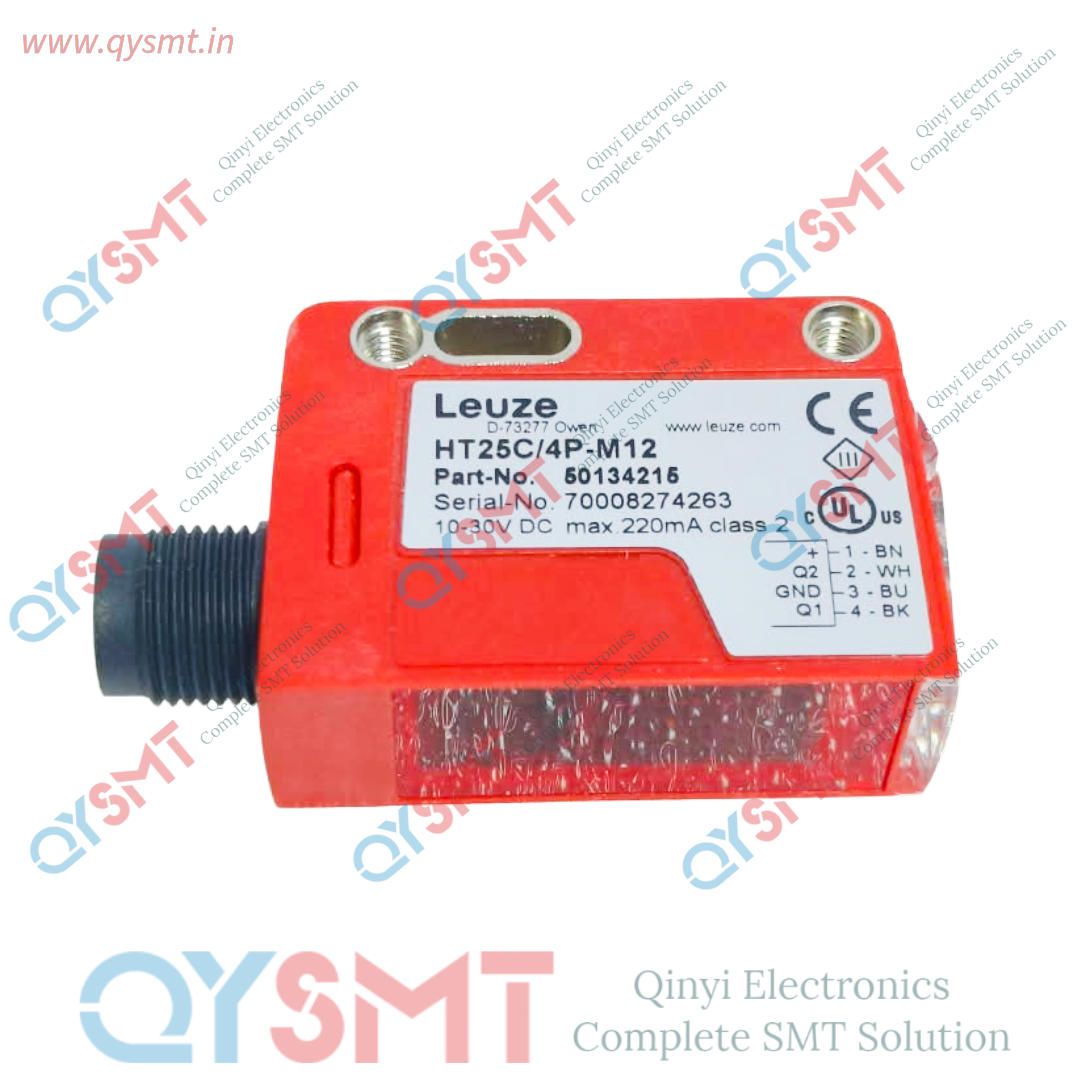

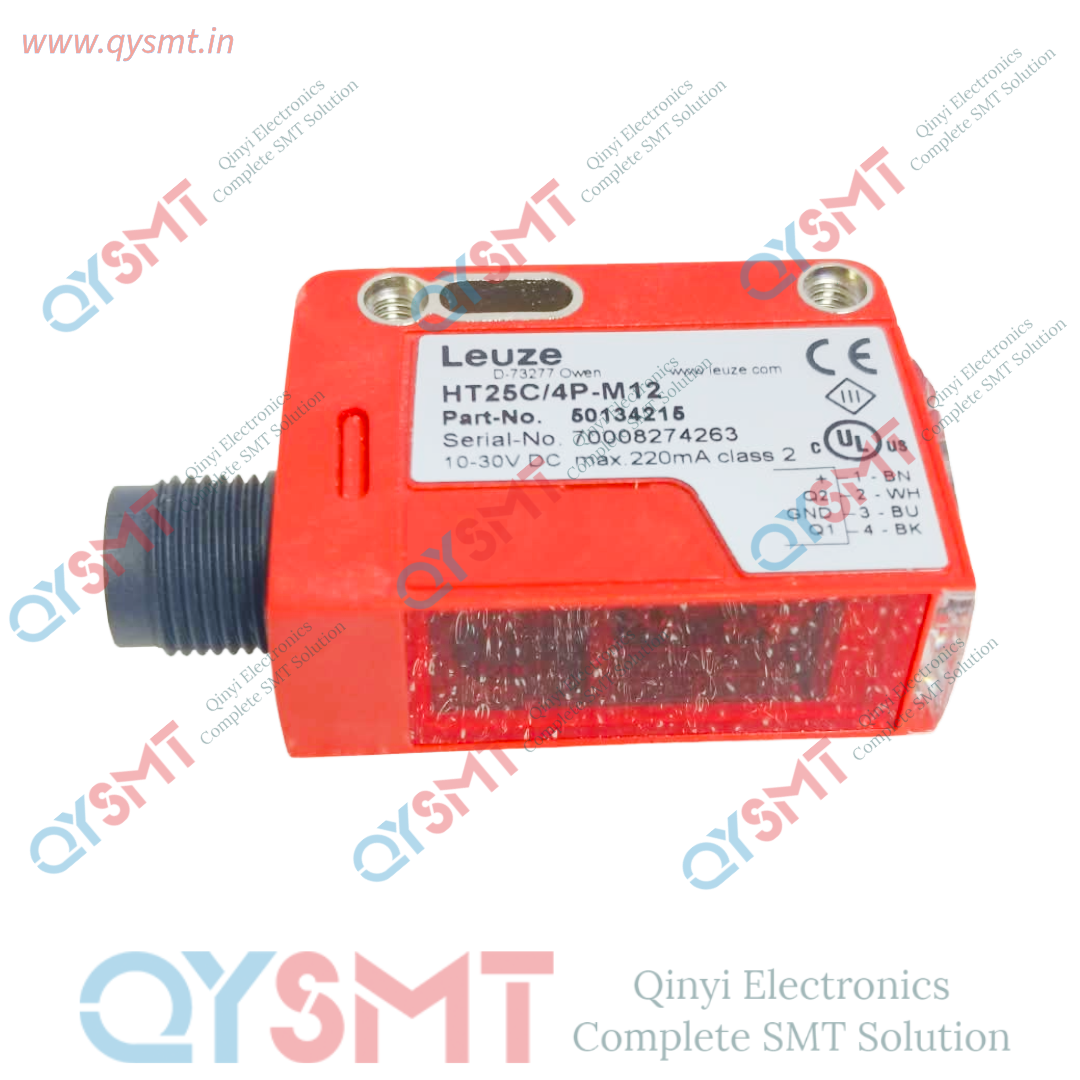

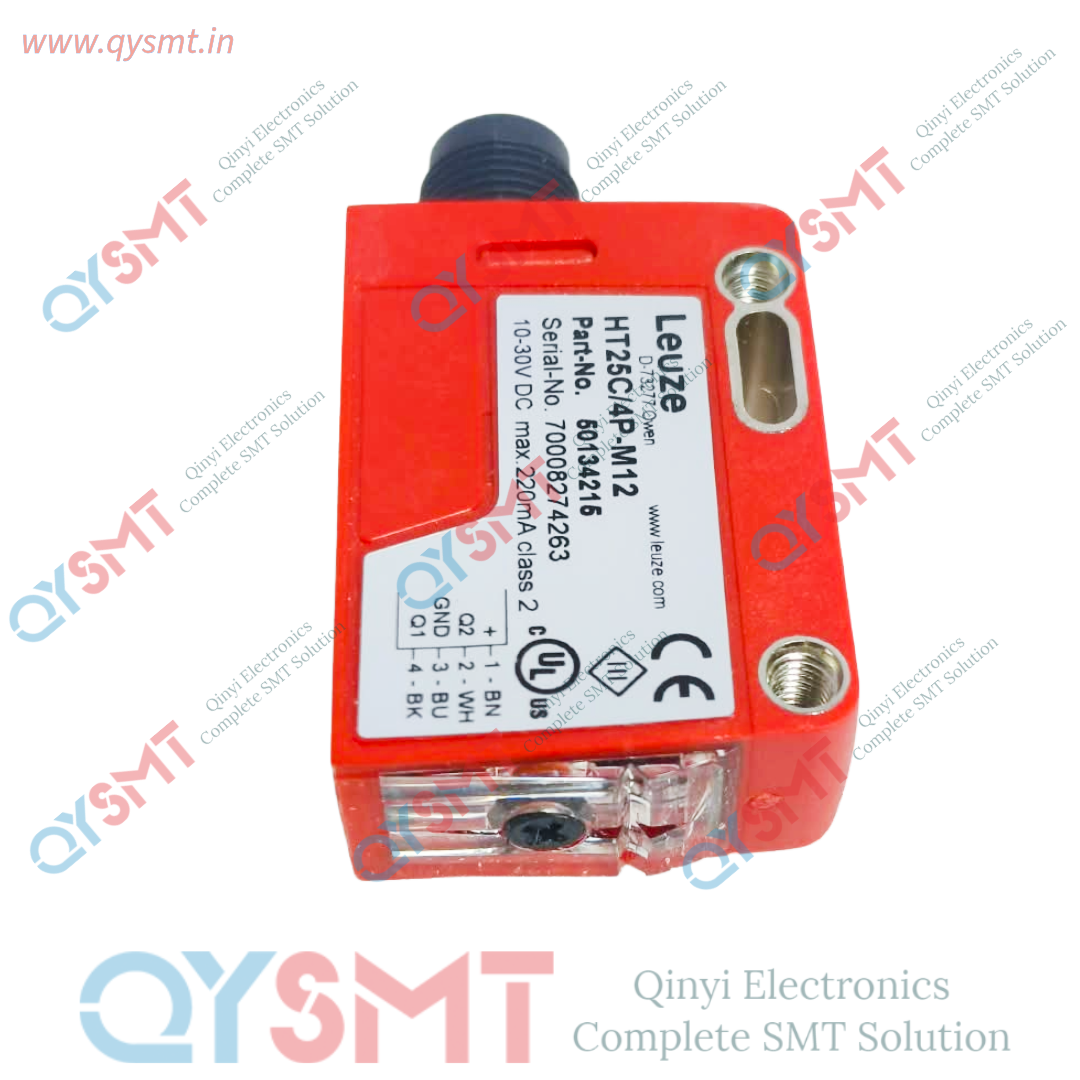

HT25C/4P-M12 ( 50134215 DIFFUSE SENSOR ,MAKE LEUZE
Key Technical Specifications

• Operating Range: 0 to 1.2 meters against a standard 90% white target.
  • Gray (18% reflectivity): 0.005 to 0.75 m.
  • Black (6% reflectivity): 0.005 to 0.65 m.
• Adjustment Range: 50 mm to 1,200 mm, configured via a multi-turn potentiometer
• Light Source: Pulsed Red LED (640 nm wavelength).
• Black-White Error: Extremely low tracking variance (< 10% deviation up to 400 mm).
• Electrical Outputs: Dual digital switching outputs configured as standard PNP transistors.
  • OUT 1: Light switching.
  • OUT 2: Dark switching.
• Supply Voltage: 10 to 30 V DC.
• Response Time & Frequency: Extremely rapid 0.5 ms response time supporting a switching frequency of 1,000 Hz.
• Connection Interface: Standard M12, 4-pin, A-coded male connector made o
• Housing & Environmental: Compact cubic ABS plastic housing (15 x 42.7 x 30 mm) certified with heavy-duty IP67 and IP69K protection ratings alongside ECOLAB material compatibility, making it resilient to aggressive washdowns and temperatures ranging from -40°C to 60°C.
