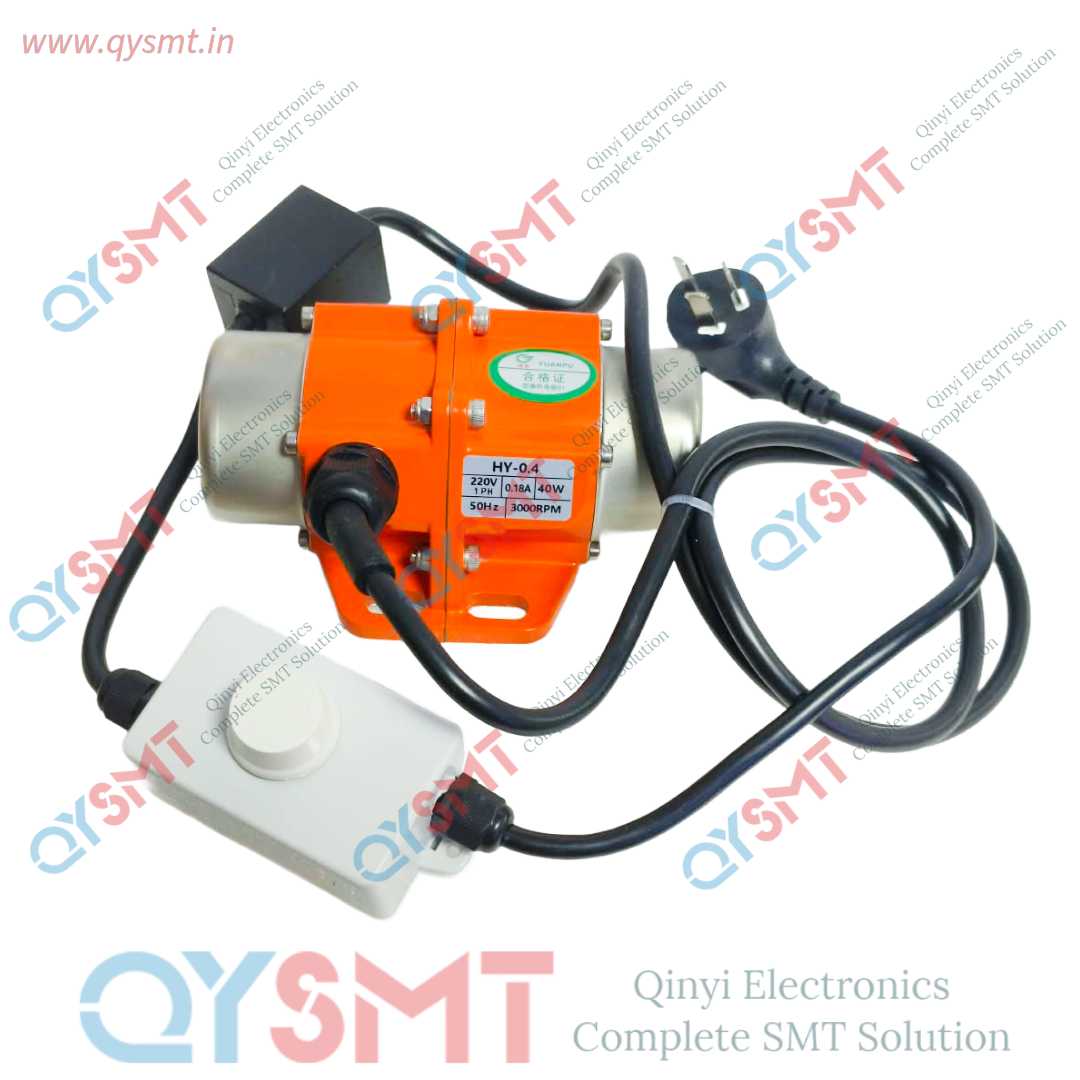

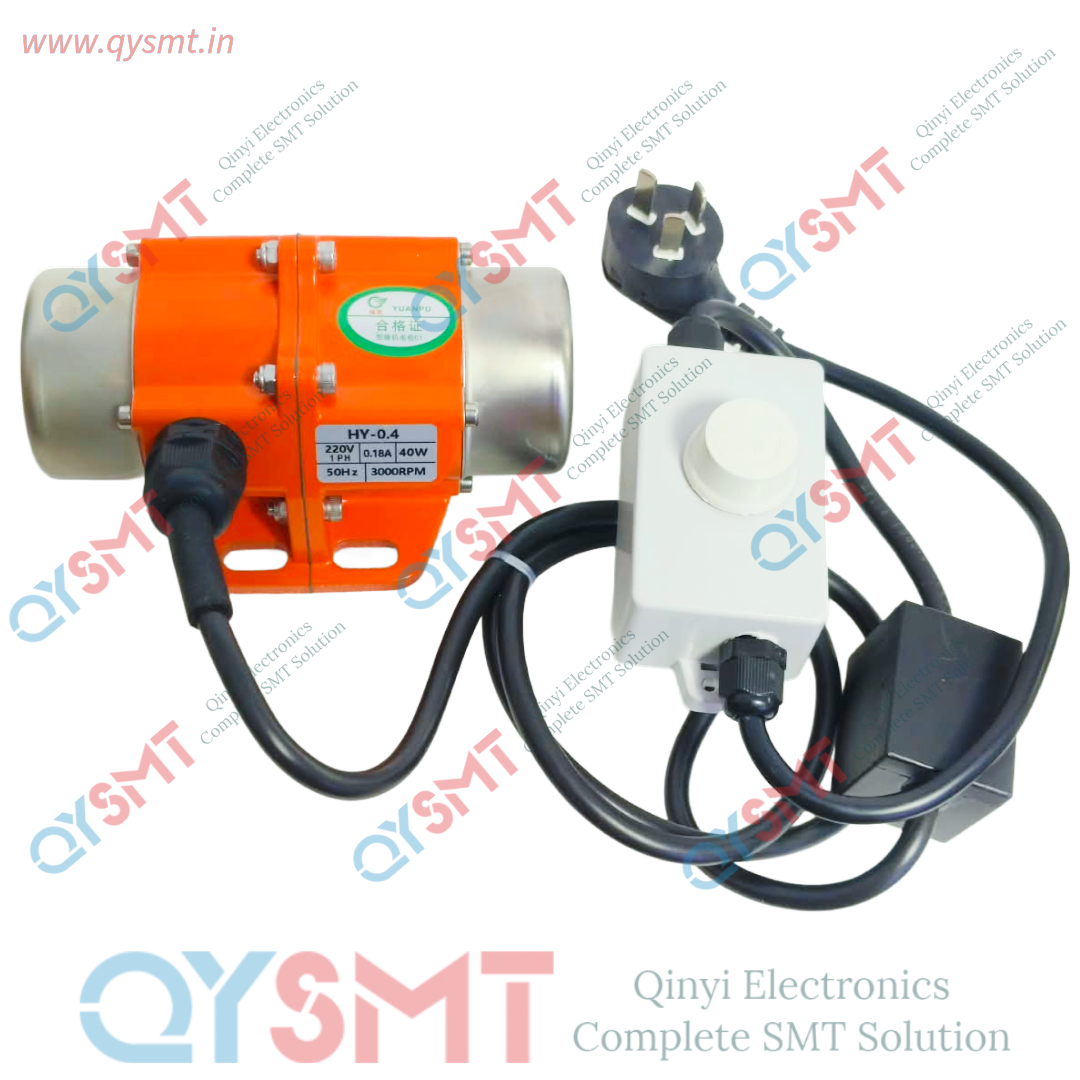

HY 0.4 40W + SPEED CONTROLLER VIBRATOR KUFOO 40WATT 220VOLTS
Key Specifications

• Model: HY-0.4
• Power Output: 40 Watts
• Input Voltage: 220V AC (Single-Phase, 50Hz/60Hz
• Current: ~0.18A to 0.19A
• Maximum Speed: 3000 RPM (at 50Hz) or 3600 RPM (at 60Hz)
• Vibration Force: Generates approximately 25 kg (0.25 kN) of excitation force.
• Build Material: Durable aluminium alloy shell with a pure copper winding core.
• Protection Class: Typically IP65 or IP66 dust-proof and waterproof sealing.

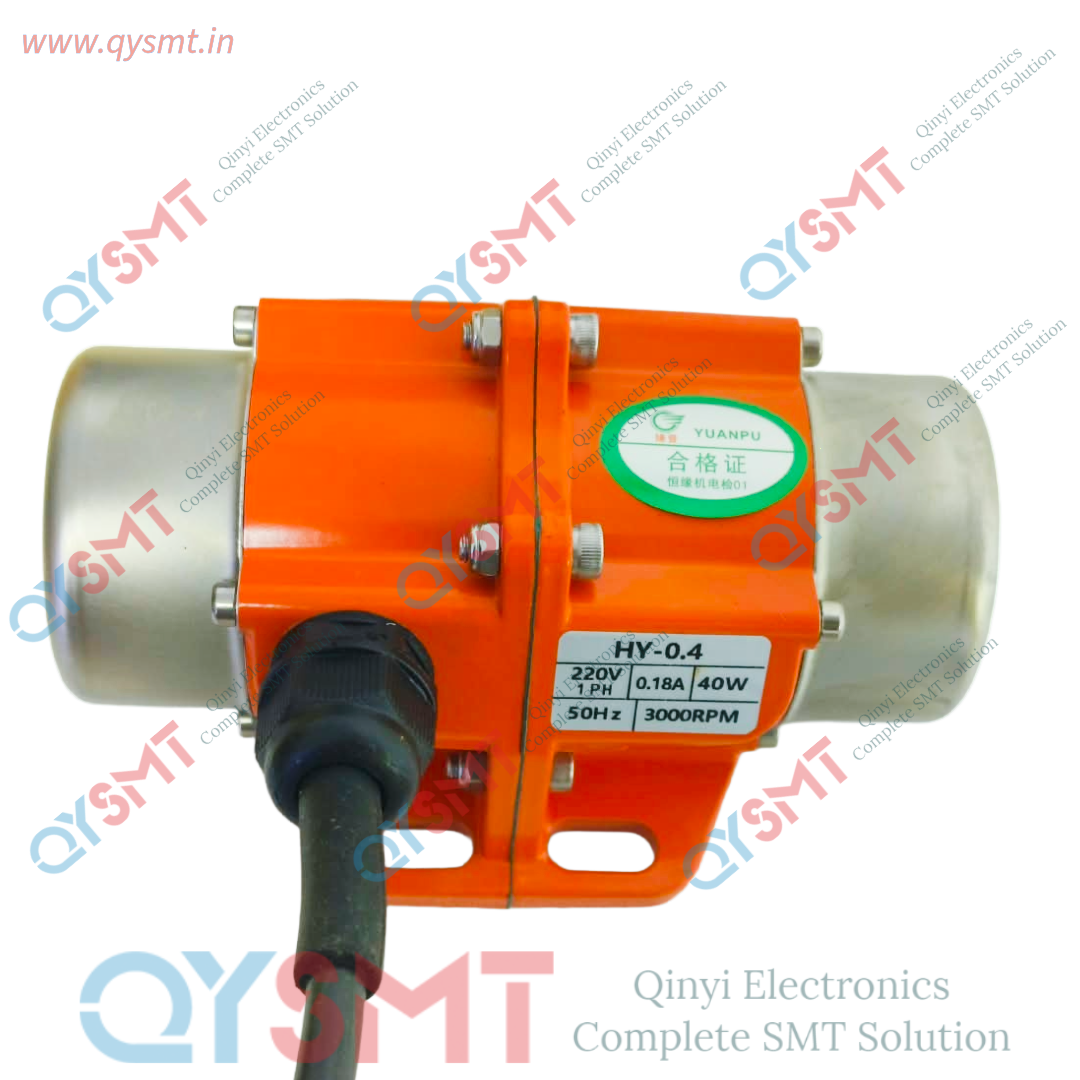

Understanding the Kit Components1. The HY-0.4 Vibrator MotorThis asynchronous motor utilizes an adjustable eccentric block on both ends of the rotor shaft. By adjusting the angle of these weights, you can mechanically increase or decrease the default vibration amplitude to match your machinery needs. 2. The Speed Controller (Governor)The external speed controller allows for stepless electronic regulation of the motor speed, which correspondingly alters the vibration frequency and force
