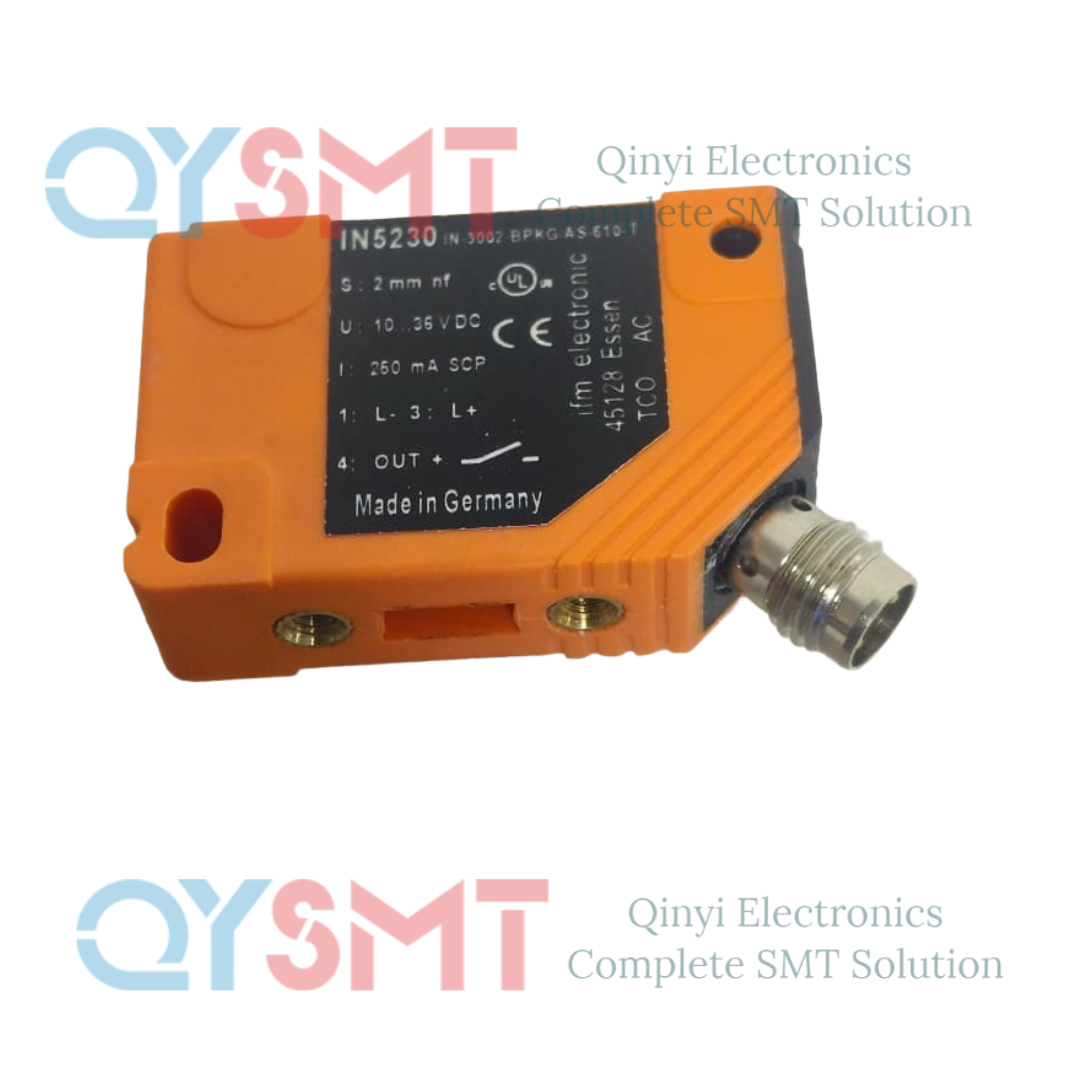

IN5230 Inductive Sensor

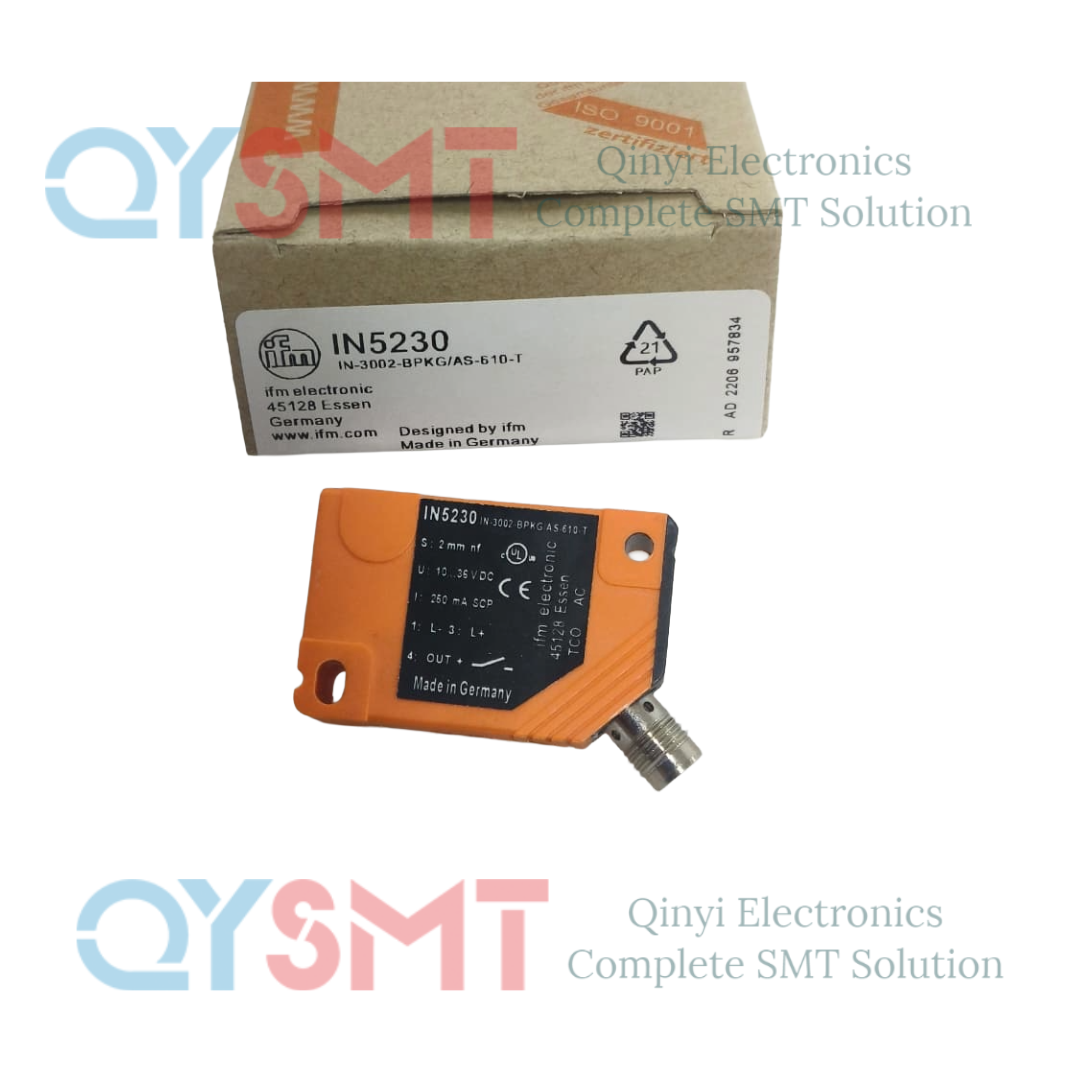

IFM IN5230 Inductive Sensor The ifm IN5230 is a specific industrial automation sensor designed for the non-contact detection of metallic targets, often used for end position monitoring.

• Sensing Range: It has a 2 mm sensing range with flush installation.
• Output Function: It features a PNP, normally open (NO) output.
• Operating Voltage: It operates with a supply voltage of 10 to 36 V DC.
• Housing: The sensor has a space-saving, rectangular PBT plastic housing with an M8 connector.
• Protection: It has a high protection rating of IP67, making it suitable for demanding industrial environments.

1N5230 Zener Diode The 1N5230 (or 1N5230B) is a standard electronic component, specifically a 500mW Zener diode used in clamping applications and protection circuits.

• Zener Voltage: It has a nominal Zener voltage of 4.7V.
• Power Dissipation: It has a maximum power dissipation of 500 mW.
• Package Type: It is typically available in a through-hole, 2-pin DO-35 mechanical package.
• Features: According to Futurlec, it features low leakage current and an accurate working voltage.
