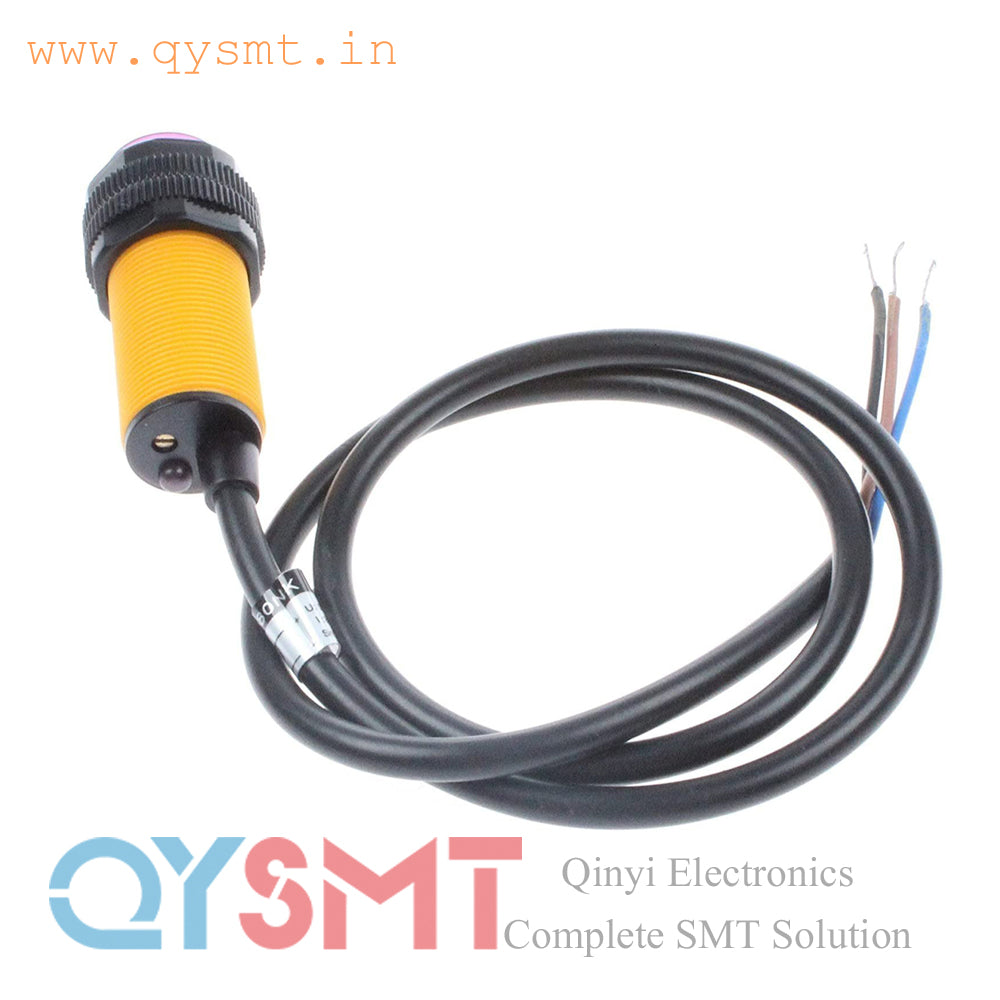

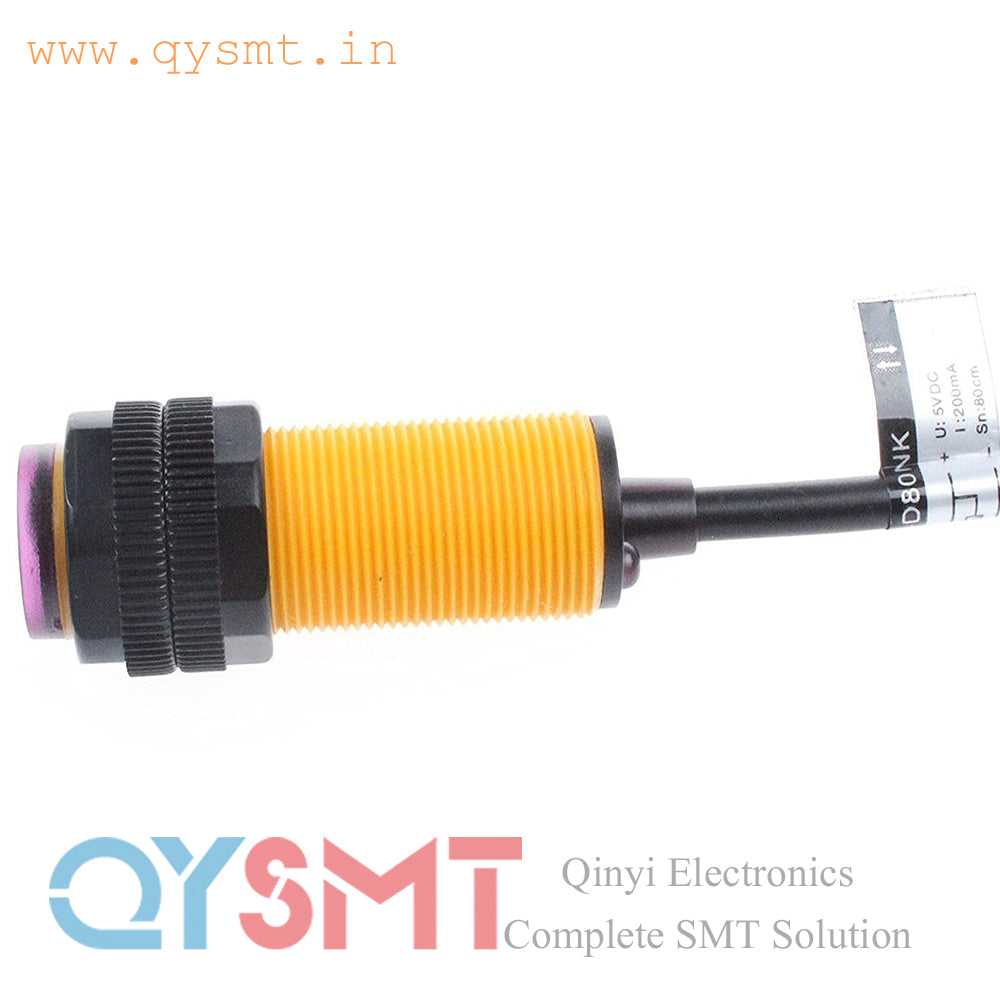

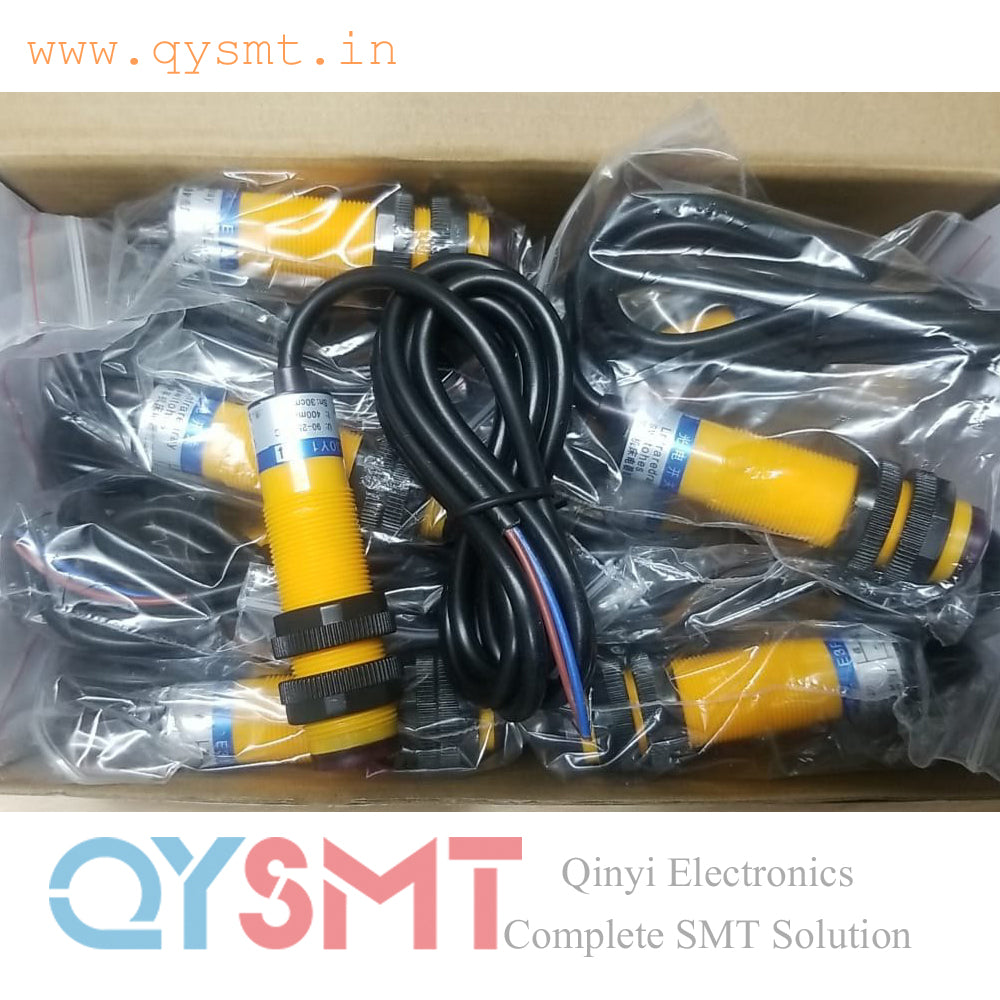

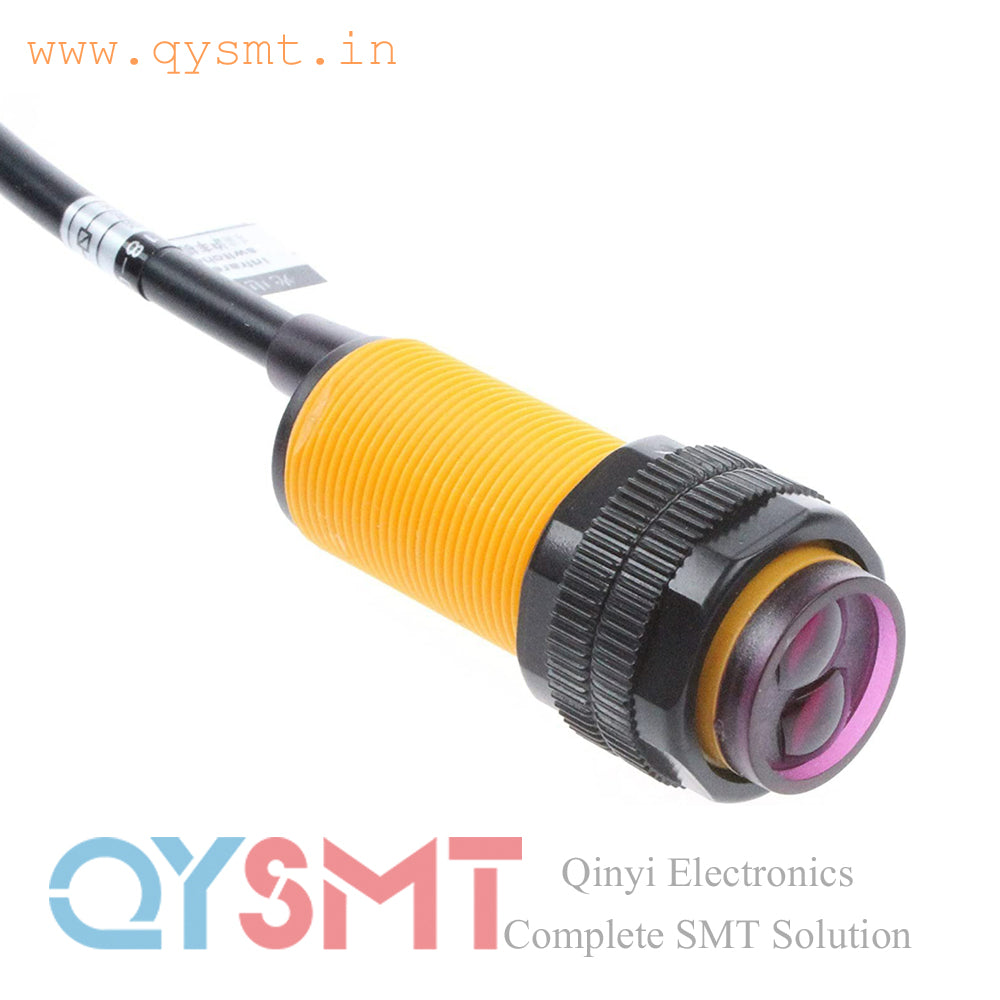

E3F-DS30Y1 and E3F DS30Y2 Diffuse Reflection Photoelectric Switch Sensor
E3F-DS30Y1 E3F DS30Y2 Diffuse Reflection Photoelectric Switch Infrared Sensor E3F-DS30Y2 2-wire AC 220V 380V 36V Normally Closed, E3F-DS30Y2 30cm NC Obstacle Distance Sensor.
The E3F-DS30Y1 and E3F-DS30Y2 are AC two-wire, diffuse-reflective photoelectric sensors within the E3F series. The primary difference between the two models is their output type: the E3F-DS30Y1 has a Normally Open (NO) output, while the E3F-DS30Y2 has a Normally Closed (NC) output.
| Feature |
E3F-DS30Y1
|
E3F-DS30Y2
|
|---|---|---|
| Output Type | Normally Open (NO) | Normally Closed (NC) |
| Sensing Method | Diffuse-reflective | Diffuse-reflective |
| Connection | 2-wire AC | 2-wire AC |
| Working Voltage | 90–250V AC | 90–250V AC |
| Sensing Distance | 5–30 cm (adjustable) | 5–30 cm |
| Shell Material | ABS Plastic | ABS Plastic |
| Protection | IP67 | IP67 |
Working
- Diffuse-reflective: Both sensors send out a beam of infrared light. They detect an object when the emitted light reflects off it and is received by the sensor's receiver.
-
Normally Open (NO): For the
E3F-DS30Y1, the output signal is typically "off" and only switches "on" when an object is detected within its sensing range.
- Normally Closed (NC): For the E3F-DS30Y2, the output signal is typically "on" and switches "off" when an object is detected.
- Material handling and logistics
- Conveyor systems
- Packaging lines
