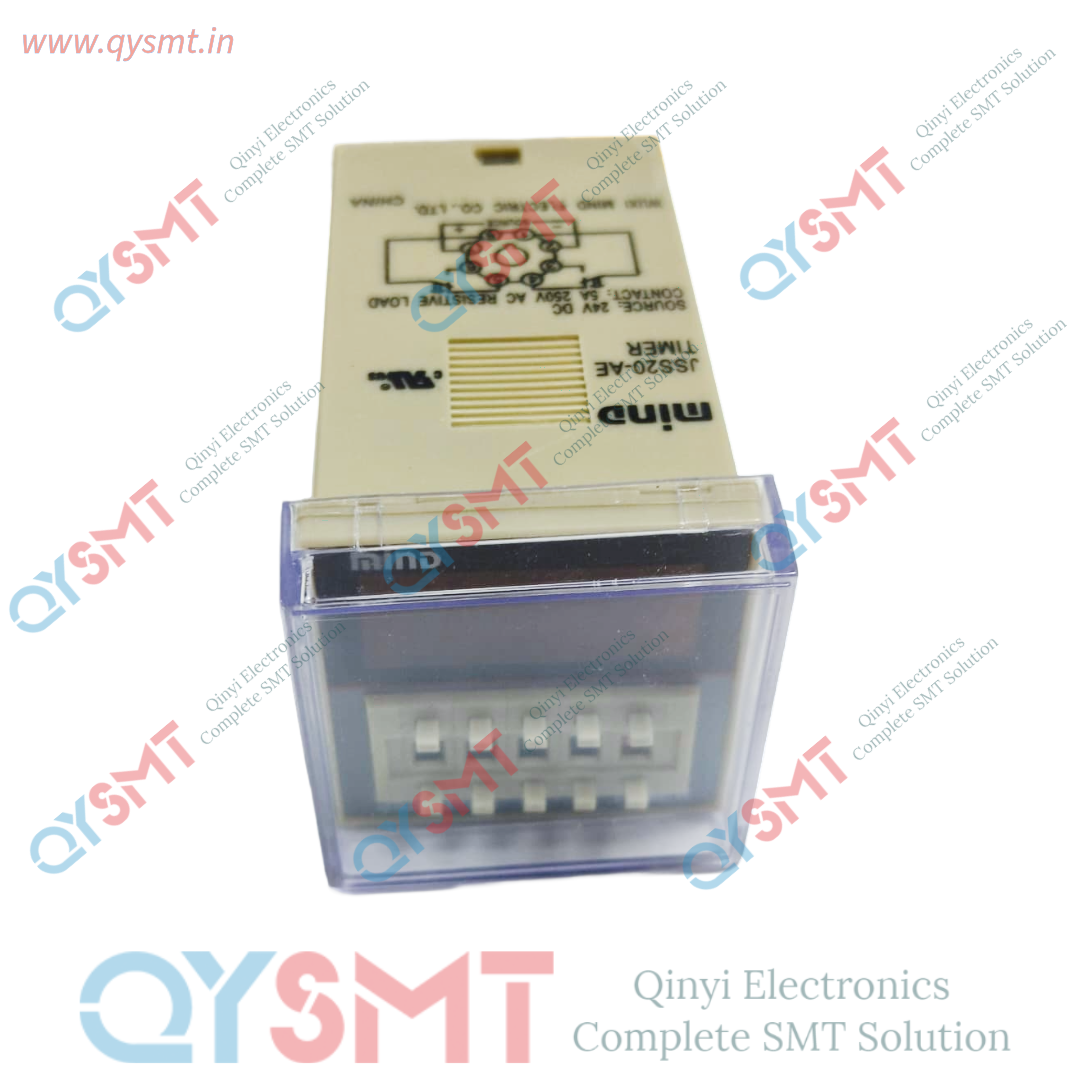

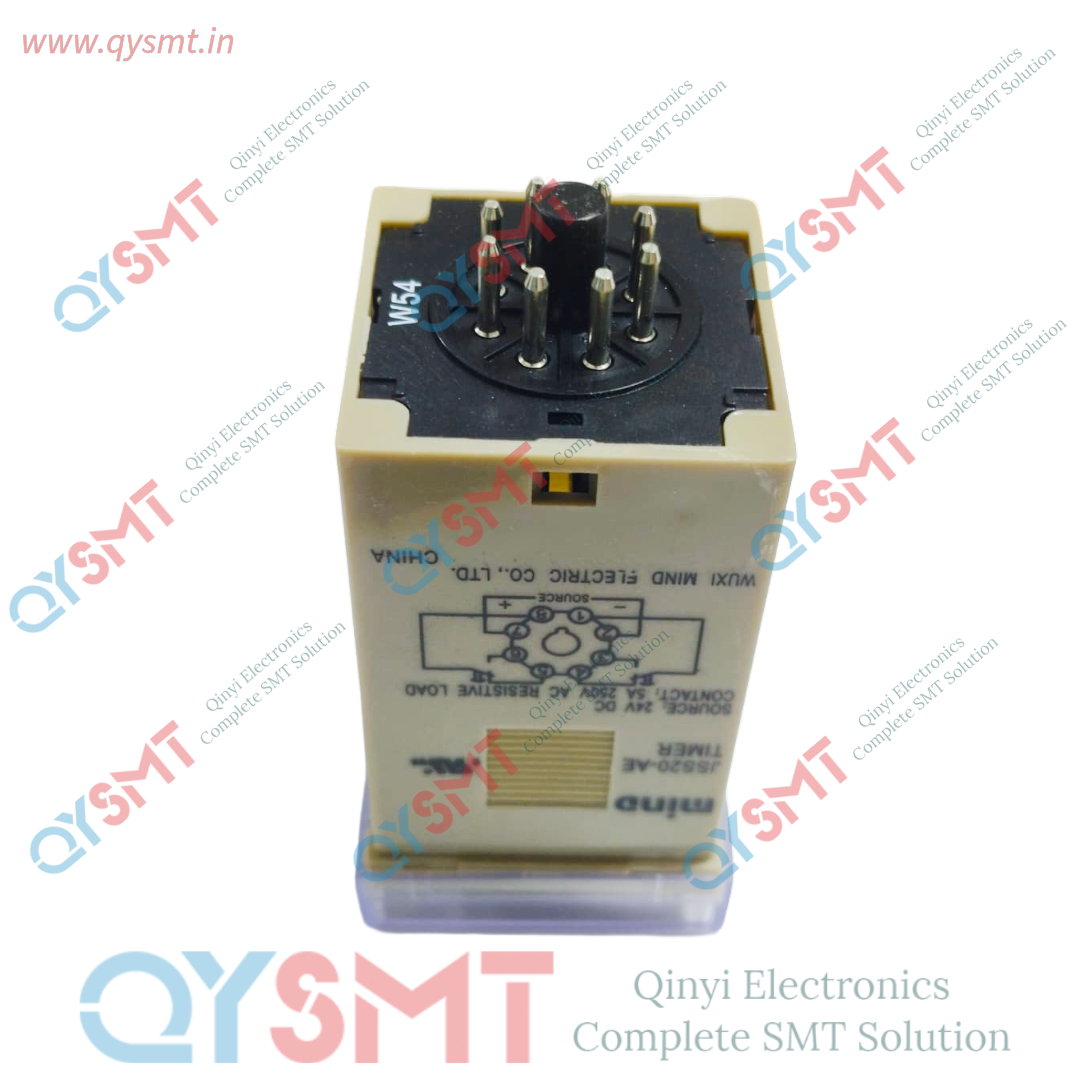

JSS20-AE DC24V Timer relay
JSS20-AE DC24V Timer relay
Contact Seller :- Call or Whatsapp +91 9319902096 harshita@qysmt.in
Contact Seller :- Call or Whatsapp +91 9319902096 harshita@qysmt.in
Call or Whatsapp
+91 9319902096
Email: harshita@qysmt.in
JSS20-AE DC24V Timer relay
| Timer Type | On Delay |
| Time Range | 0.1–10 s |
| Supply Voltage | 24 V DC |
| Output Contacts | 2 C/O |
| Mounting Type | Panel Flush |
| Display Type | Dial with LED |
| Reset Type | Power Reset |
| Availability | In Stock |
JSS20-AE DC24V Timer relayKey Features and Specifications (JSS20 Series)
- Operating Voltage: DC 24V (also available in AC, supported in various listings).
- Time Range: Programmable 0.01 seconds to 999 hours.
- Display: 4-digit LED display for, often red, showing delay progress.
- Operation Mode: On-delay.
- Contact Capacity: 5A at 250V AC/30V DC.
- Reset Function: Includes a reset/pause terminal (1, 3) for re-starting the timer.
- Mounting: Socket base / Panel type.
- Usage Notes

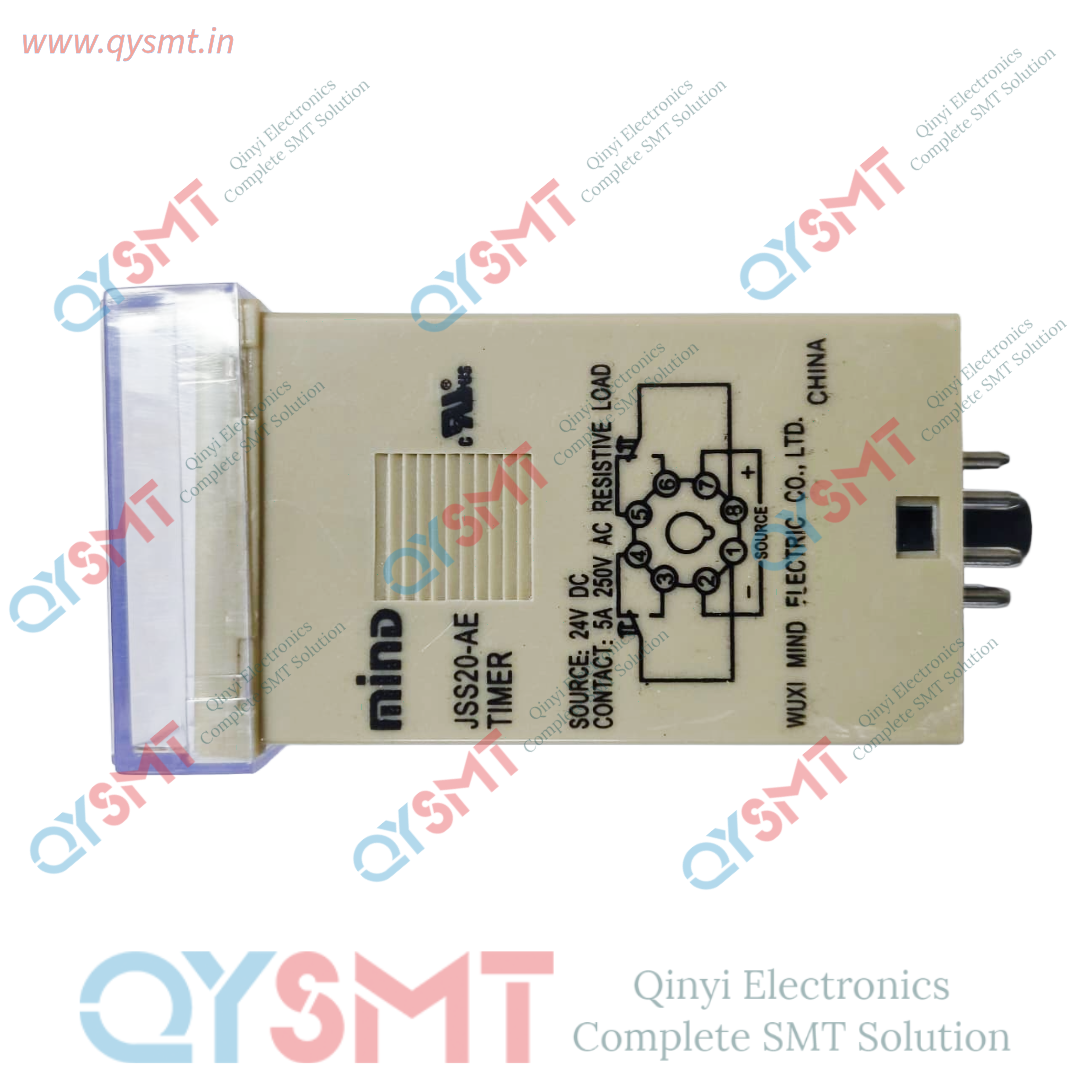

- Ensure wiring matches the specific terminal diagram for the JSS20-AE/JSS20-48AMS, commonly found on the side of the unit.
- The device requires 85-110% of the rated voltage for stable operation.
- A protective cover is included for safe, durable usage.
