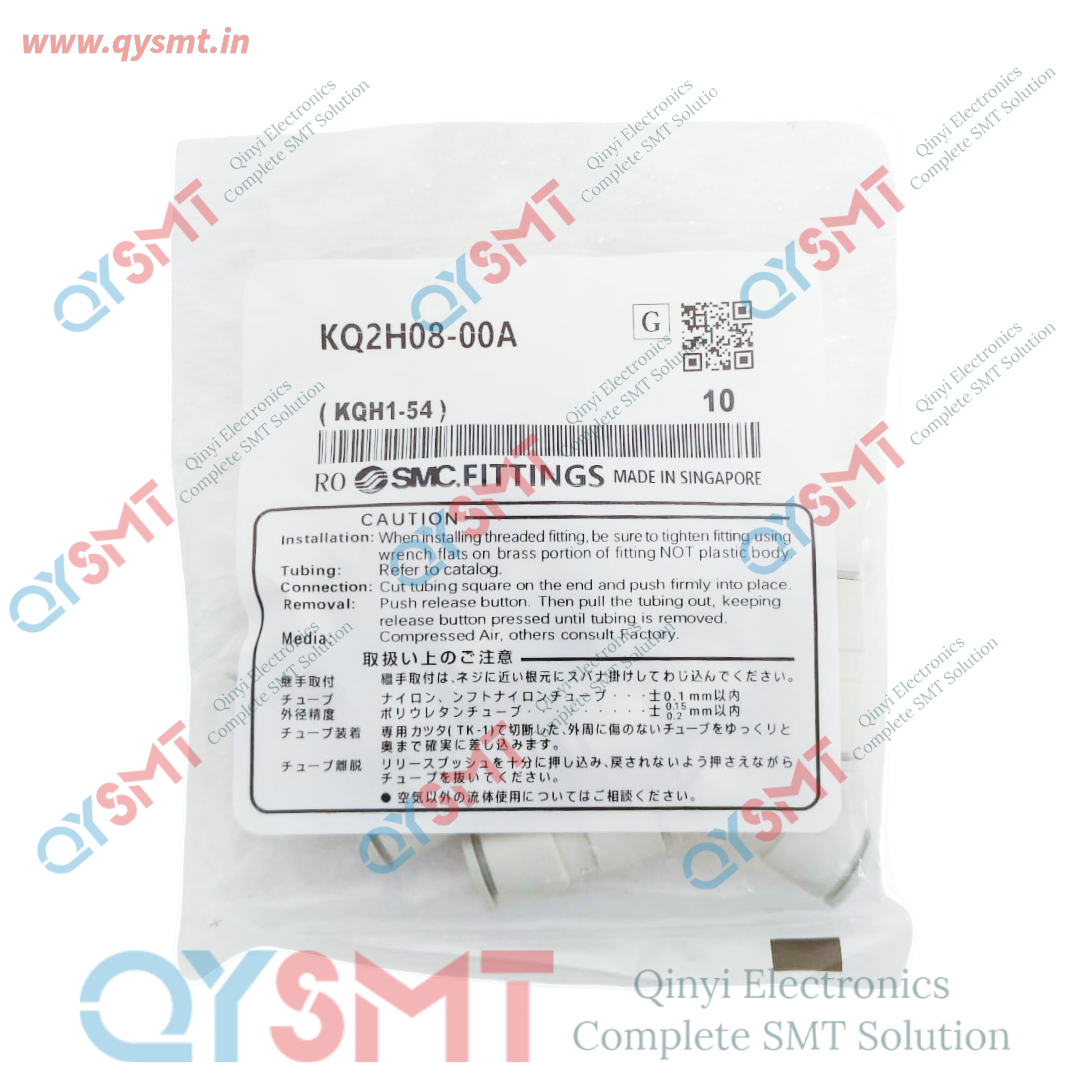

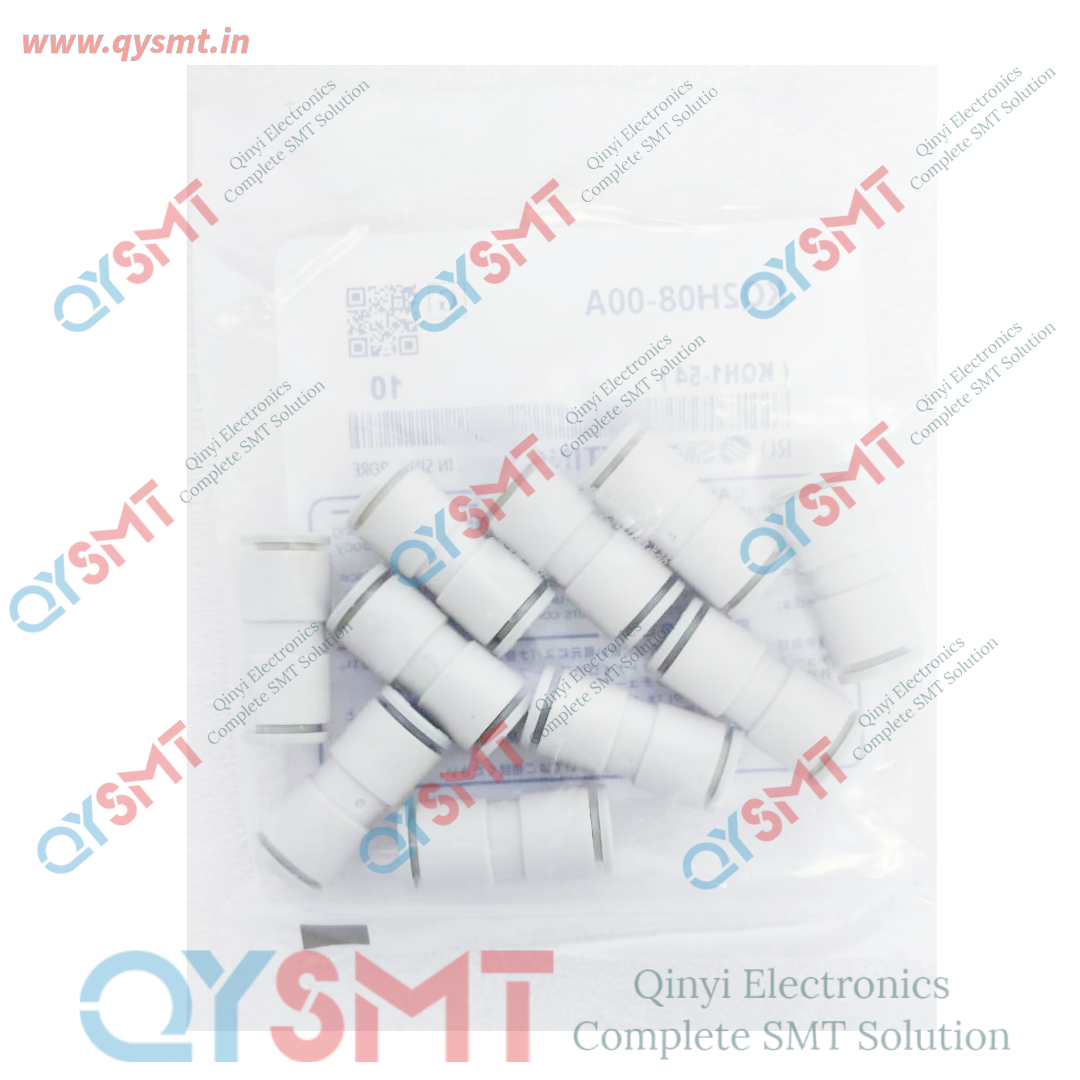

KQ2H08-00A FITTING SMC

KQ2H08-00A FITTING SMC
Key Technical SpecificationsAccording to official product documentation from  the fitting adheres to these parameters:

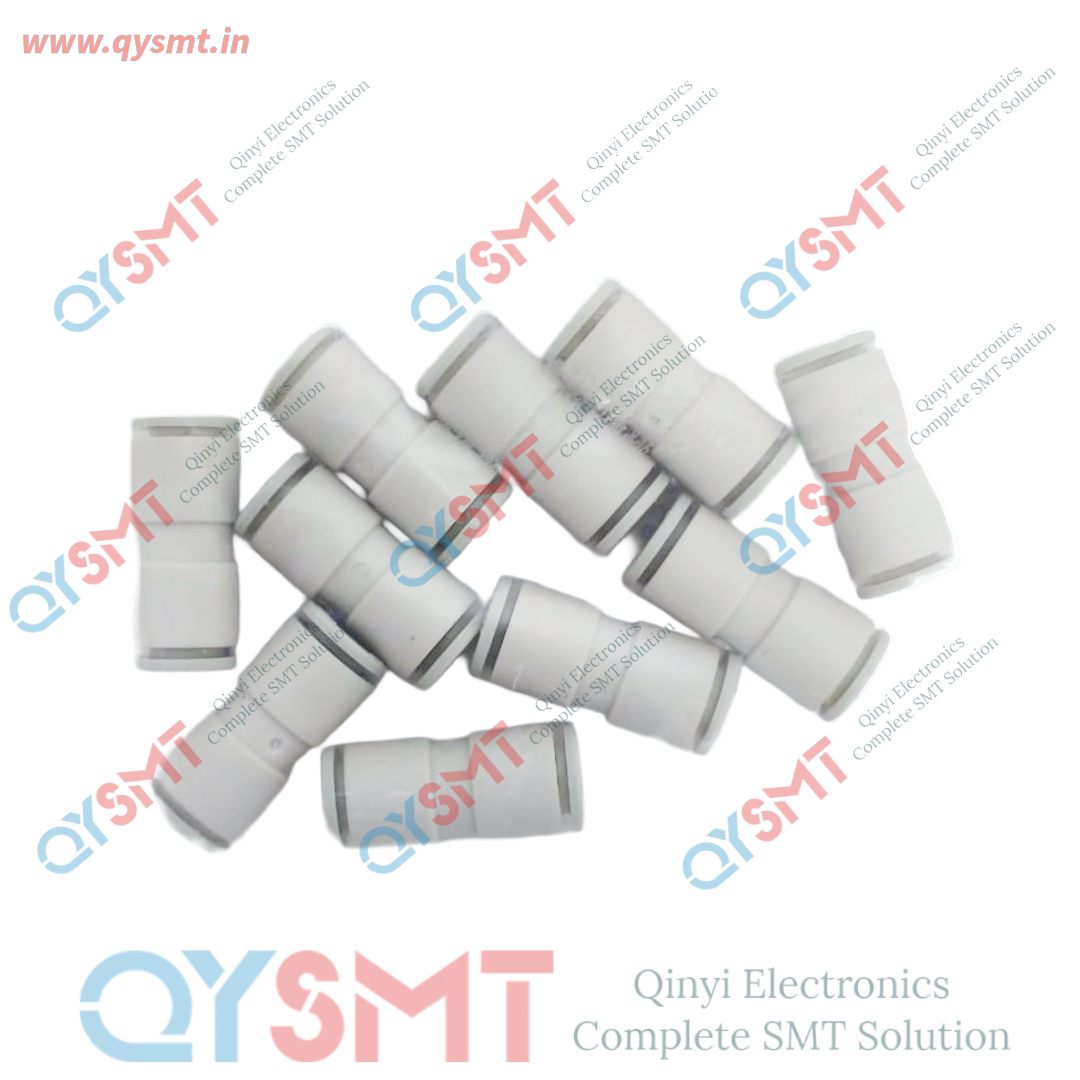

• Fitting Shape: Straight Union / Inline Splice
• Connection Type: 8 mm Push-In to 8 mm Push-In (Equal Diameter)
• Applicable Fluids: Compressed Air and Industrial Water
• Operating Pressure Range: -100 kPa to 1.0 MPa (-1 to 10 bar)
• Proof / Burst Pressure: 3.0 MPa
• Fluid Temperature (Air): -5°C to 60°C
• Fluid Temperature (Water): 0°C to 40°C (No freezing allowed)
• Body Materials: PBT Resin body, Polyoxymethylene (POM) release button, Nitrile Rubber (NBR) seals
• Compatible Tubing: Nylon, Soft Nylon, Polyurethane (PU), FEP, and PFA

Core Product Advantages

• Low Disconnection Force: The engineered chuck and collet design minimizes the physical force required to release the tube. This effectively prevents the internal teeth from biting deeply and scratching the tubing walls.
• Positive Sealing Under Pressure: Features a unique internal packing structure that provides a secure seal without reducing fluid flow, avoiding the restrictions standard in brass compression alternatives.
• Vacuum Compatible: Capable of handling negative pressure down to -100 kPa, making it highly versatile for standard automation systems.
