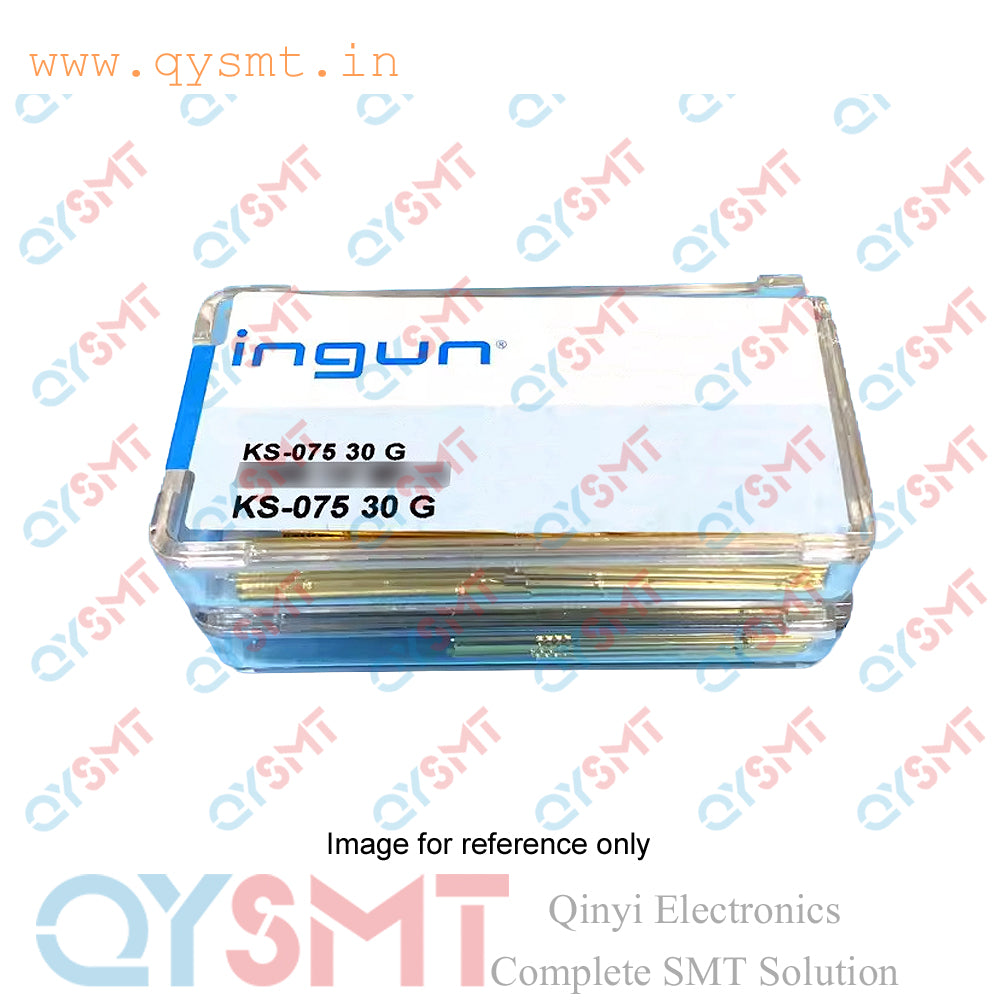

INGUN Gold-plated Test Probe Receptacle (socket) KS-075 30G

Test Probe Socket KS 075 30G Receptacle Solder Type, KS 075 30 G Socket for Spring-loaded Test Probe

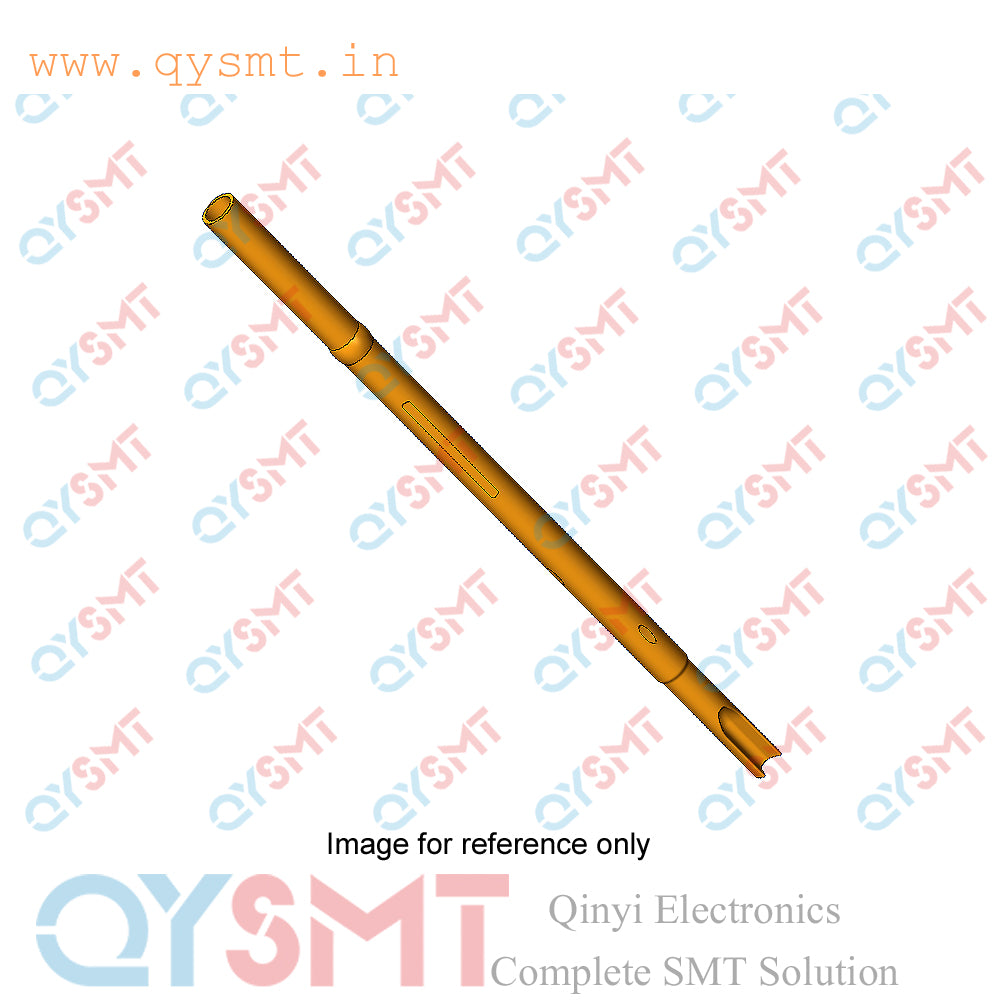

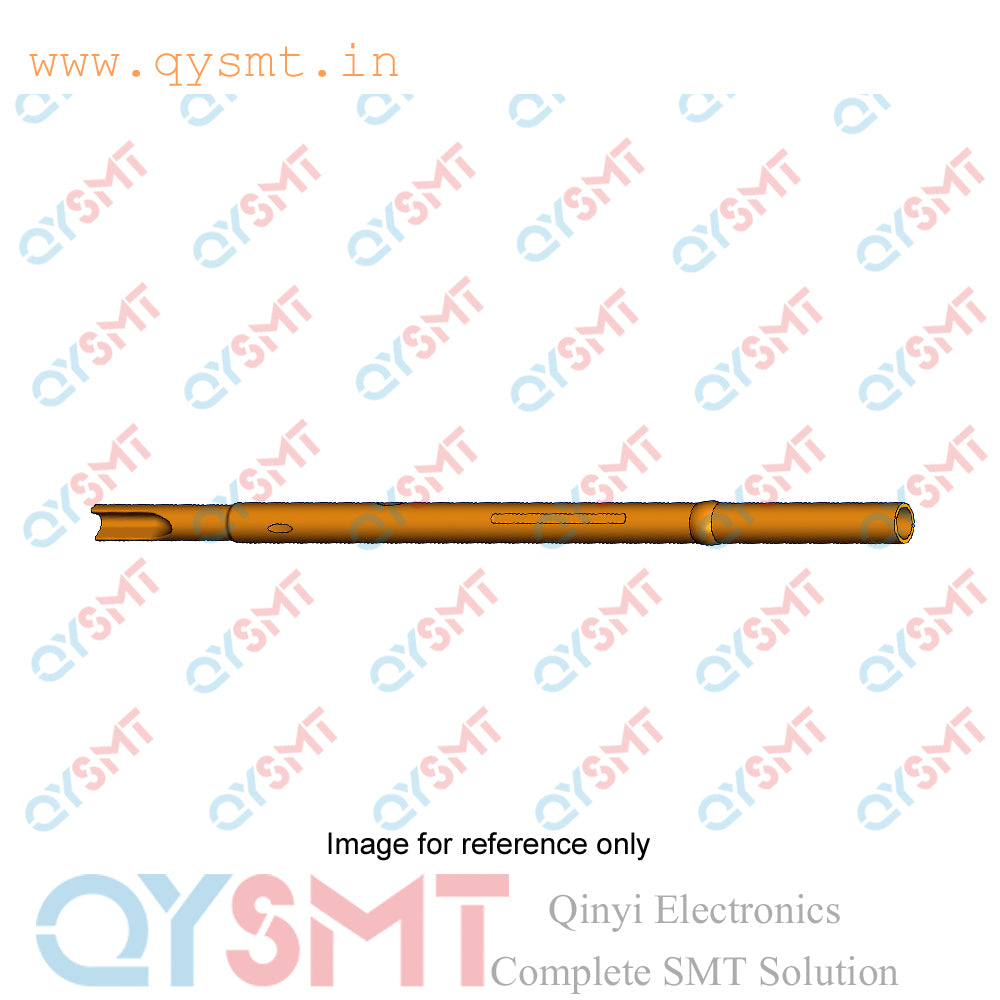

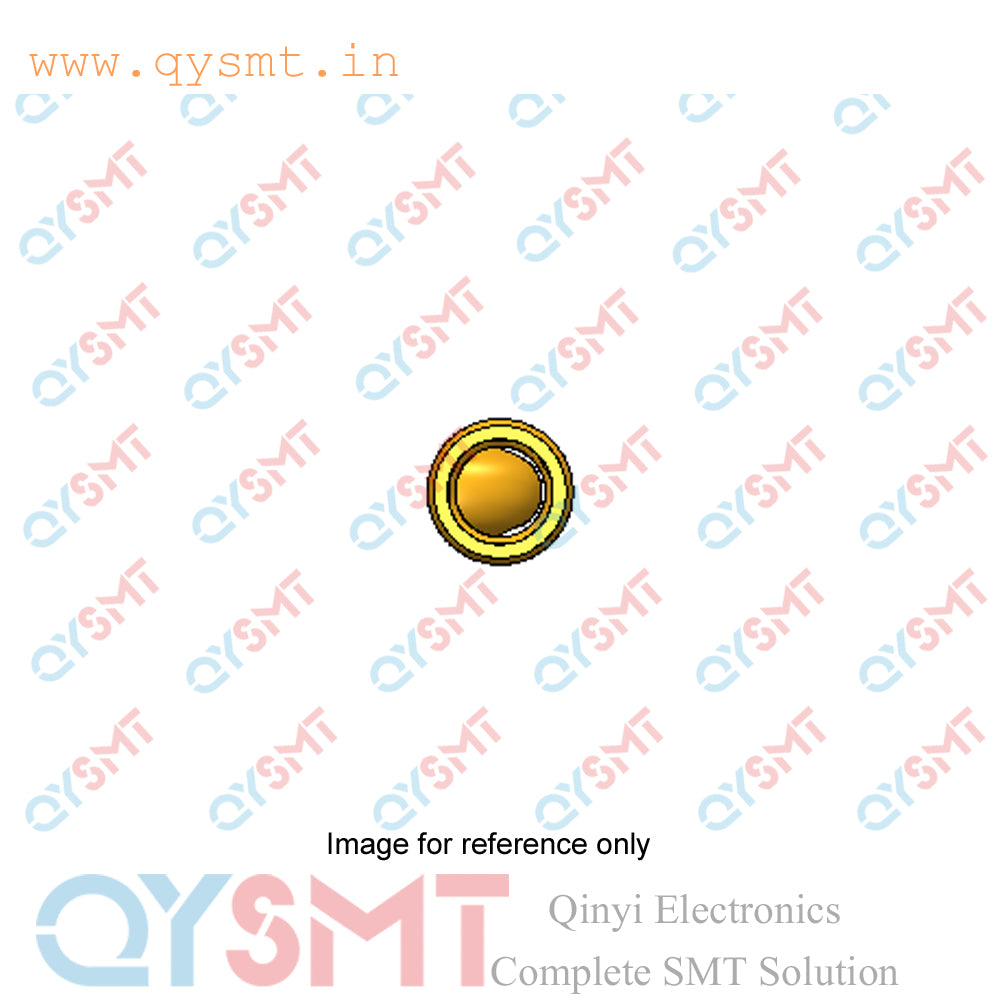

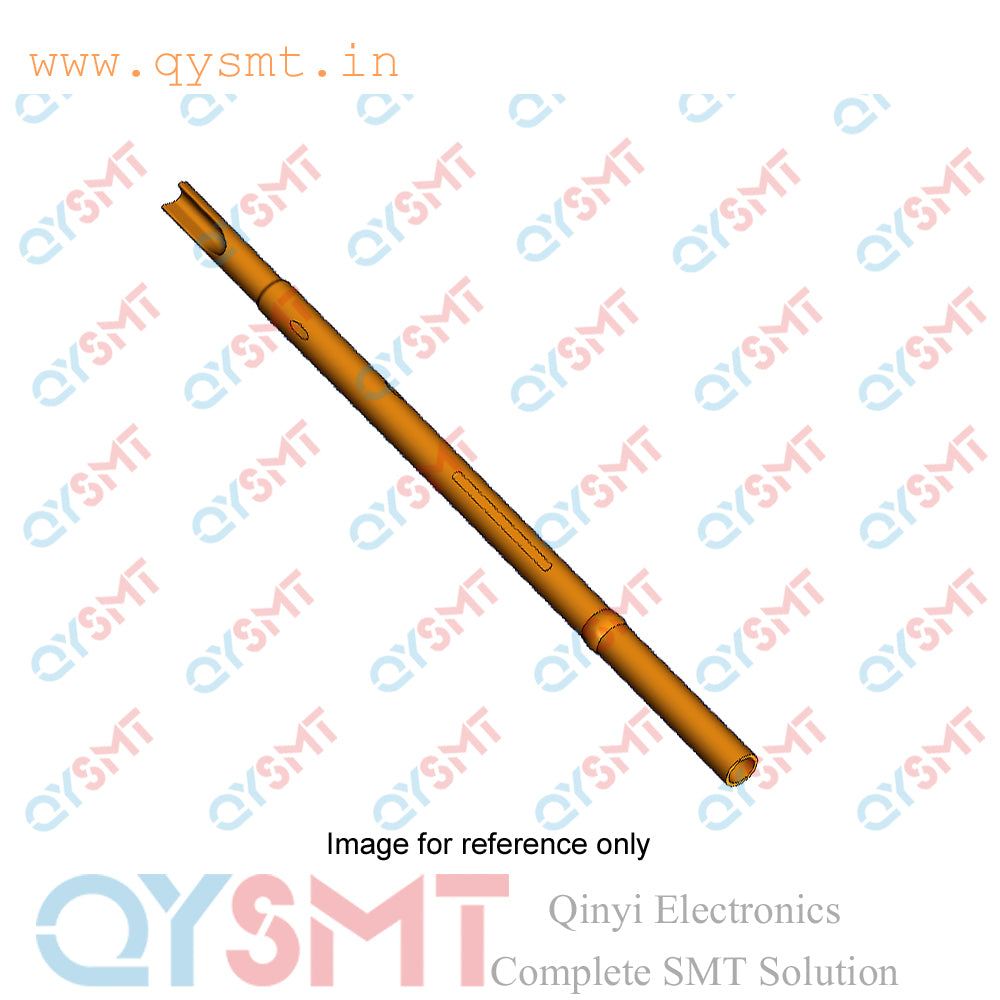

The KS-075 30 G is an INGUN test probe socket, not a standard electrical receptacle. It is a component used for precision electrical testing on printed circuit boards (PCBs).

Specifications

• Purpose: A receptacle or socket for holding test probes (test needles) on a PCB.
• Manufacturer: INGUN Prüfmittelbau GmbH.
• Series: KS-075.
• Contact plating: Gold-plated for reliable connection.
• Connection type: Solder.
• Mounting type: Press-in version.

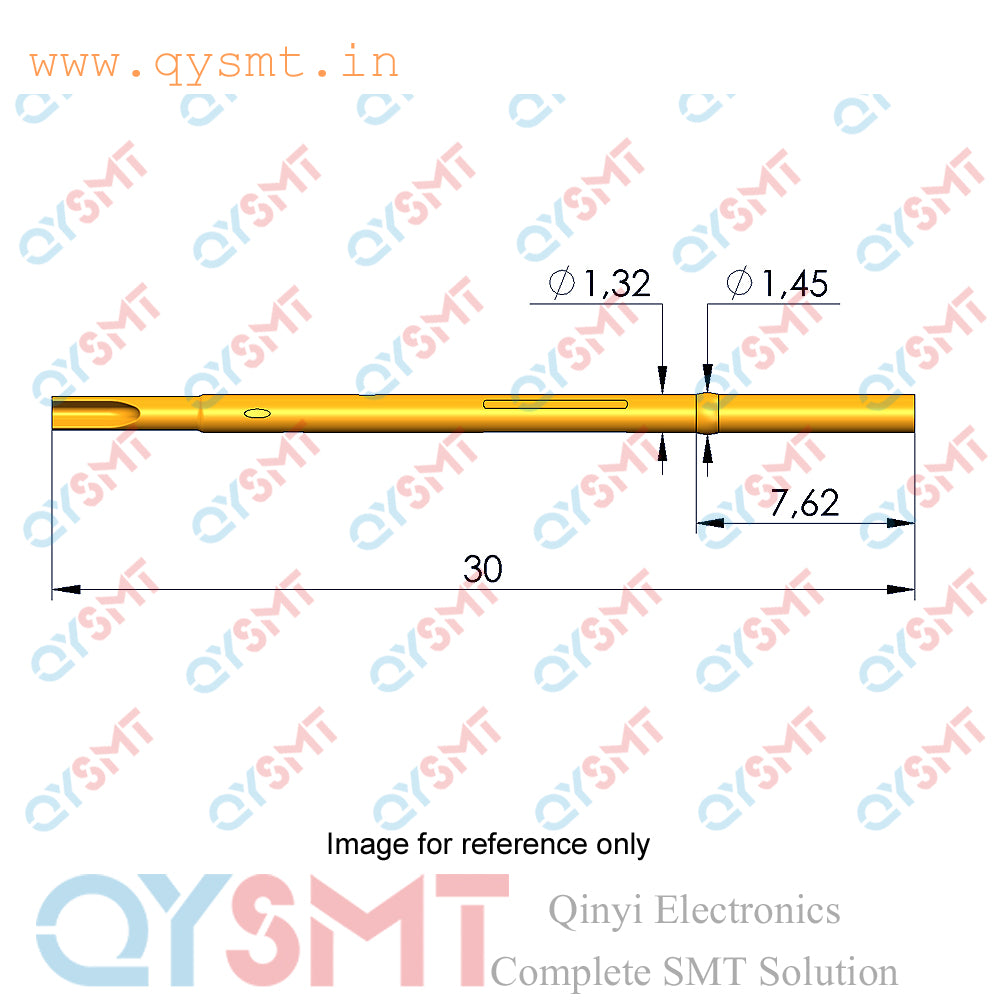

• Mounting hole diameter (in FR4): 1.31–1.33 mm.
• Overall length: 30 mm.
• Application: In-circuit testing (ICT), functional testing (FCT), and other high-density PCB test setups.
• Features:
  • Has a press ring for variable installation height.
  • Not vacuum-sealed.
  • RoHS-compliant.
