INGUN Gold-plated Test Probe Receptacle (socket) KS-100 30G

Test Probe Socket KS 100 30 G Receptacle Solder Type, KS-100 30G Socket for Spring-loaded Test Probe

The KS-100 30 G is a gold-plated, solder-mount test probe receptacle manufactured by INGUN. It is part of the KS-100 series, designed for use with test needles in various testing applications, including in-circuit and functional testing.

Specifications

• Manufacturer: INGUN
• Series: KS-100
• Product Group: Receptacles (KS)
• Sub-series: KS-100 press-in version
• Connection type: Solder
• Surface area: Gold

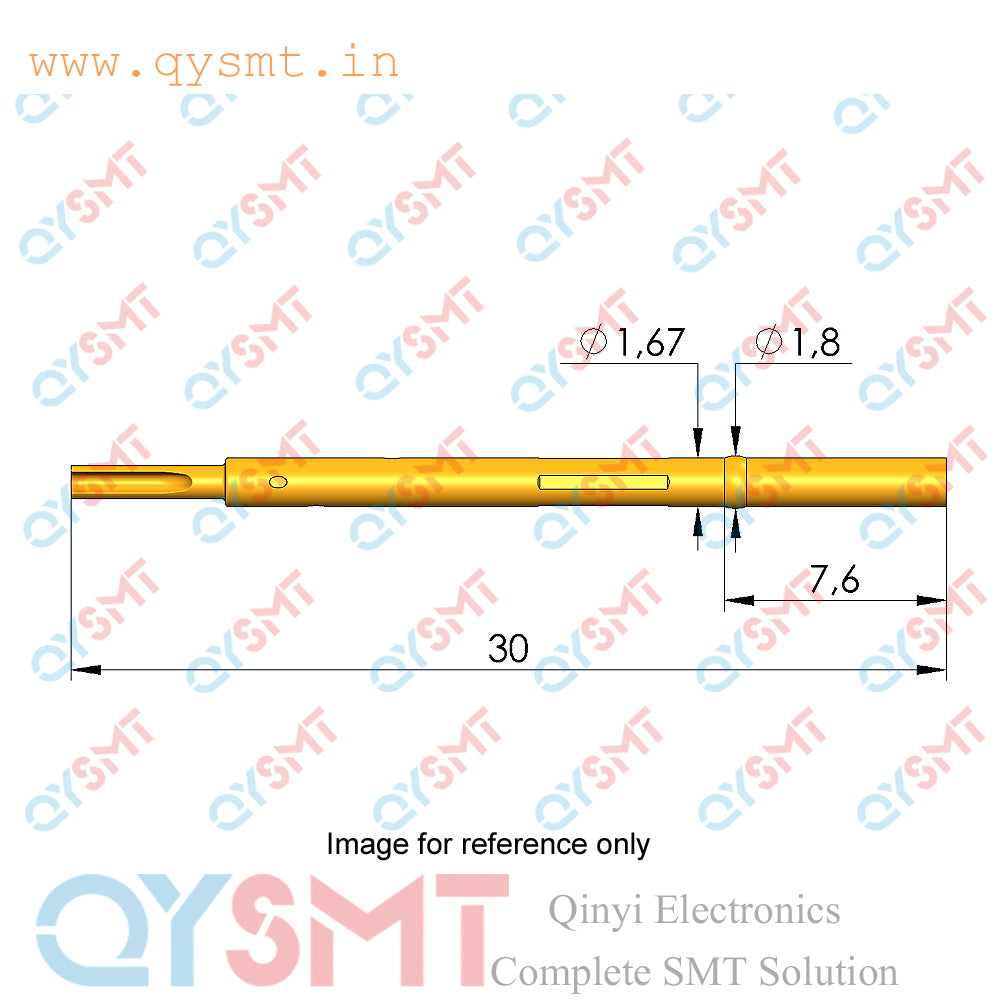

• Total length: 30 mm
• Collar diameter: 1.85 mm
• Collar height: 7.6 mm
• Press ring: Yes
• Knurling: No
• Vacuum-tight: No
• RoHS compliant: Yes (RoHS-3)
