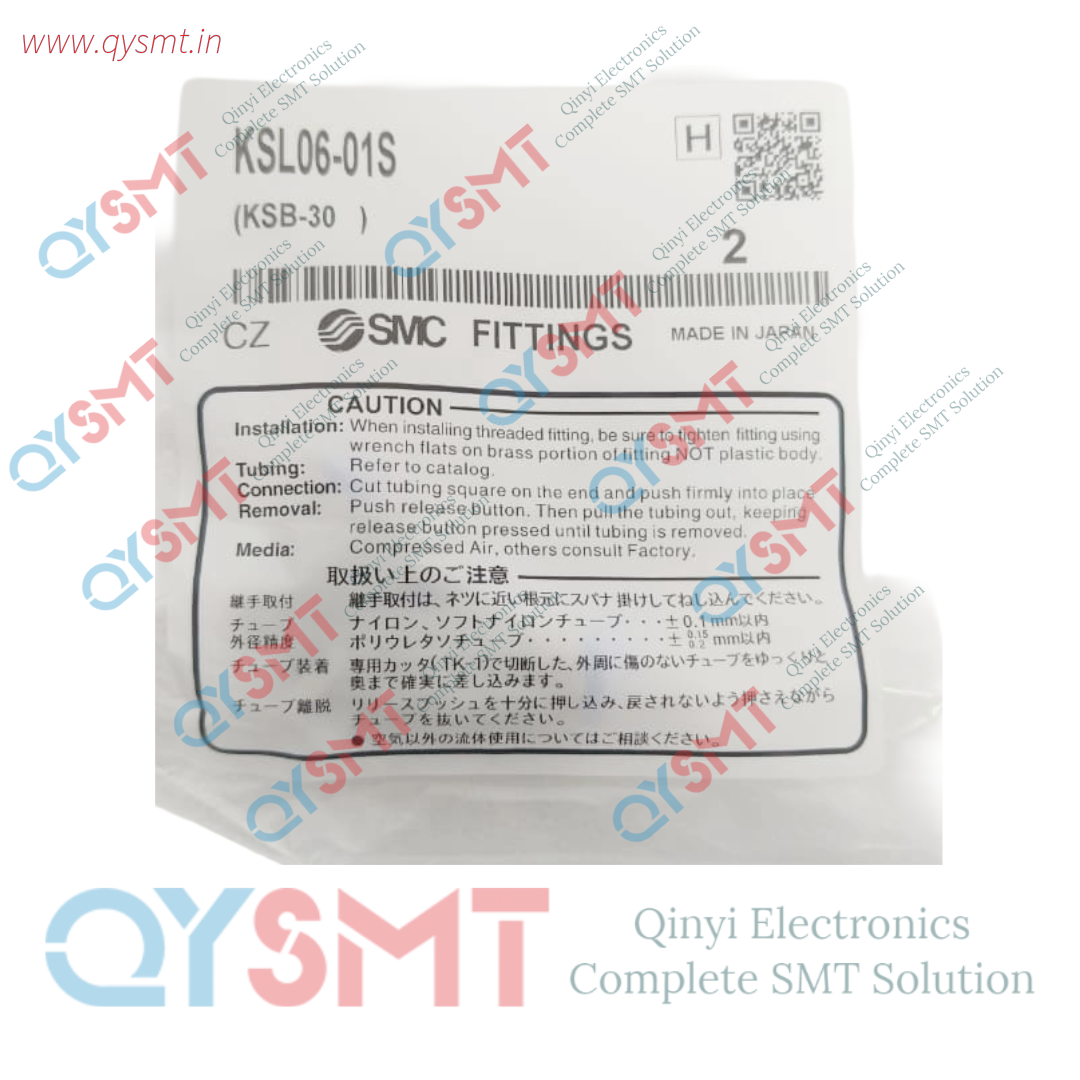

KSL06-01S KSL06-02S SMC ROTARY FITTING

KSL06-01S KSL06-02S SMC ROTARY FITTING
Key SpecificationsAccording to information from sources like RS India, Motion Industries, and SMC Pneumatics, the key specifications of the KSL06-01S are:

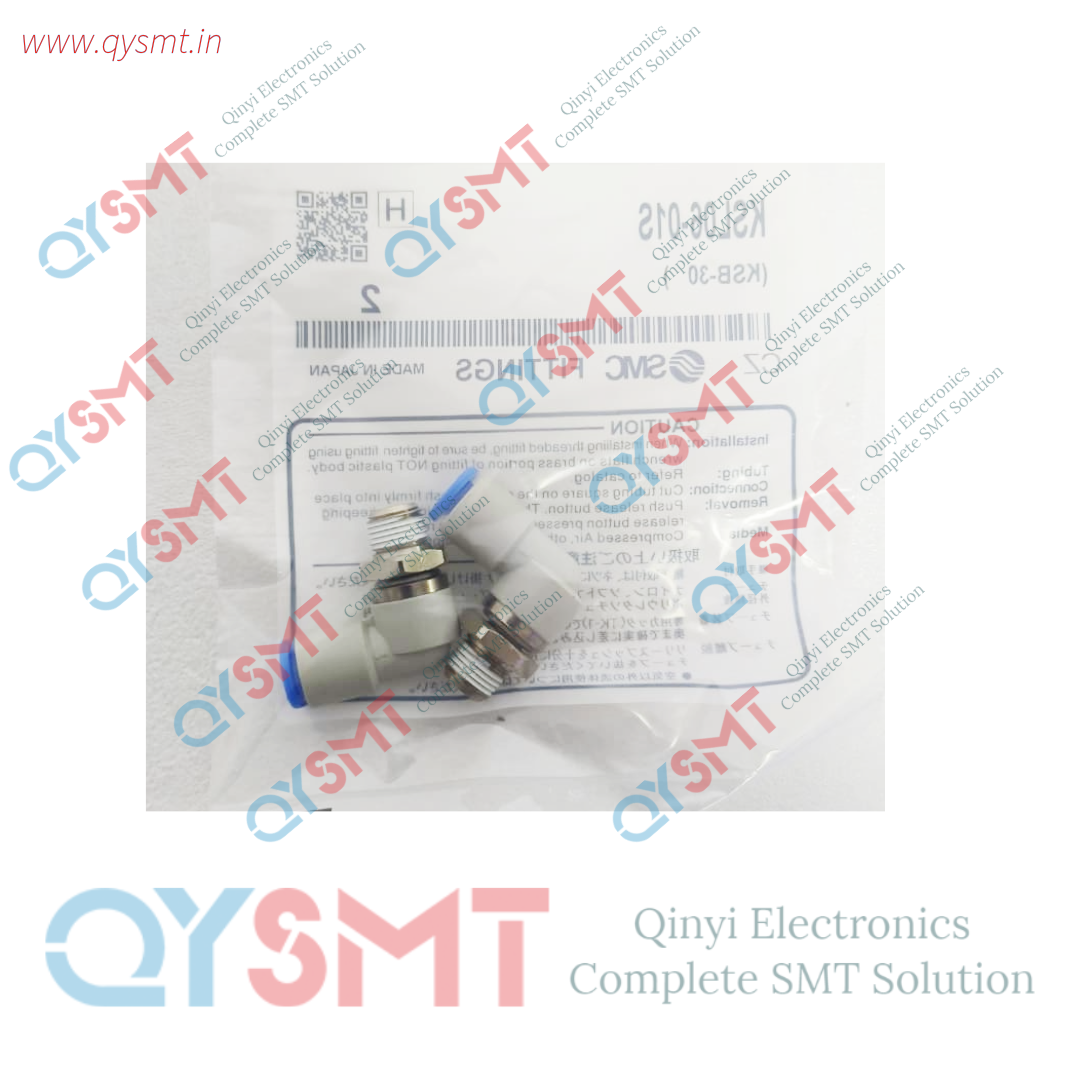

• Fitting Type: Rotary one-touch fitting, male elbow shape (90° angle).
• Connection Style: Threaded-to-tube connection.
• Tube Outer Diameter: 6 mm.
• Threaded Connection: R 1/8 male.
• Maximum Operating Pressure: 1.0 MPa (approx. 10 bar).
• Operating Vacuum Pressure: -100 kPa.
• Ambient & Fluid Temperature: -5 to 60°C (no freezing).
• Maximum Rotational Speed: 500 rpm (for 4mm/6mm tube sizes).
• Body Material: PBT (Polybutylene terephthalate).
• Thread Material: Nickel-plated brass (copper-free specifications).
• Applicable Tubing Material: FEP, PFA, nylon, soft nylon, polyurethane.
• Applicable Fluid: Air.

Key Features

• Rotary Mechanism: Features a double ball race bearing and a special rotary seal for low torque, smooth 360° rotation and long life.
• Tube-rotation prevention: The one-touch collet includes an anti tube-rotation mechanism.
• Copper-free: All brass parts are electroless nickel plated, making it suitable for copper-free applications.
• Sealant: The standard specification includes thread sealant.
•
