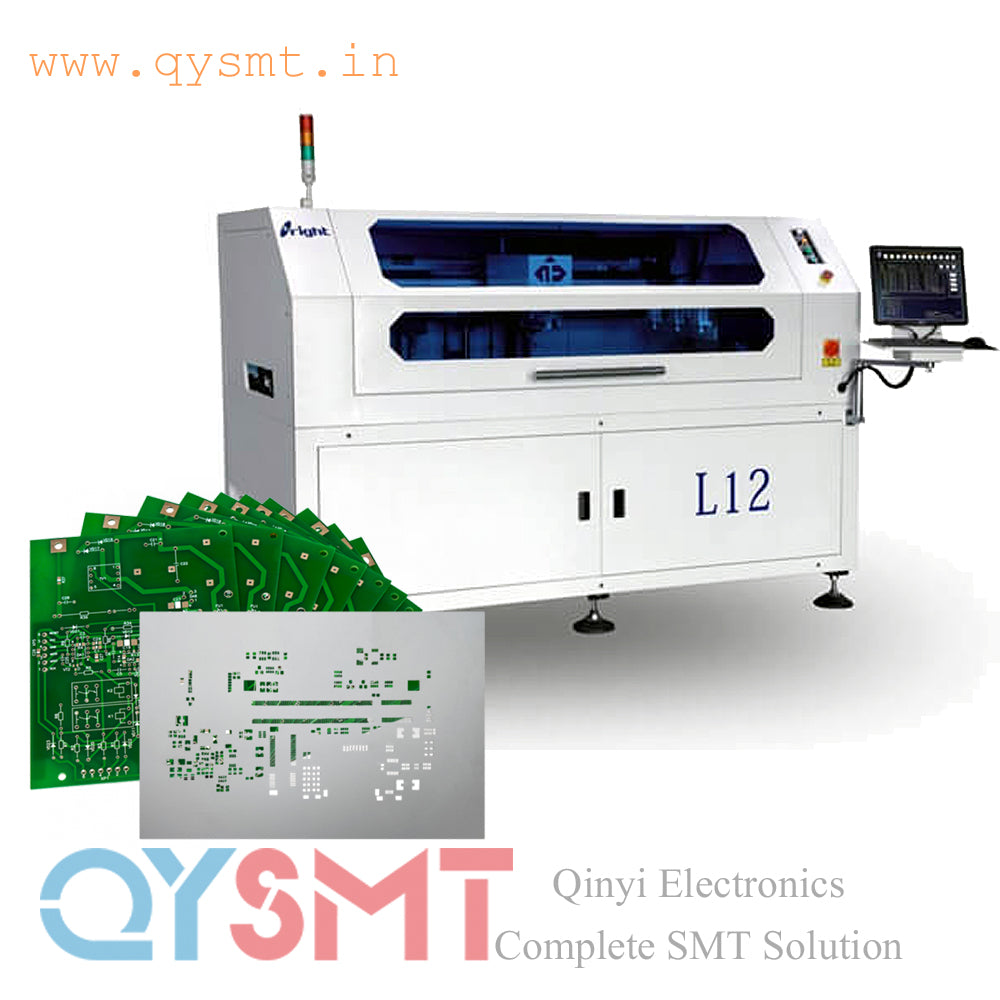

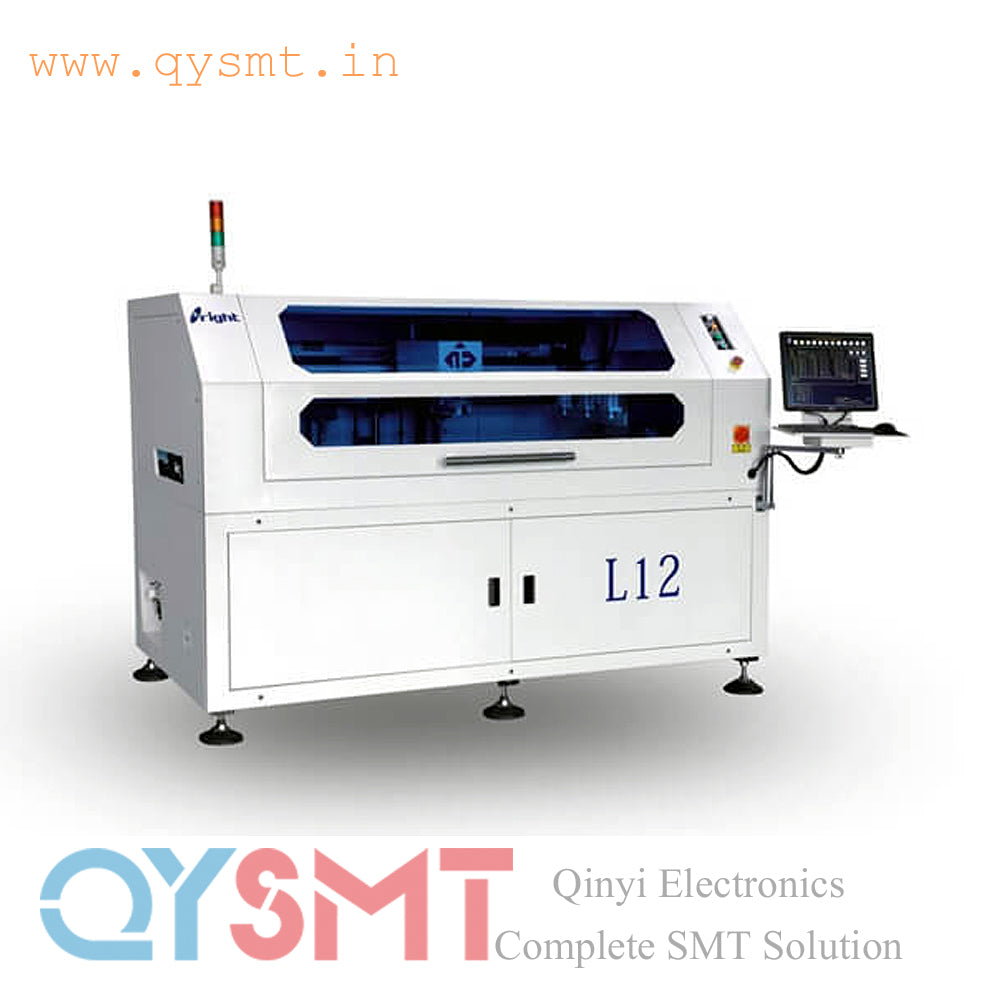

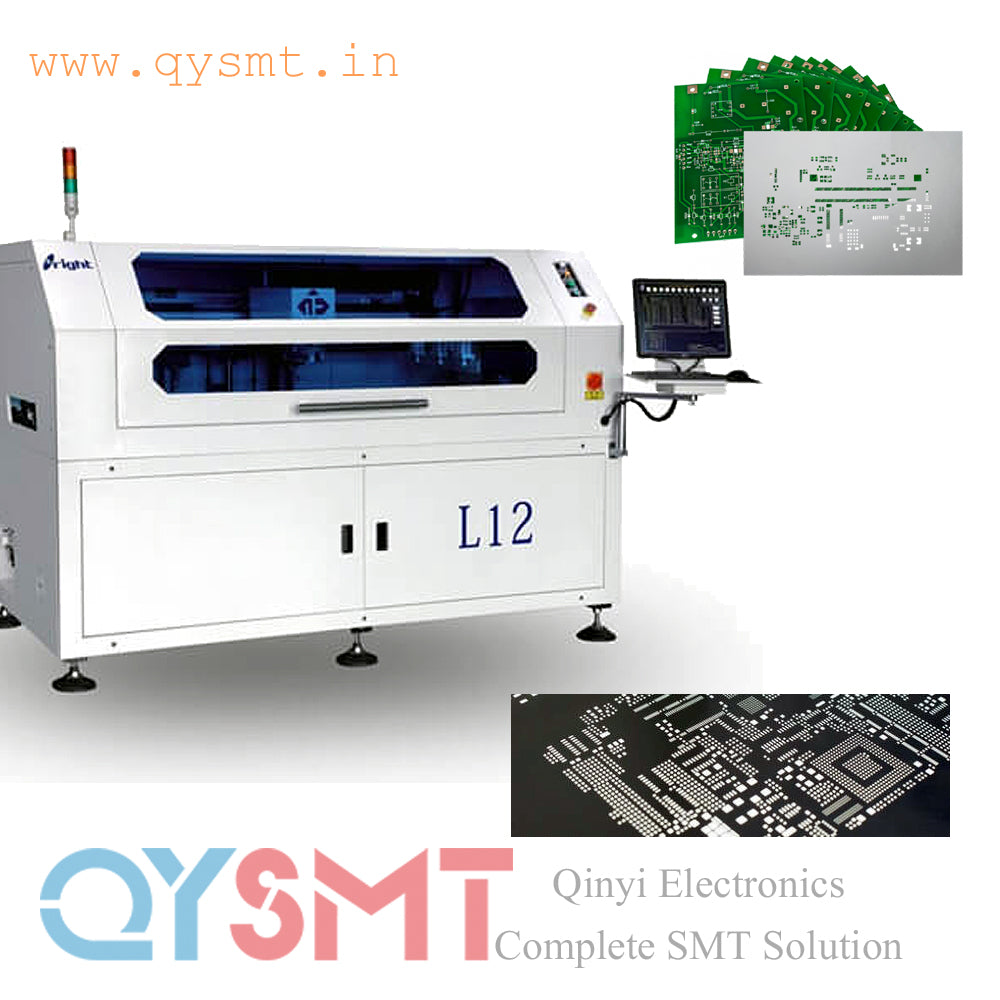

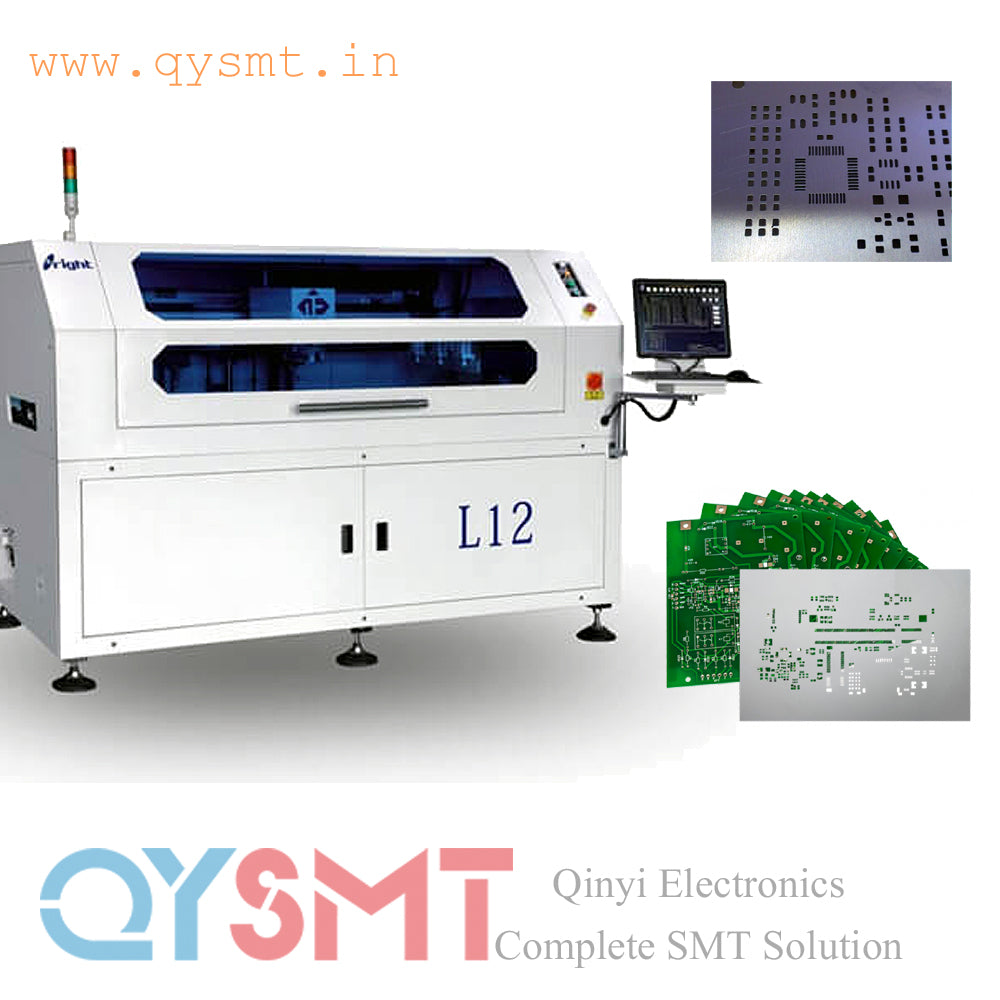

L12 Automatic Screen Printer

Model

L12

Min   Size

737X737mm

Max   Size

1500X750mm

Thickness

25~40mm

PCB   Min Size

80X50mm

PCB   Max Size

1200X350mm

PCB   Thickness

0.4~6mm

PCB   Warpage

＜1%

Transport   Height

900±40mm

Transport   Direction

Left-Right;Right-Left;Left-Left;Right-Right

Transport   Speed

Max   1500mm/S Programmable

Support System

Magnetic   Pin/Up-down table adjusted/supportblock

Clamping System

Elastic side clip / Z direction sheet

Squeegee   Speed

6~200mm/sec

Squeegee   Pressure

0~15Kg Pressure control

Squeegee   Angle

60°/55°/45°

Squeegee   Type

Stainless   steel(Standard), plastic

Stencil   Separation Speed

0.1~20mm/sec   Programmable

Cleaning   System

Dry、Wet、Vacuum   (Programmable)

Table   Adjustment ranges

X:±10mm;Y:±10mm;θ:±2°

Machine

Repeat   Position Accuracy

±0.015mm

Printing   Accuracy

±0.03mm

Cycle Time

<15s (Exclude Printing & Cleaning)

Product   Changeover

<5Min

Air   Required

4.5~6Kg/cm2

Power   Input

AC:220±10%,50/60HZ   1Φ 3KW

Control   Method

PC   Control

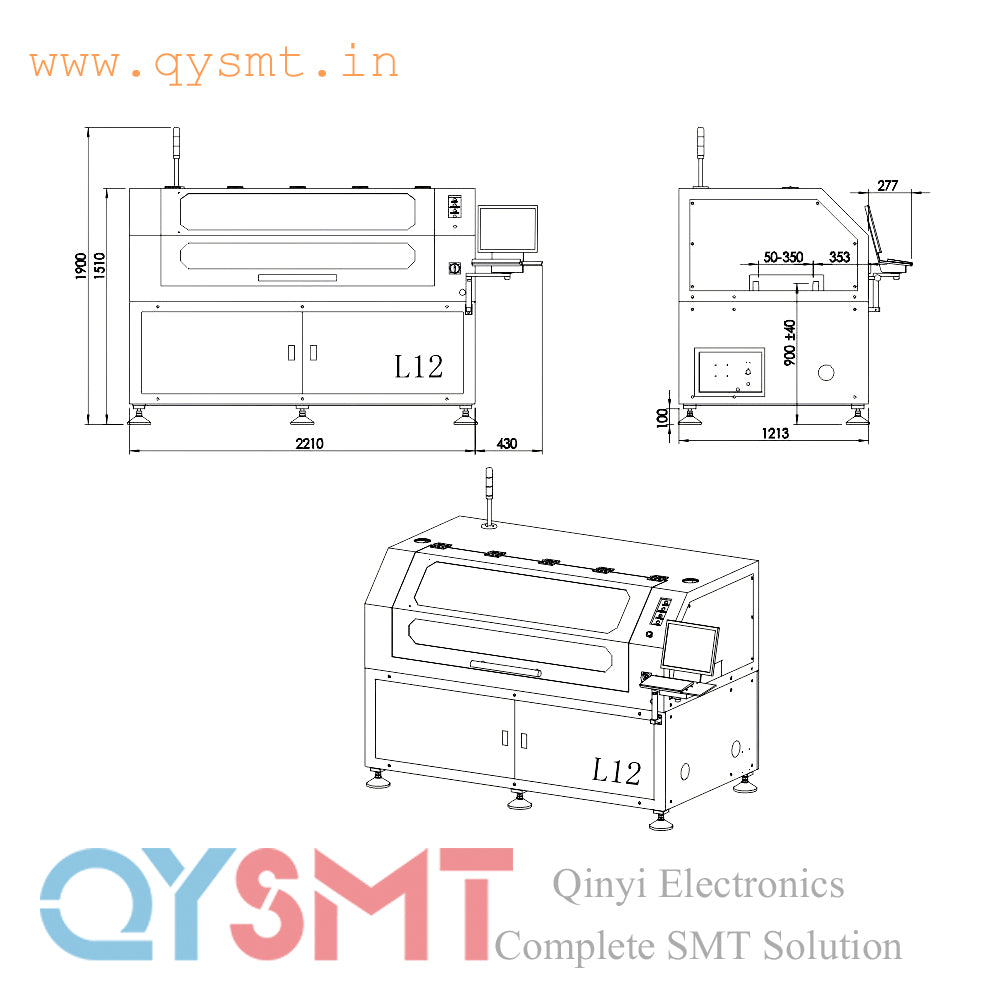

Machine   Dimensions

2200(L)X1200(W)X1500(H)mm

Machine   Weight

Approx:1500Kg
