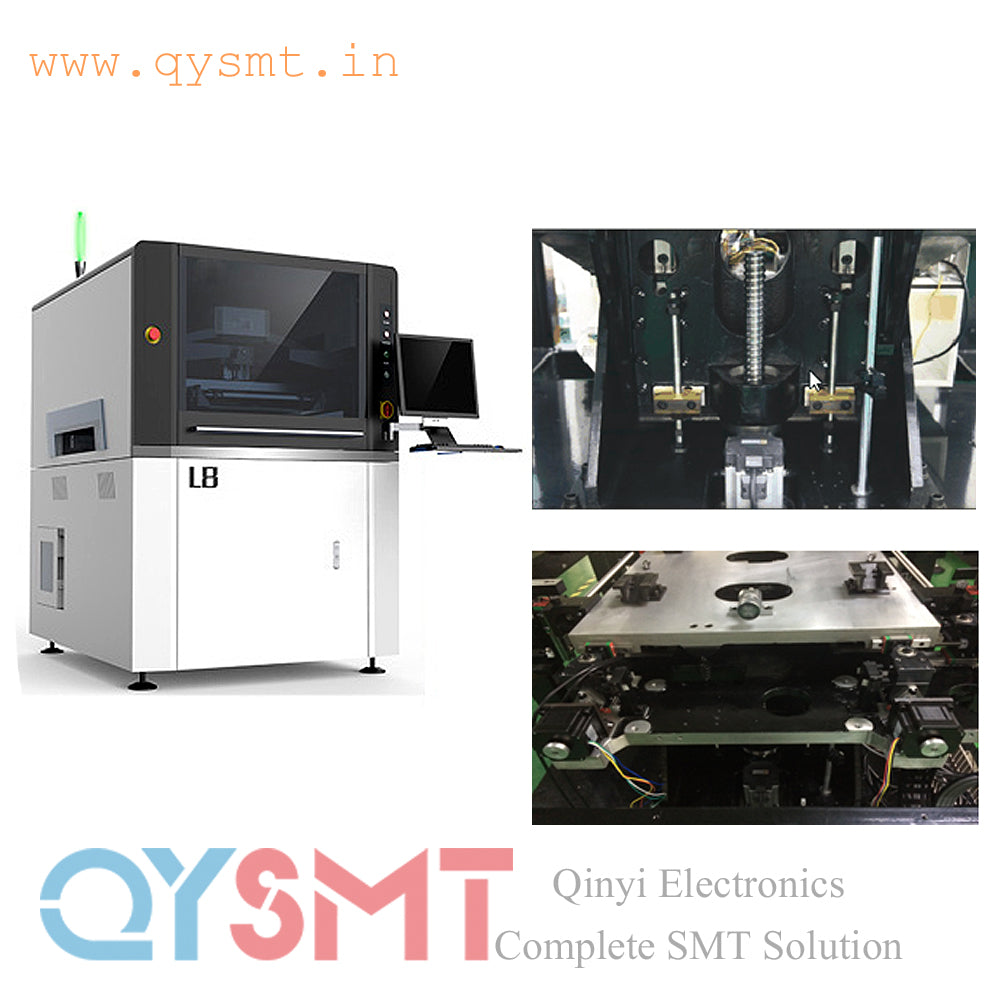

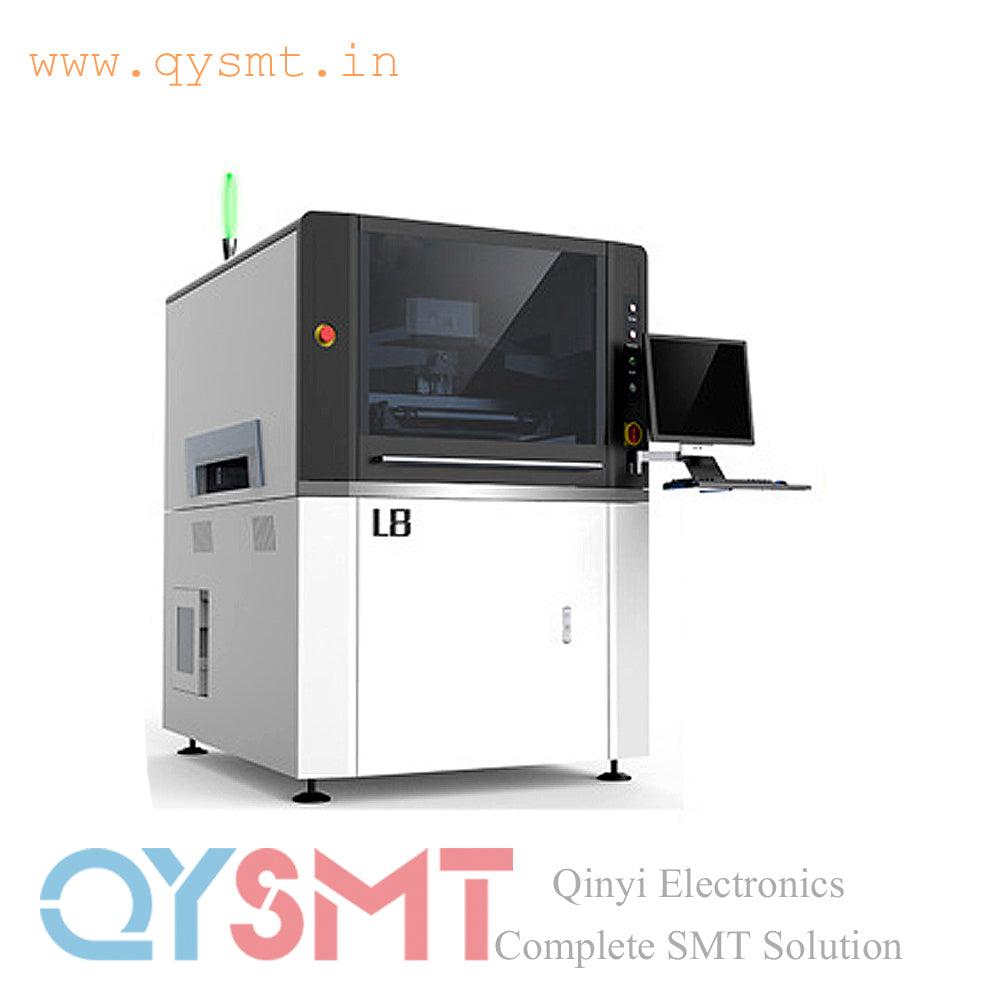

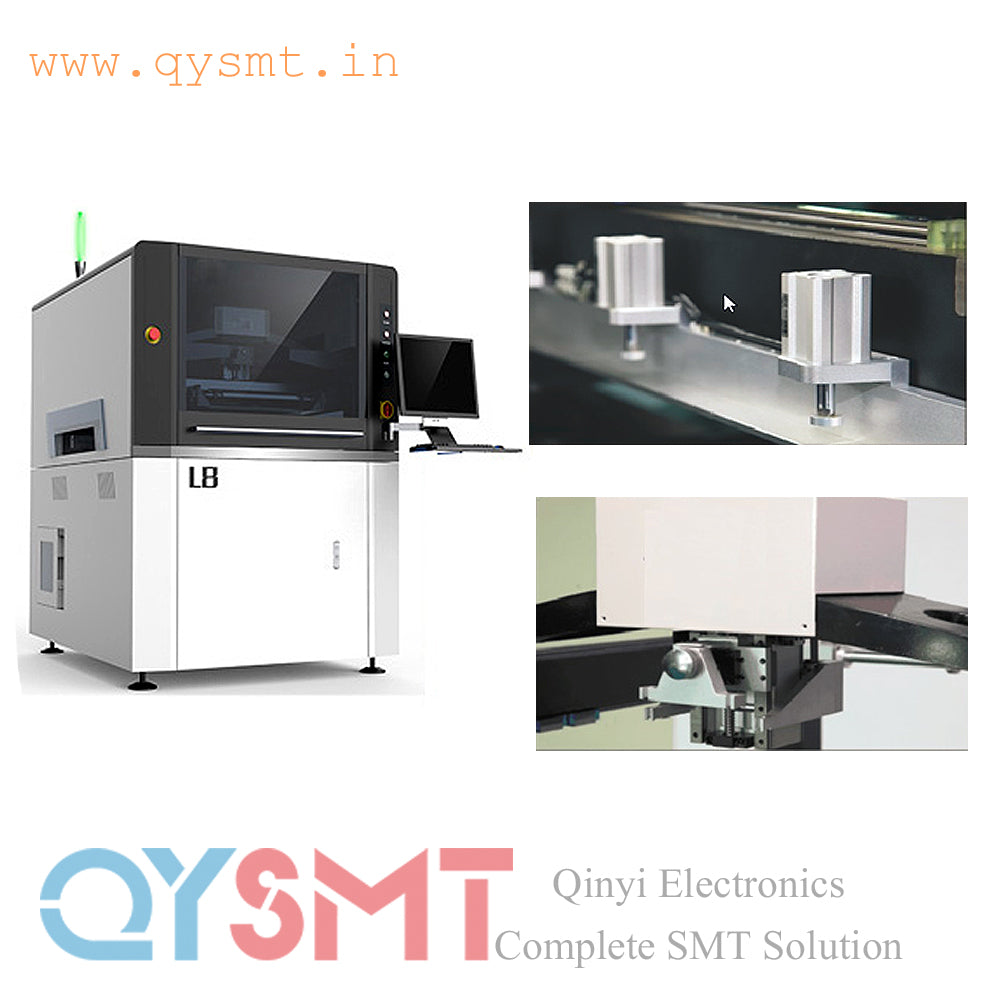

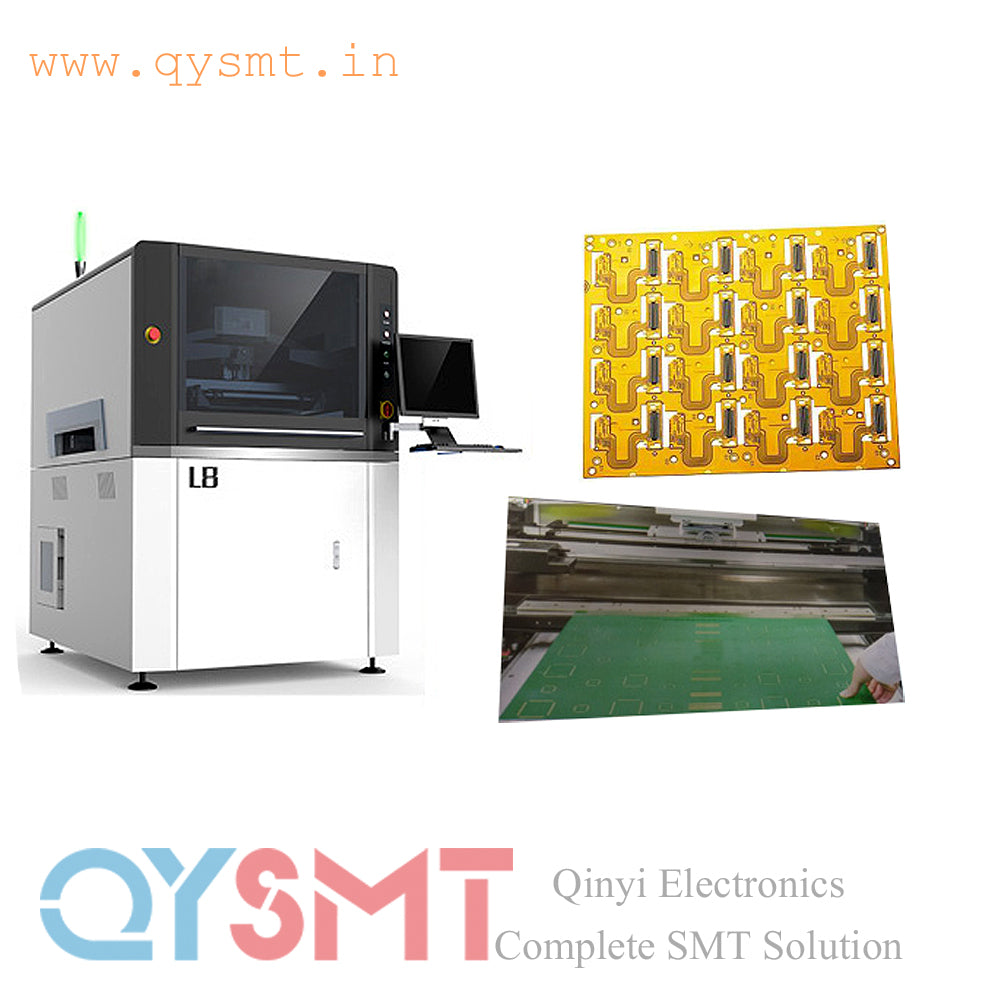

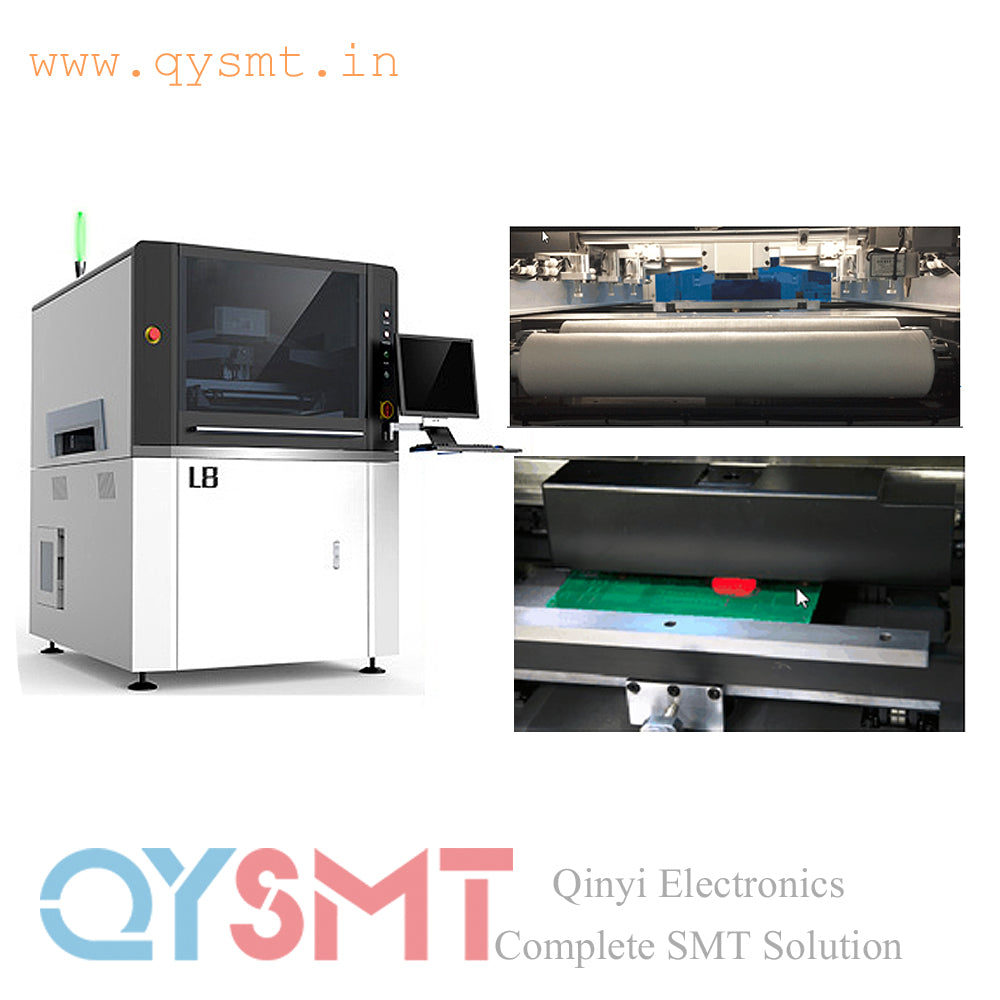

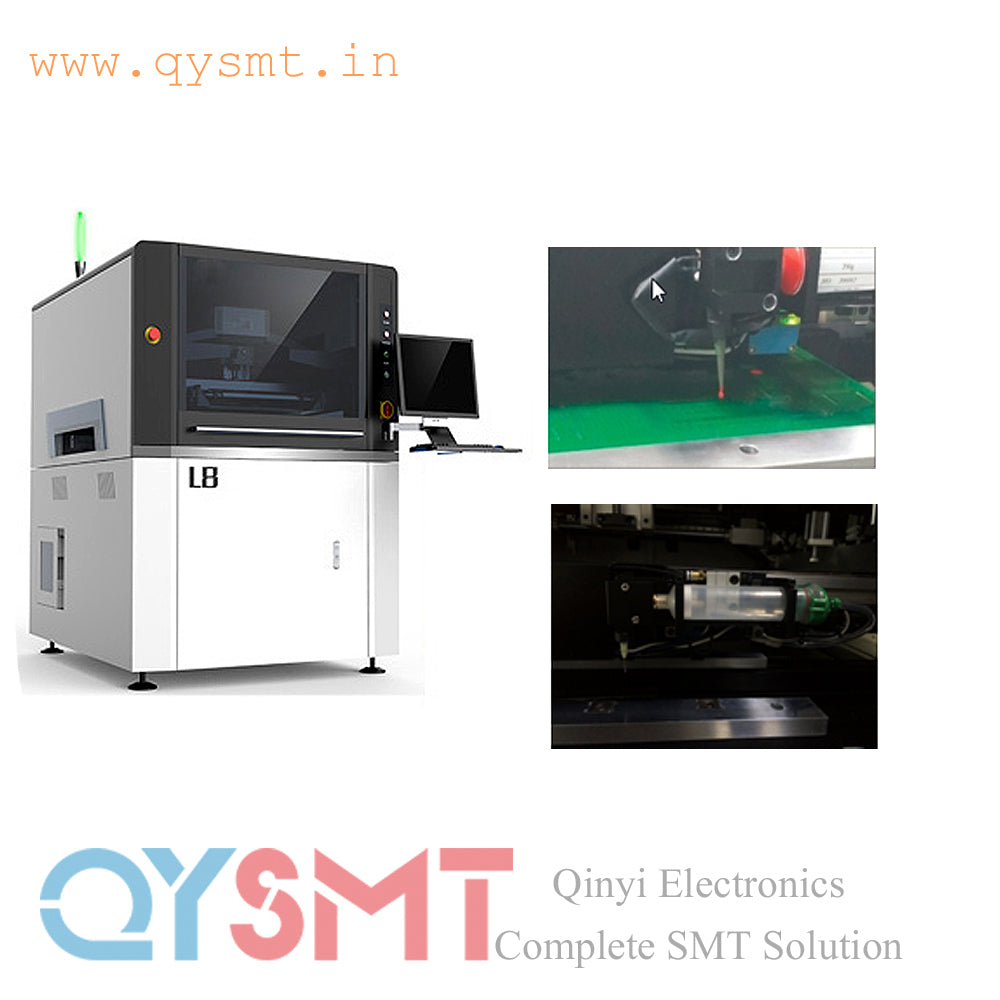

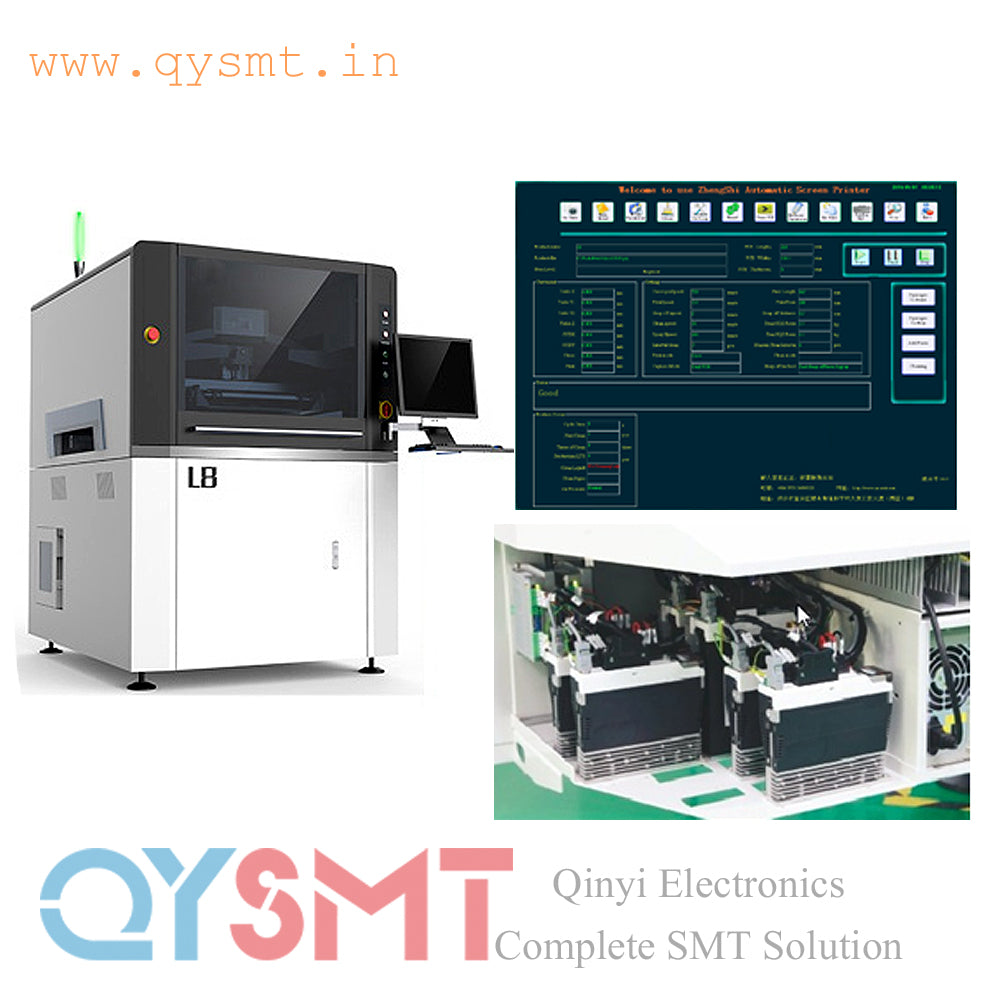

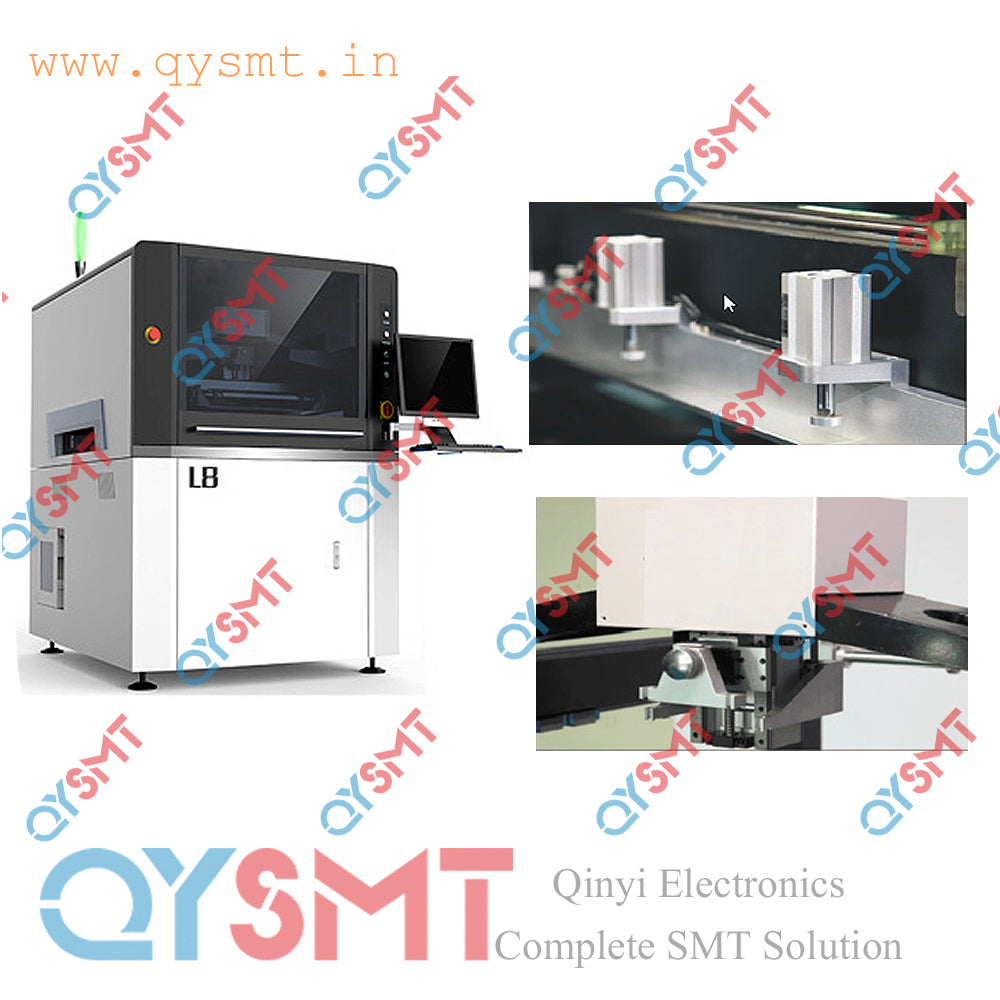

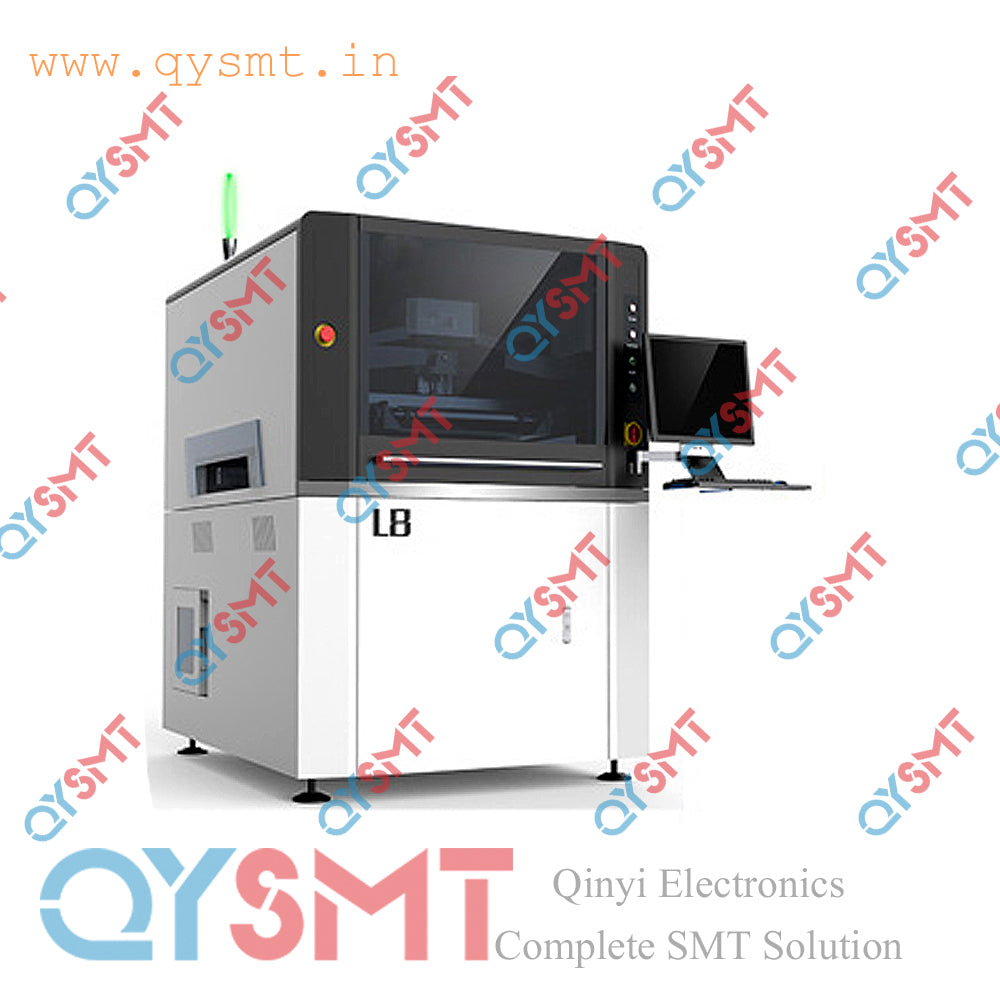

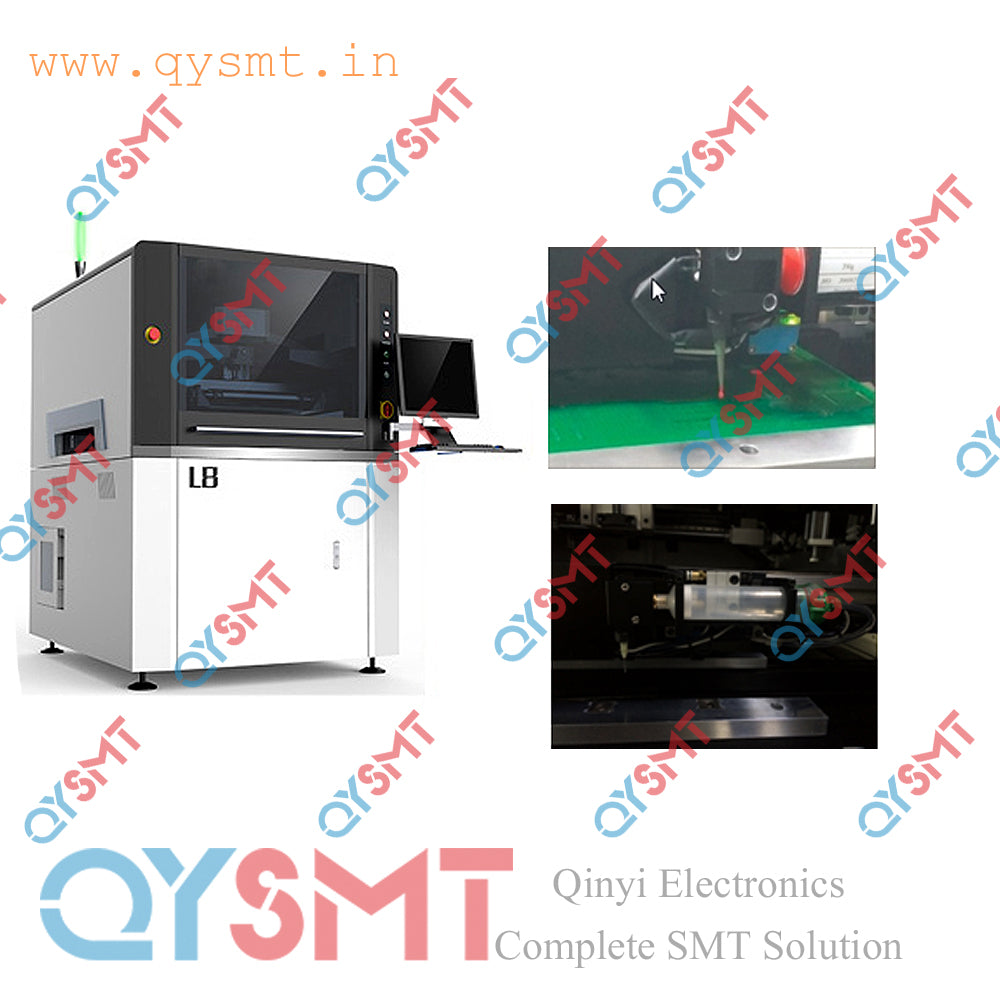

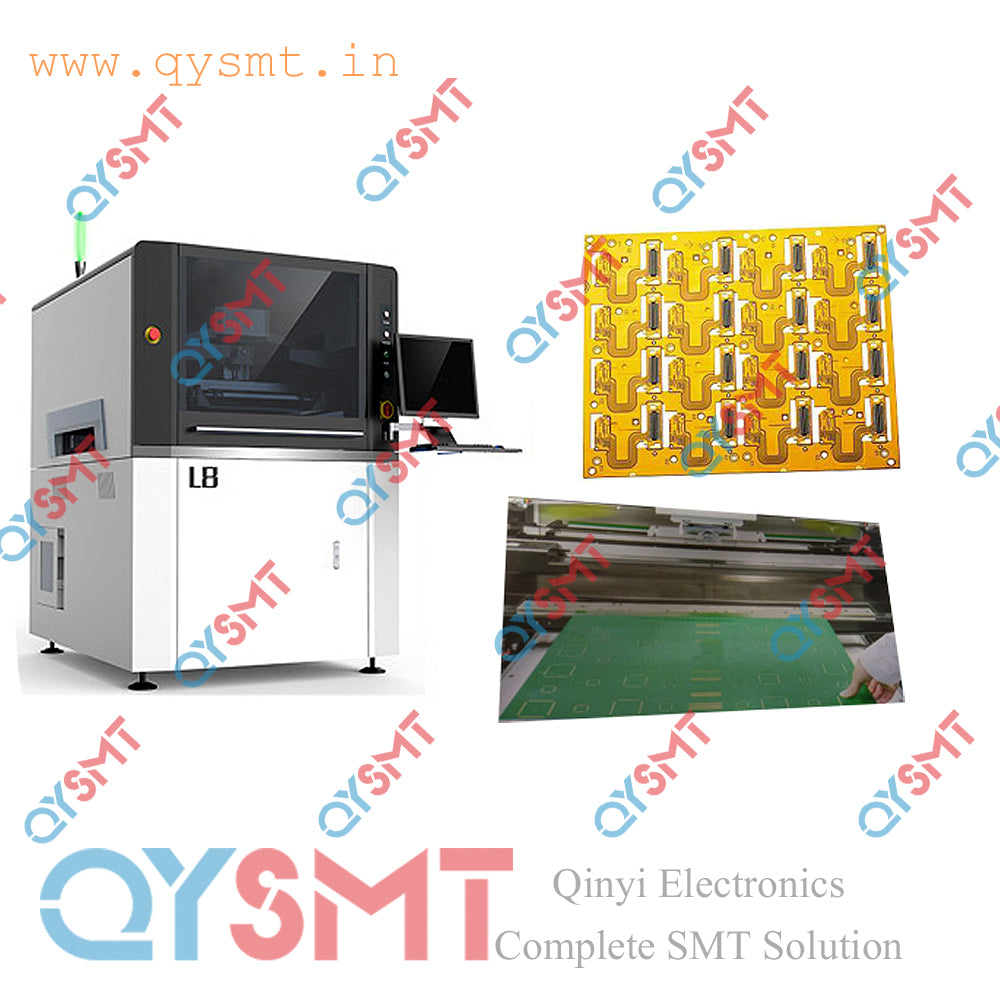

L8 Automatic Screen Printer CW-L8
L8 Automatic Screen Printer CW-L8 Solder Paste Printing Machine,
L8 a high precision automatic solder paste screen printer designed for high precision screen printing or stencil printing in SMT industry.
- Support wide spectrums of PCB sizes from 80mm x 50mm to 650mm x 610mm and PCB thickness from 0.4mm to 6mm.
- High positional accuracy, repeated positioning accuracy ±0.01mm; printing accuracy 0.025mm
- Support glue printing.
- Automatic PCB calibration.
- Squeegee pressure adjustable.
- Automatic printing.
- Automatic stencil cleaning (dry-type ,wet-type,Vaccum)
- Automatic squeegee pressure balancing. Accurate pressure control ensures perfect forming effect of solder paste.
- Multi-functional PCB positioning system for convenient and accurate PCB positioning.
- Programmable PCB lifting platform ensure the PCB to lift to a proper height.
- Upward and downward visual positioning.
- Built-in image processing system.
|
Model |
CW-L8 |
|
|
Screen Frames |
Min Size |
650X400mm |
|
Max Size |
850X850mm |
|
|
Thickness |
25~40mm |
|
|
PCB Min Size |
80X50mm |
|
|
PCB Max Size |
650*610mm |
|
|
PCB Thickness |
0.4~6mm |
|
|
PCB Warp age |
＜1% |
|
|
Transport Height |
900±40mm |
|
|
Transport Direction |
Left-Right; Right-Left; Left-Left; Right-Right |
|
|
Transport Speed |
Max 1500mm/S Programmable |
|
|
Board Location |
Support System |
Magnetic Pin/Up-down table adjusted/support block |
|
Clamping System |
Side clamping,vacuum nozzle,Automatic retractable Z pressure |
|
|
Print head |
Two independent motorized print heads |
|
|
Squeegee Speed |
6~200mm/sec Motor Control |
|
|
Squeegee Pressure |
0~15Kg Motor Control |
|
|
Squeegee Angle |
60°/55°/45° |
|
|
Squeegee Type |
Stainless steel(Standard), plastic |
|
|
Stencil Separation Speed |
0.1~20mm/sec Programmable |
|
|
Cleaning System |
Dry、Wet、Vacuum (Programmable) |
|
|
Table Adjustment ranges |
X:±10mm;Y:±10mm;θ:±2° |
|
|
Solder Paste Inspection |
2D Inspection(standard) |
|
|
Machine |
||
|
Repeat Position Accuracy |
±0.01mm |
|
|
Printing Accuracy |
±0.025mm |
|
|
Cycle Time |
<11s (Exclude Printing & Cleaning) |
|
|
Product Changeover |
<5Min |
|
|
Air Required |
4.5~6Kg/cm2 |
|
|
Power Input |
AC:220±10%,50/60HZ 1Φ 3KW |
|
|
Control Method |
PC Control |
|
|
Machine Dimensions |
1330(L)X1530(W)X1500(H)mm | |
|
Machine Weight |
Approx:1200Kg |
|
