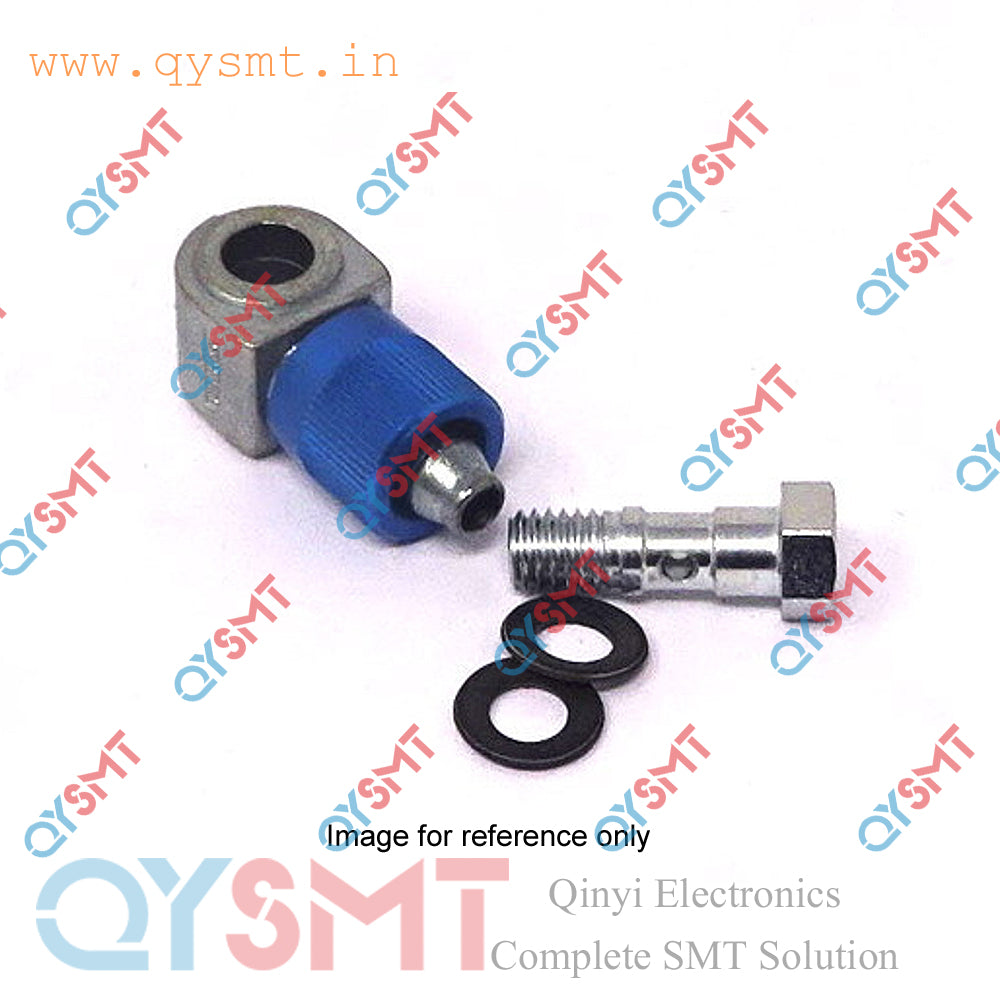

Festo LCK-M5-PK-4 4562 Connector

FESTO LCK-M5-PK-4 4562 L-shaped quick tightening Connector/joint,
L-shaped Elbow Orientable Die-cast Zinc Pneumatic Air quick fitting with 7mm external HEX (1) + 8mm external HEX (2) + thread sealing ring + union nut, Festo (CK series) - 4562 - 1 inlet + 1 outlet - with 1 x M5 male threaded pneumatic connection (inlet) + 1 x barbed connector for O.D. 6mm (outlet) - Rated for 0bar...+16bar

Specification/Additional Details

• Fitting (Air)
• Pressure : 0bar to +16bar
• Material : Die-cast Zinc body Copper and PTFE-free
• Product Type : Pneumatic connectors - Fittings - Barbed
• Brand : Festo
• Model : LCK-M5-PK-4 4562

• Fitting function : 1 inlet + 1 outlet

• Design : 7mm external HEX (1), 8mm external HEX (2), thread sealing ring, union nut, Push-pull design

• Shape : Angled / L-shaped elbow

• Connection type : 1 x M5 male threaded pneumatic connection (inlet), 1 x barbed connector for O.D. 6mm (outlet)
