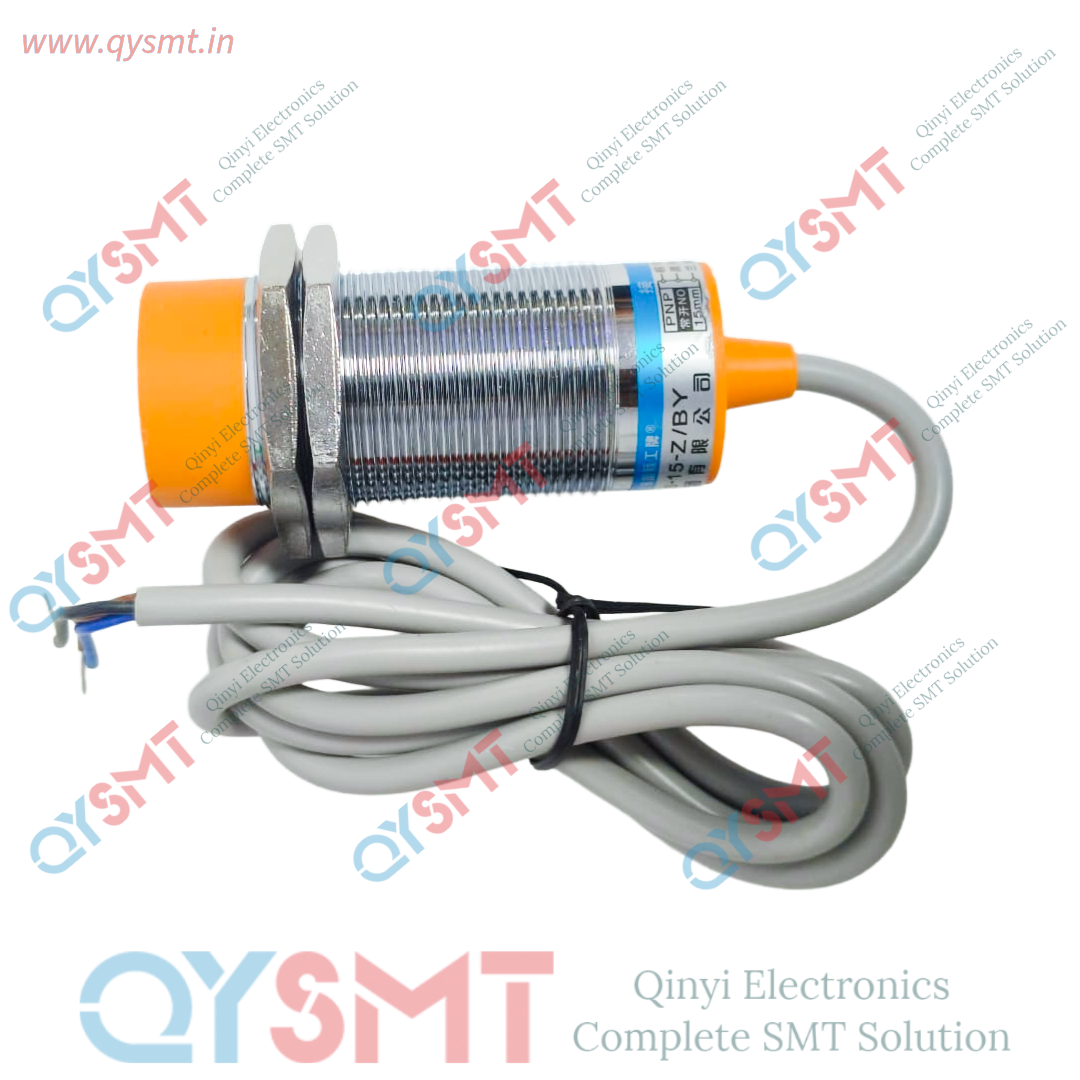

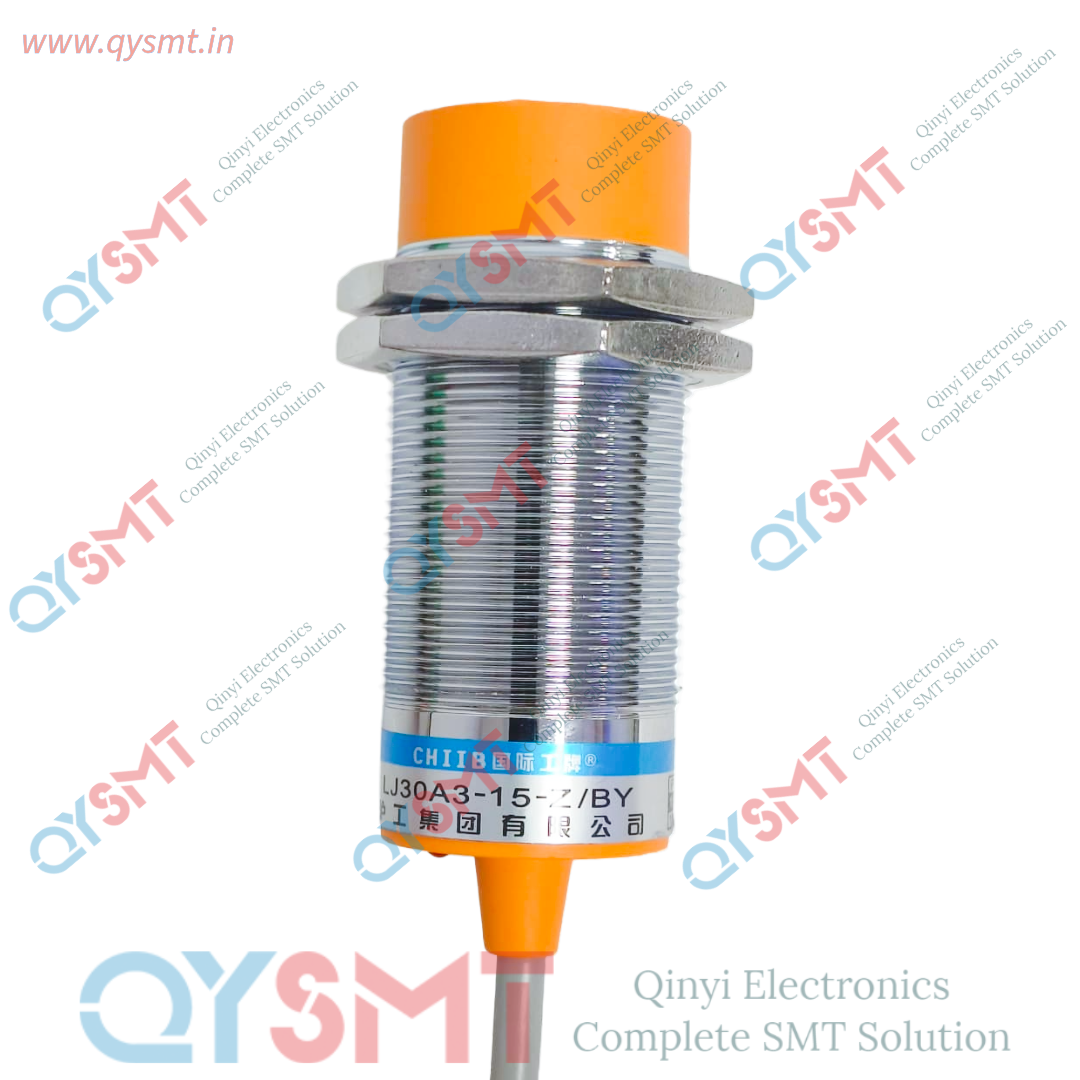

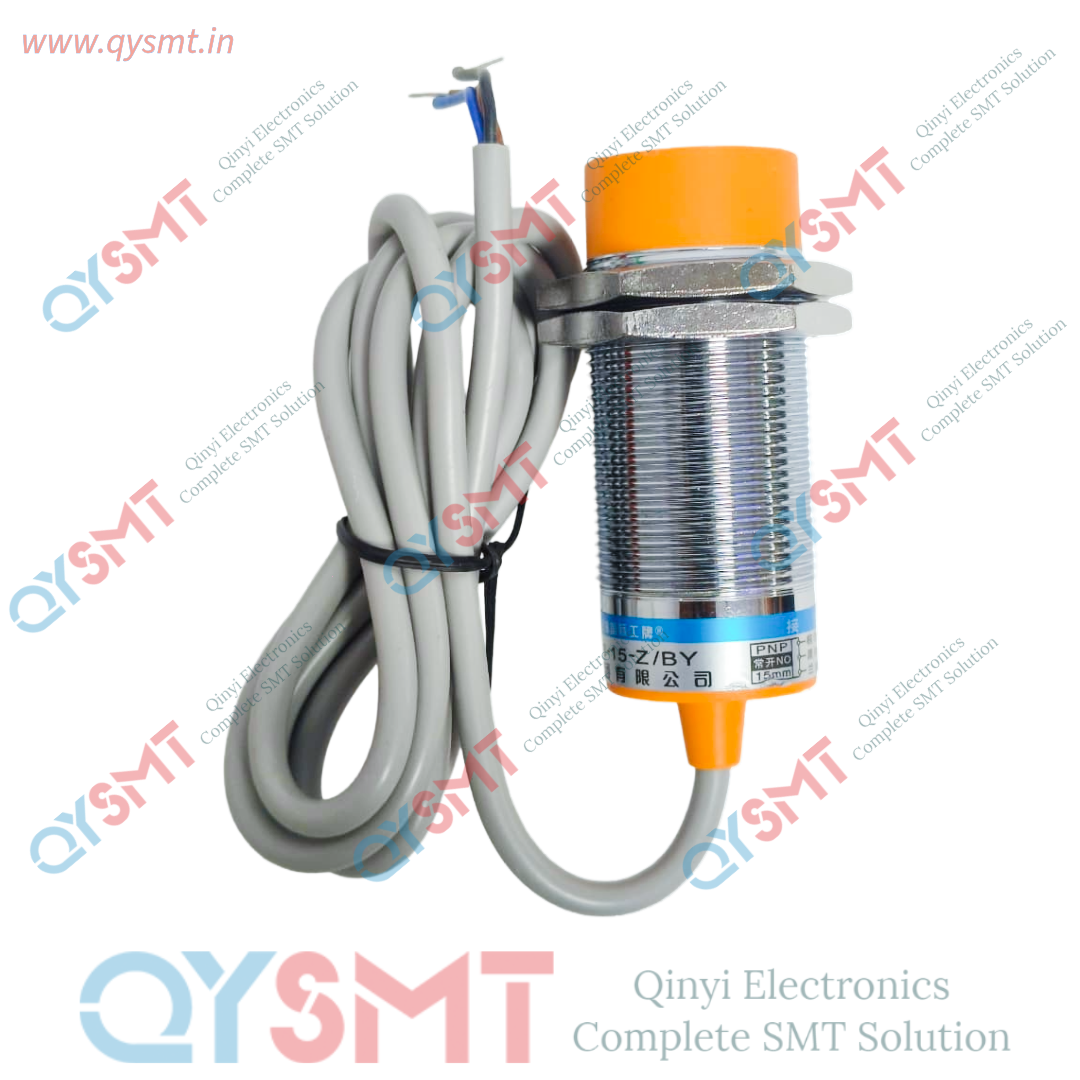

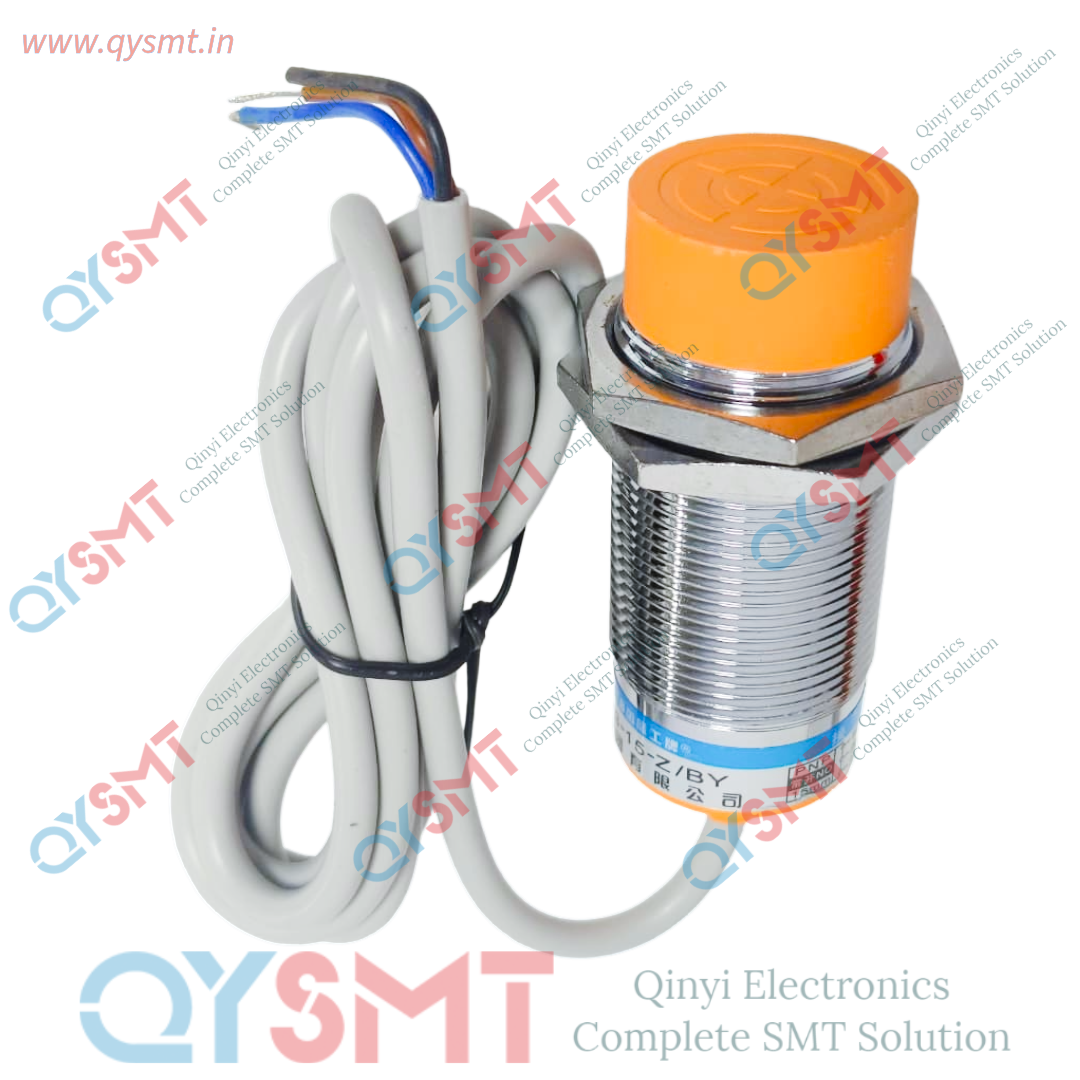

LJ30A3-15-Z/BY Proximity sensor

LJ30A3-15-Z/BY Proximity sensor
Key Specifications

• Detection range: Up to 15 mm
• Operating voltage: 6 VDC - 36 VDC
• Output type: PNP, Normally Open (NO)
• Max output current: 200 mA - 300 mA
• Mounting thread: 30 mm

How It WorksInside the sensor, there is a coil that creates a magnetic field. When metal enters this field, it creates "eddy currents." Think of it like dropping a heavy coin into a pool of water; it causes a ripple. The sensor's circuit feels this change and triggers an electronic signal. Wiring ConnectionsThe sensor has three wires. It is critical to connect them correctly to prevent damage:

• Brown wire: Connect to positive voltage (DC 6 - 36 V).
• Blue wire: Connect to ground (GND / 0 V).
• Black wire: This is your signal output.
