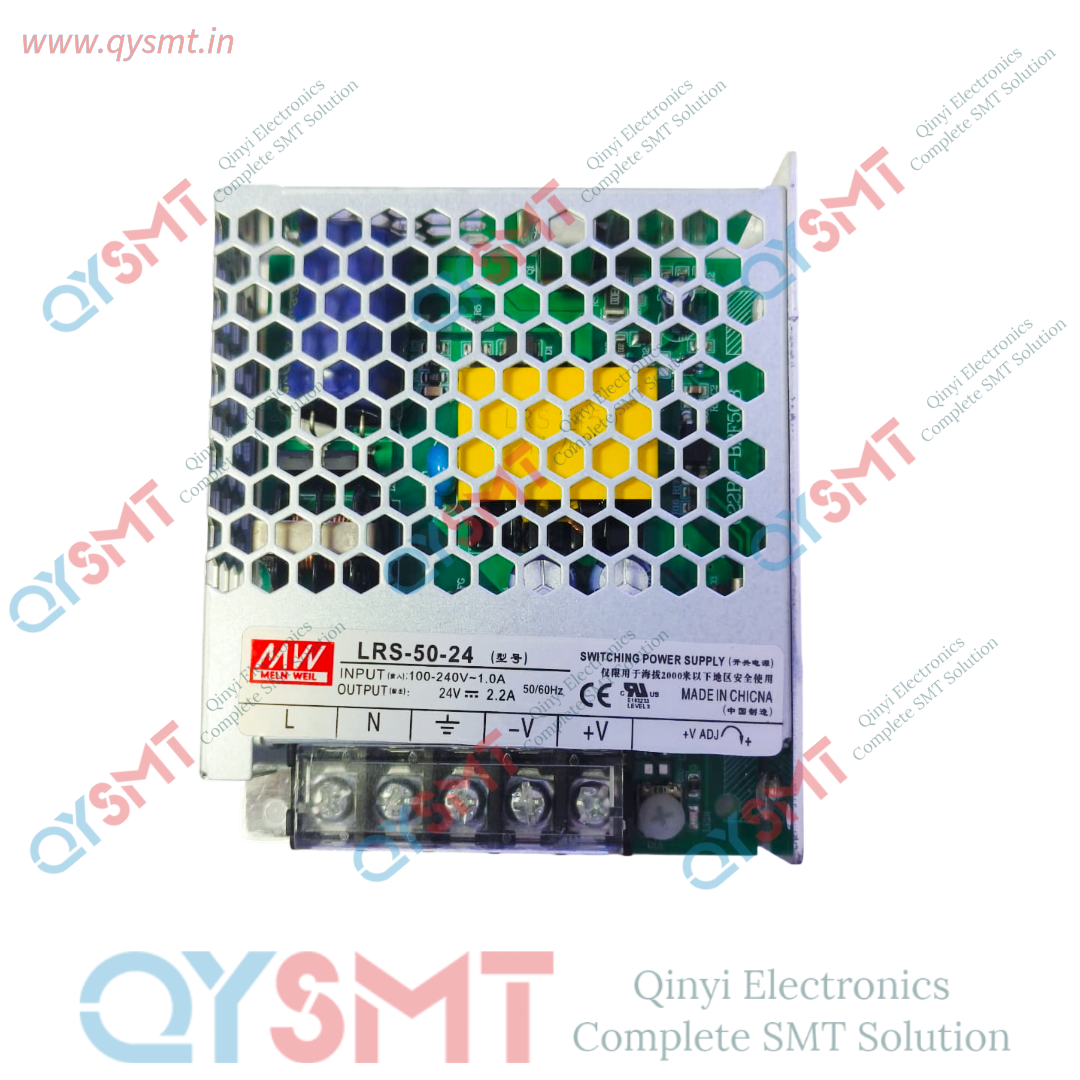

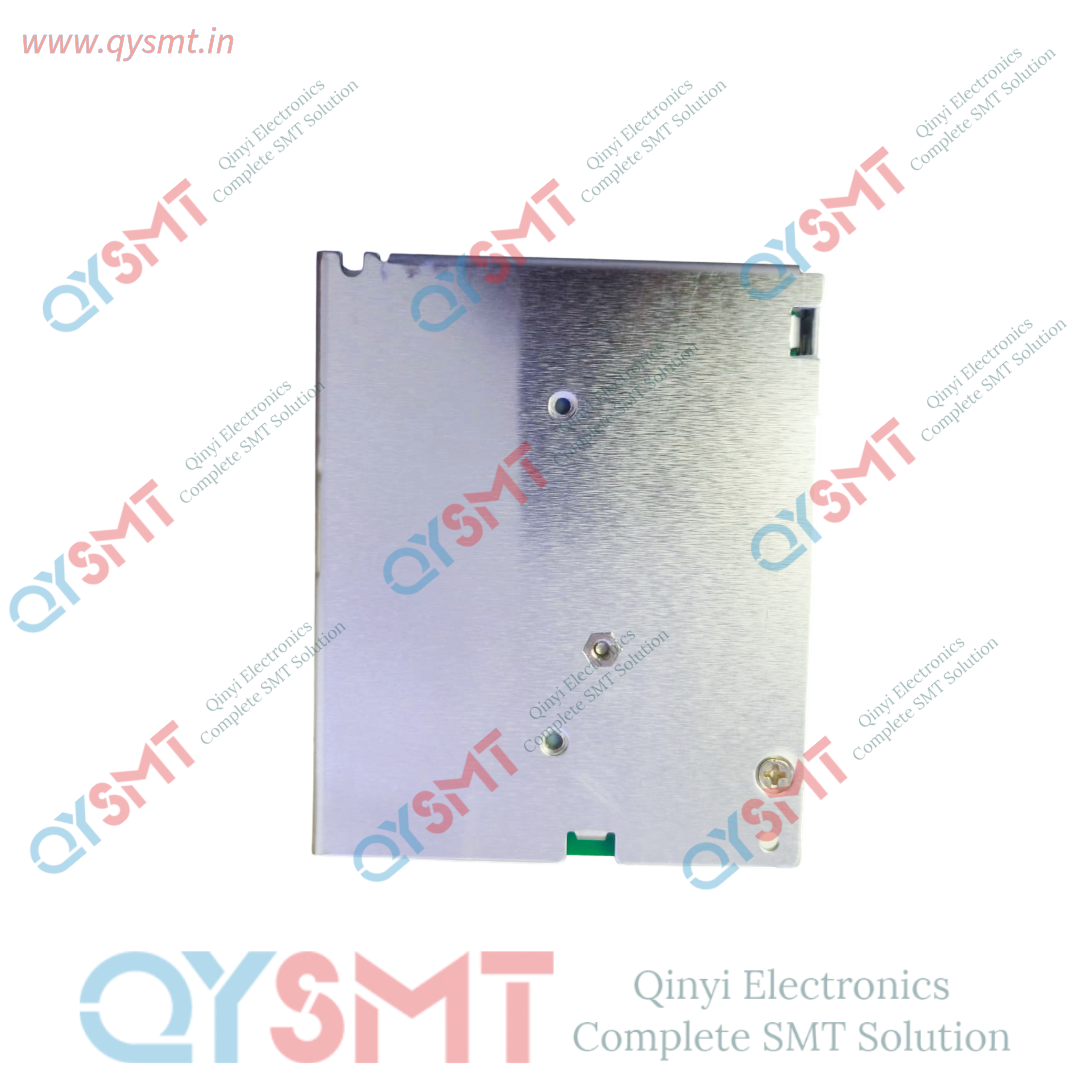

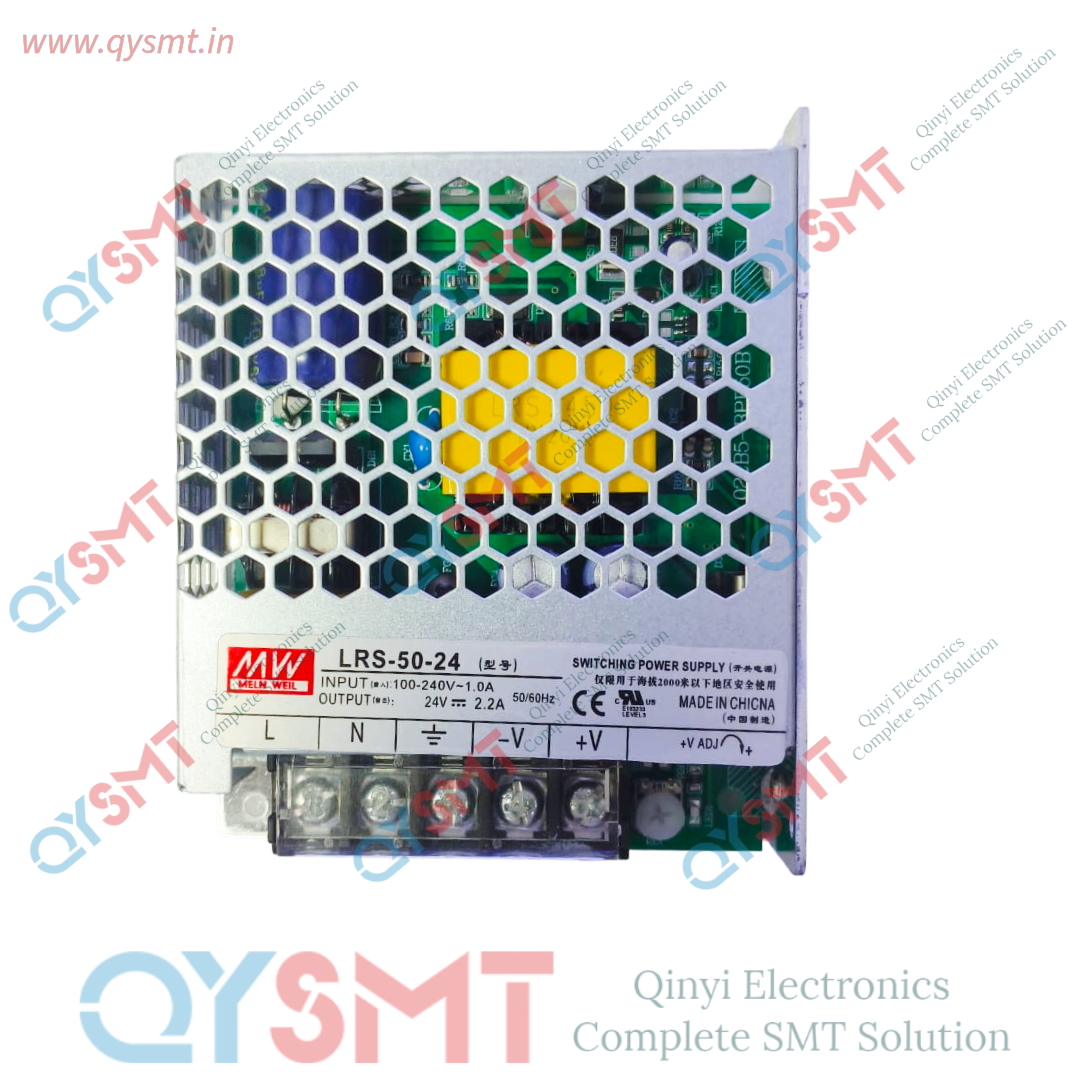

LRS-05-24 DC switched-mode power supply (SMPS)

Name: LRS-05-24 DC switched-mode power supply (SMPS)
Brand: QYSMT
Availability: InStock

Contact Seller :- Call or Whatsapp ‪+91 9319902096 harshita@qysmt.in

Call or Whatsapp
‪+91 9319902096

Email: harshita@qysmt.in

Product variants

Quantity

LRS-05-24 DC switched-mode power supply (SMPS)

Key Specifications (LRS Series)

Since power supply requirements can vary, general specifications for this class of 24V supply include:

Output Voltage: \(24 \text{ VDC}\)
Voltage Adjustment Range: Typically \(\pm 10\%\) (adjusted via an onboard potentiometer)
Input Voltage: Universal AC input spanning \(85\text{ VAC}\) to \(264\text{ VAC}\) (or \(120\text{ VDC}\) to \(373\text{ VDC}\))
Cooling: Free air convection; no internal cooling fan is typically required
Protections: Short circuit, overload, and overvoltage
Alternate Variations

If your specific project requires a slightly different wattage, the LRS series provides a variety of power outputs. For exact model comparisons, consider the following well-known variants:
- LRS-35-24: \(35\text{ W}\)
- LRS-50-24: \(52.8\text{ W}\) (\(24\text{ V}\), \(2.2\text{ A}\))
- LRS-75-24: \(75\text{ W}\)
- LRS-100-24: \(100\text{ W}\) (\(24\text{ V}\), \(4.5\text{ A}\))
