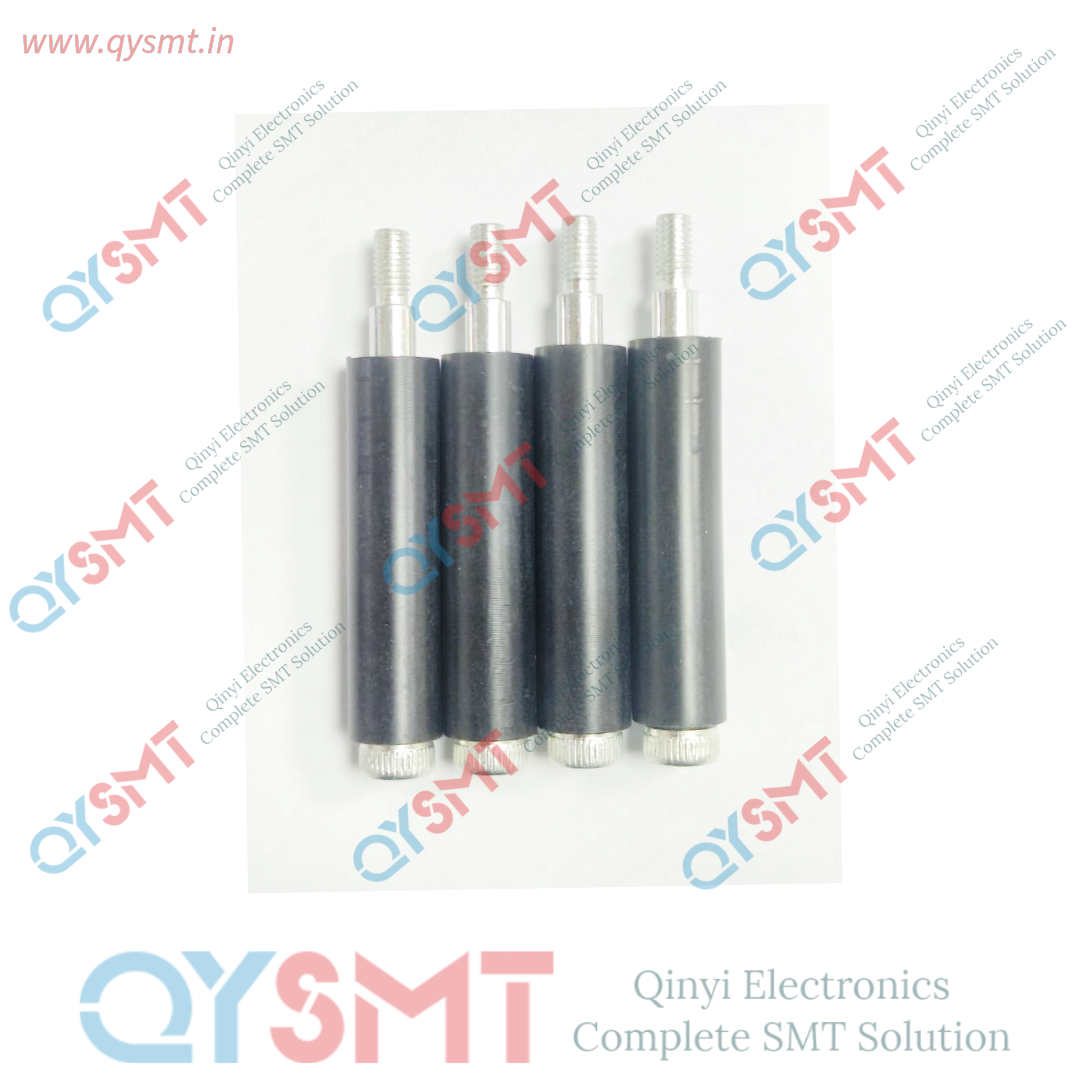

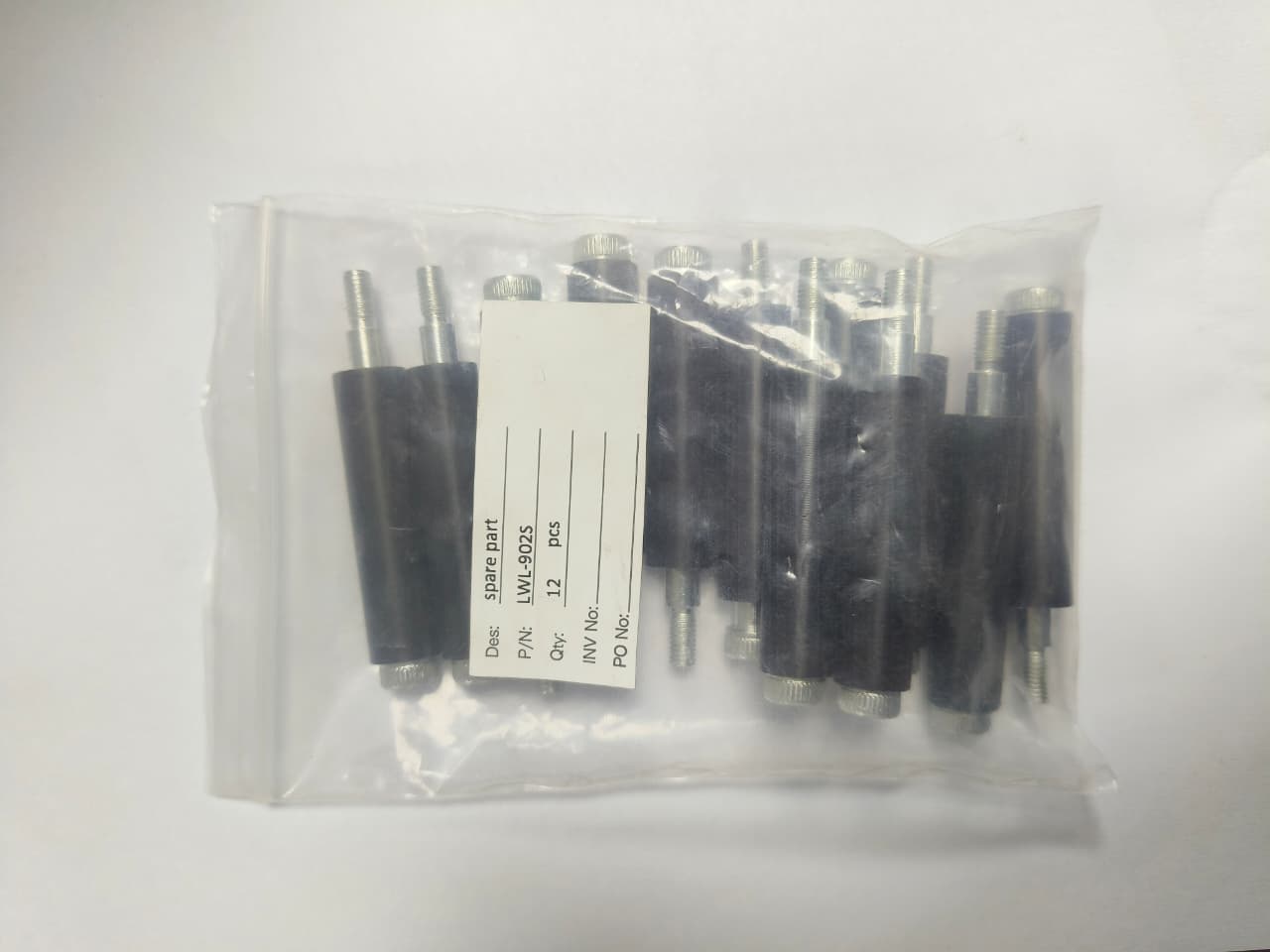

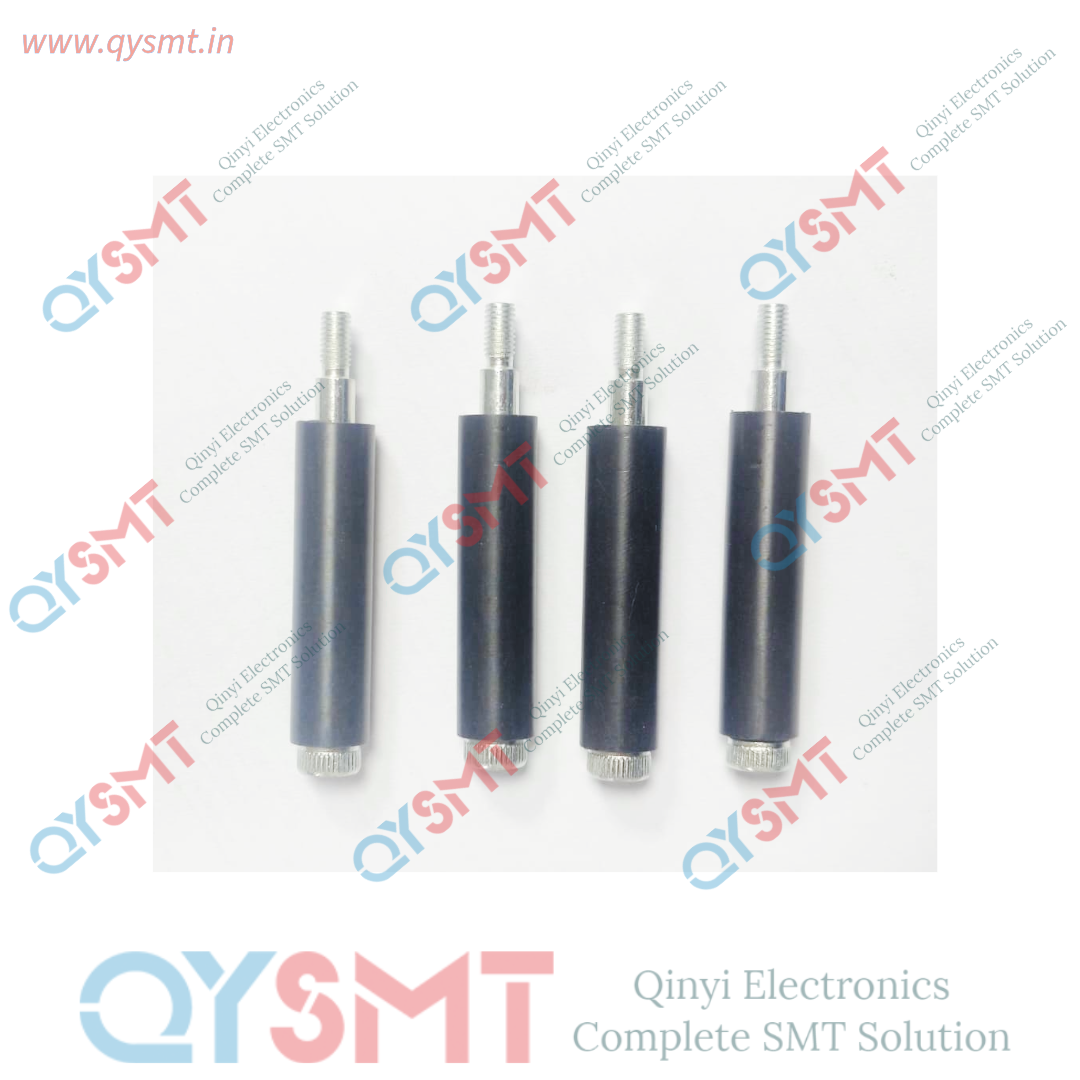

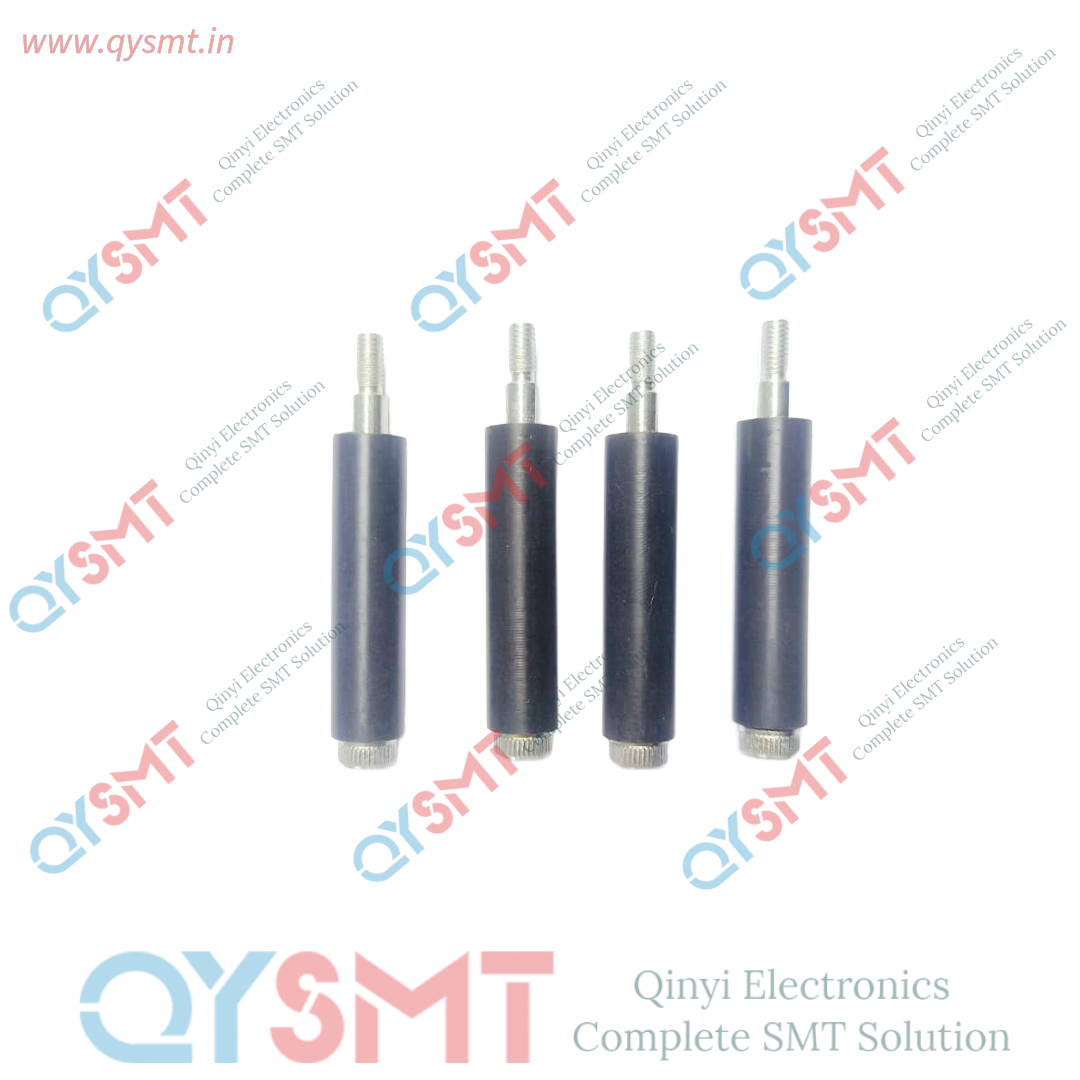

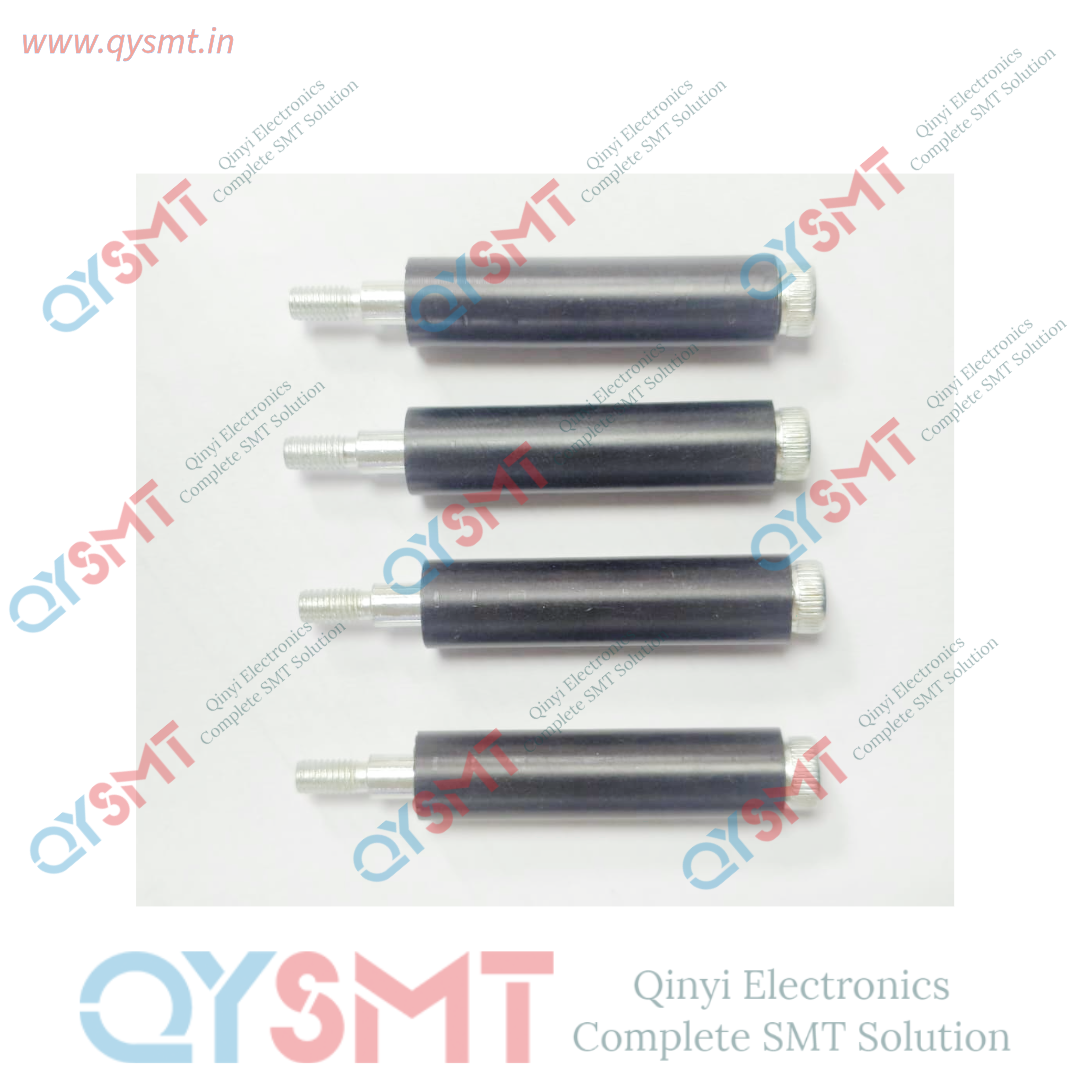

LWL-902S SPARE PART

Common Spare Parts for LWL-902S

• Optical Sensor Module: The core component responsible for counting the tape pockets and detecting component missing/leakage errors.
• 42 Stepper Motor: The main motor driving the forward and reverse rotation of the reel arms.
• Feed Pulleys & Reel Arms: Mechanical arms and adjustable pulleys that lock the component tapes into place (supporting widths from 8mm up to 56mm).
• Control Mainboard / Processor: The internal dual-core PCB that calculates chip counts and interfaces with the digital display.
• Power Supply Unit: The internal AC-to-DC power board managing the 110V–240V input.
