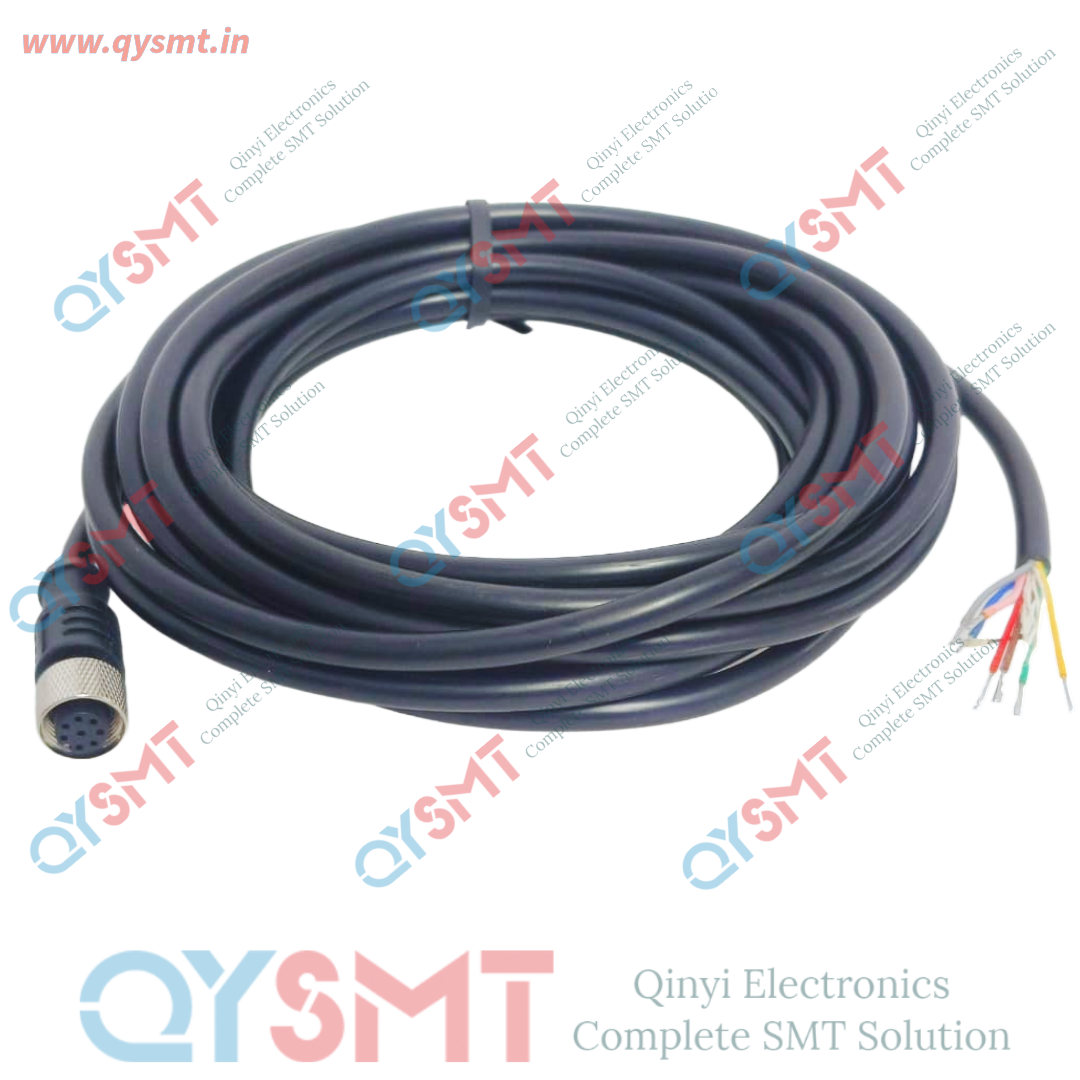

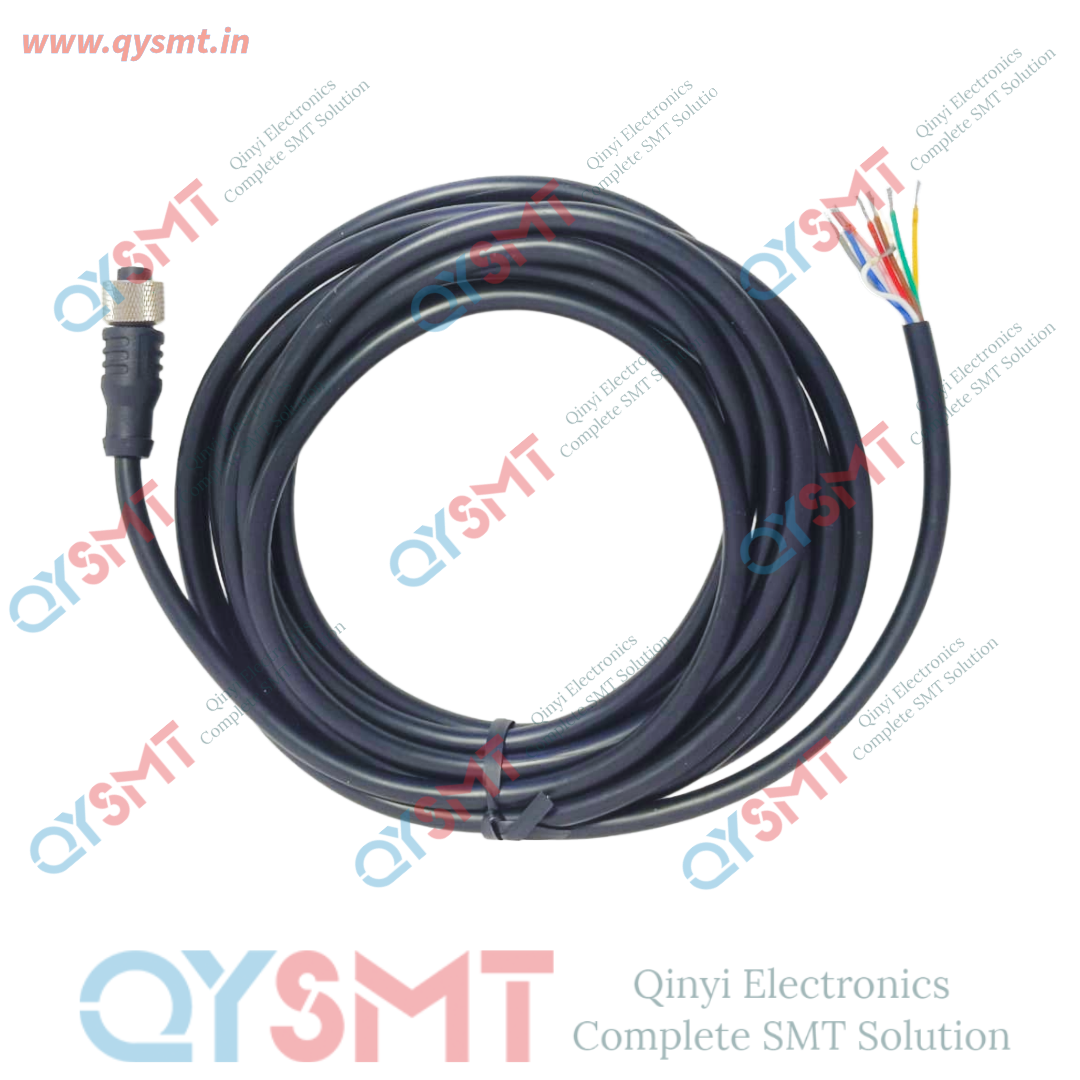

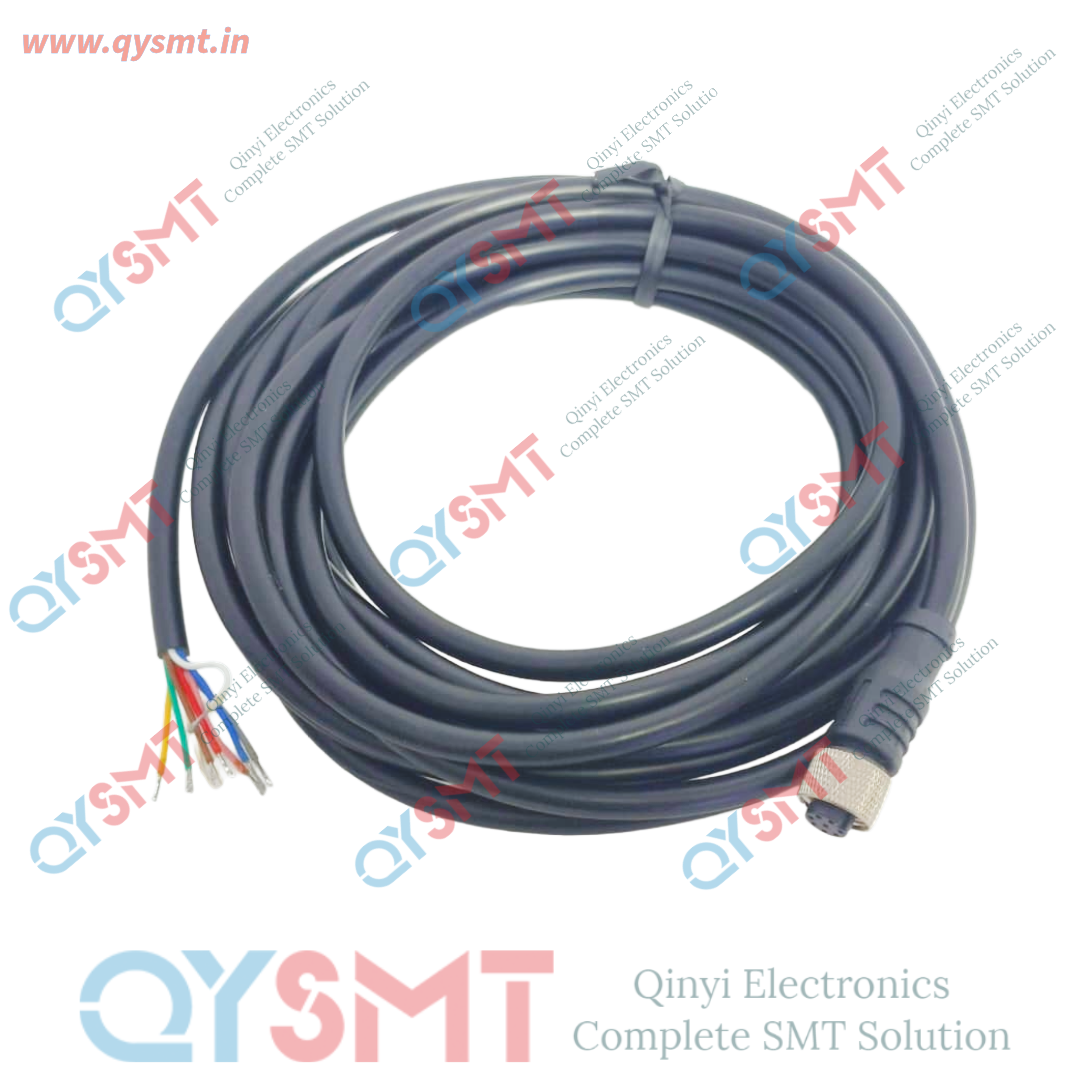

MAQDC-815 Proximity sensor

MAQDC-815 Proximity sensor
Key Specifications

• Primary Function: Single-ended connectivity cordset for heavy-duty industrial automation sensors.
• Connector 1: M12 standard female threaded connection with an "A-code" keyway and a straight orientation.
• Connector 2: Stripped flying leads (bare wires) ready for terminal blocks.
• Pin Configuration: 8-pin setup utilizing 24 AWG wiring.
• Cable Profile: 5 metres (16.4 feet) long, fully shielded to shield signal data from electromagnetic interference.
• Build Materials: High-durability black PVC external jacket paired with a secure nickel-plated brass coupling nut.
• Environmental Protection: Rated IP67 for dust exclusion and water submersion resistance, operating safely between -40°C to +70°C.

Pinout ConfigurationThe 8-conductor wiring layout on the flying-lead side typically correlates to standard industrial A-coded M12 color conventions:

1. White
2. Brown
3. Green
4. Yellow
5. Grey
6. Pink
7. Blue
8. Red

Acquisition OptionsIf you need to purchase a replacement cable or check bulk availability, you can source this component through verified engineering distributors:
