Mechanical Analog Push Pull Gauge NK-50

NK-50 Mechanical Push Pull Gauge Force Gauge Meter Tester Spring Dynamometer,
NK50 Force Gauge, Mechanical Analog Push Pull Gauge NK50, Force Measuring Instrument NK-50.

The NK-50 is a mechanical push-pull force gauge, Analog dynamometer, used to measure tension (pull) and compression (push) forces. It features a compact design and a dual-scale analog dial for displaying measurements in both Newtons (N) and kilograms-force (kgf).

• Model: NK-50
• Maximum Load: 50 N (Newtons) / 5 kgf (kilograms-force)
• Minimum Load: 5 N / 0.5 kgf
• Load Graduation Value: 0.25 N / 50 g
• Rod Journey (Stroke): 10 mm
• Operating Mode: Manual
• Display Type: Analog dial with a pointer

• Peak/Track Mode: A knob on the device allows the user to switch between modes. In "Peak" mode, the needle holds the maximum measured force, while in "Track" mode, the needle displays the real-time load.
• Dual-Scale Display: The analog dial shows measurements in both Newtons and kilograms-force simultaneously, eliminating the need for manual conversion.
• Handheld Design: Its compact size makes it easy to operate by hand, and it comes with a carrying box for portability.
• Mountable: The gauge can be mounted on various test stands or workbenches for more precise measurements.

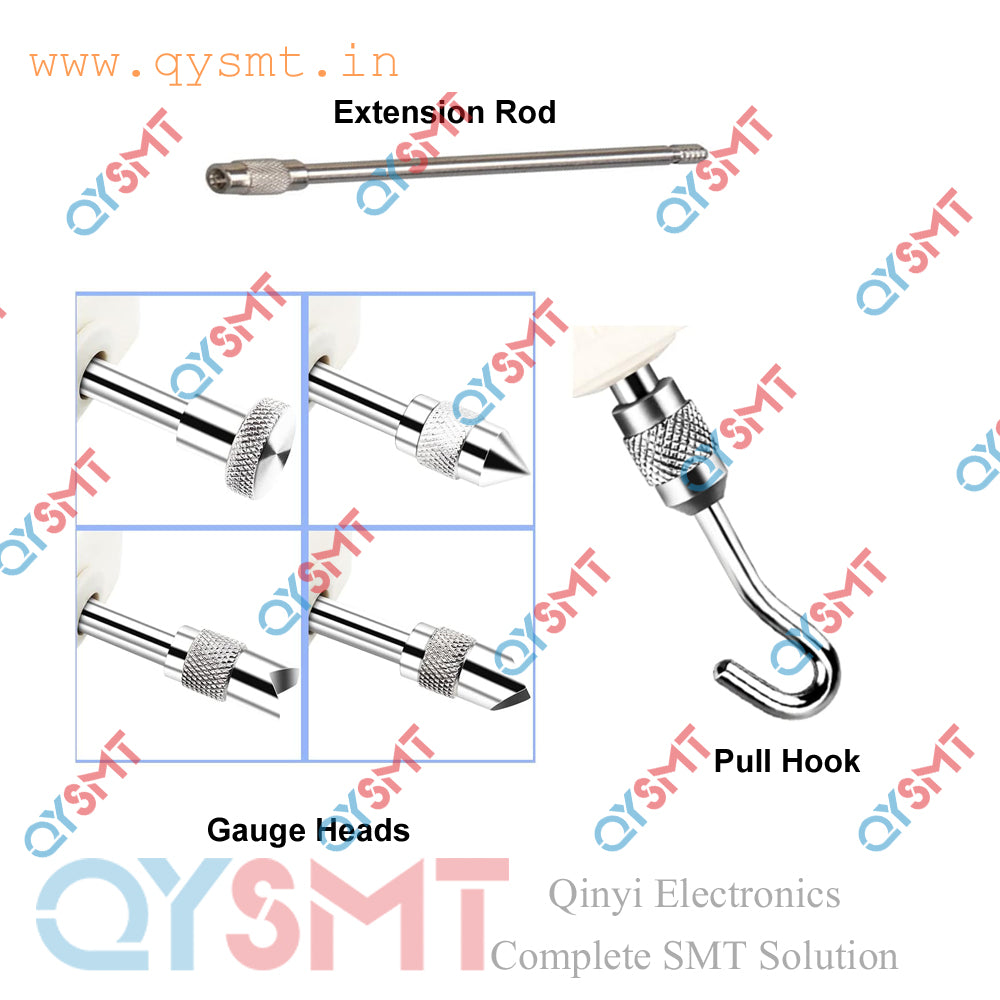

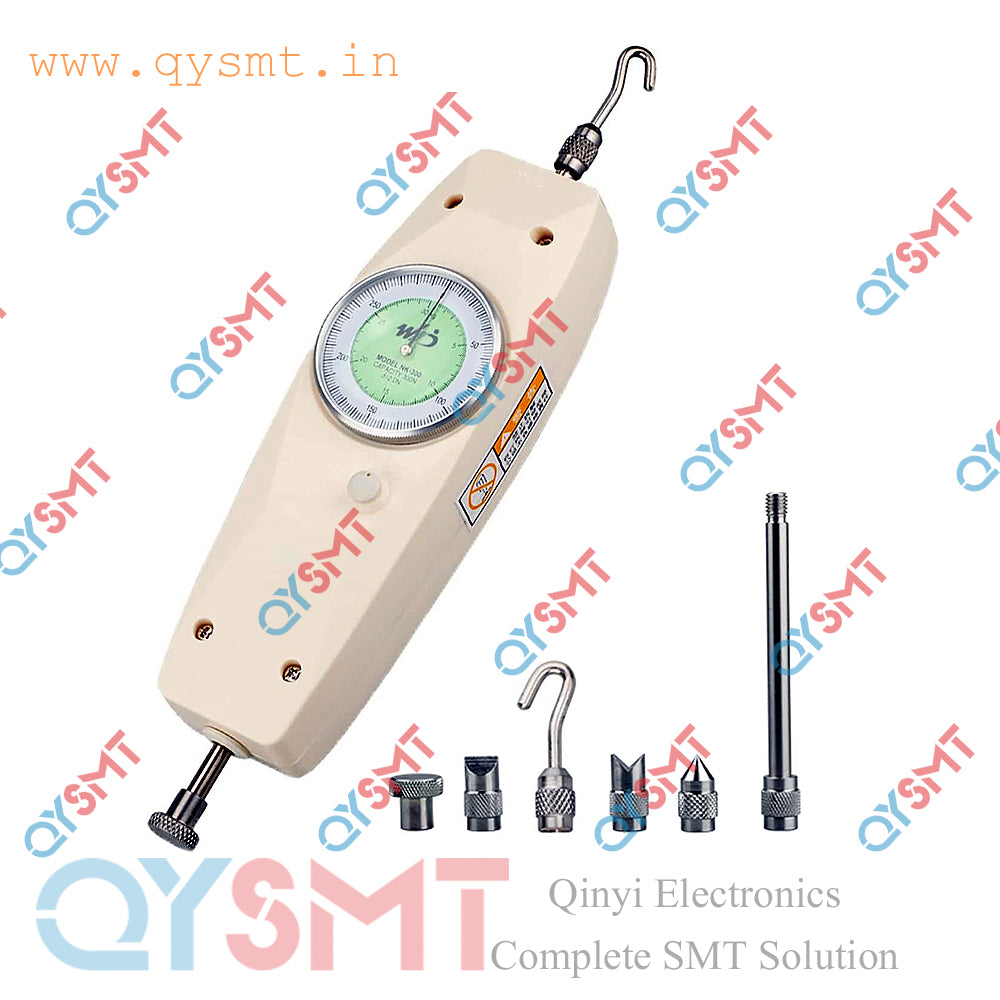

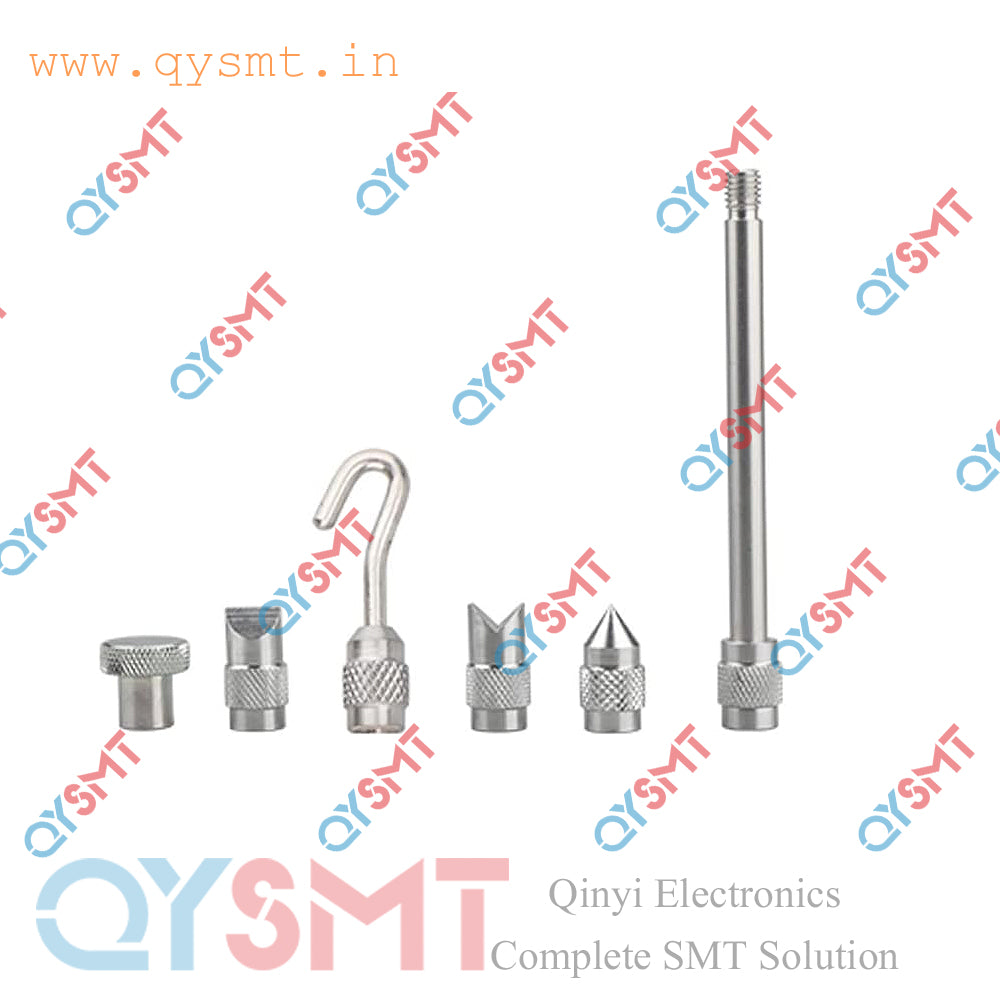

• Accessories: Tips (flat, cone, concave, convex), a hook, an extension rod, and screws to suit a wide range of testing applications.
