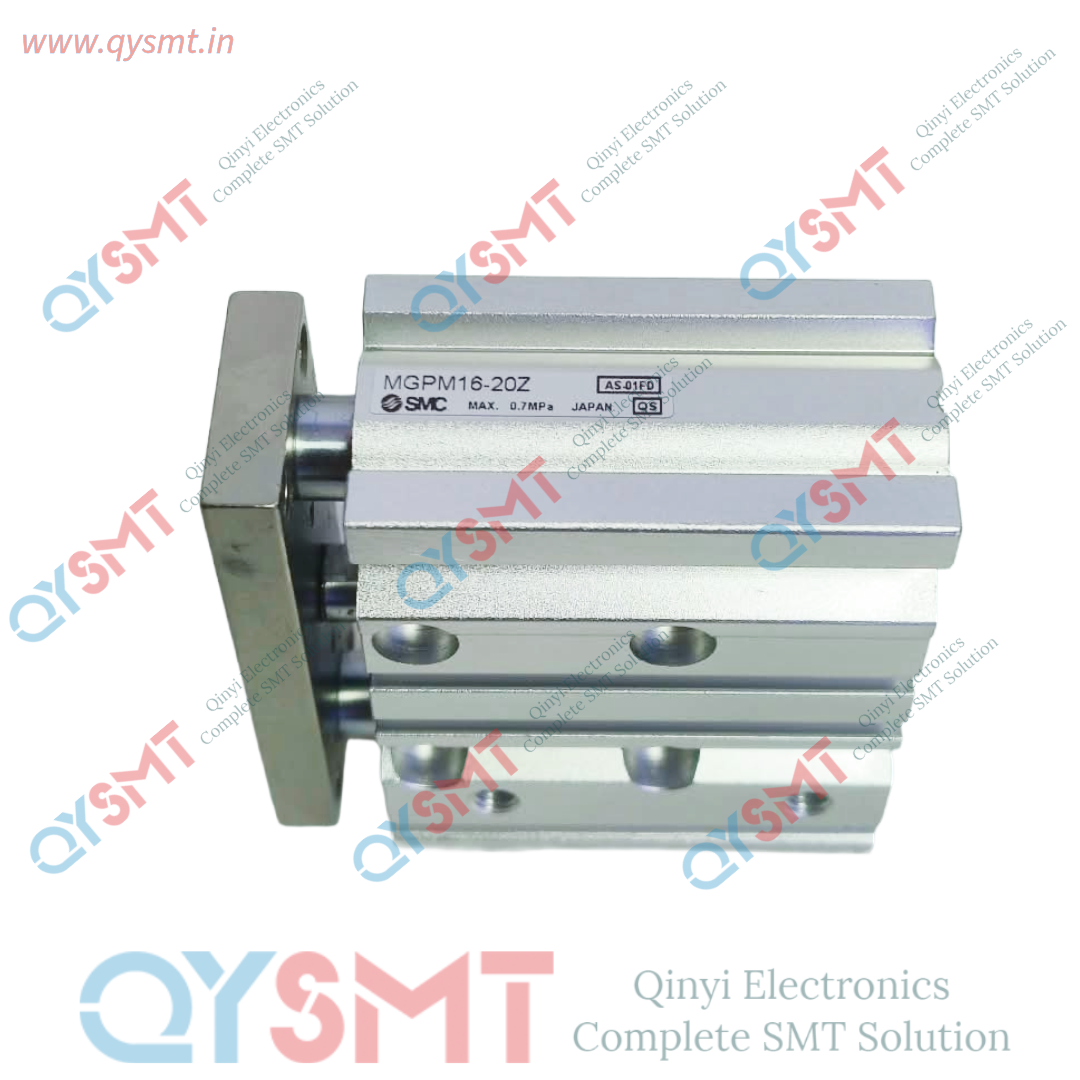

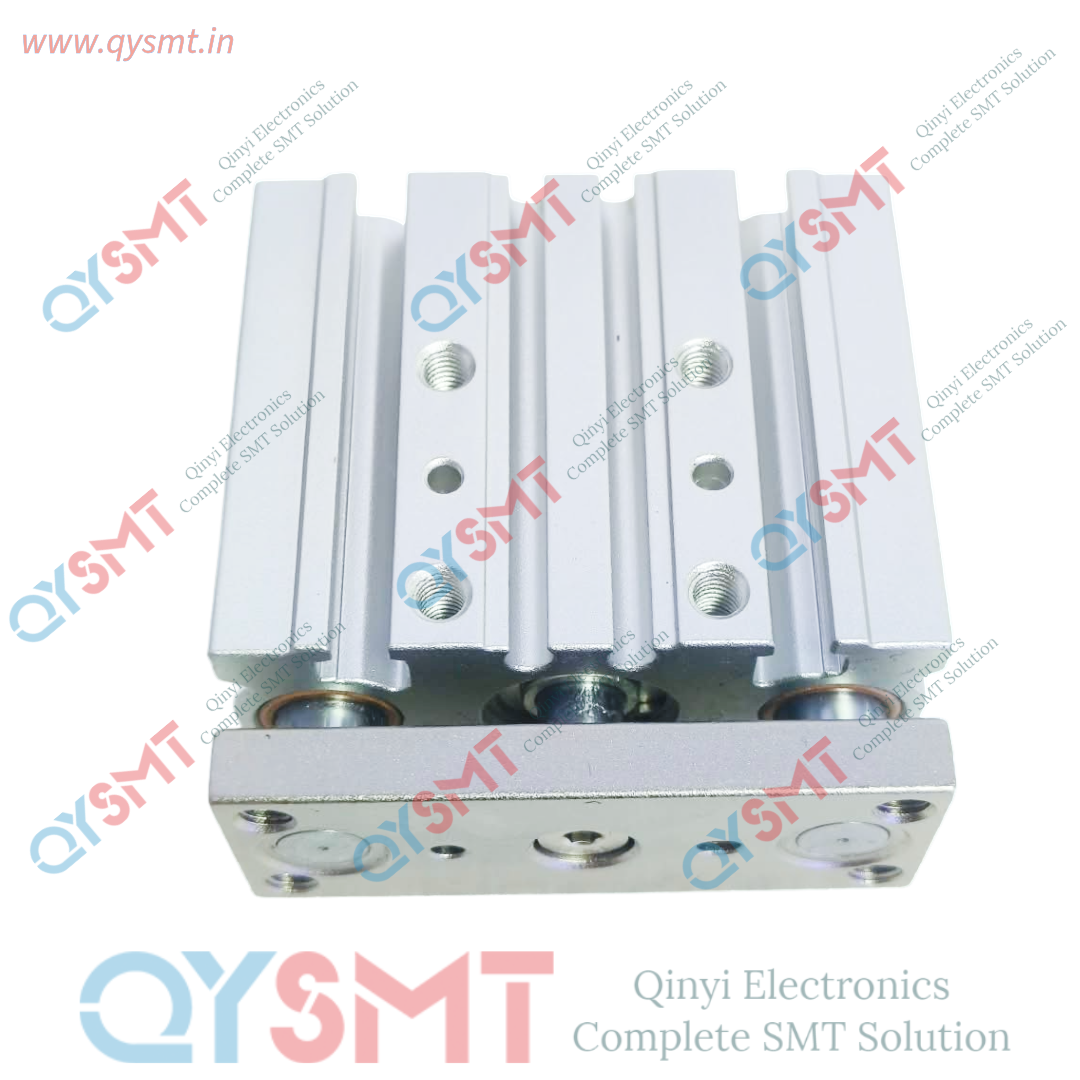

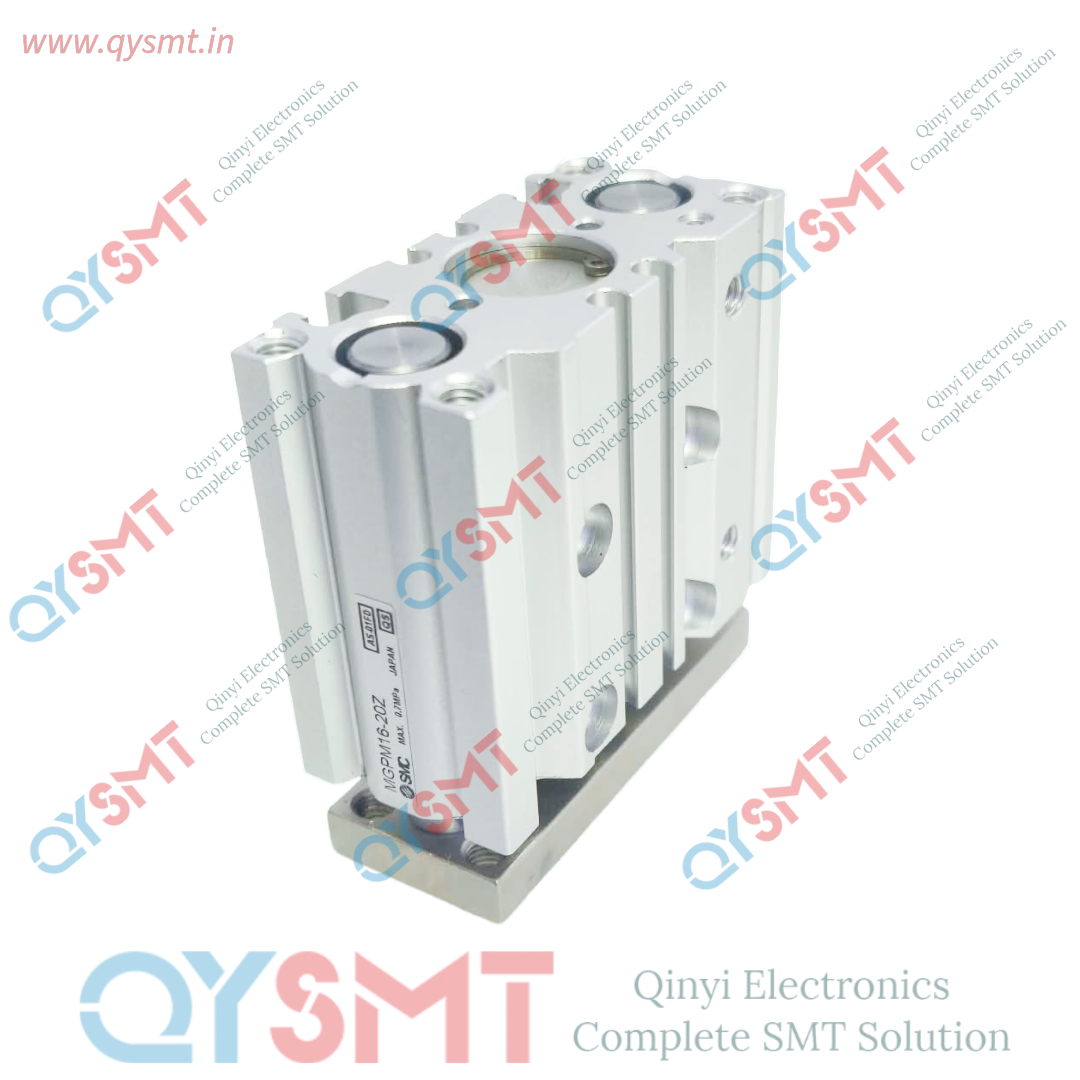

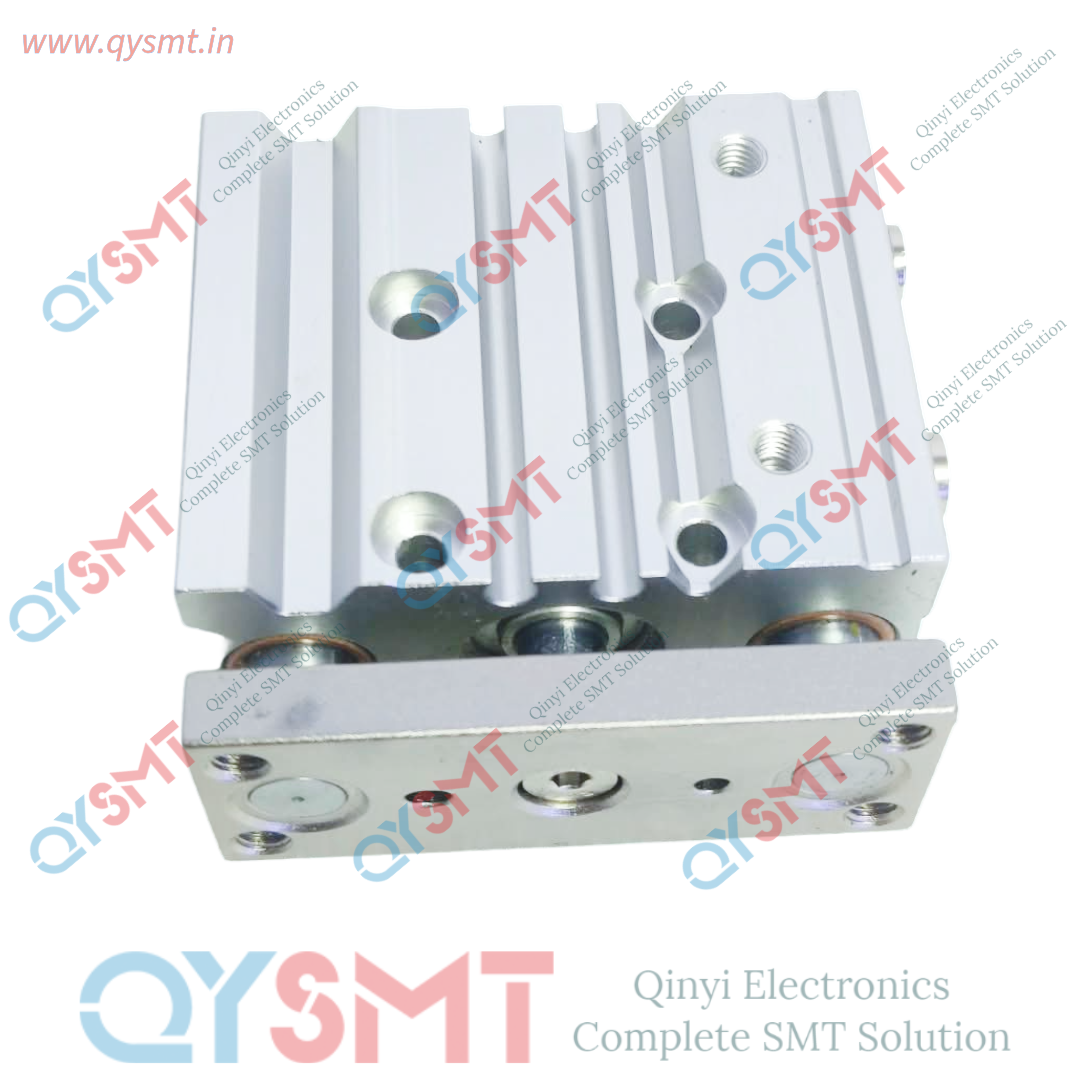

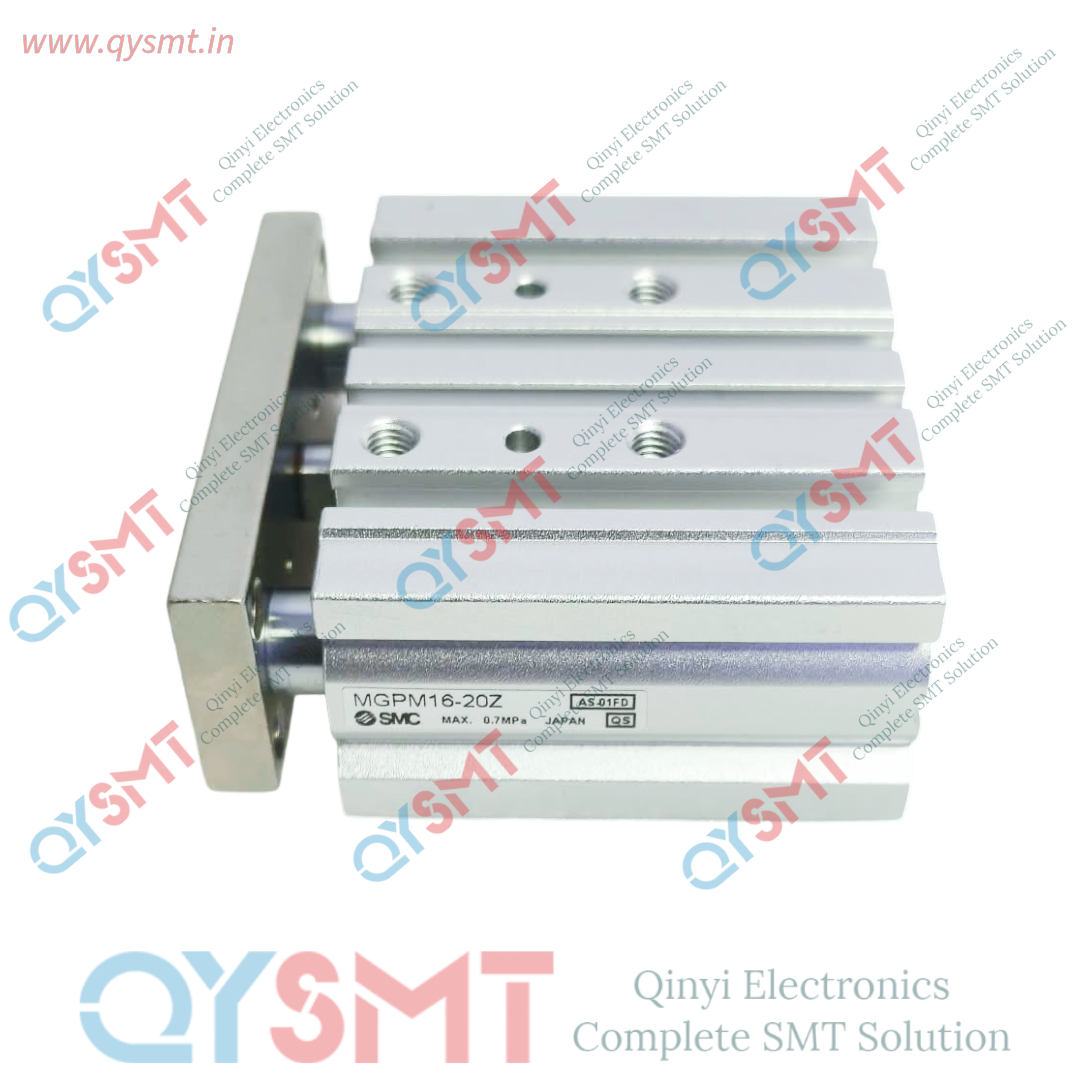

MGPM16-20Z Pneumatic guided Cylinder
Key Specifications

• Brand & Part Number: SMC MGPM16-20Z
• Bore Diameter: 16 mm
• Stroke Length: 20 mm
• Bearing Type: Slide Bearing (Model MGPM)
• Action Type: Double Acting
• Port Size: M5 × 0.8 (two port locations available)
• Maximum Operating Pressure: 1 MPa (Proof pressure: 1.5 MPa)
• Maximum Piston Speed: 500 mm/s
• Operating Temperature: -10°C to +60°C
• Cushioning: Rubber cushioning at both ends
• Weight: Approximately 380 g (1.87 lbs)
• Dimensions: 66 mm length × 58 mm height × 26 mm width (approx.)

Features & Design

• Space-Saving Design: Features a shortened guide rod and thinner plate (reducing overall weight by up to 17% to 24% compared to legacy models).
• High Side Load Capacity: Integrated cylinder and guide body enhance resistance to lateral forces and moment loads during lifting, stopping, or material handling.
• Mounting Flexibility: Includes two-side switch mounting grooves, T-slot mounting, and options for direct mounting of round-type or magnetic-field-resistant auto switches without spacers.

If you need help with CAD files, pricing, seal kits, or auto-s
