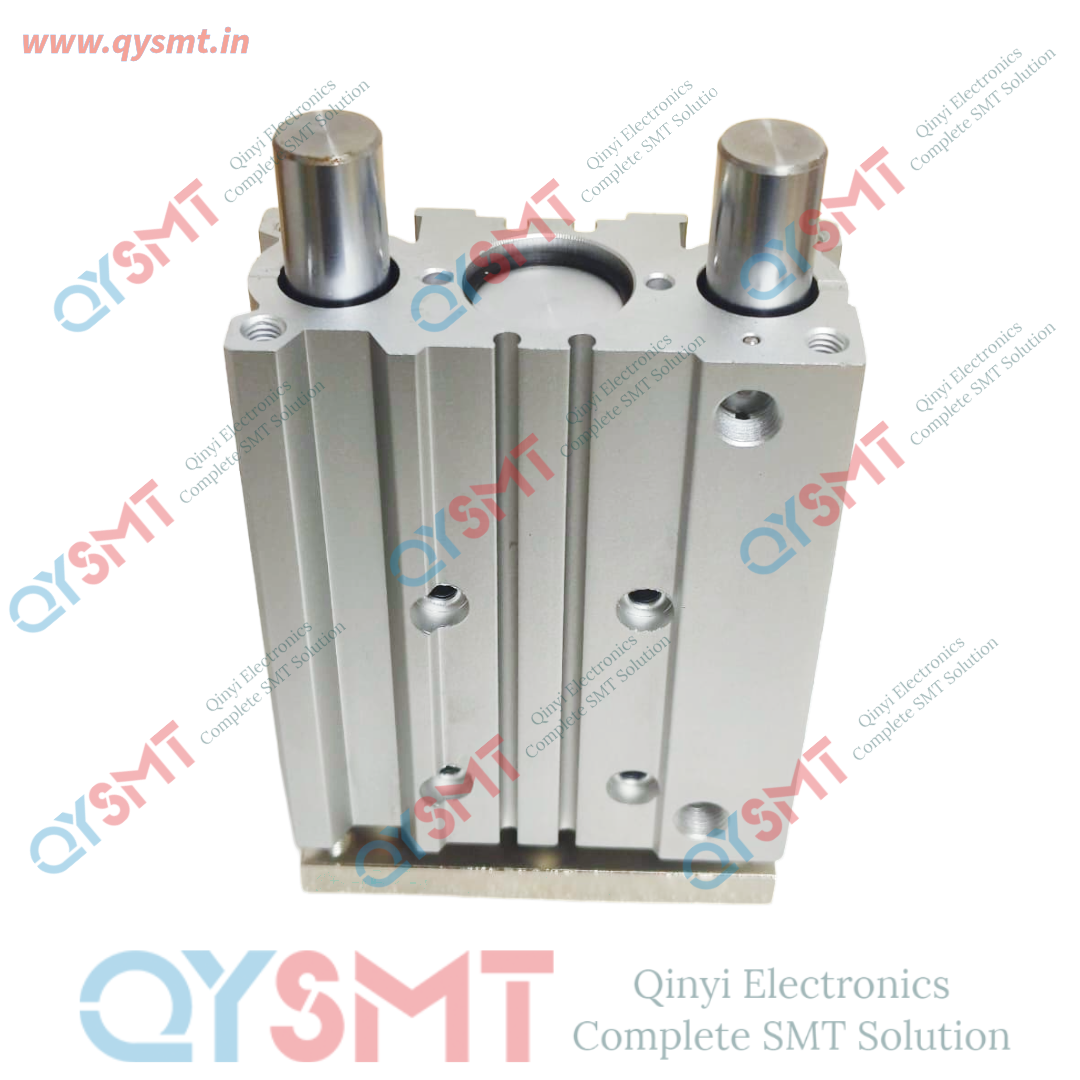

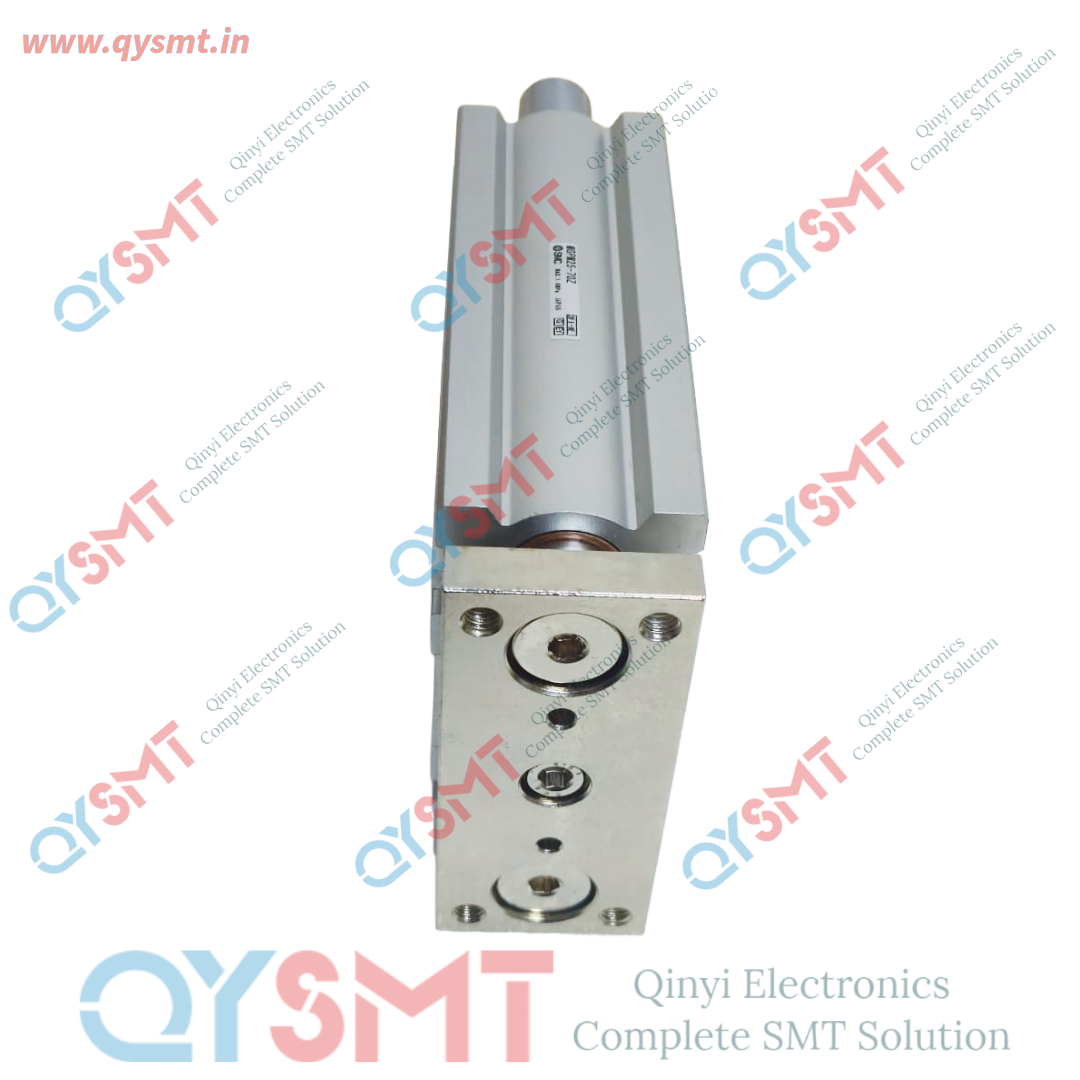

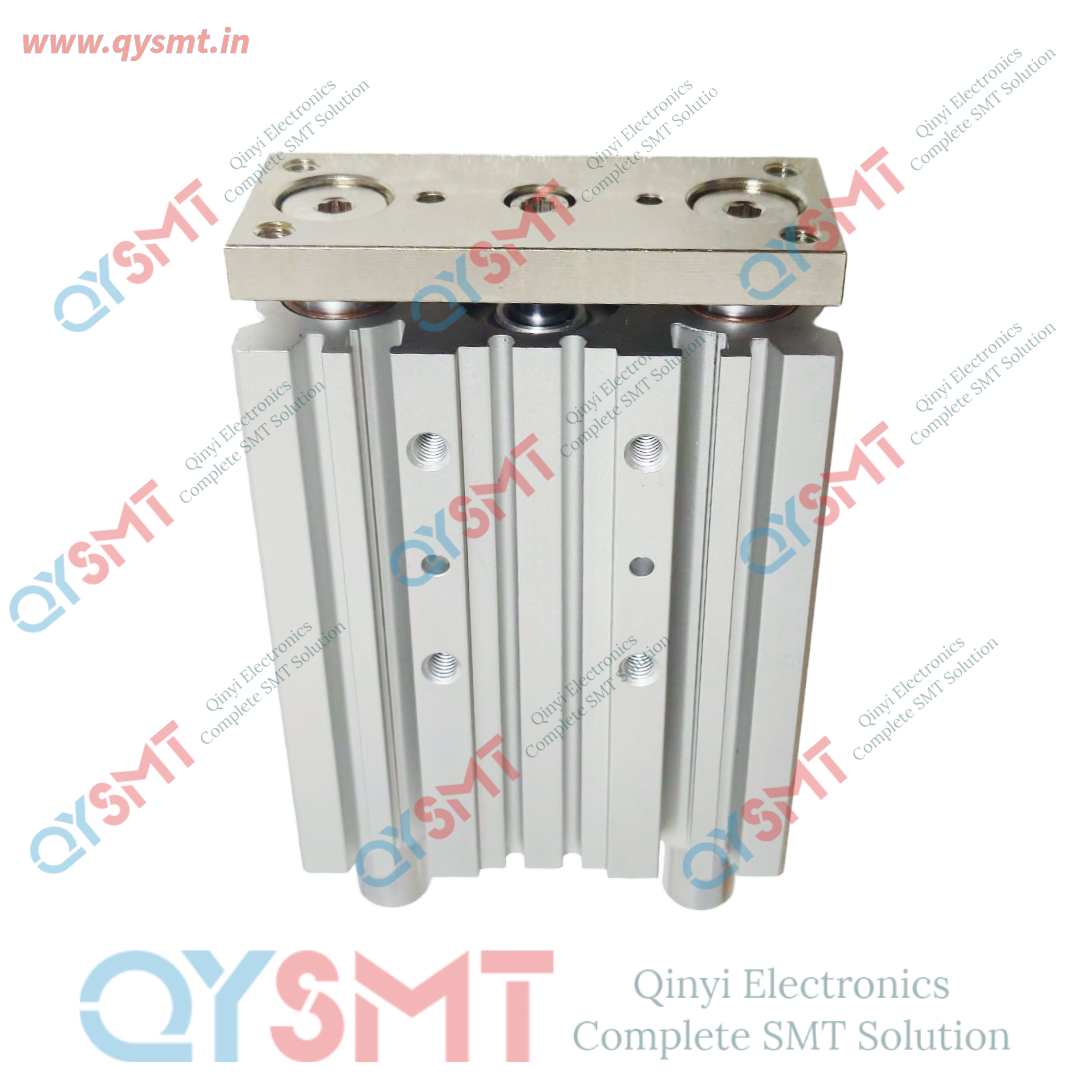

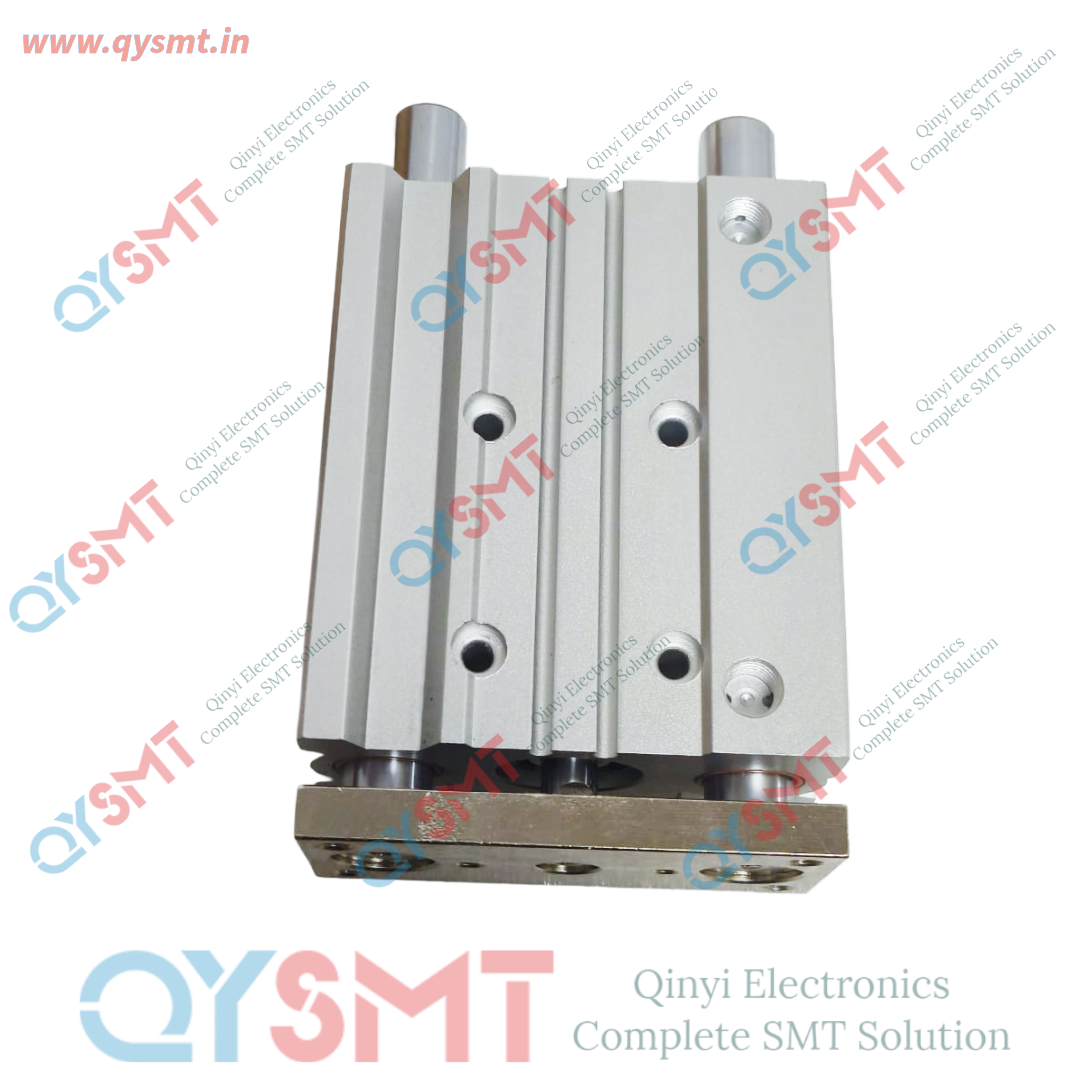

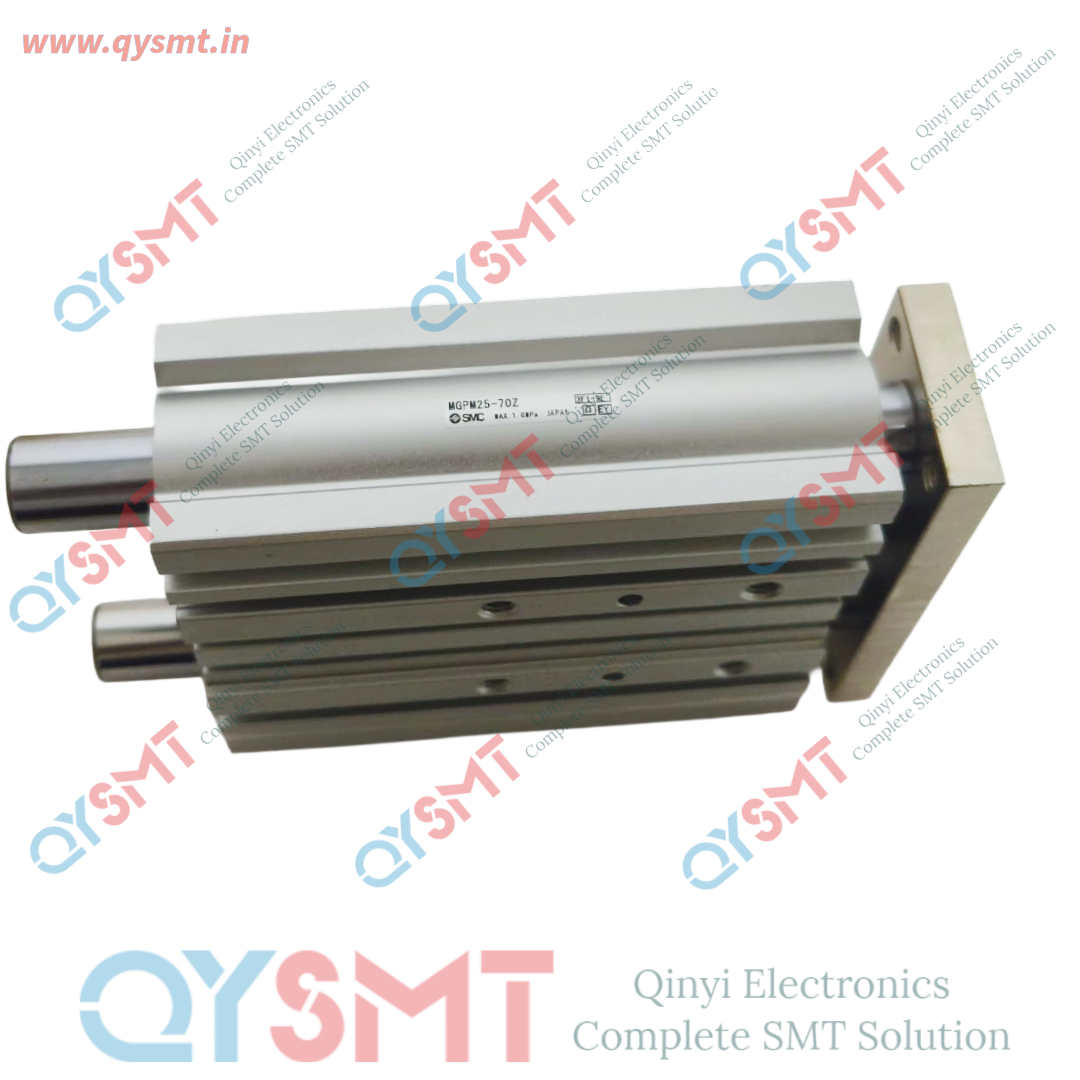

MGPM25-70Z Penumatic cylinder

MGPM25-70Z Penumatic cylinder
Part Number BreakdownThe specific characters in the part number dictate its physical build and operating properties according to the SMC MGP Catalog:

• MGP: Base model series identifier for standard Compact Guided Tri-rod Cylinders.
• M: Specifies a Slide Bearing guide type, which offers excellent lateral load capacity and resistance to heavy shocks (such as conveyor stopping blocks).
• 25: Indicates a 25 mm internal piston bore diameter.
• 70: Represents a 70 mm piston extension stroke length.
• Z: Denotes the new modernized style featuring a shorter guide rod and thinner plate, providing up to a 17% reduction in total weight compared to legacy MGP models.

Key Technical Specifications

• Action Type: Double-acting, single rod (air moves the cylinder both forward and backward).
• Fluid Media: Cleaned compressed air filtered down to a 40-micron rating.
• Proof Pressure: Max \(1.5\text{ MPa}\) (\(15\text{ bar}\) / \(215\text{ PSI}\)).
• Max Operating Pressure: \(1.0\text{ MPa}\) (\(10\text{ bar}\) / \(145\text{ PSI}\)).
• Min Operating Pressure: \(0.12\text{ MPa}\) (\(1.2\text{ bar}\) / \(17\text{ PSI}\)) to overcome internal friction.
• Piston Speed Range: \(50\text{ to }500\text{ mm/s}\) line speed limits.
• Cushioning: Integrated rubber bumpers on both internal stroke ends to absorb residual kinetic impact.
• Ambient Temperature: \(-10^{\circ }\text{C}\) to \(60^{\circ }\text{C}\) (\(14^{\circ }\text{F}\) to \(140^{\circ }\text{F}\)) with no freezing moisture.
• Port Sizing: Standard \(M5 \times 0.8\) threaded pneumatic supply ports
