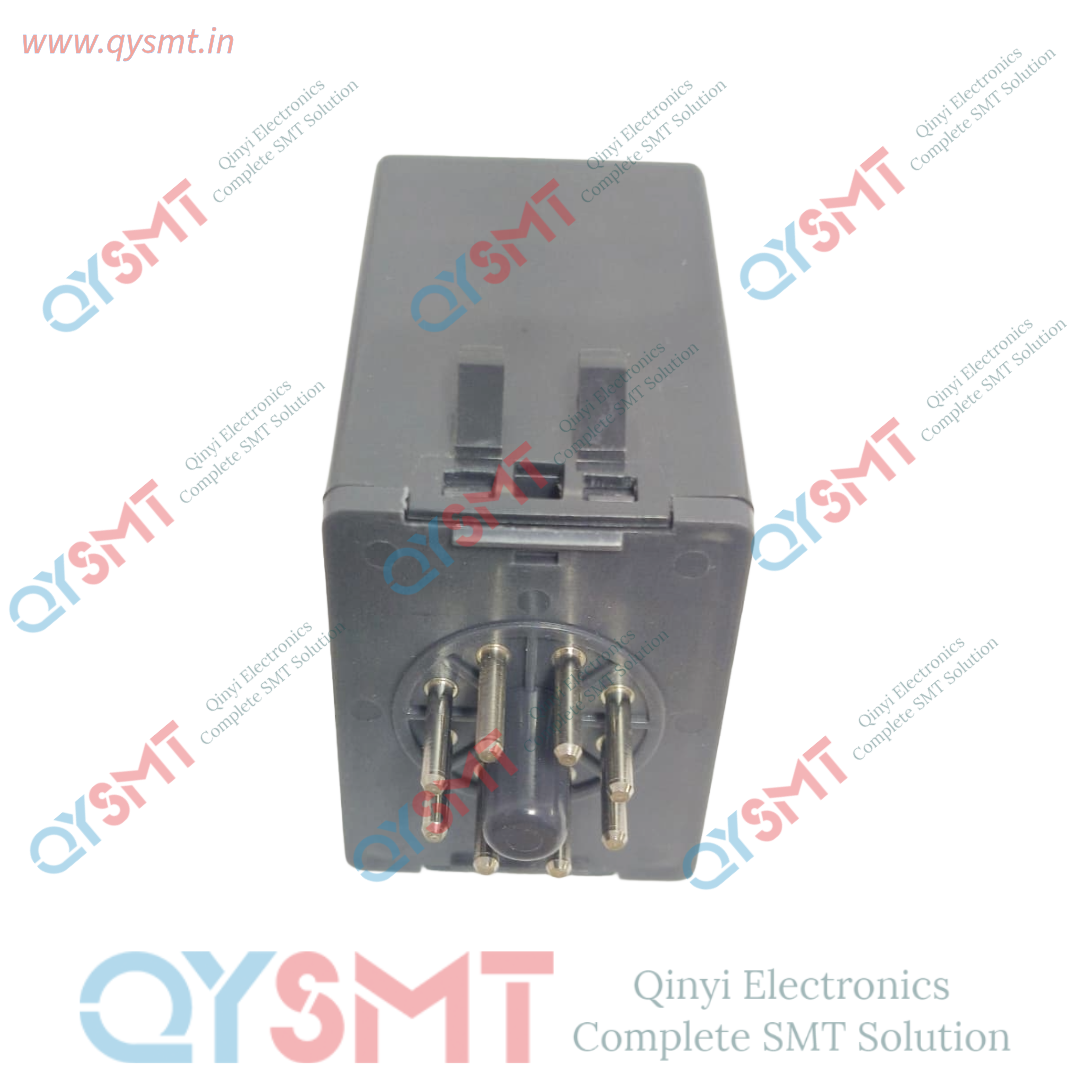

MGSDB2 controller

MGSDB2 controller

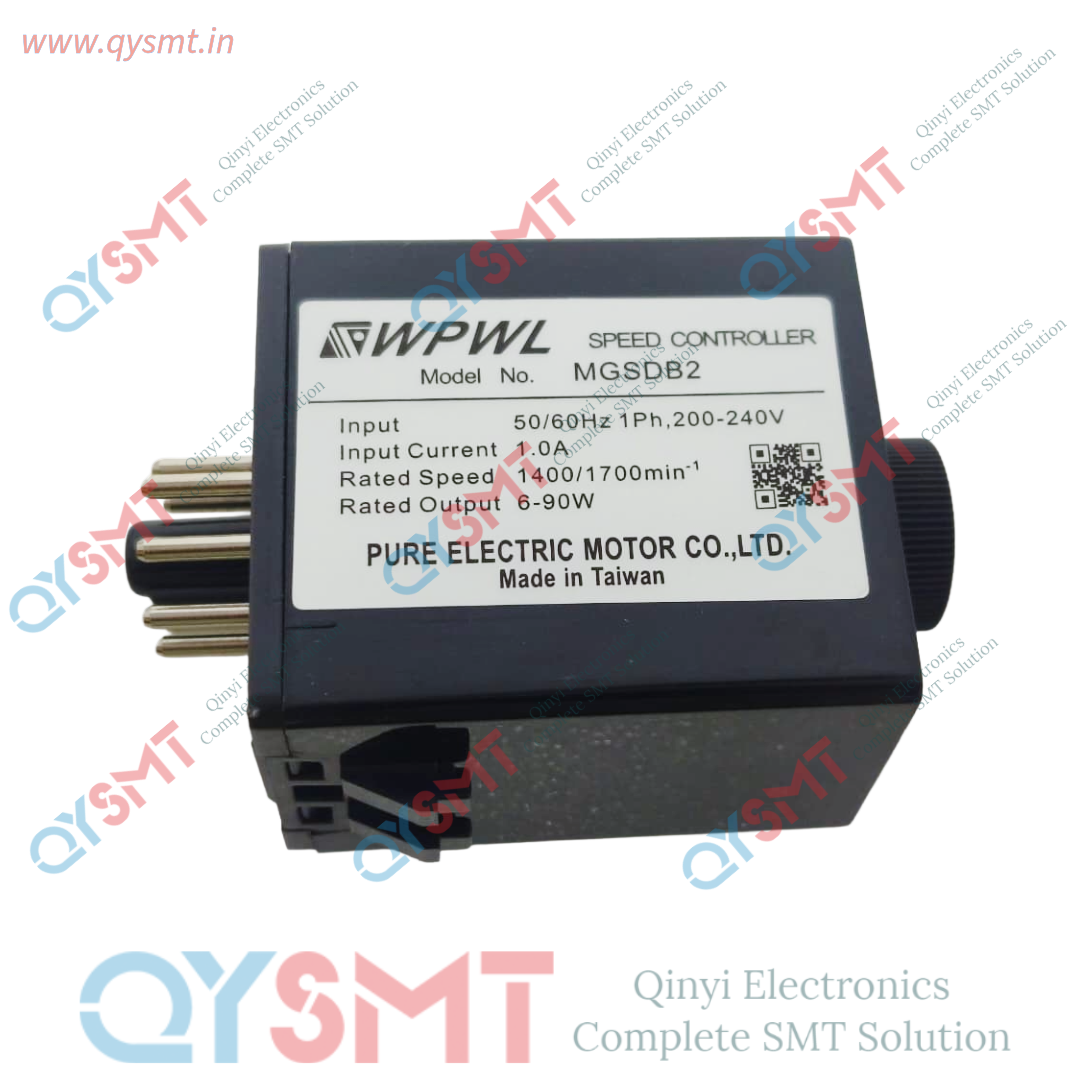

Core Specifications

• Supply Voltage: Single-phase AC 200 V to 240 V at 50/60 Hz.
• Compatible Motor Output: 6 W to 90 W.
• Input Current: 1.0 A.
• Speed Range: 90 to 1400 rpm at 50 Hz, or 90 to 1700 rpm at 60 Hz.
• Weight: 80 grams.

How It WorksThink of a speed controller like a light dimmer switch for an electric fan. When you turn the knob on the , you are changing the voltage sent to the motor. This changes how fast the motor spins, allowing you to fine-tune your machinery's speed. It also features a built-in electric brake to help the motor stop quickly
