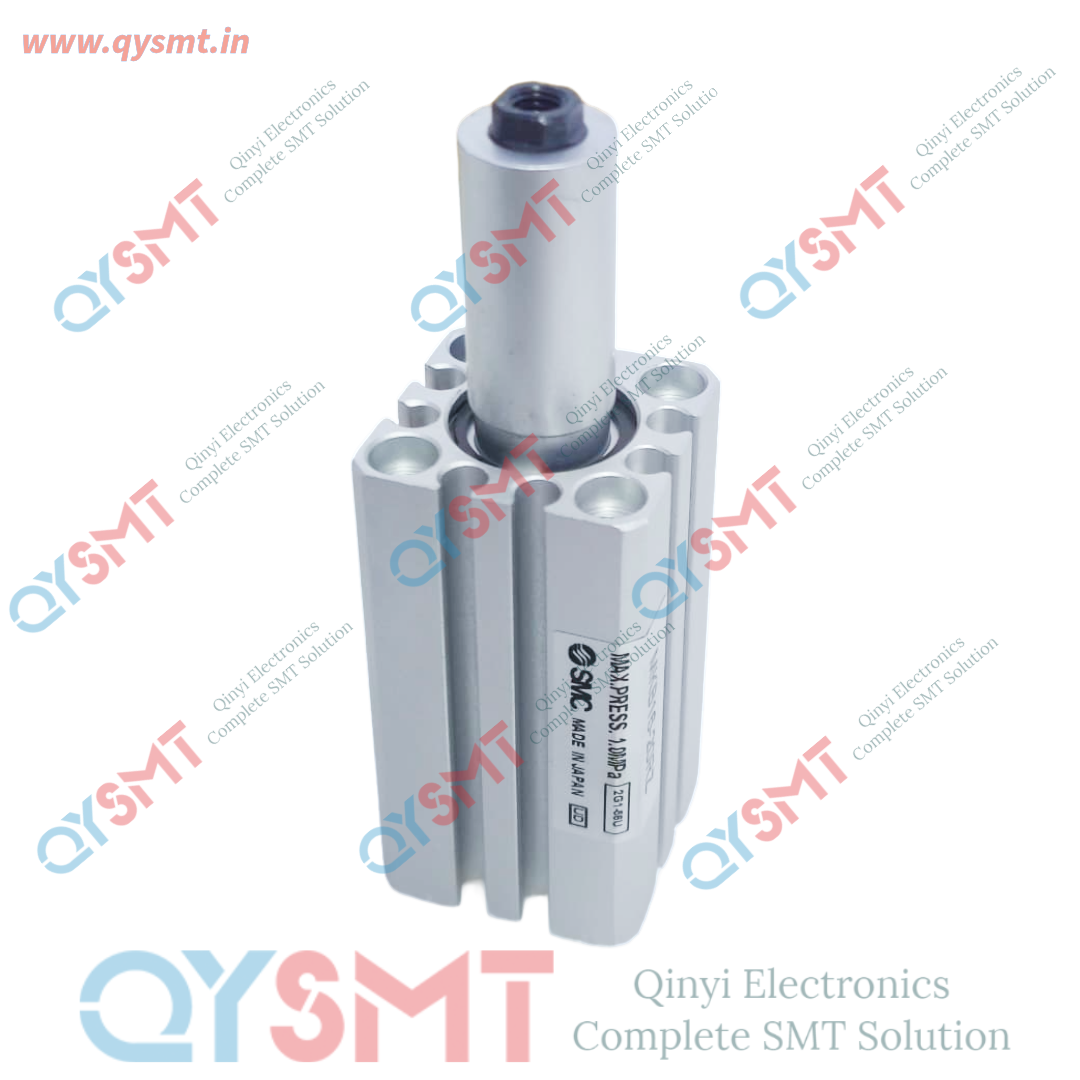

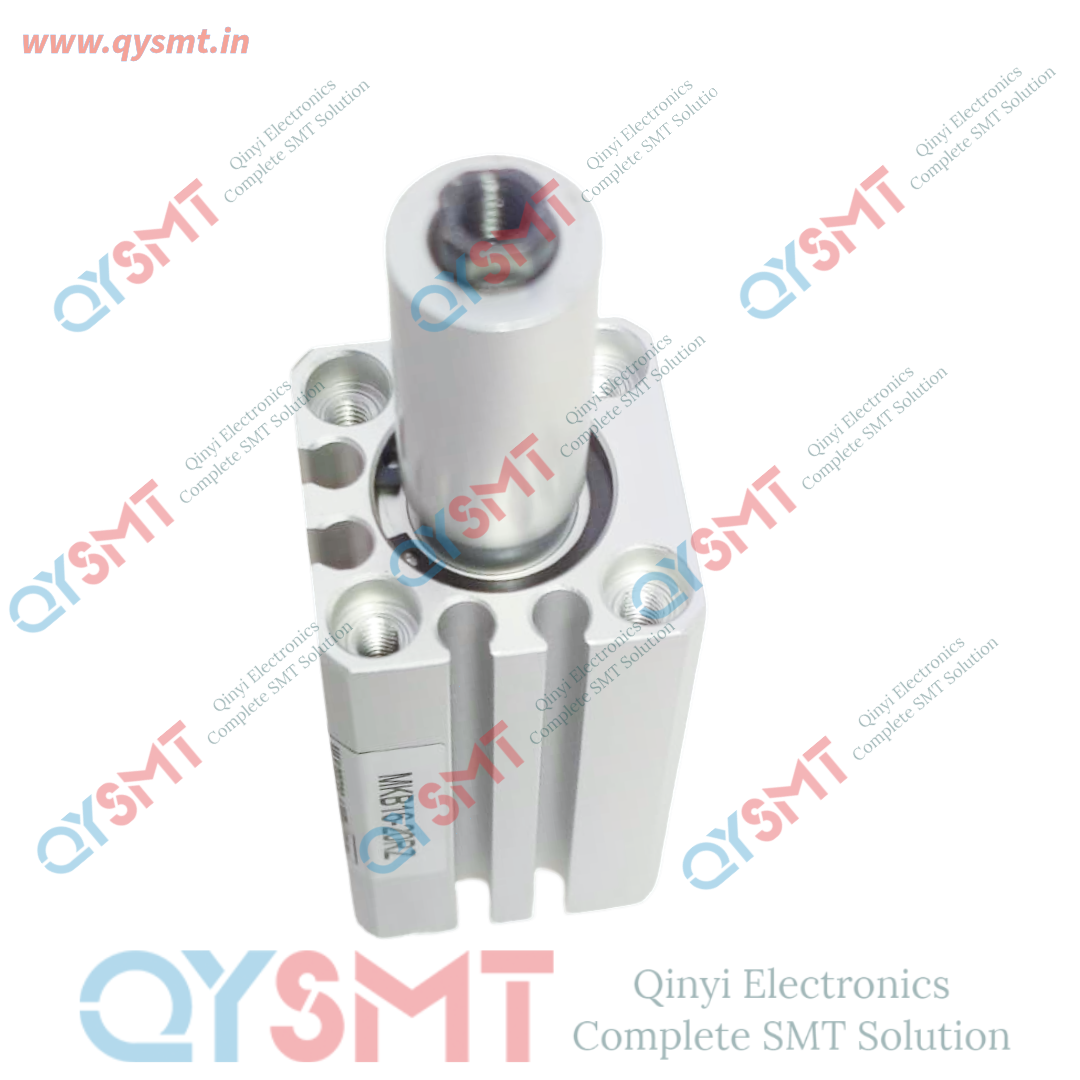

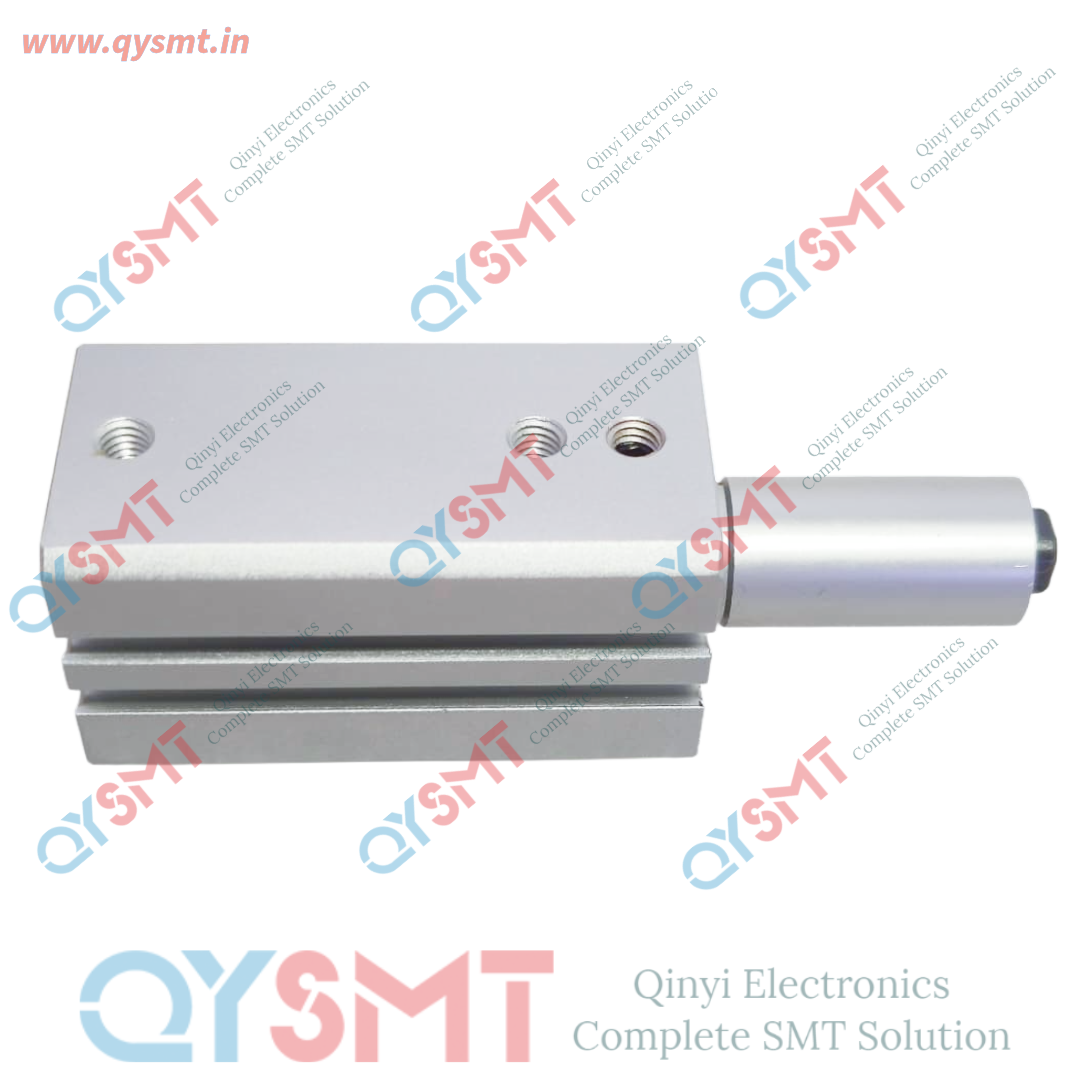

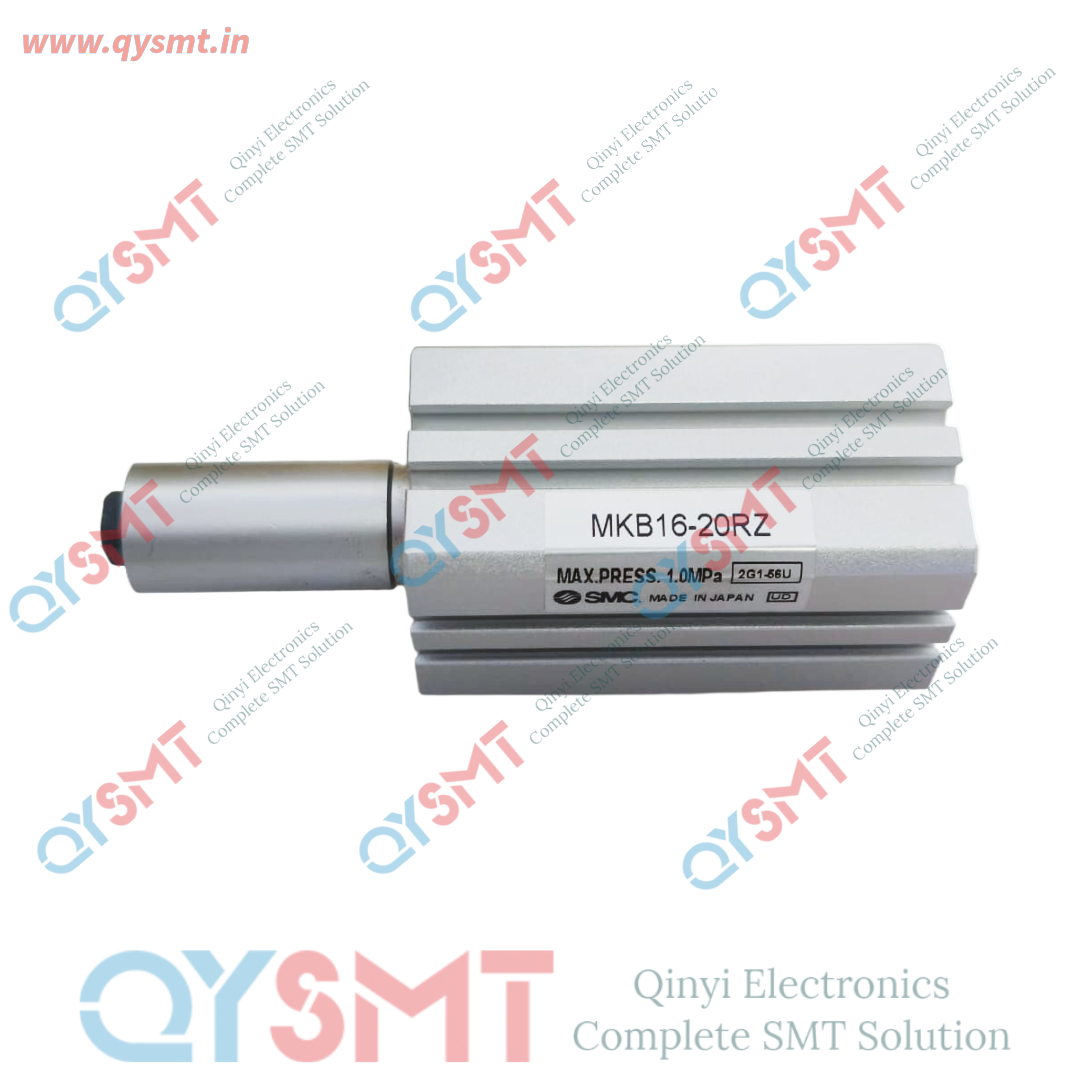

MKB16-20RZ cylinder SMC

MKB16-20RZ cylinder SMC

Part Number Breakdown

• MK: MK Series Rotary Clamp Cylinder
• B: Basic mounting style (through-hole/both ends tapped common)
• 16: 16 mm bore diameter
• 20: 20 mm total clamp stroke
• R: Clockwise rotary direction
• Z: New design iteration featuring 3 times higher allowable moment of inertia and recessed auto-switch mounting grooves on 4 surfaces

Key Specifications

• Operating Fluid: Filtered, lubricated, or non-lubricated compressed air
• Pressure Range: +0.1 to +1 MPa (1 to 10 bar)
• Clamping Force: 0.075 kN (75 N) at 0.5 MPa
• Cushion Type: Rubber bumper
• Port Thread: M5 x 0.8 female thread
• Ambient & Fluid Temperature: -10°C to +60°C
