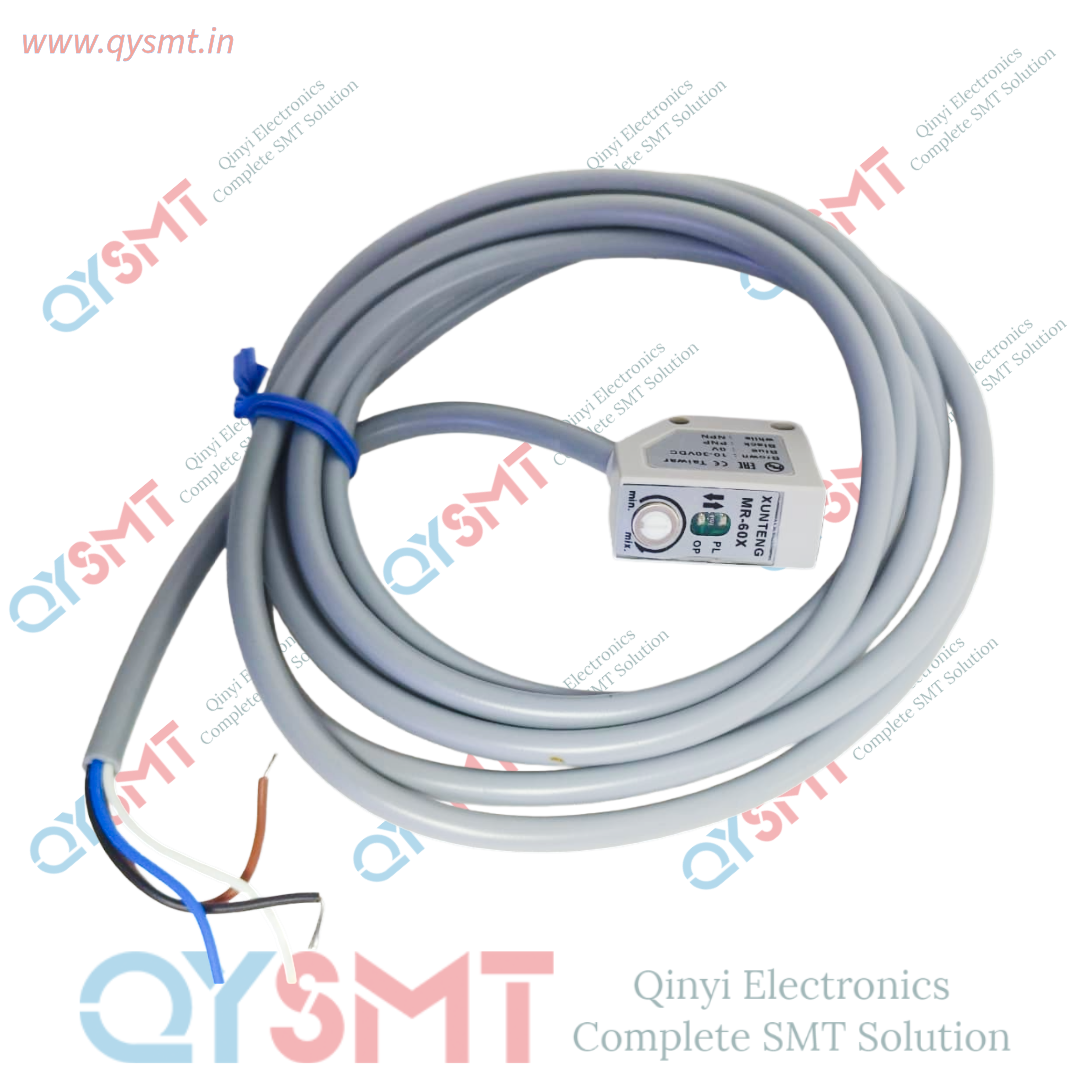

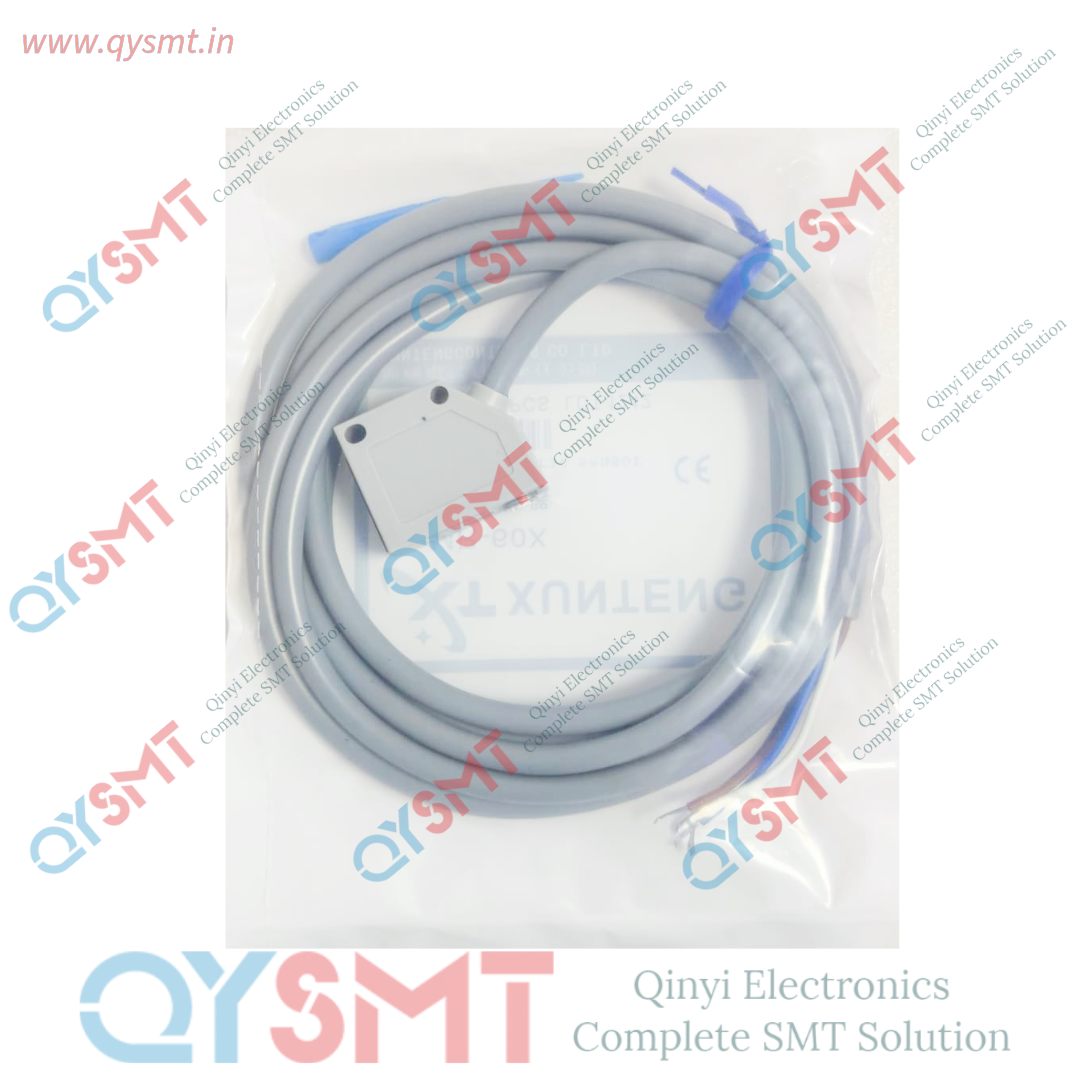

MR-60X photoelectric proximity sensor

MR-60X photoelectric proximity sensor
Key Technical Specifications

• Sensing Distance: Up to 60 cm with an adjustable sensitivity range.
• Sensor Type: Reflex-type (diffuse reflective) operating via a built-in infrared LED.
• Operating Voltage: 10–30V DC.
• Output Signal: Transistor output available in NPN or PNP configurations.
• Sensitivity Adjustment: Features a 270° trimmer for precise tuning based on target distance and material.
• Protection Rating: IP65 or IP67 weatherproofing, making it water-resistant and dustproof for harsh industrial environments.
• Safety Features: Integrated short-circuit and reverse-polarity protection circuits

Common Applications

• Conveyor Systems: Detecting the presence or absence of packages, bottles, or parts on a production line.
• Positioning Tasks: Serving as a limit or proximity switch to track machine part movements.
• Counting: Keeping an accurate count of objects passing through its 60 cm field of view.

(Note: If you are looking for mobile hardware instead, "MR-60X" can also refer to the replacement internal proximity and ambient light sensor flex cable for the Realme Note 60x smartphone). If you are setting this up, let me know:

• Are you integrating this with a PLC, microcontroller, or relay circuit?

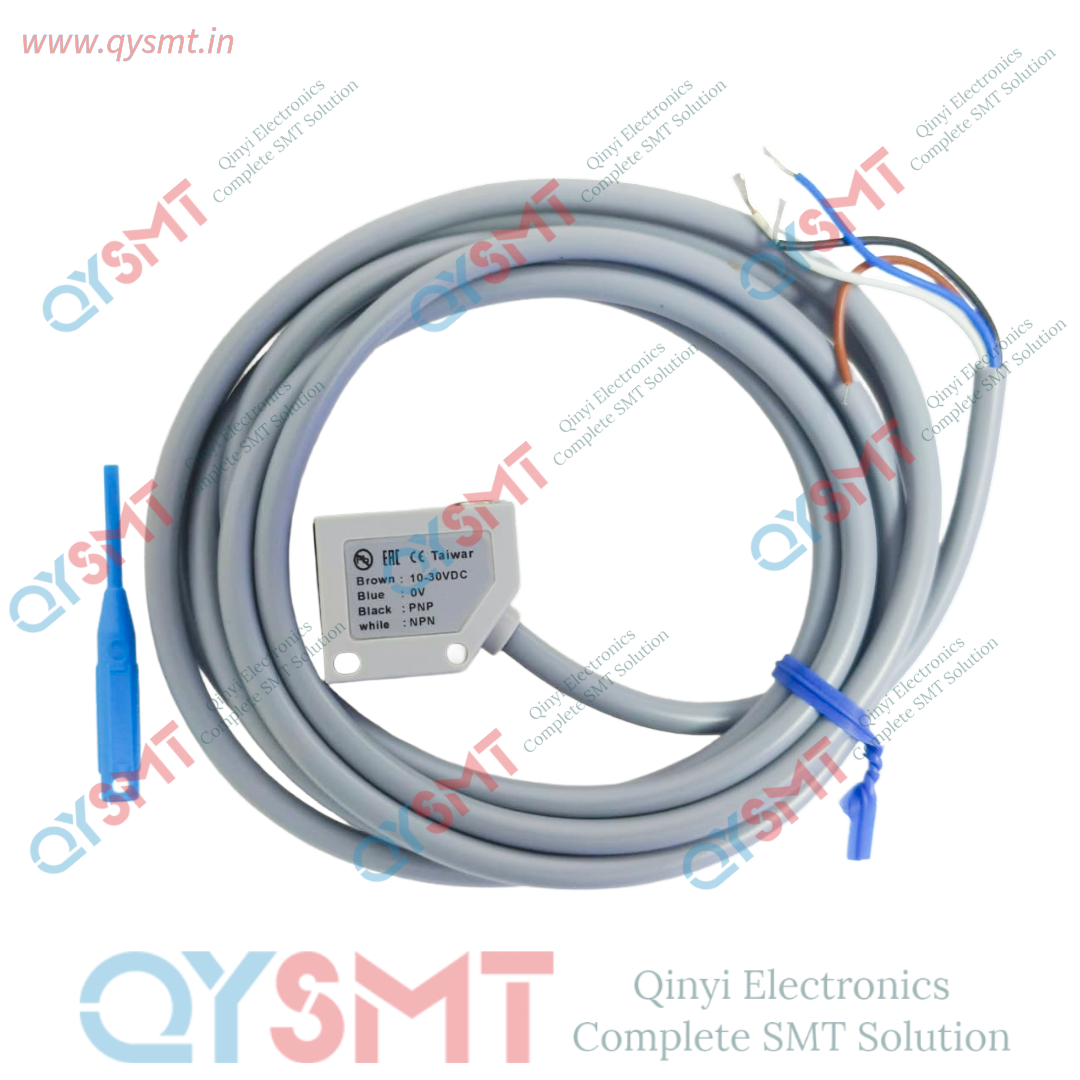

• Do you need assistance with the wiring diagram (Brown/Blue/Black wires)?
• Is your specific module an NPN or PNP variant
