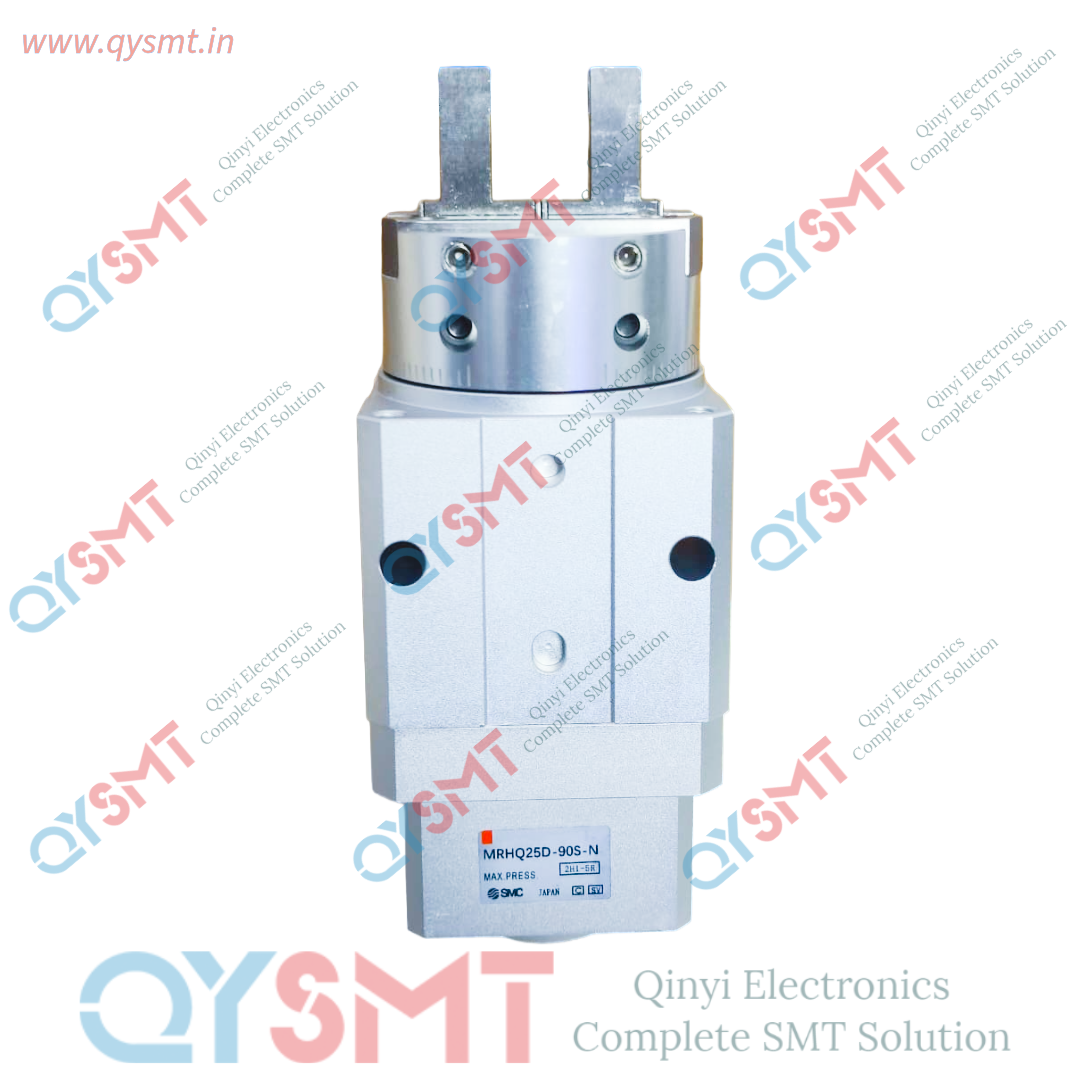

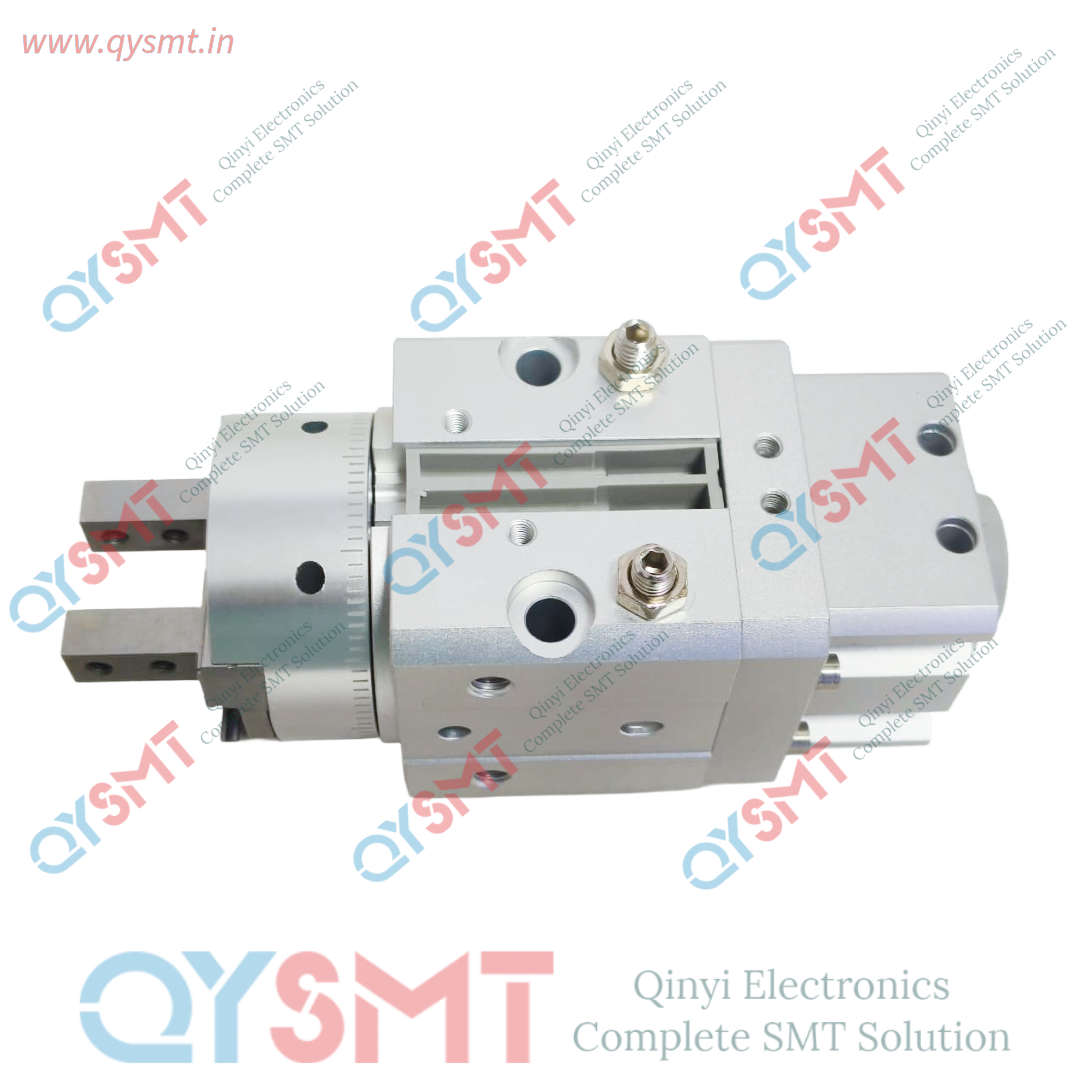

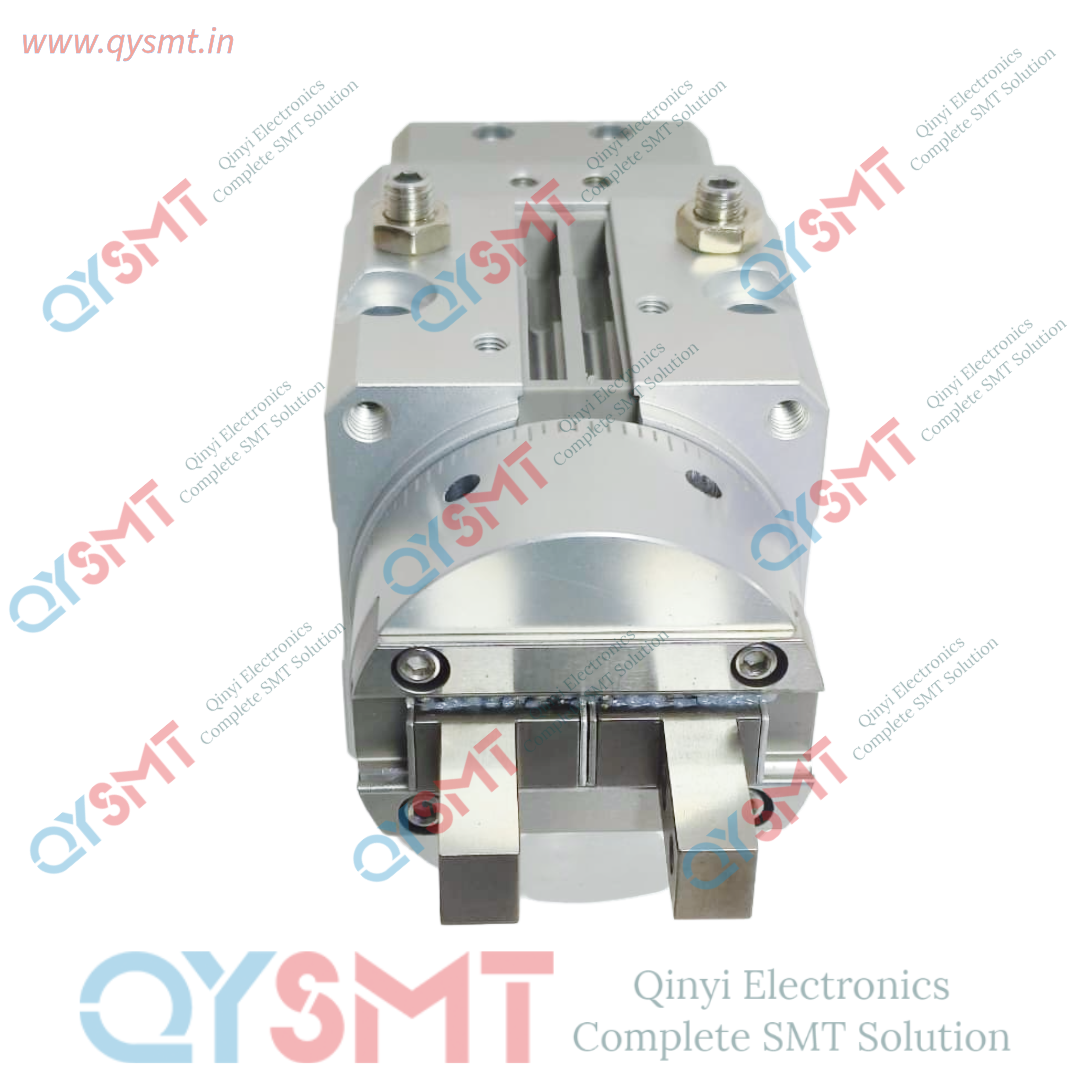

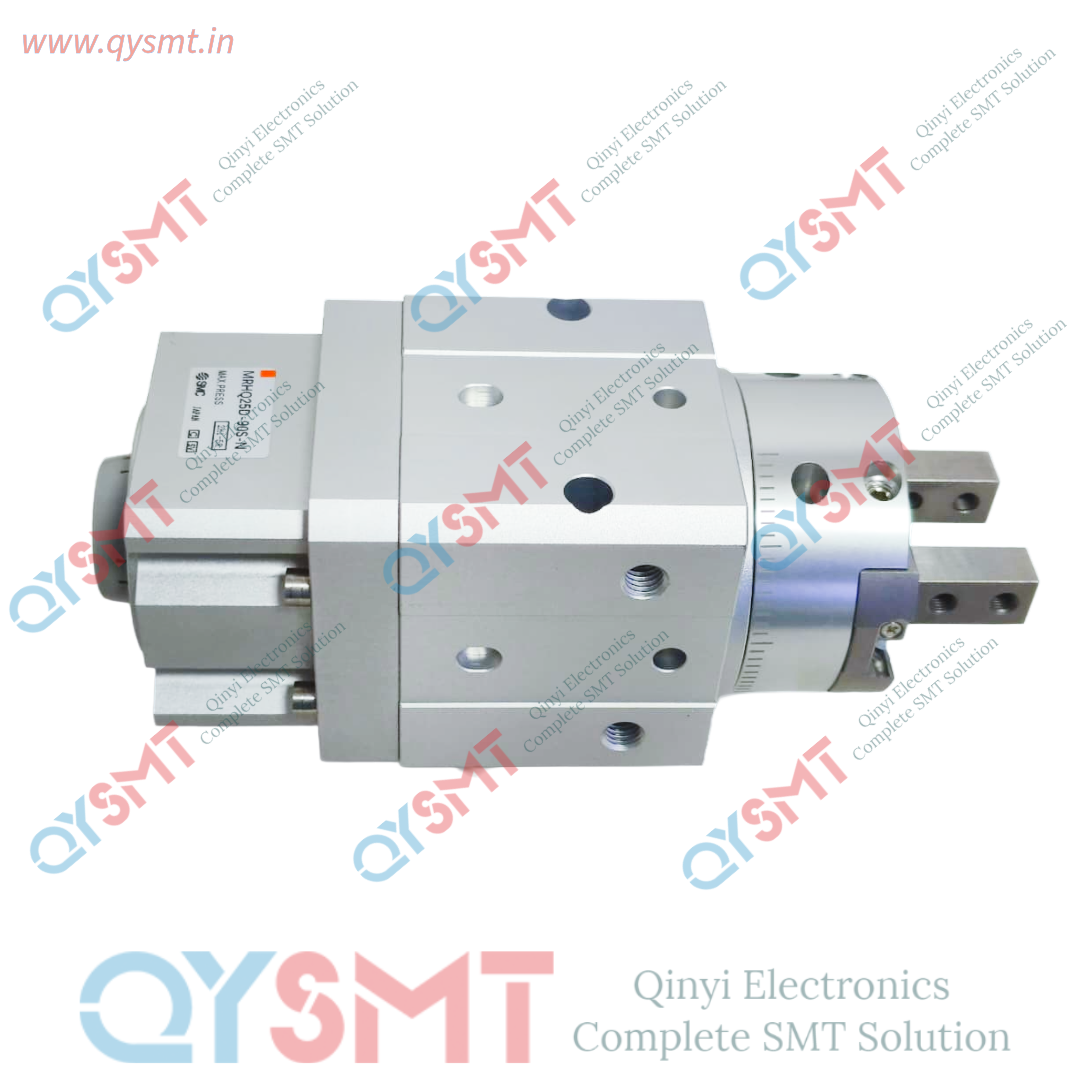

MRHQ25D-90S-N rotary pneumatic gripper

MRHQ25D-90S-N rotary pneumatic gripper
Key Technical Specifications

• Bore Diameter: 25 mm
• Rotation Angle: 90°
• Gripper Type: Parallel, 2-Finger design
• Action Type: Double-acting (uses compressed air to both open and close/rotate)
• Gripper Stroke: 14 mm
• Holding Force: 140 N (Closed) / 90 N (Open) at 72 Psi
• Operating Pressure Range: 15 psi to 102 psi (0.1 to 0.7 MPa)
• Port Size: M5 x 0.8 female thread

Core Design Advantages

• Space-Saving: Integrates a rotary table and an air gripper into one housing, cutting the overall tool length by approximately 20% compared to custom-built multi-component assemblies.
• Clean Cable Management: Eliminates the complex, twisting peripheral wiring and piping loops typical of separate rotary and gripping units.
• Versatile Mounting: Built with a modular construction style allowing it to be secured from five different directions (two ends and three separate sides).
• Sensor Ready: Features built-in structural slots with an internal magnet to easily retrofit magnetic auto-switches for position detection
