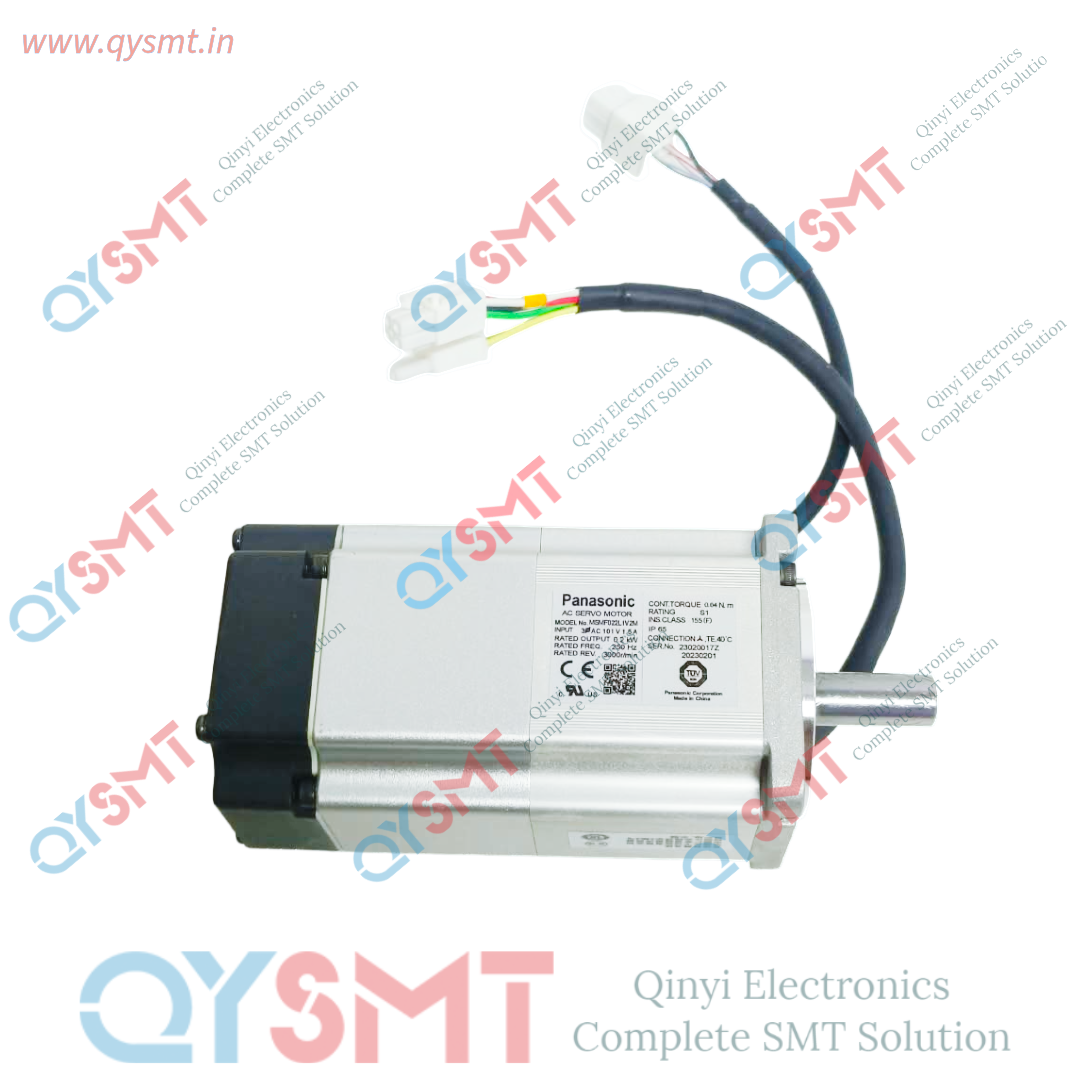

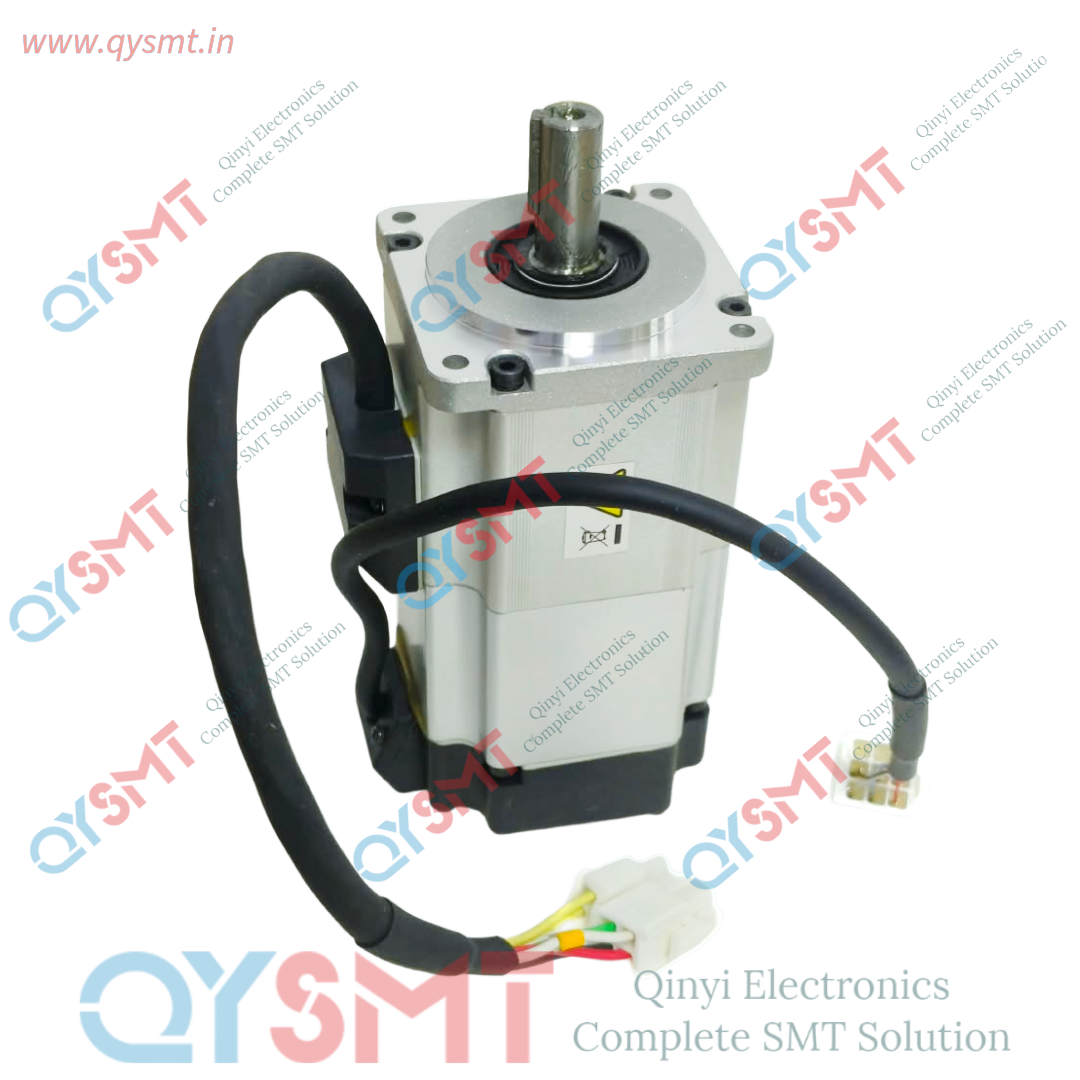

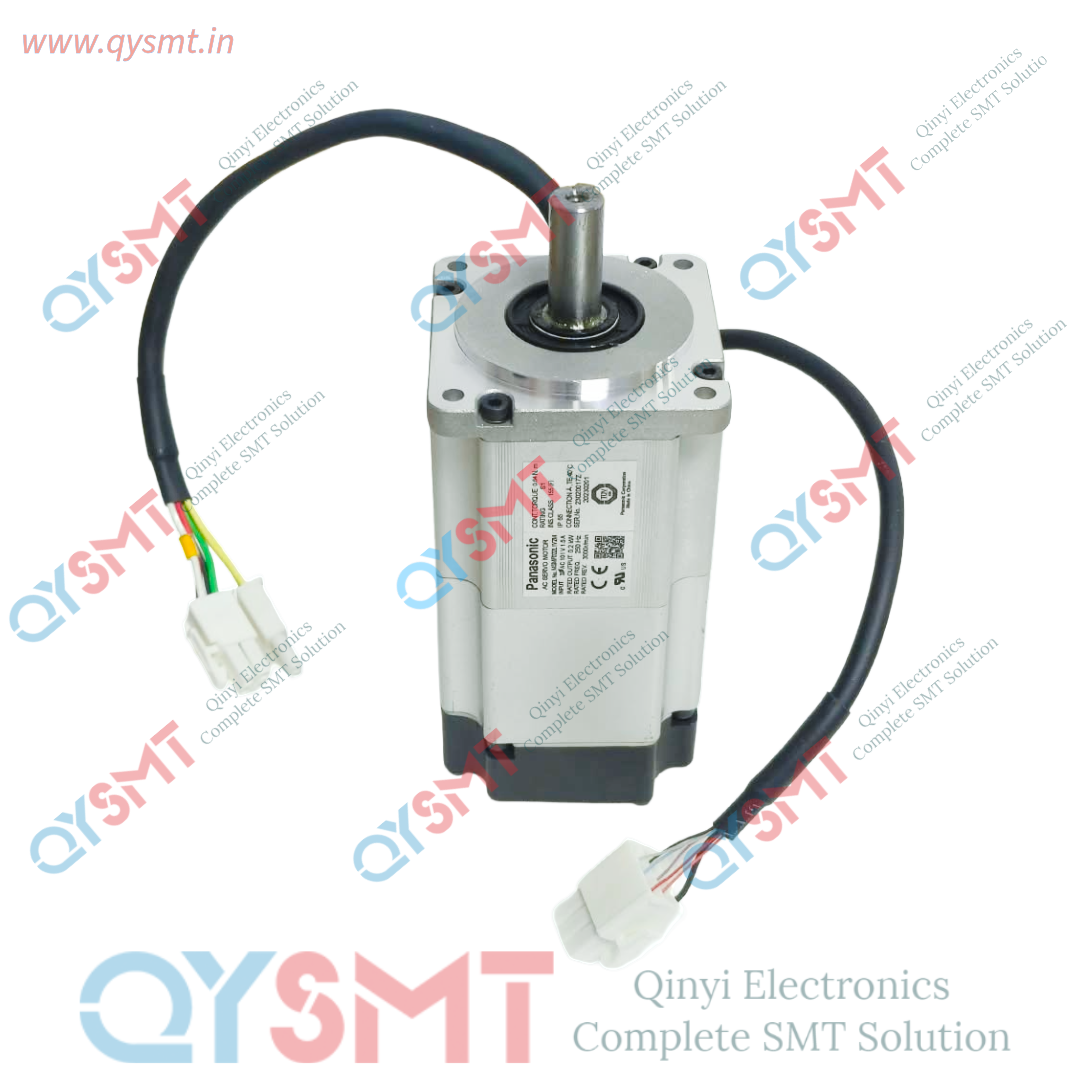

MSMF022L1V2M, MSMF082L1U2M, MHMF042L1U2M PANASONIC Motor's
Overview & Specifications
| Model Number | MSMF022L1V2M | MHMF042L1U2M | MSMF082L1U2M |
|---|---|---|---|
| Series / Family | MINAS A6 (MHMF Series) | MINAS A6 (MHMF Series) | MINAS A6 (MHMF Series) |
| Rated Output | 200 W | 400 W | 750 W |
| Voltage | 200 V | 200 V | 200 V |
| Power Capacity | 0.5 kVA | 0.9 kVA | 1.8 kVA |
| Flange Size | 60 mm sq. | 60 mm sq. | 80 mm sq. |
| Rated Speed | 3,000 r/min (Max: 6,500 r/min) | 3,000 r/min | 3,000 r/min (Max: 6,000 r/min) |
| Rated Torque | 0.64 N·m | 1.27 N·m | 2.39 N·m |
| Peak Torque | 2.23 N·m | 4.46 N·m | 8.36 N·m |
| Holding Brake | With brake (24V DC) | Without brake | Without brake |
| Encoder | 23-bit Absolute / Incremental | 23-bit Absolute / Incremental | 23-bit Absolute / Incremental |
| Protection Class | IP65 (Except shaft and lead wire end) | IP65 (Except shaft and lead wire end) | IP65 (Except shaft and lead wire end) |
| Weight / Mass | 1.2 kg | 1.2 kg | 2.3 kg |
| Shaft Type | Key-way with center tap | Key-way with center tap | Key-way with center tap |
Key Features
High Inertia Design: Built for smooth control under high-load inertia conditions.
Lead Wire Configuration: Uses direct lead wire connections for both power and encoder lines.
High-Resolution Encoder: Integrated 23-bit absolute/incremental encoder (8,388,608 resolution) for high positioning accuracy.
Environmental Protection: IP65 rating provides strong resistance against dust and water exposure.
Common Applications: Industrial automation, robotics, CNC machinery, and high-precision positioning systems.
