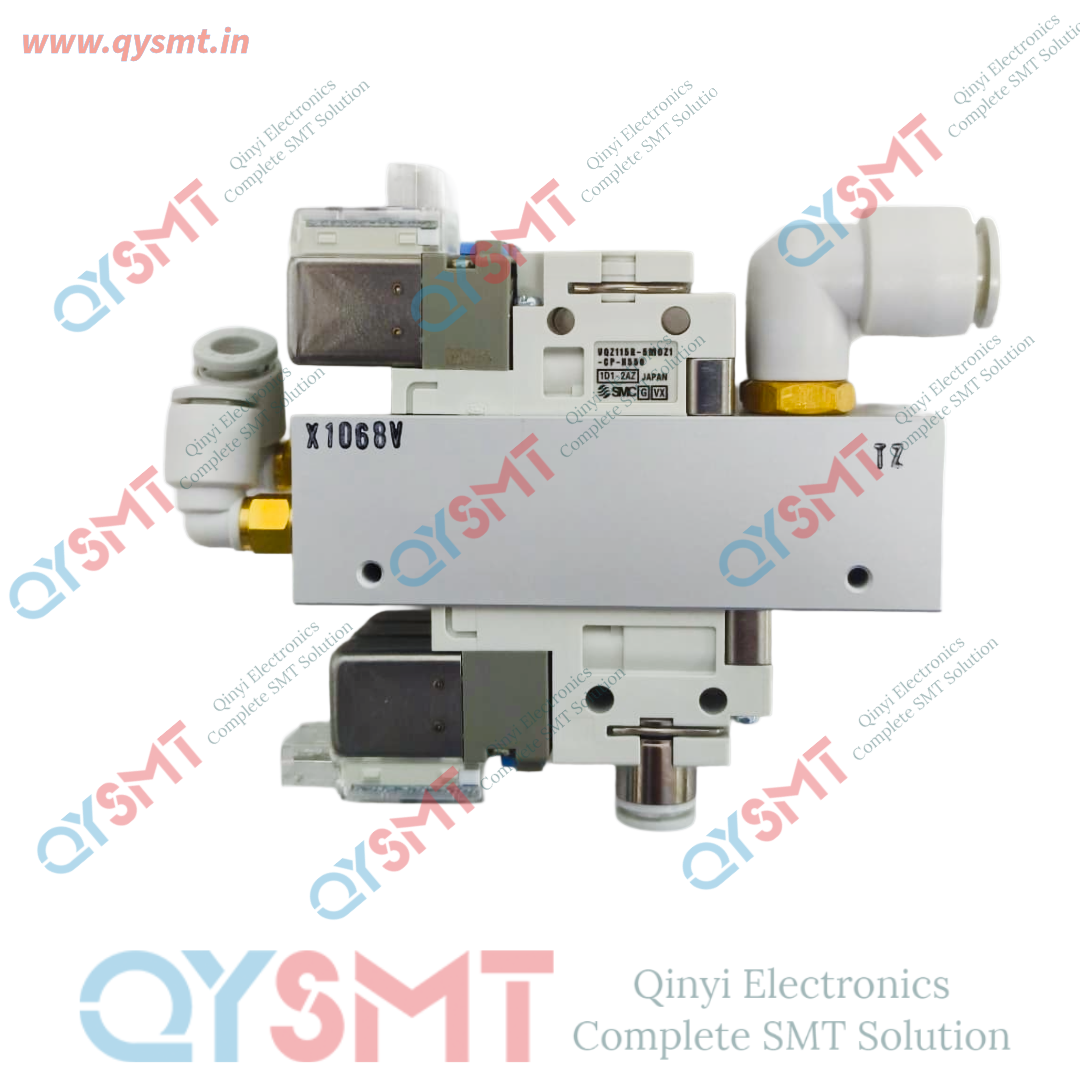

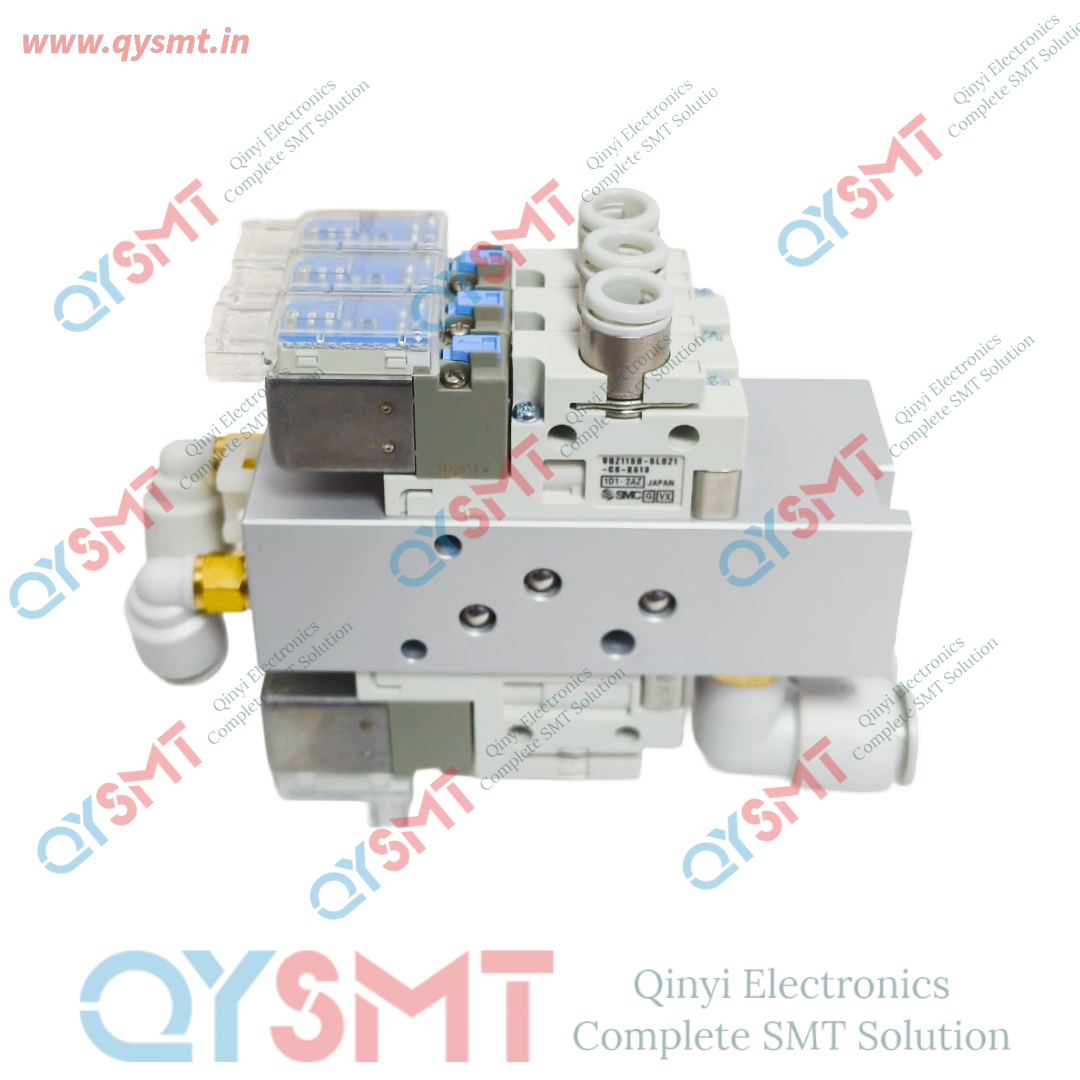

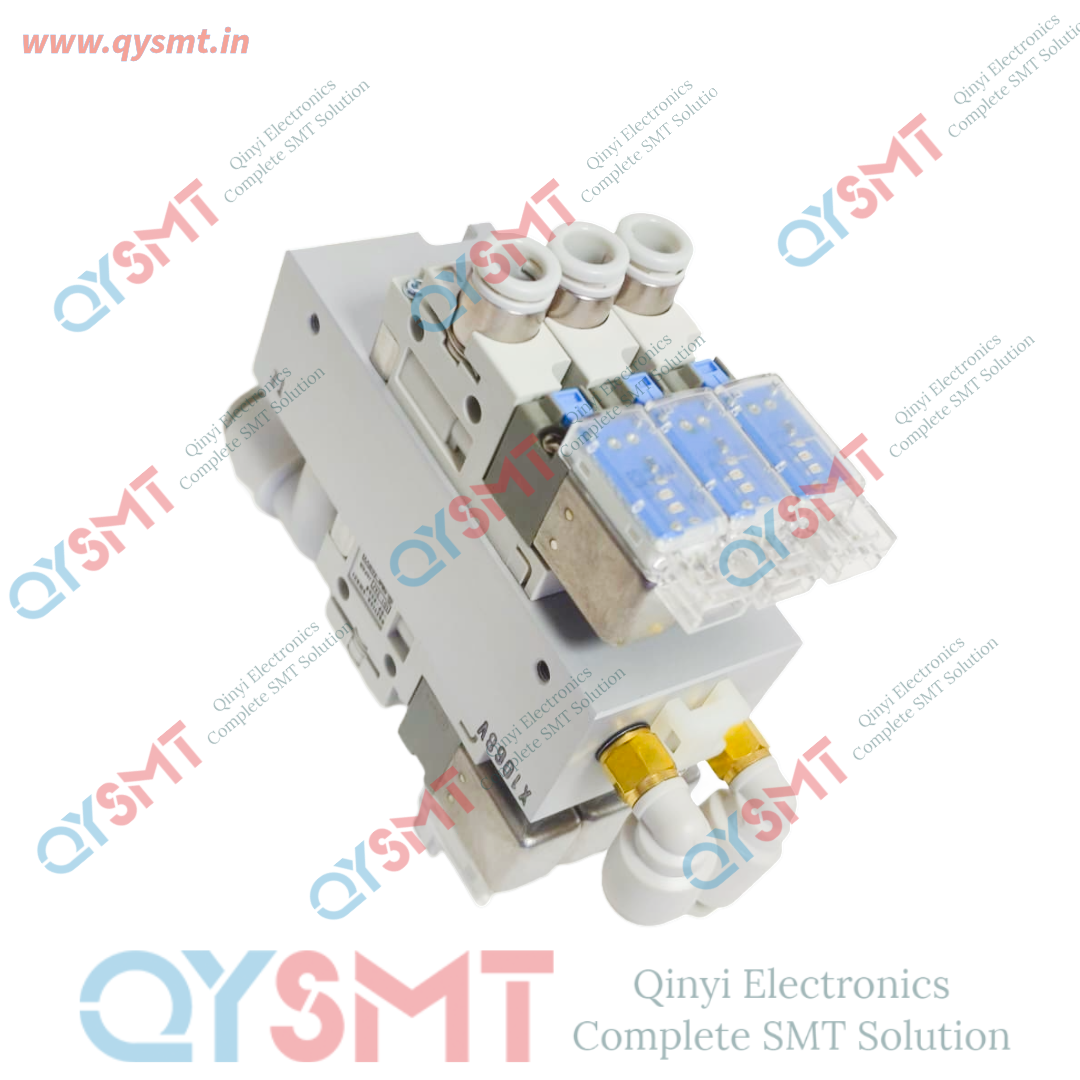

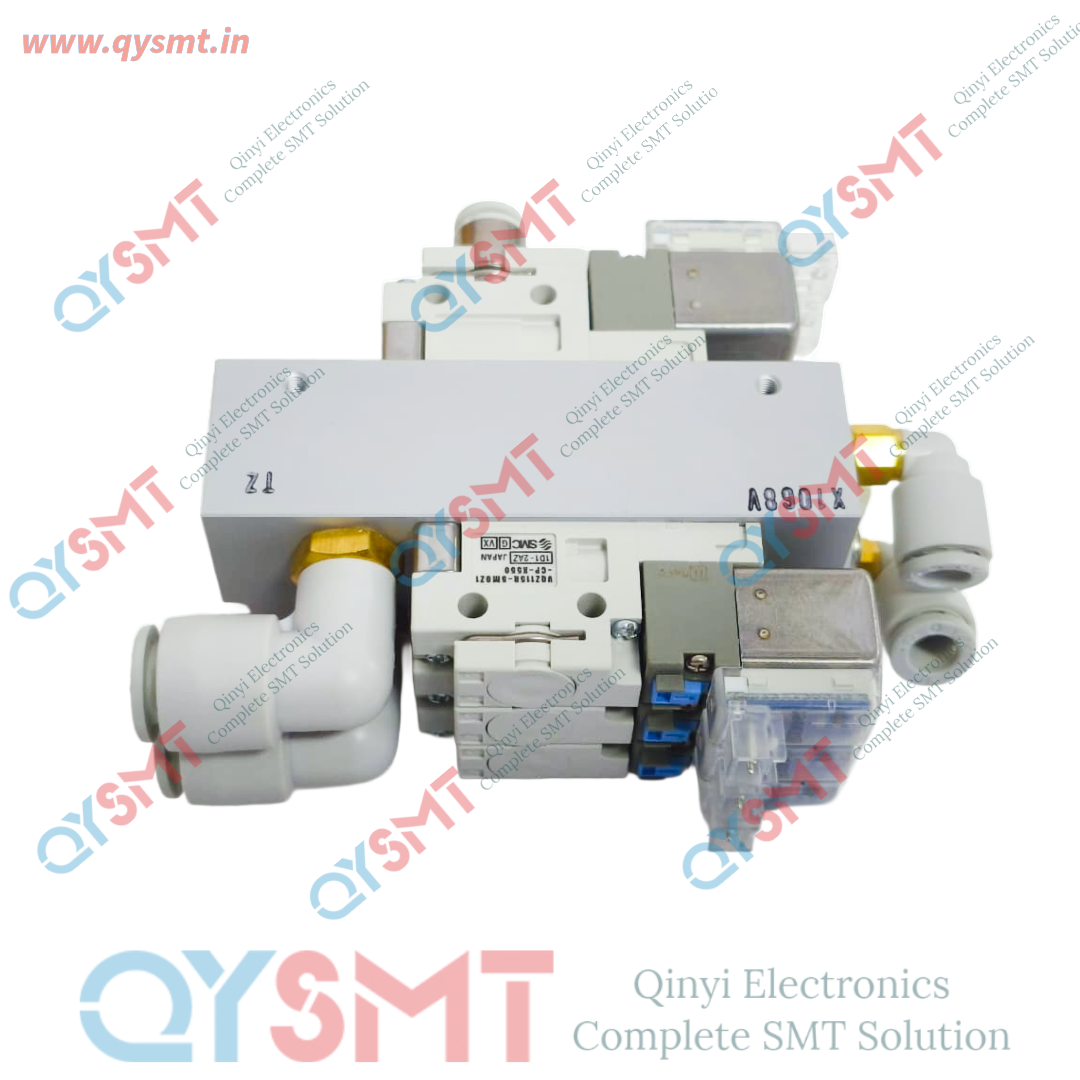

N510058605AA Solenoid valve

N510058605AA Solenoid valve
Machine CompatibilityThis solenoid valve assembly is widely utilized across several generations of Panasonic Pick and Place machines, including:

• CM Series: CM212, CM401, CM402, and CM602
• NPM Series: NPM-D2, NPM-D3, and specialized 3-Head Z-axis configurations
• Technical SpecificationsBecause it is built on the it adheres to the following performance ratings:

  Parameter	Specification
  Applicable Fluid	Compressed Air / Inert Gas
  Operating Pressure Range	0.1 to 0.7 MPa (Up to 1.0 MPa for high-pressure applications)
  Response Time	≤ 14ms (Metal Seal) / ≤ 15ms (Rubber Seal)
  Flow Coefficient (\(C_{v}\))	0.23 (P → A) / 0.25 (A → R)
  Operating Temperature	-10°C to 50°C
  Port Size	C6 (Ø6 One-touch fitting)

  Main Functions in SMT EquipmentWithin automated assembly lines, this valve controls single-acting and multi-acting pneumatic mechanisms such as:
  • Vacuum Generation & Break: Rapidly switching air pathways to pick components up via nozzles and quickly release them onto PCBs.
  • Z-Axis Head Control: Managing head movement and placement stroke actuation.
  • Shutter & Feeder Actuation: Powering auxiliary pneumatic cylinders that advance tape feeders or toggle mechanical safety covers. []
