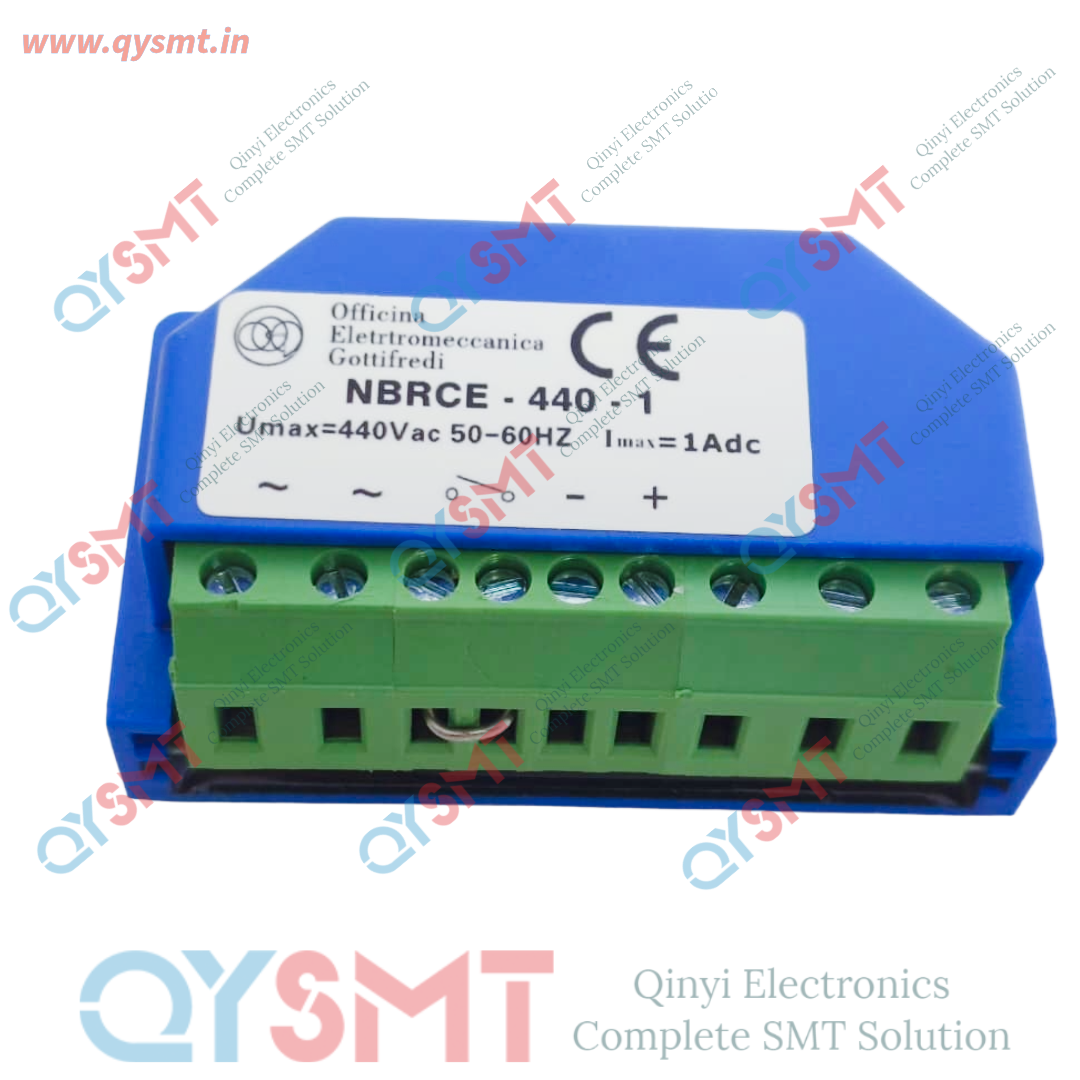

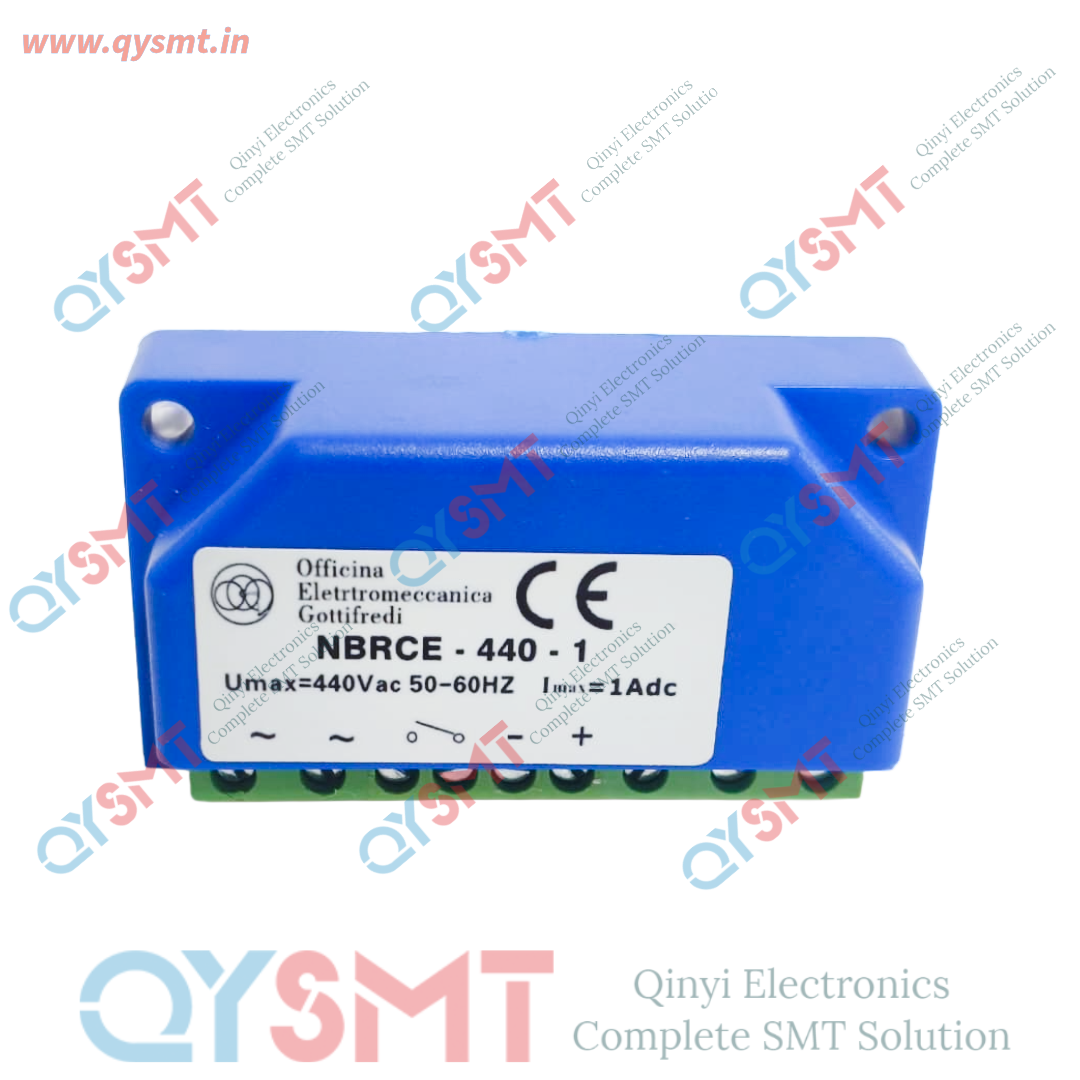

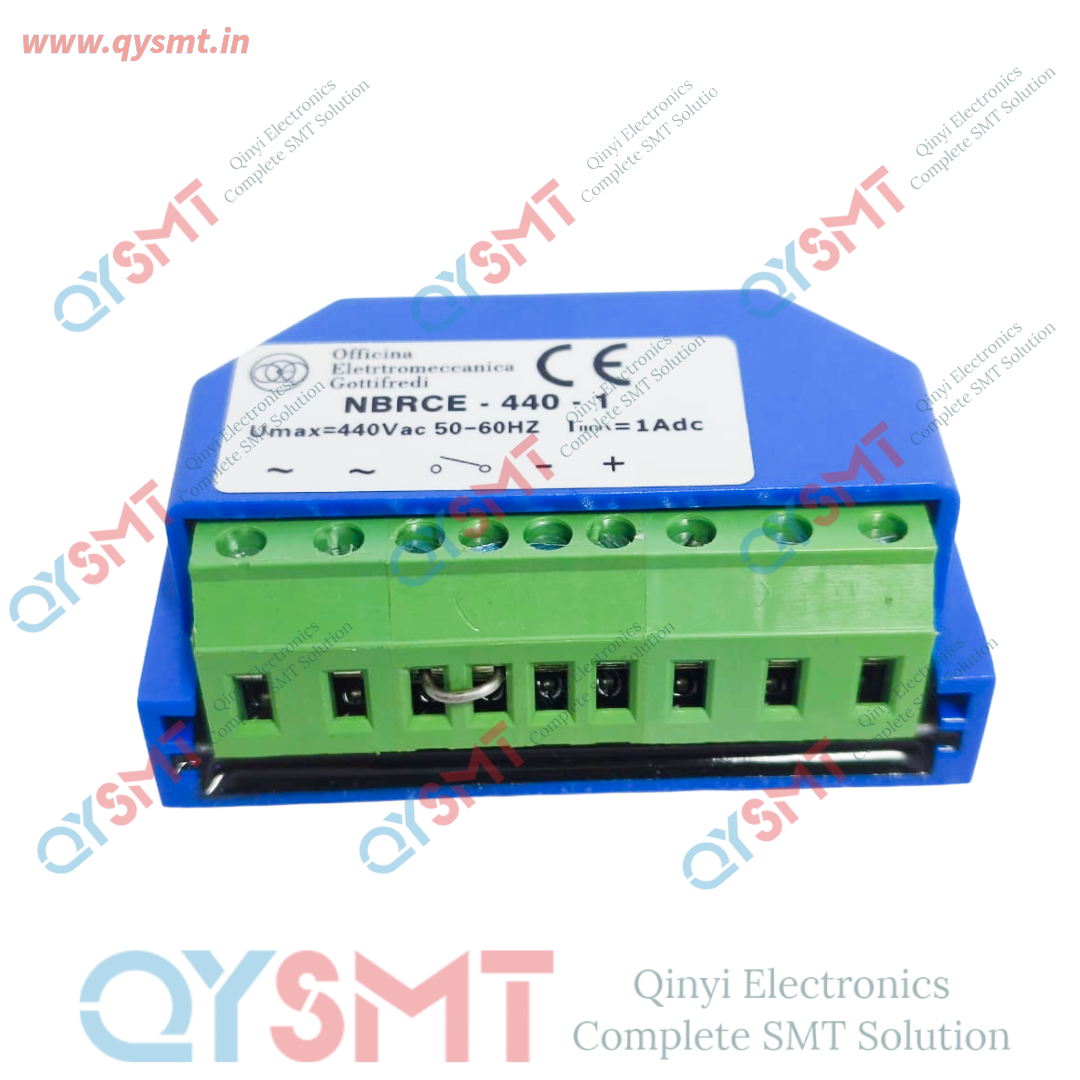

NBRCE-440-1 Motor Brake Rectifier Rectifier Power Supply Device

NBRCE-440-1  Motor Brake Rectifier Rectifier Power Supply DeviceKey Technical SpecificationsAccording to official product documentation from the core specifications include:

• Maximum Input Voltage: 440 V AC (Operating frequency of 50/60 Hz)
• Maximum Direct Current: 1 A DC
• Rectification Efficiency: 44.5% output voltage ratio (typical of half-wave configuration)
• Max Ambient Temperature: 75°C
• Visual Identifier: Enclosed in a signature blue casing
• Compliance & Filters: Built-in internal EMC filter compliant with Directive 89/336/EEC.

Primary Functionality

• Rapid Brake Release: Delivers precise DC power to quickly magnetize and release the motor brake coil, minimizing startup friction and motor wear.
• Thermal Protection: Eliminates continuous heavy alternating current, reducing heat generation inside the brake coil.
• Solid-State Reliability: Operates entirely via internal electronic circuitry without mechanical contacts, ensuring silent, spark-free operation.
