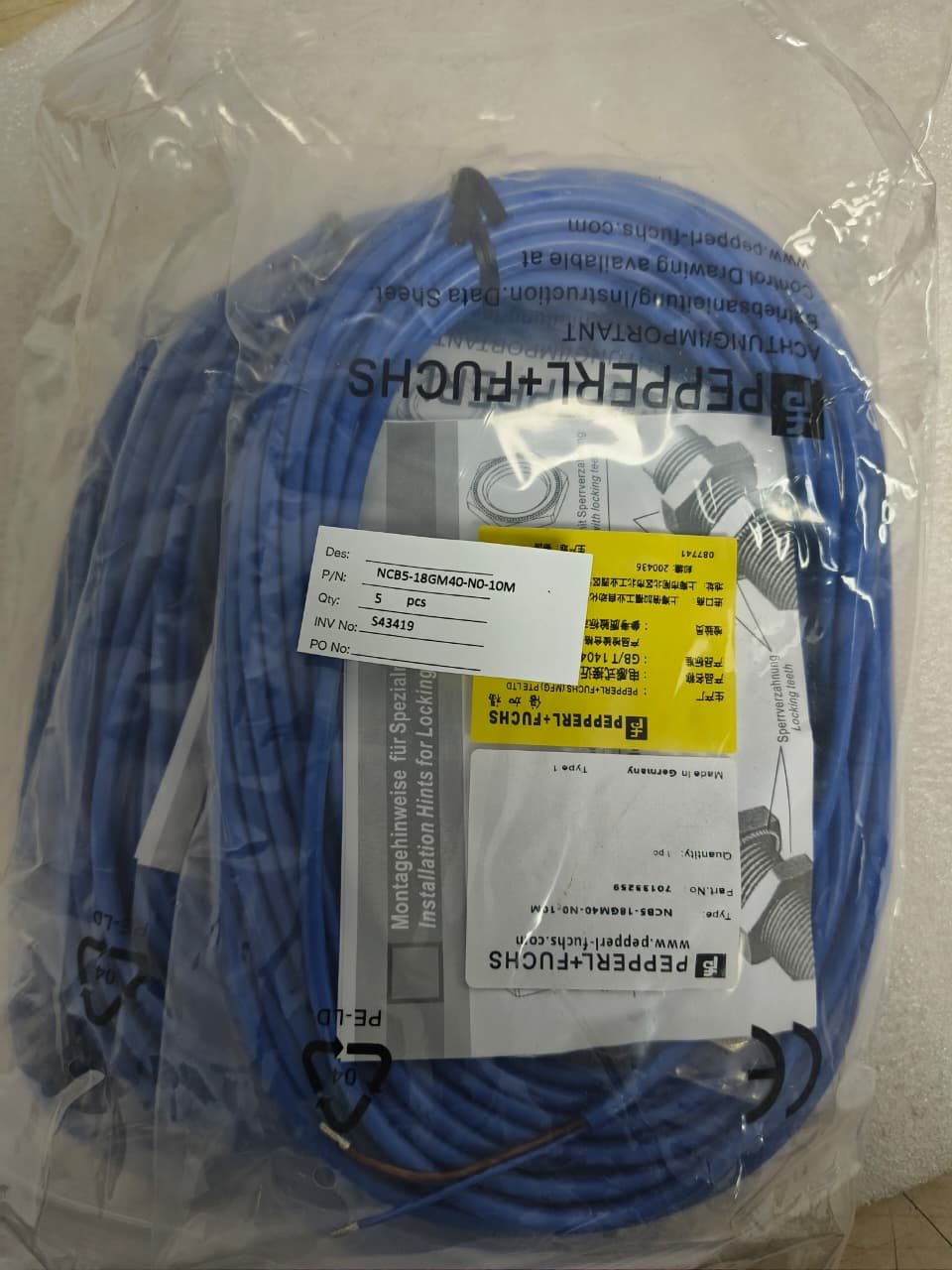

NCB5-18GM40-N0-10M inductive proximity sensor

Name: NCB5-18GM40-N0-10M inductive proximity sensor
Brand: QYSMT
Availability: InStock

Contact Seller :- Call or Whatsapp ‪+91 9319902096 harshita@qysmt.in

Call or Whatsapp
‪+91 9319902096

Email: harshita@qysmt.in

Product variants

Quantity

Core Technical Specifications

The foundational engineering parameters of this sensor include:

Rated Operating Distance (\(s_{n}\)): 5 mm
Installation: Flush mounting (can be embedded directly into metal surfaces without false triggering)
Output Configuration: NAMUR
Switching Function: Normally Closed (NC)
Nominal Voltage: 8.2 V DC
Switching Frequency: 0 ... 400 Hz
Connection Type: 10-meter pre-wired PVC cable (\(2 \times 0.75 \text{ mm}^2\) core cross-section)

Materials and Build Quality

Engineered to operate reliably under strenuous conditions, the sensor's physical build features:

Housing Material: High-grade stainless steel (1.4305 / AISI 303), providing strong resistance to impacts and mild chemicals.
Sensing Face: Tough Polybutylene Terephthalate (PBT) plastic.
Housing Diameter: M18 barrel size (\(18\text{ mm}\) cylindrical body thread).
Degree of Protection: IP67 rating, offering total protection against dust ingress and immersion in water up to 1 meter.
Temperature Range: Certified for extreme ambient operations spanning from

Safety and Compliance Certificates

This sensor is highly valued in process automation due to its rigorous safety ratings:

Functional Safety: Deployed up to SIL 2 safety integrity levels in accordance with IEC 61508.
Visual Diagnostics: Integrated with an all-direction yellow LED to instantly track switching and sensor power states.
Internal Protection: Fully equipped with built-in reverse polarity and short-circuit protection safeguards.
Standard Compliance: Fully listed with global regulatory standards like cULus, CSA, and NAMUR EN 60947-5-6.
