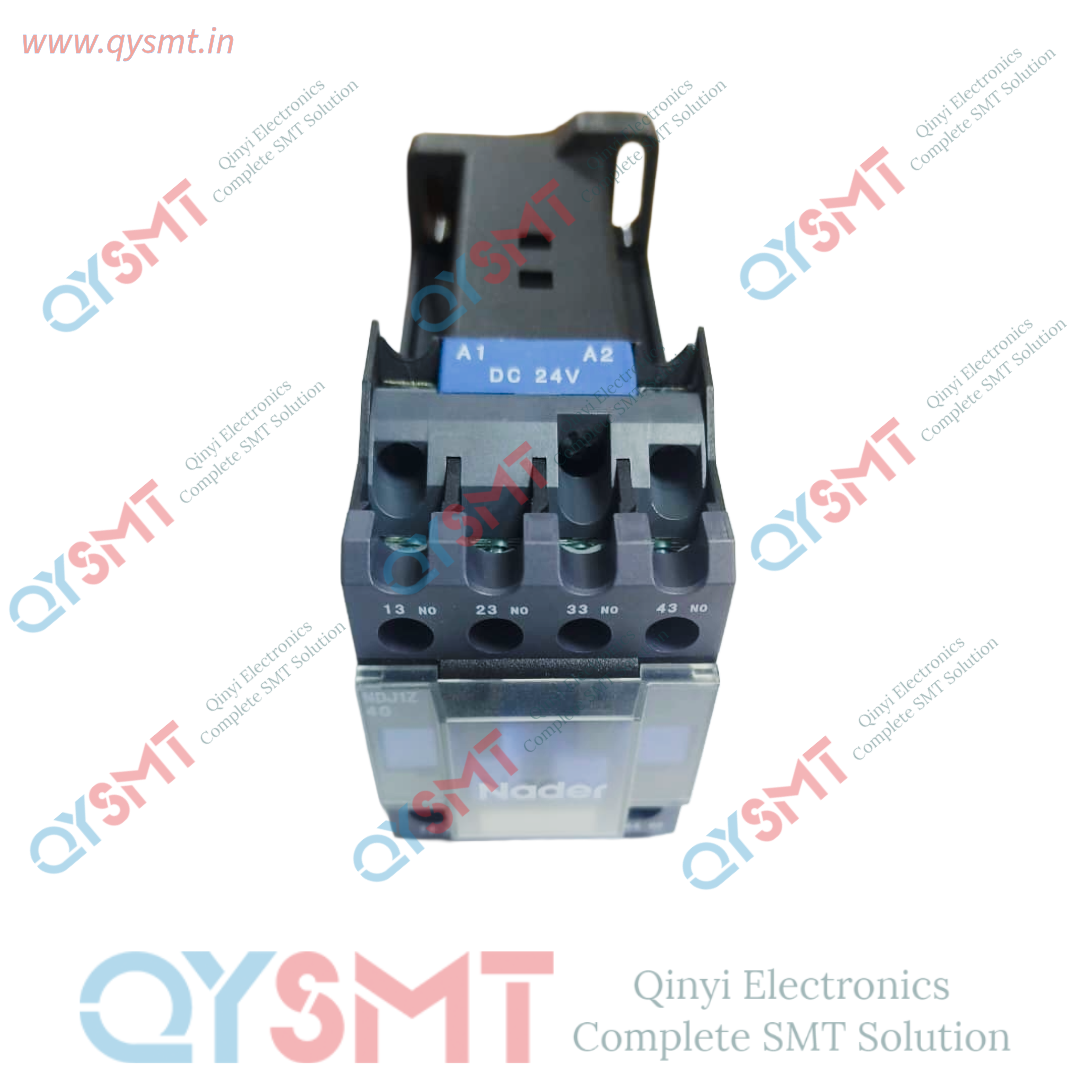

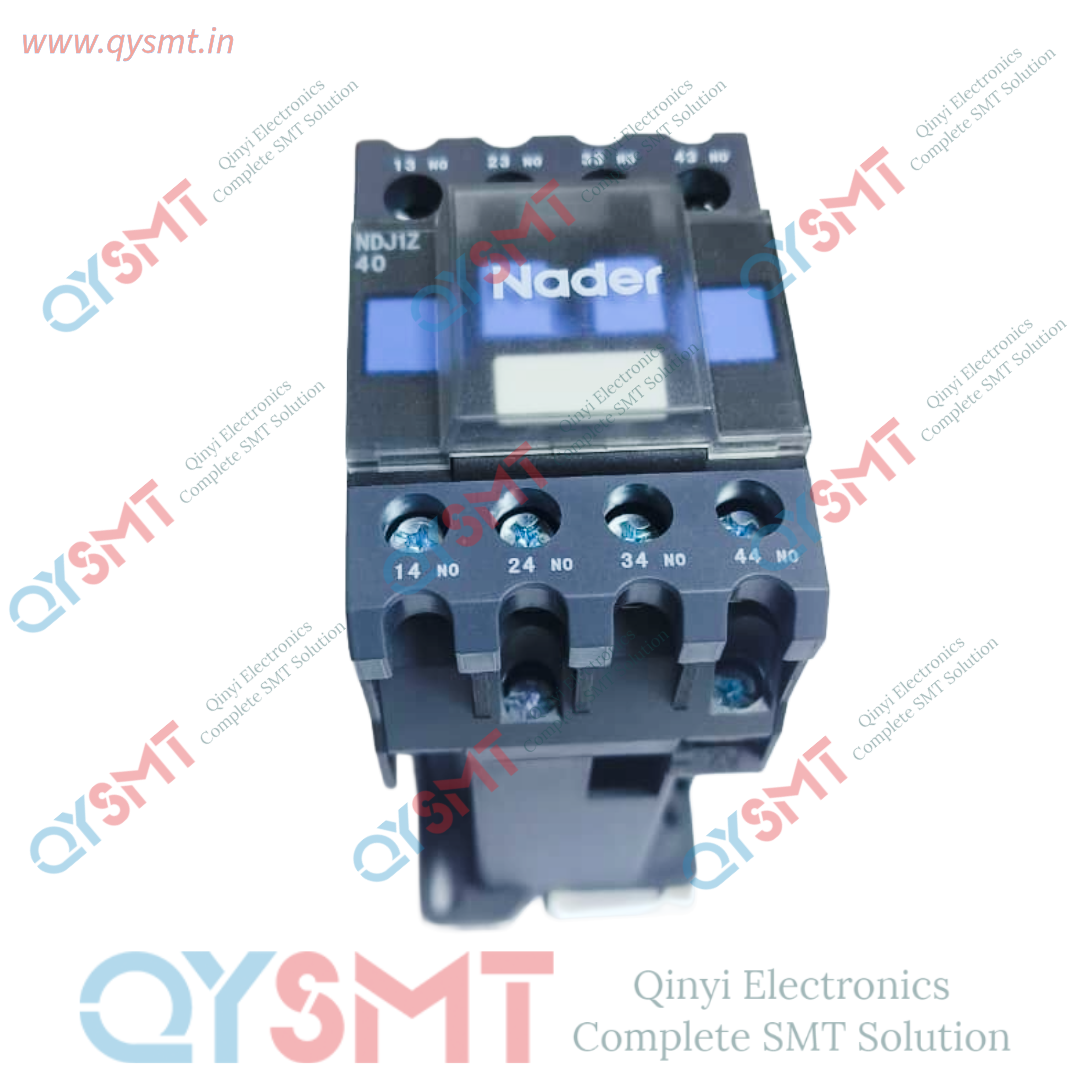

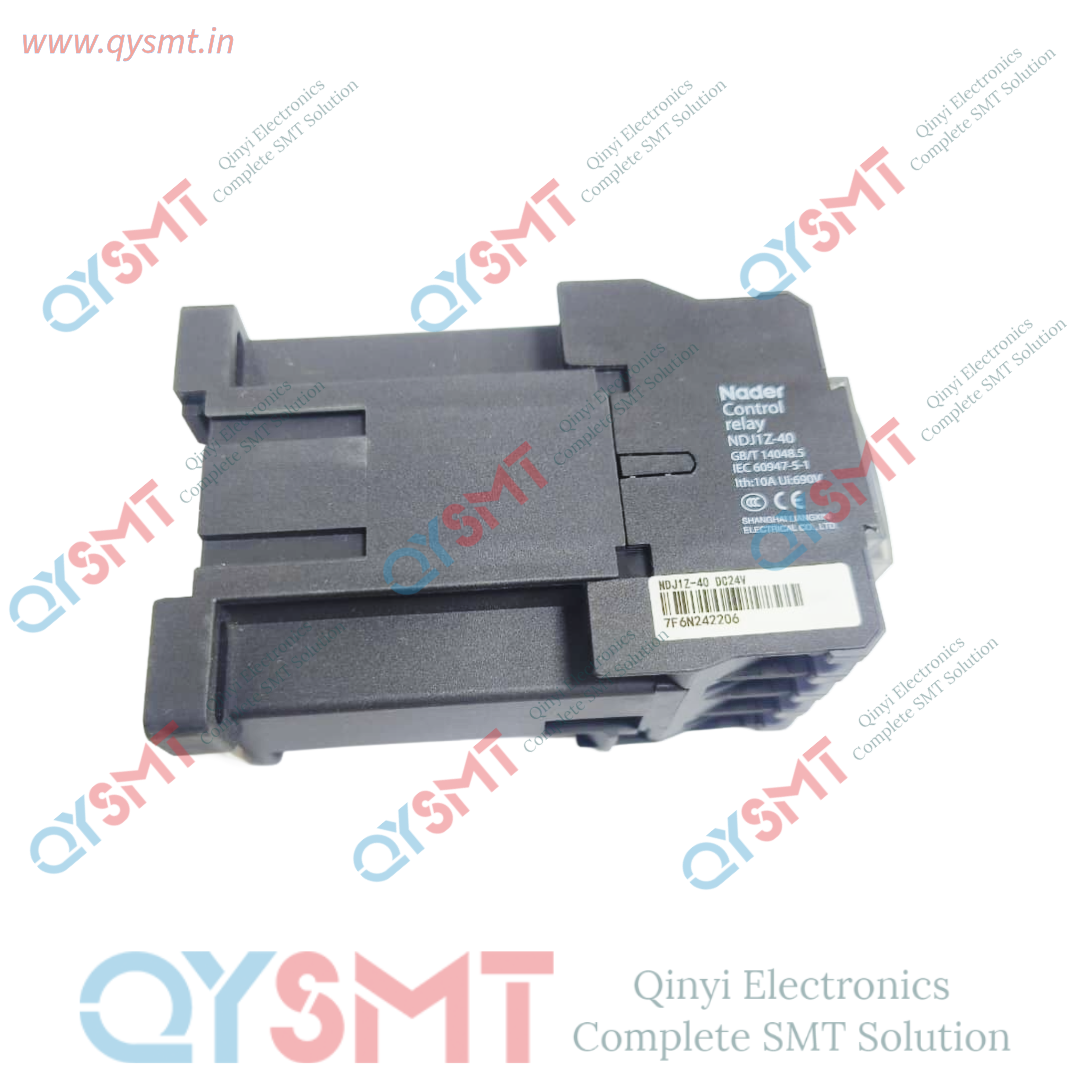

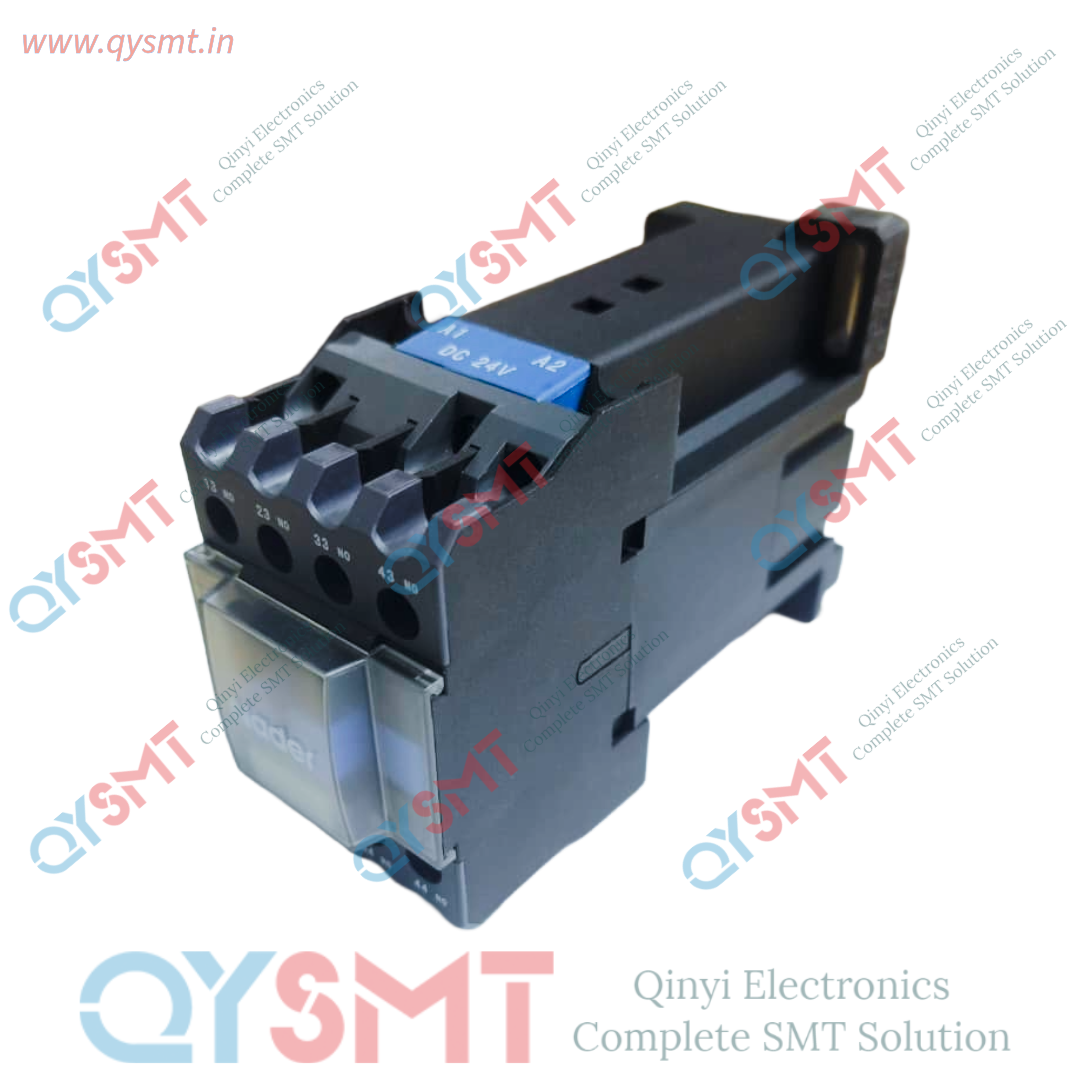

NDJ1Z-40 contactor relay Nader Shanghai Liangxin Electric Appliance NDJ1Z DC operation relay
Core Technical Specifications
- Product Series: NDJ1Z (DC operation relay)
- Model Breakdown: The "40" in NDJ1Z-40 indicates the contact configuration: 4 always-on (NO) contacts and 0 always-off (NC) contacts.
- Rated Operating Voltage: Supports up to 380V AC or 220V DC for signal control.
- Coil Control Voltage: Available in DC voltages of 24V, 48V, 110V, and 220V.
- Thermal Current (\(I_{th}\)): 10A.
- Electrical/Mechanical Life: Designed for heavy-duty cycling with a mechanical lifespan of \(10,000,000\) operations.
- Certifications: Meets strict industry compliance with CCC and CE standards. [1, 2]
Key Features
- Direct-Acting Mechanism: Uses a double-break point contact mechanism for secure, reliable circuit making and breaking.
- Self-Cleaning Contacts: Employs a forced friction structure that improves contact reliability and provides a self-cleaning action during every cycle.
- Wide Voltage Operating Range: Functions reliably between 65% and 120% of the rated control supply voltage (\(U_{c}\)).
- Modular Accessories: Can be easily paired with auxiliary contact blocks (NF1, NF2) and surge suppression modules (NG1) directly. [1]
