Pogo Pin P125-H3 Test Probe

Gold plated Test Probe P125-H3 Pogo Pin PCB test Probe Length 33.35mm barrel diameter 2.02mm Head Dia 2.5mm, P125-H3 spring test probe P125-H3 crown tip Test pin P125-H3 Test tool 33.35mm 2.02mm barrel Needle tip Ø 2.50mm Pogo pin

The P125-H3 is a specific model of spring-loaded pogo pin, also known as a test probe, used for making temporary electrical connections, particularly for testing printed circuit boards (PCBs). This variant is part of the P125 series, and the "H3" suffix indicates its specific plunger style and material.

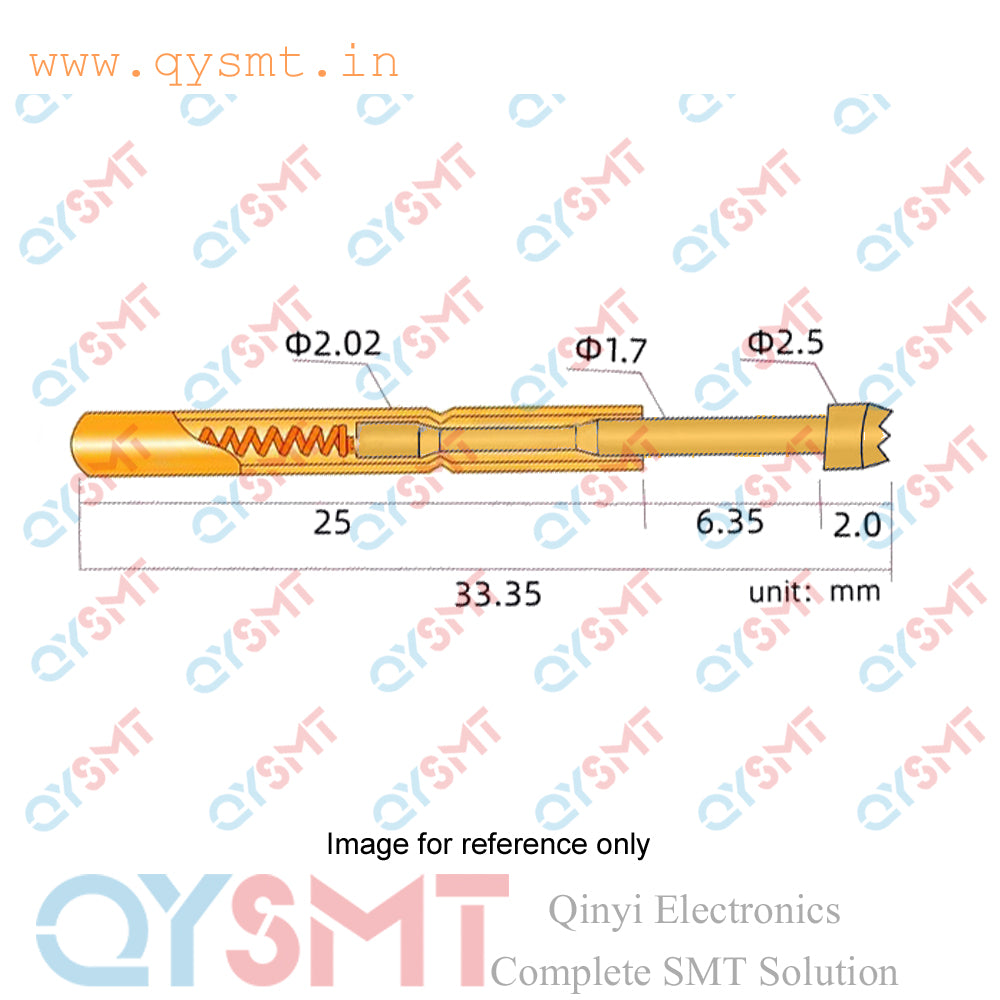

Specifications

• Total length: 33.35mm

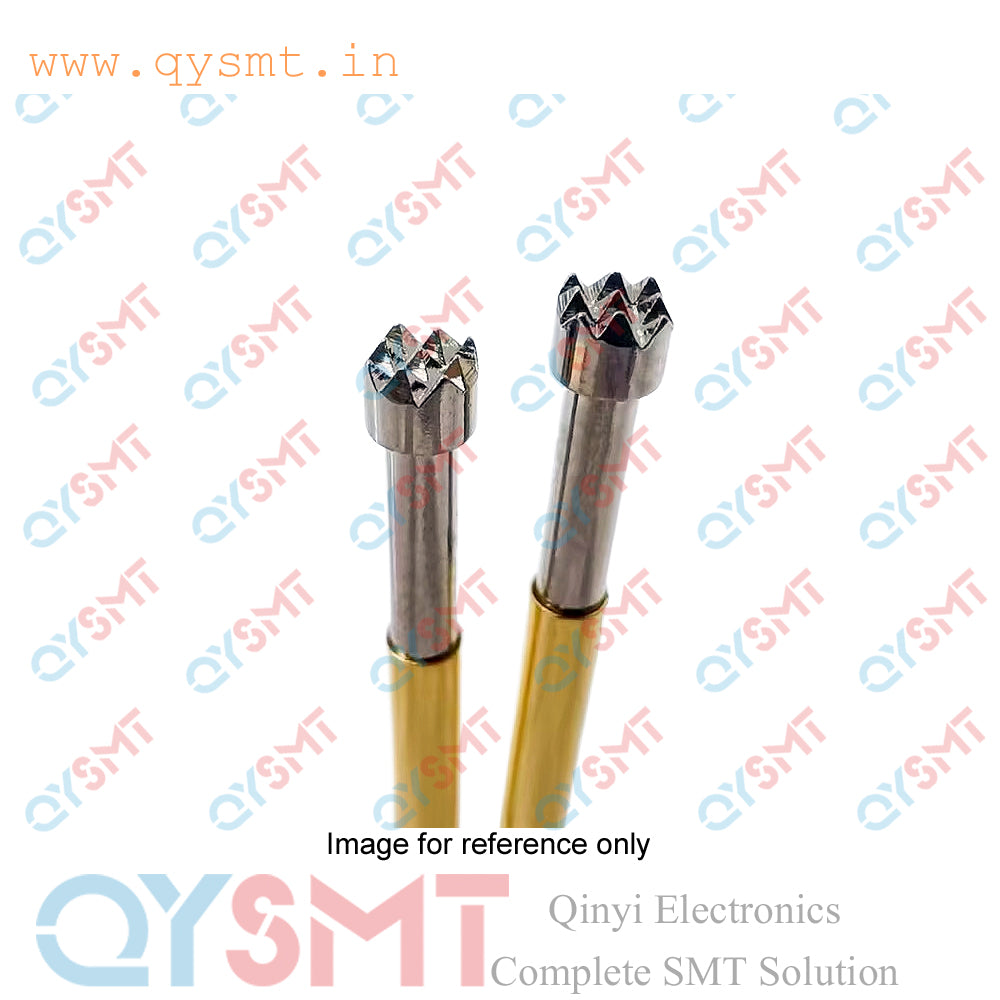

• Probe/plunger tip diameter: 2.5mm, crown tip
• Probe/barrel diameter: 2.02mm
• Minimum center spacing: 1.70mm
• Full stroke: 6.35mm
• Materials:
  • Plunger: Heat-treated Beryllium Copper, gold-plated
  • Barrel: Phosphor Bronze, gold-plated
  • Spring: Music Wire (a form of steel), gold-plated
