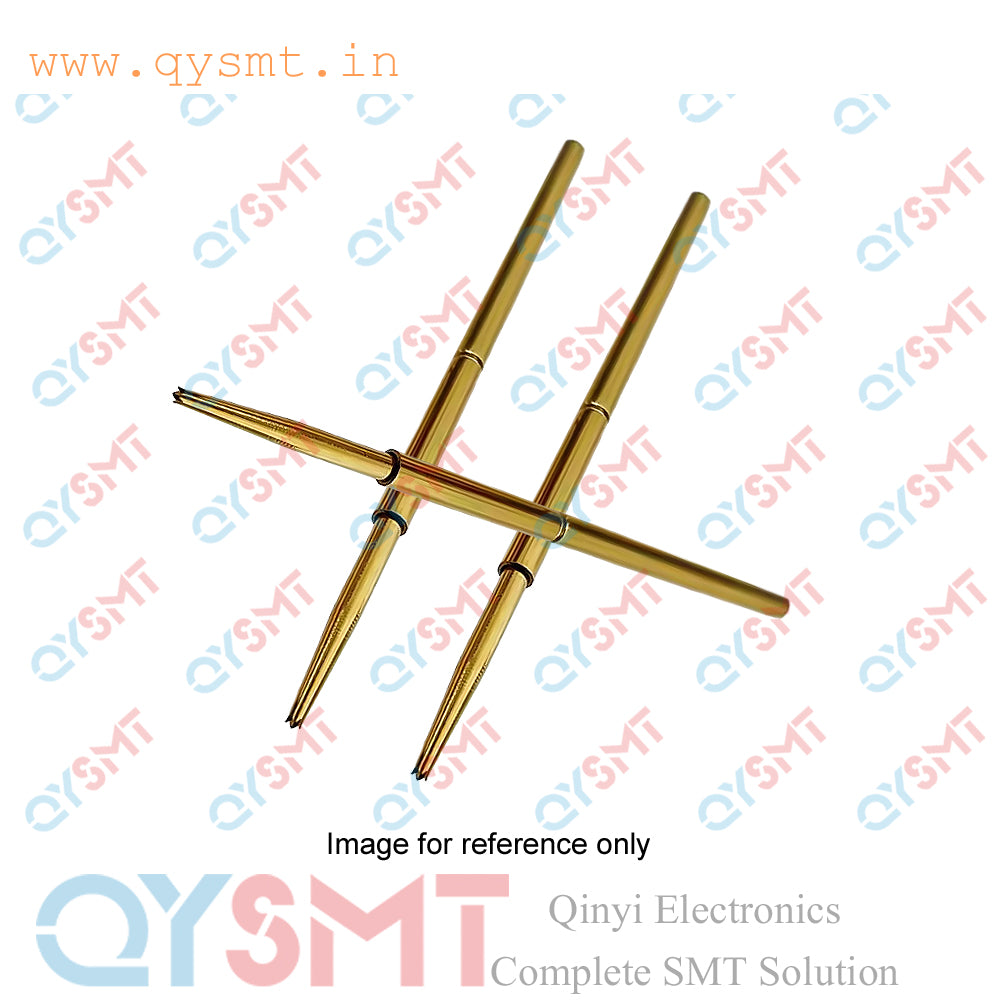

Spring Test Probe Four-Claw Head PA100-F1 Pogo Pin
PA100-F1 gold-plated Spring Test Needle Test Pin, Four-Claw plum blossom head test pin PA100-F1 Pogo Pin
The PA100-F1 is a type of Pogo pin, also known as a spring test probe, commonly used in testing and prototyping applications, especially for Printed Circuit Boards (PCBs).
Specifications

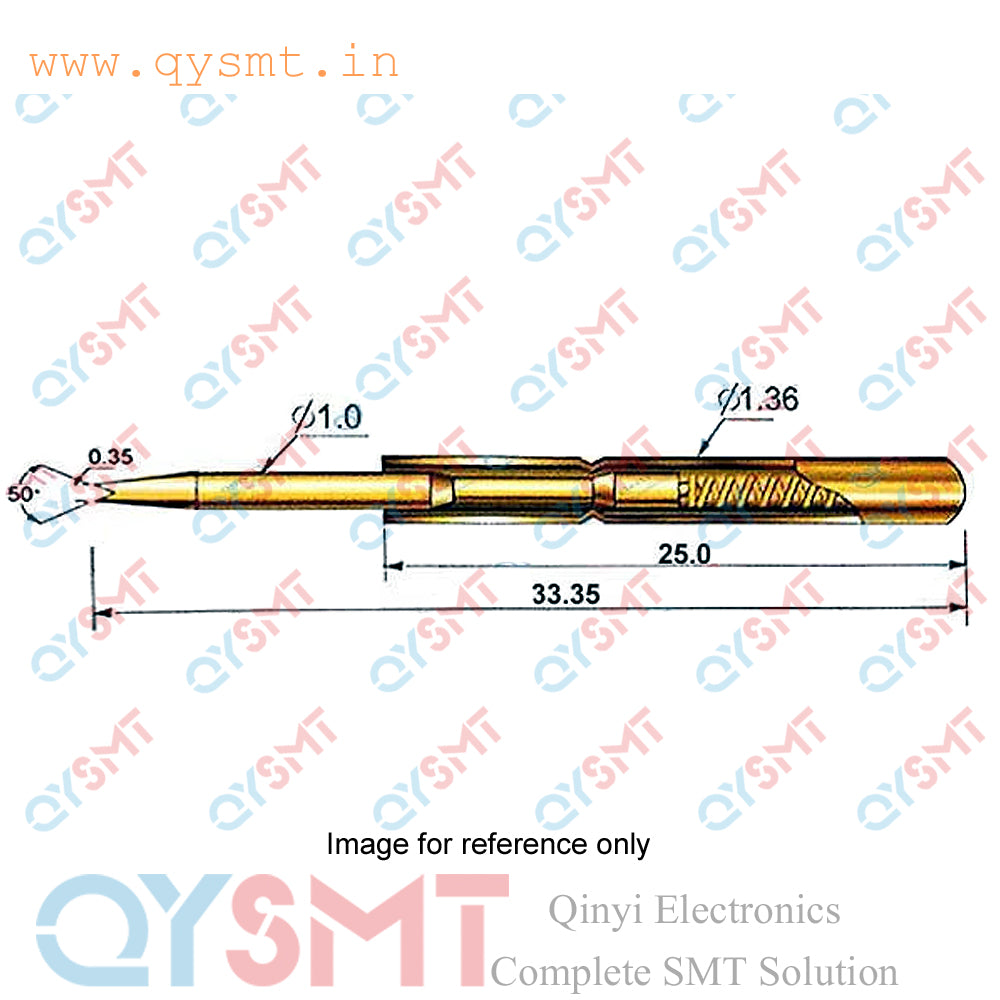

| Model | PA100-F1 |
| Needle tube outer diameter | 1.36mm |
| Needle diameter | 0.99mm |
| Total needle length | 33.35mm |
| Full Stroke | 6.50mm |
| Spring Pressure | 180g |
| Current Rating | 3A |
| Current Resistance | 50mΩ |
| Plunger Material | Heat-Treated Beryllium Copper |
| Barrel Material | Gold-Plated Phosphor Bronze |
| Spring Material | Gold-Plated Music Wire |
| Tip Style | Pointed, Four-Claw ("Plum Blossom Head") |
| Applications | Testing circuit boards, thin wire testing, suitable for pads and gold fingers. |
Key Features
- Spring-loaded retractable thimble: Protects the probe tip and prevents shorts or damage when not in use.
- Durable construction: Made for reliability in industrial and laboratory settings.
- Ergonomic design: Easy to handle and manipulate for precise testing.
- Versatile compatibility: Can be used with multimeters, oscilloscopes, and test stations.
- High voltage tolerance: Offers reliable performance even in demanding high-voltage testing applications.
- Gold-plated tips: Provide excellent conductivity and corrosion resistance.
