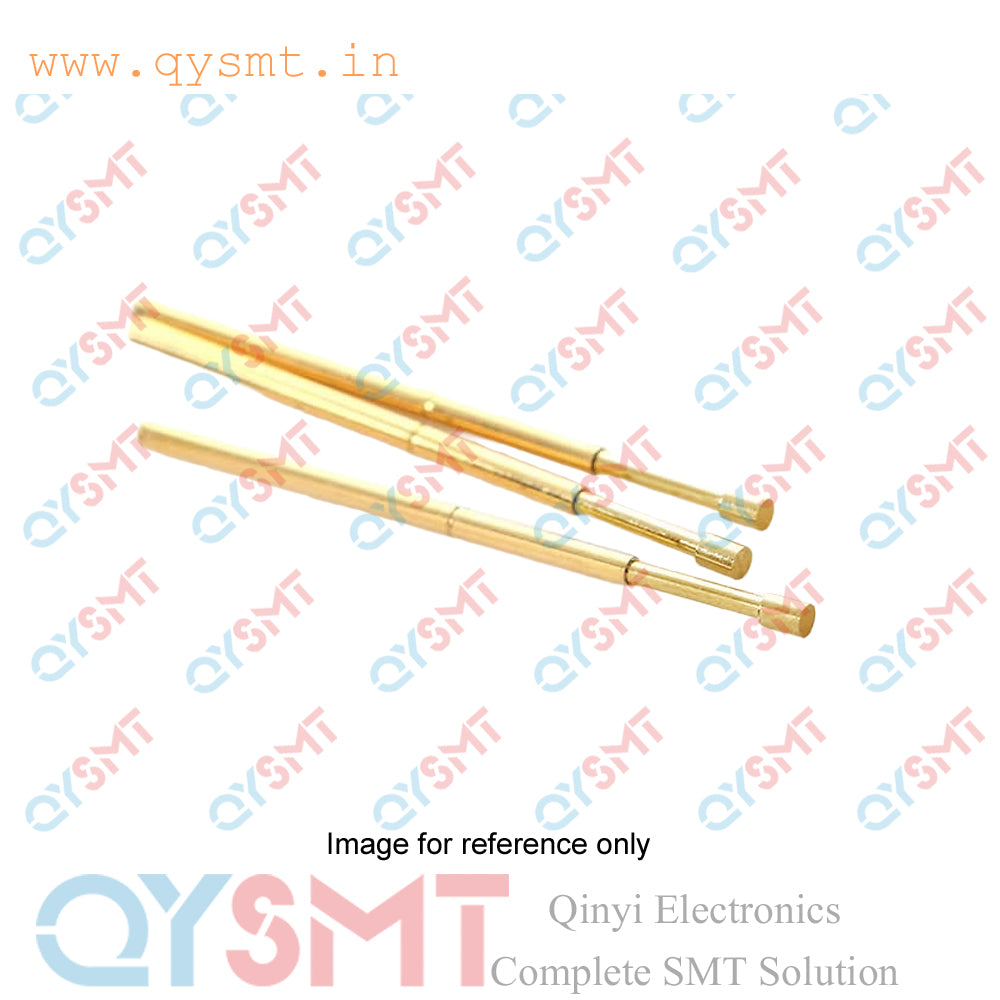

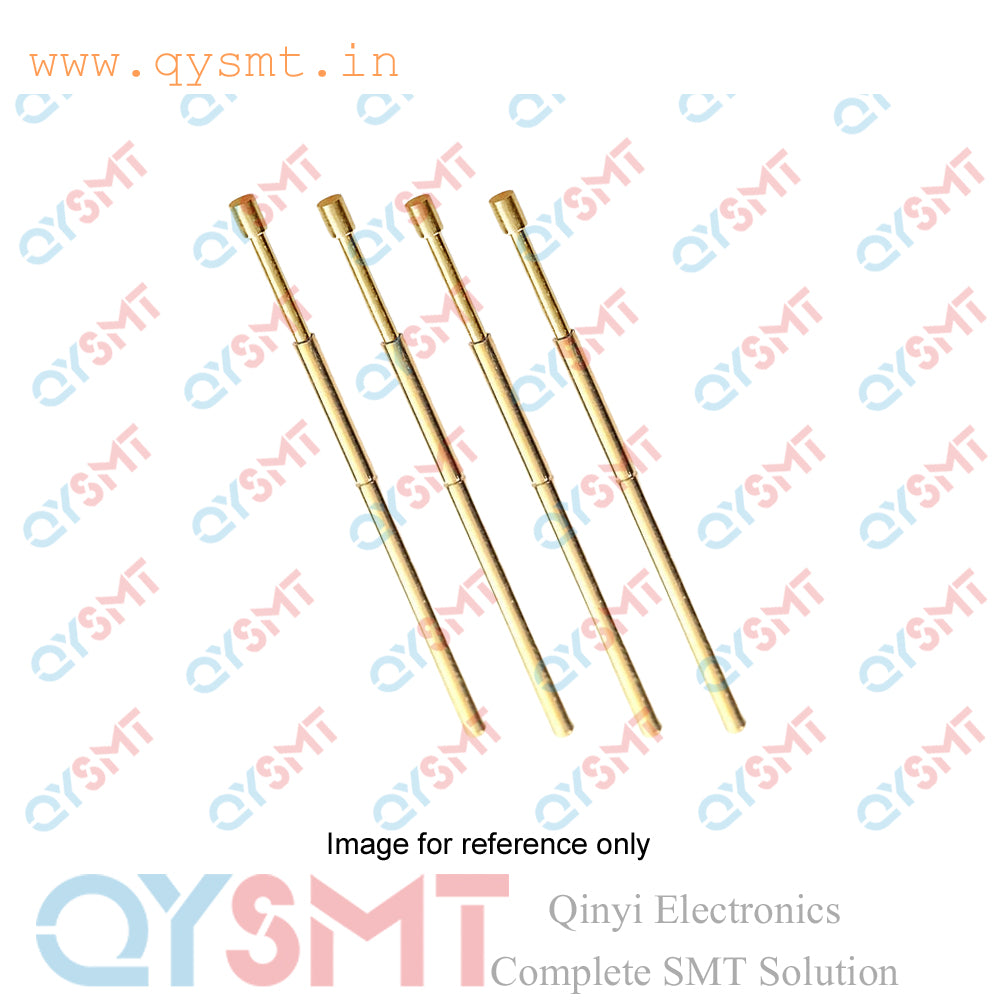

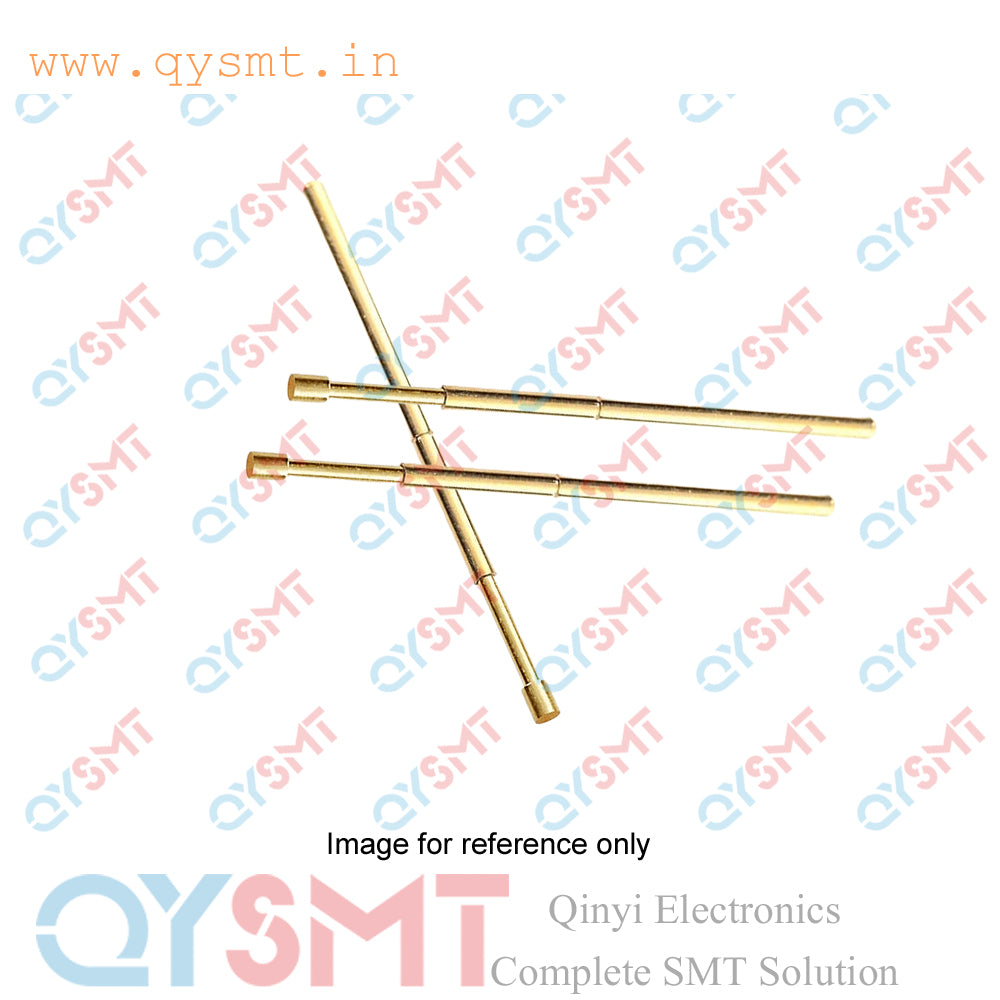

Spring Test Probe Flat Head PA100-G2 Pogo Pin
PA100-G2 gold-plated Spring Test Needle Test Pin, Flat Head Test Pin PA100-G2 Pogo Pin
The PA100-G2 spring test probe is a type of pogo pin used for testing circuit boards and other electronic components. It has a flat or chisel head, and its gold-plated components ensure good conductivity and durability.
Product specifications
| Feature | Specification |
|---|---|
| Model | PA100-G2 / P100-G2 |

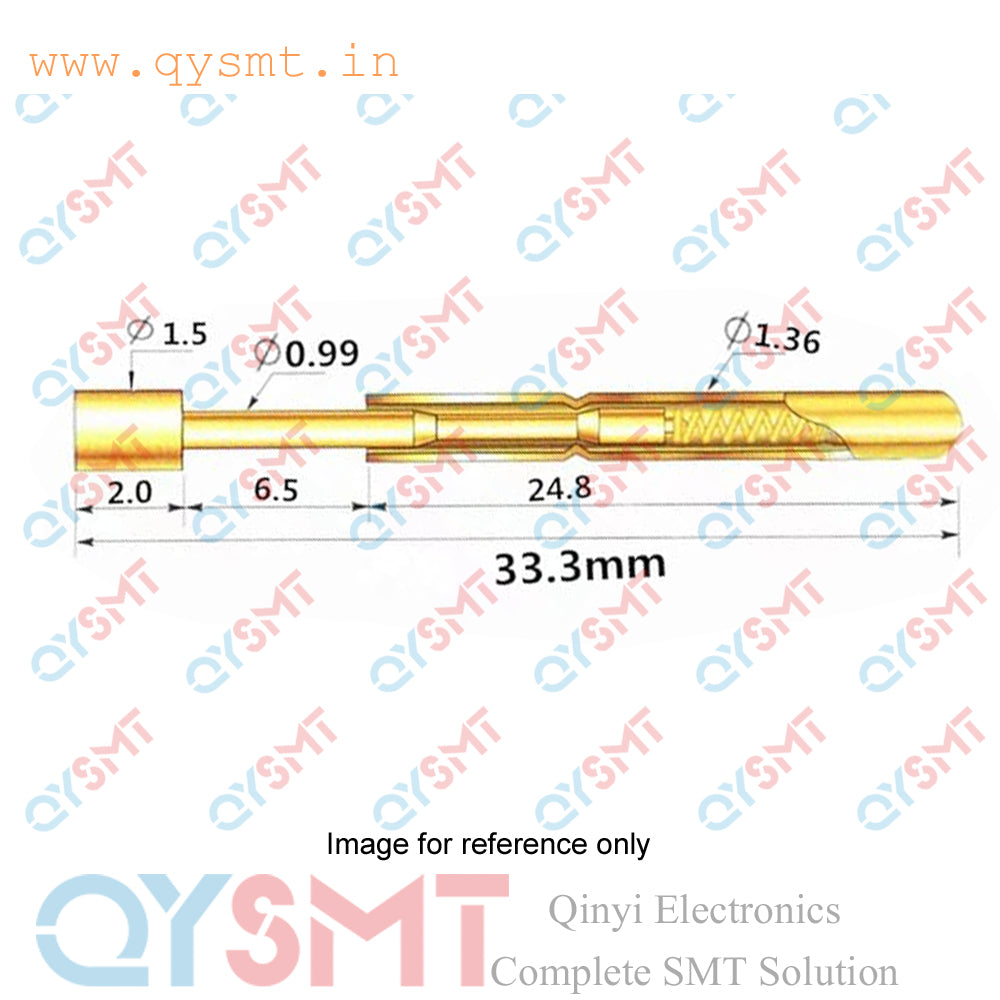

| Total length | 33.35mm |
| Full stroke | 6.50mm |
| Outer needle diameter | 1.36mm |
| Head diameter | 1.5mm |
| Spring pressure | 180g |
| Current rating | 3A |
| Current resistance | 50mΩ |
| Plunger material | Heat-treated beryllium copper |
| Barrel material | Gold-plated phosphor bronze |
| Spring material | Gold-plated music wire |
