Spring Test Probe 4-claw Head PA100-Q2 Pogo Pin

PA100-Q2 gold-plated Spring Test Needle Test Pin, 4-claw Head Plum Blossom Head test pin PA100-Q2 Pogo Pin

The PA100-Q2 is a specific model of spring-loaded test probe, or pogo pin, used for making temporary electrical contact with circuit boards for testing. It is part of the PA100 series of test probes.

Specifications

• Total length: 33.35mm
• Needle diameter (outer): 1.36mm

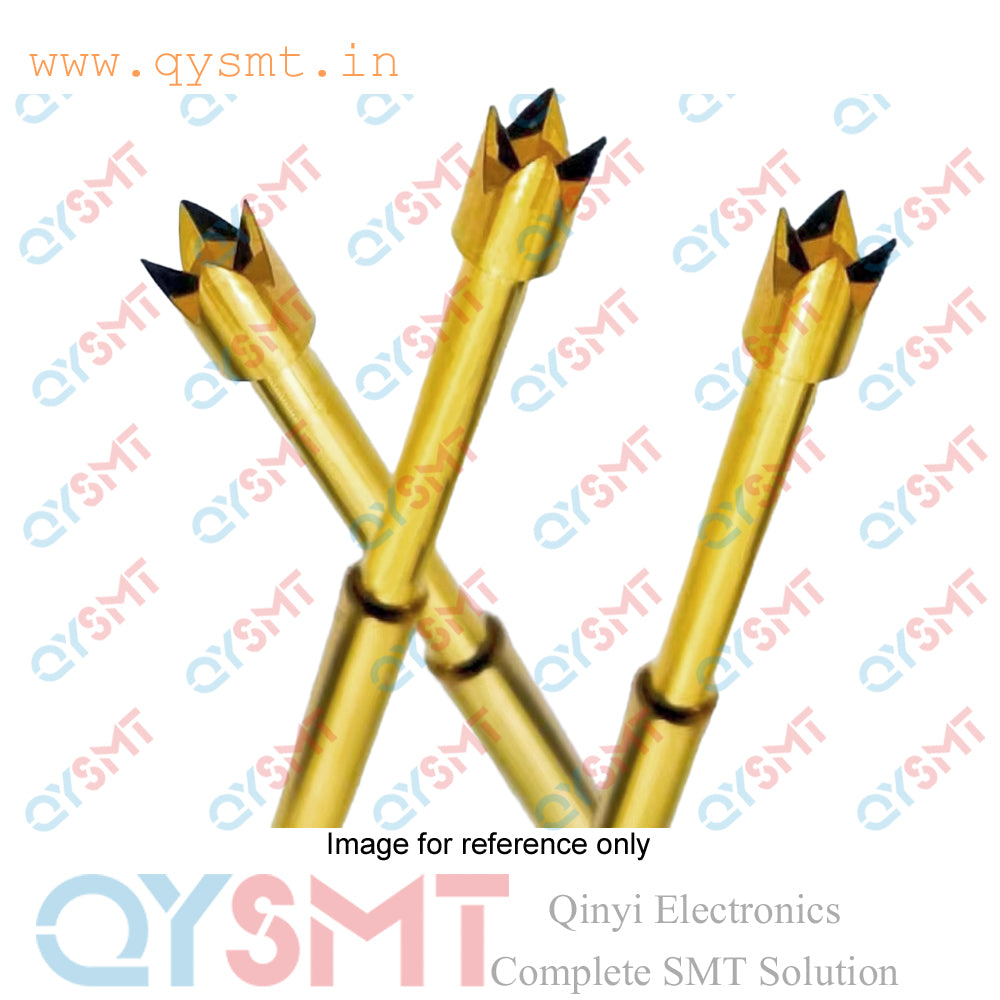

• Needle tip diameter (4-claw head): 1.50mm
• Full stroke: 6.50mm
• Spring pressure: 180g
• Current rating: 3A
• Materials:
  • Plunger: Heat-treated beryllium copper
  • Barrel: Phosphor bronze, gold-plated
  • Spring: Music wire, gold-plated
