Pogo Pin PA125-E2 Test Probe

Gold plated Tip Test Probe PA125-E2 Pogo Pin PCB test Probe Length 33.35mm Dia 2.02mm Head Dia 2.5m, PA125-E2 spring test probe PA125-E Test pin P125-E P125-E2 Test tool 33.35mm 2.02mm Needle gold tip Ø 2.50mm Pogo pin

The PA125-E2 is a type of spring test probe (or "pogo pin") used for testing printed circuit boards (PCBs).

• Model: P125-E2

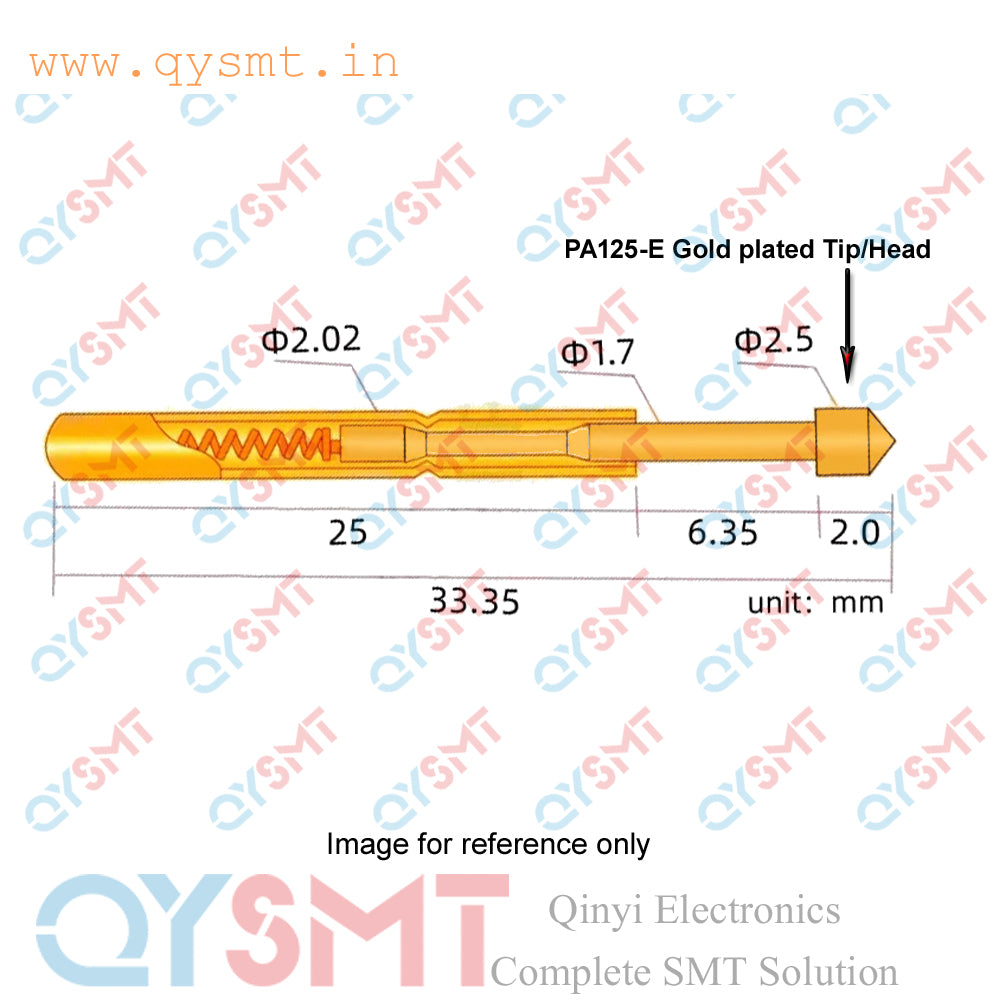

• Full Stroke: 6.35 mm
• Spring Pressure: 180 g (6.35 oz)
• Current Rating: 5 A
• Contact Resistance: 50 mOhm

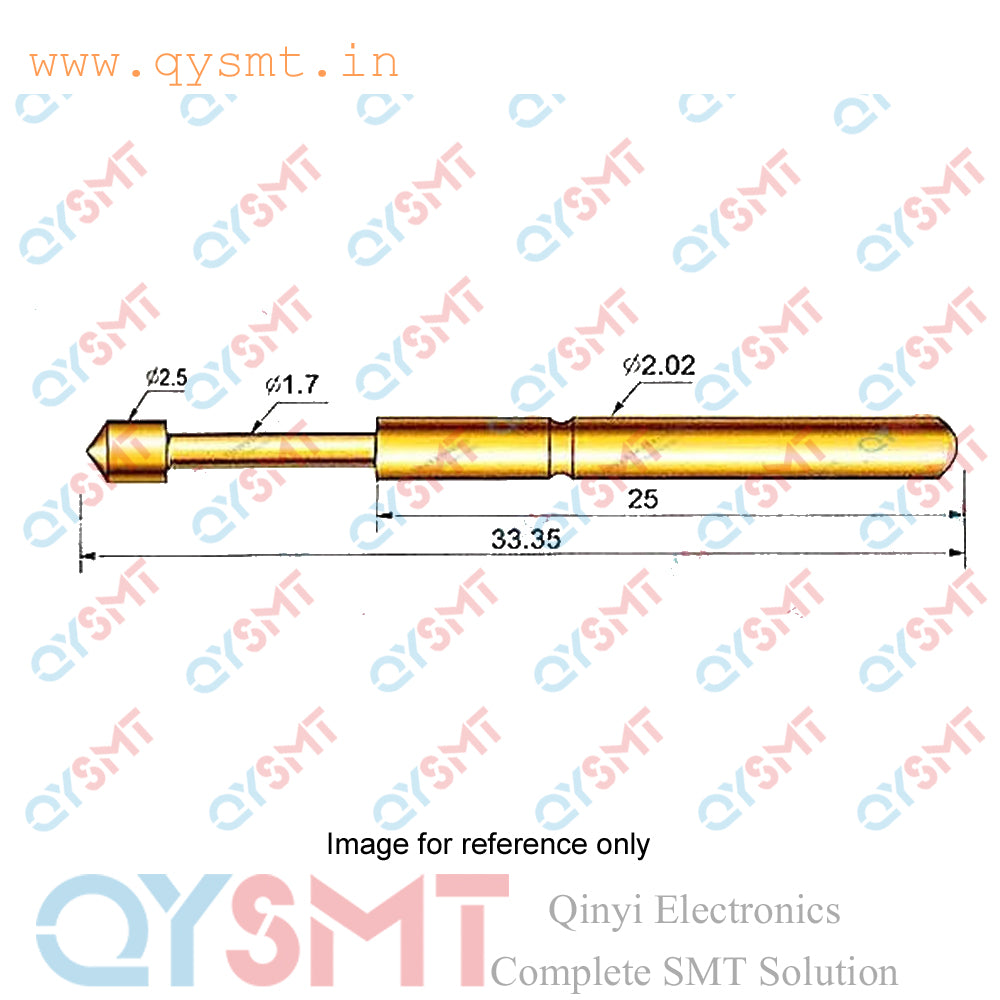

• Barrel Diameter: 2.02 mm
• Overall Length: 33.35 mm
• Plunger Material: Heat-treated beryllium copper
• Barrel Material: Phosphor bronze (gold plated)
• Spring Material: Music wire (gold plated)

• PCB testing: Used for making electrical contact with pads, lands, or components on a PCB during testing.
• Spring-loaded design: The internal spring ensures a reliable electrical connection and compensates for minor height variations on the PCB surface.

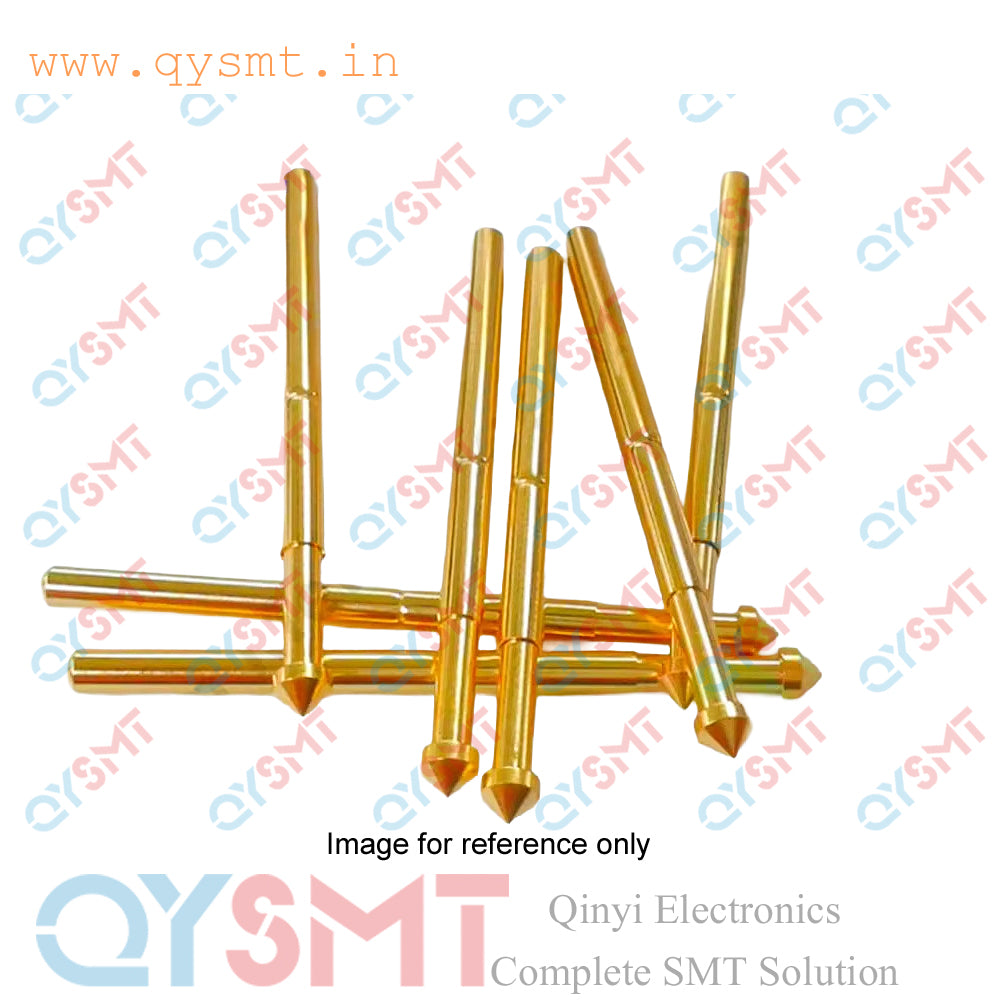

• Conical head: The pointed or conical tip is designed for testing on solder pads or through-holes.
• Durable construction: The use of gold-plated beryllium copper and phosphor bronze in its components provides good conductivity and resistance to corrosion, ensuring a long service life.
