PA125-Q2 Pogo Pin

PA125-Q2 Pogo Pin

Contact Seller :- Call or Whatsapp ‪+91 9319902096 harshita@qysmt.in

Call or Whatsapp
‪+91 9319902096

Email: harshita@qysmt.in

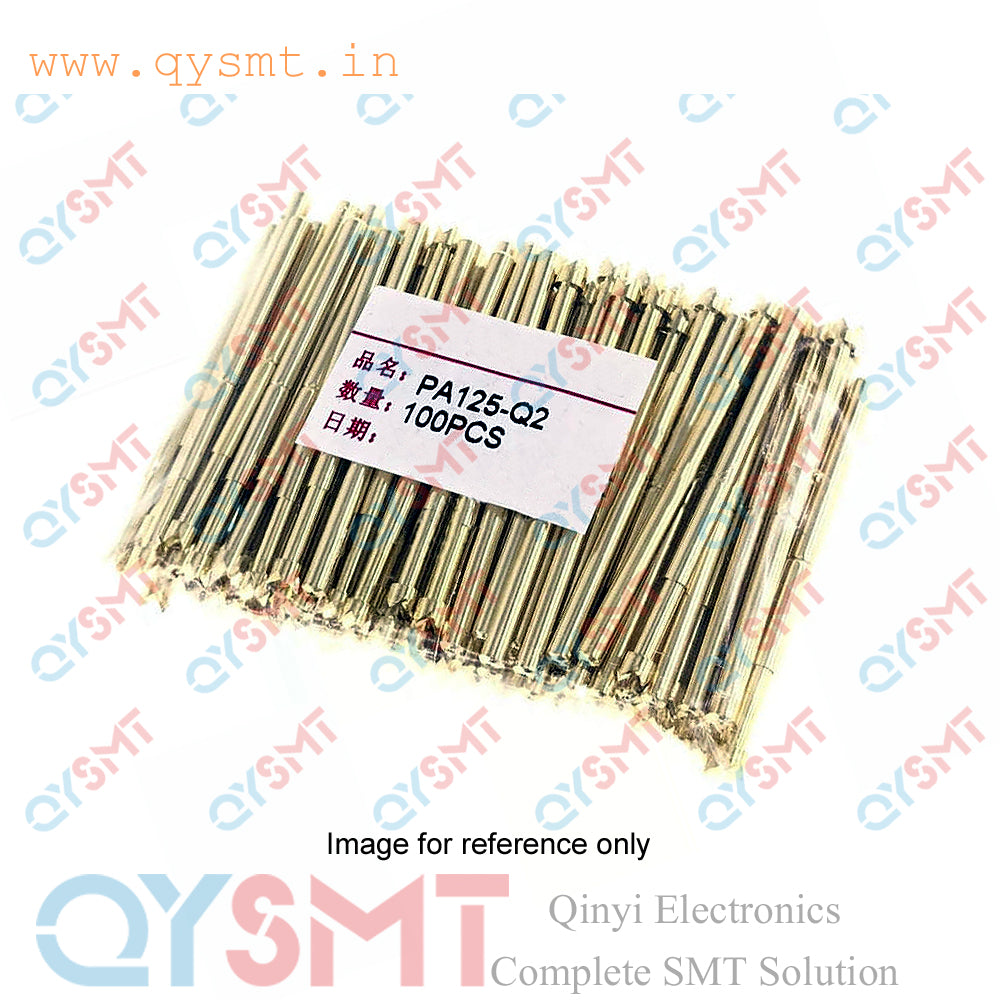

Pogo Pin PA125-Q2 Test Probe

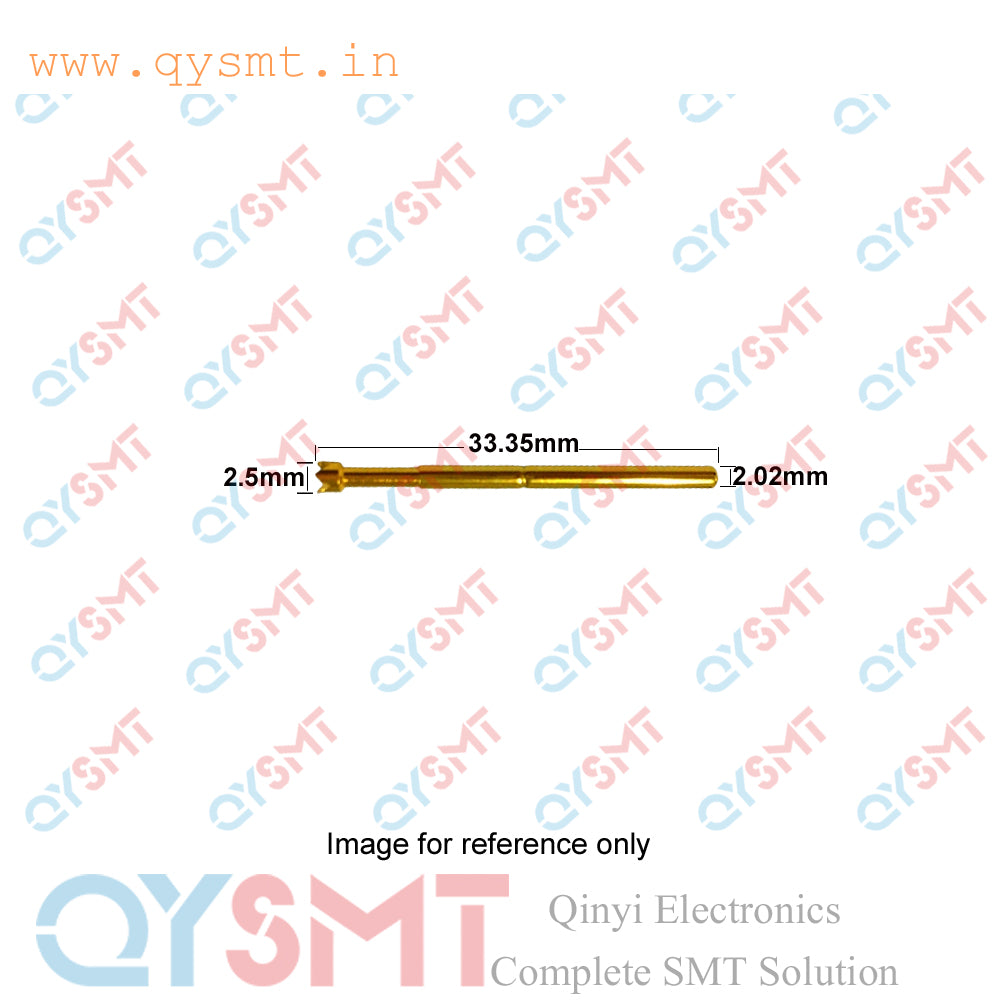

Gold plated Tip Test Probe PA125-Q2 Pogo Pin PCB test Probe Length 33.35mm Dia 2.02mm Head Dia 2.5mm , PA125-Q2 Probe Gold-plated Four-claw test Probe Spring Thimble 2.02mm test Probe Pin PA125 ...

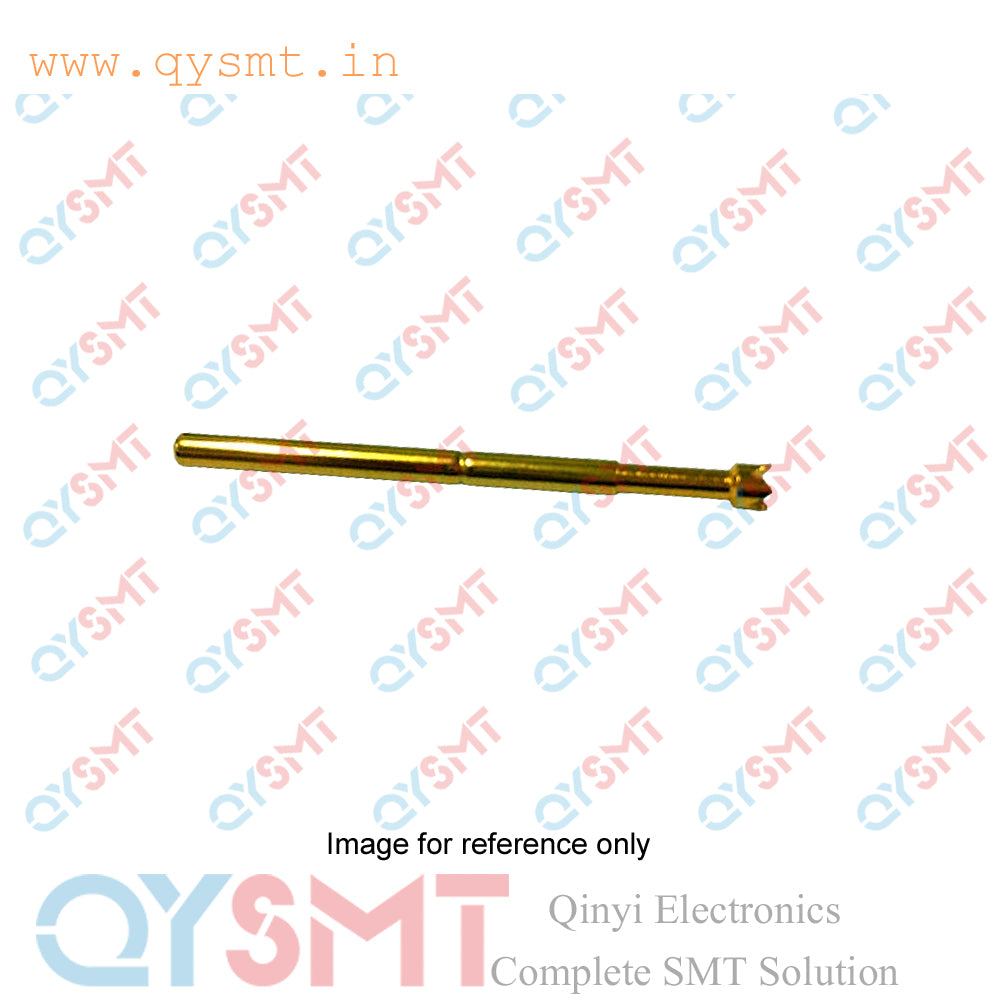

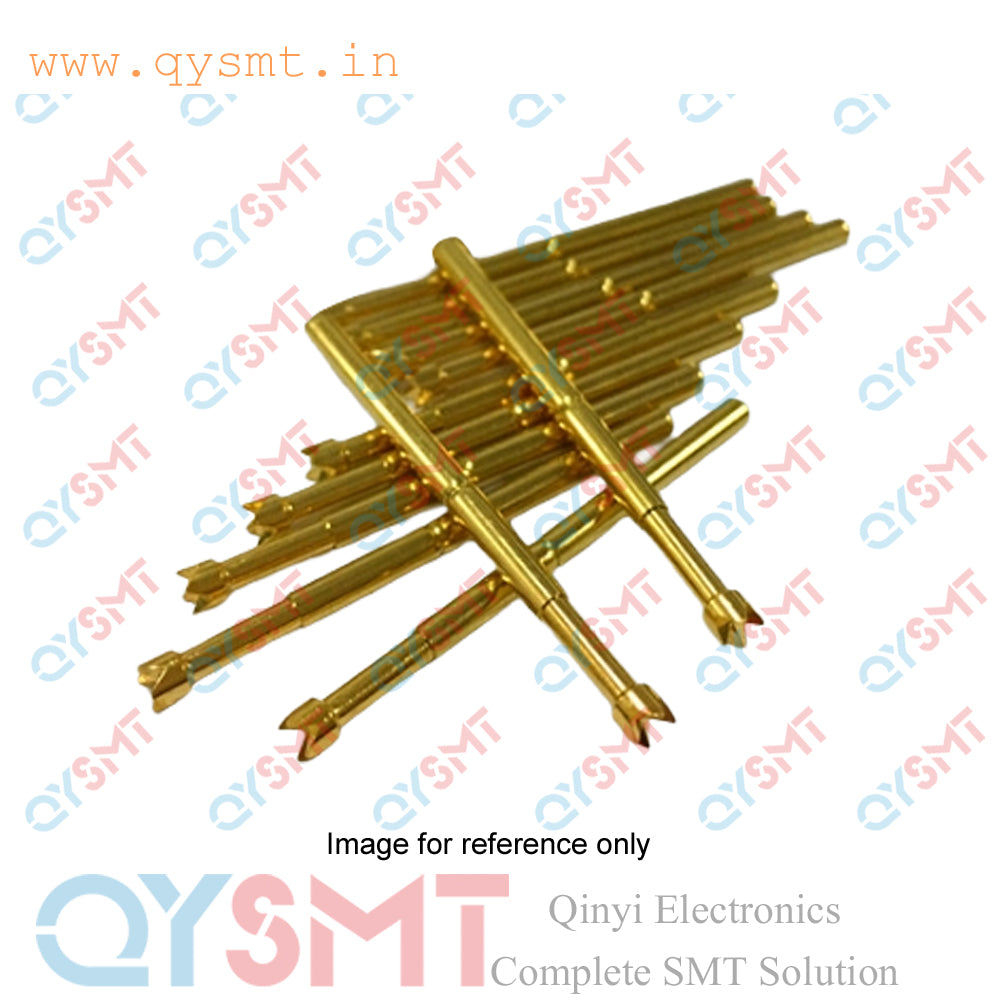

The Pogo Pin PA125-Q2 is a gold-plated spring test probe primarily used for testing printed circuit boards (PCBs). Its "Q2" designation indicates a specific tip style: a four-claw or "plum blossom" head, designed to make reliable contact with terminals or pads during testing.

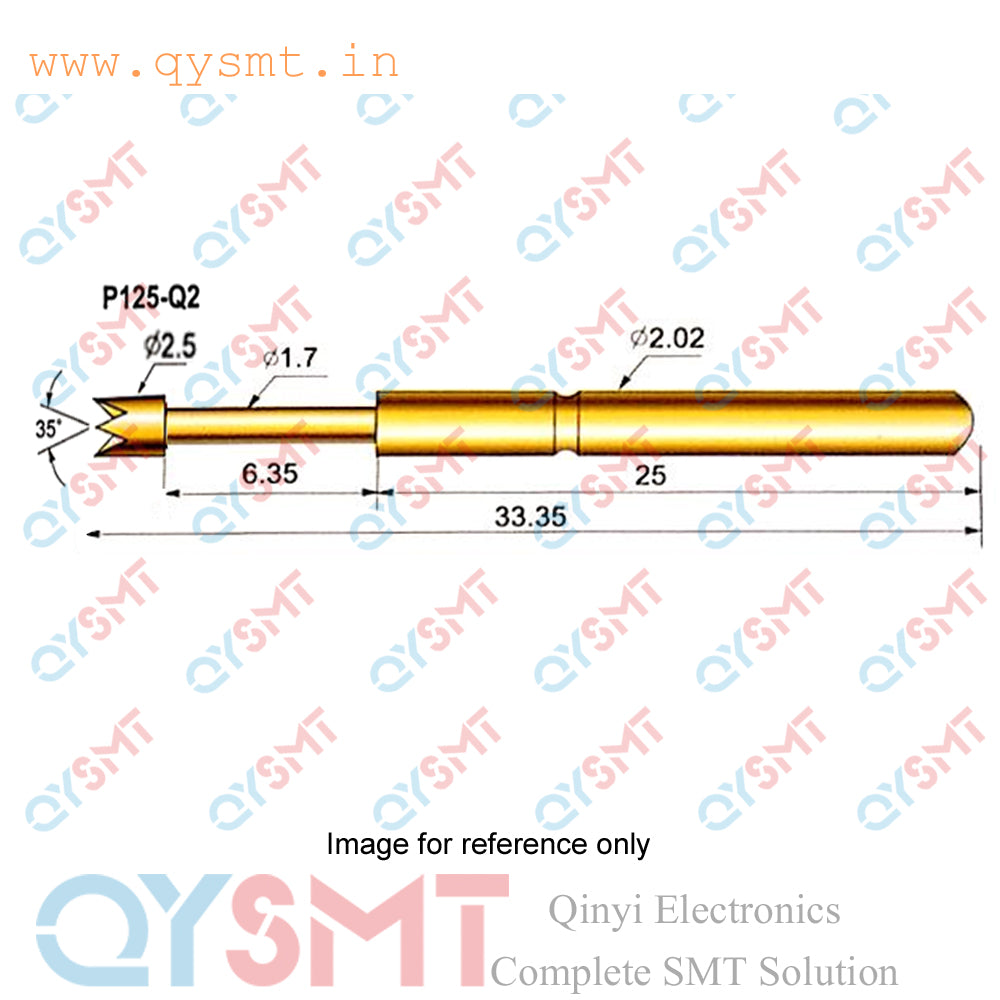

Key specifications
  • Model: PA125-Q2
  • Needle Sleeve Diameter: 2.02 mm.
  • Needle Head Diameter: 2.5 mm.
  • Overall Length: 33.35 mm.
  • Tip Style: Four-claw, or "plum blossom" head.
  • Material: Gold-plated phosphor brass for durability and corrosion resistance.
  • Load Type: Compression, which ensures a secure and consistent electrical connection.
Applications
The PA125-Q2 is an ideal component for a variety of electrical testing and DIY projects. Its most common use is in a test fixture or "test rack" to check the functionality of a PCB. Its four-claw tip is especially useful for:
  • Making contact with pins and posts on a board.
  • Testing circuits that may have contaminated, dirty, or oxidized test points, as the multiple sharp tips can pierce through residue to establish a connection.
  • Automated testing environments where thousands of circuits can be tested quickly and reliably.
Compatibility
The probe is compatible with a range of test sockets and can be used in various electrical test equipment setups. It is part of the broader PA125 series of probes, which typically share the same 2.02mm diameter barrel but offer different tip styles for various applications.
