Gold Plated Spring Test Probe PA160-E2 Pogo Pin

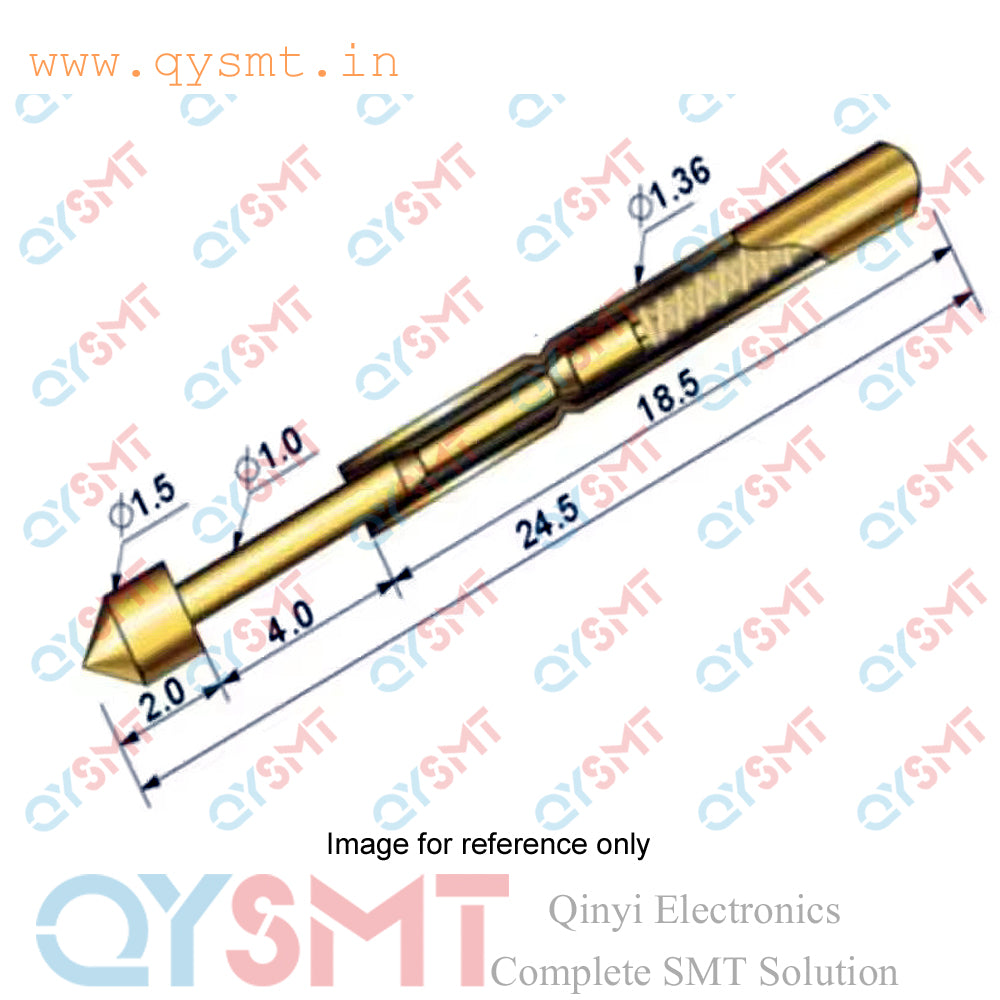

Gold Plated Pogo Pin PA160-E2 Spring Test Probe Dia 1.36mm Pin Length 24.5mm Needle gold tip diameter 1.50mm ...

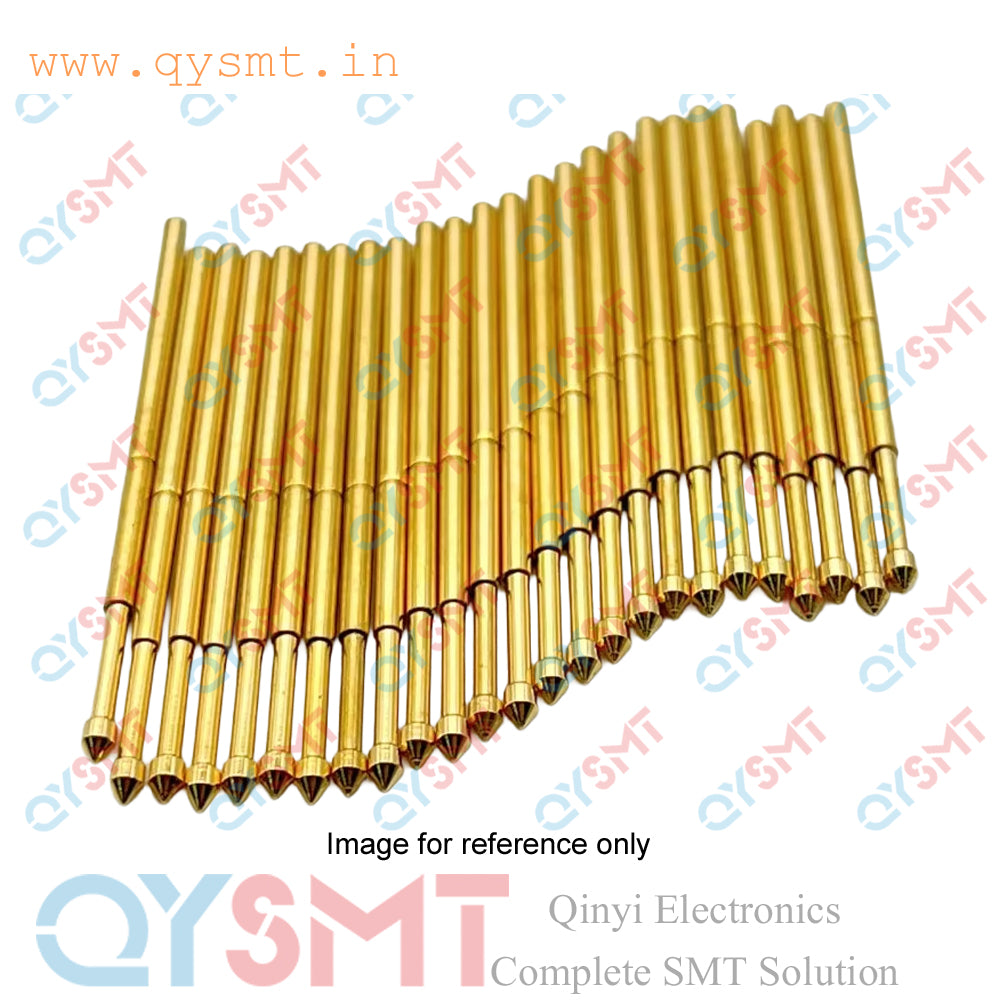

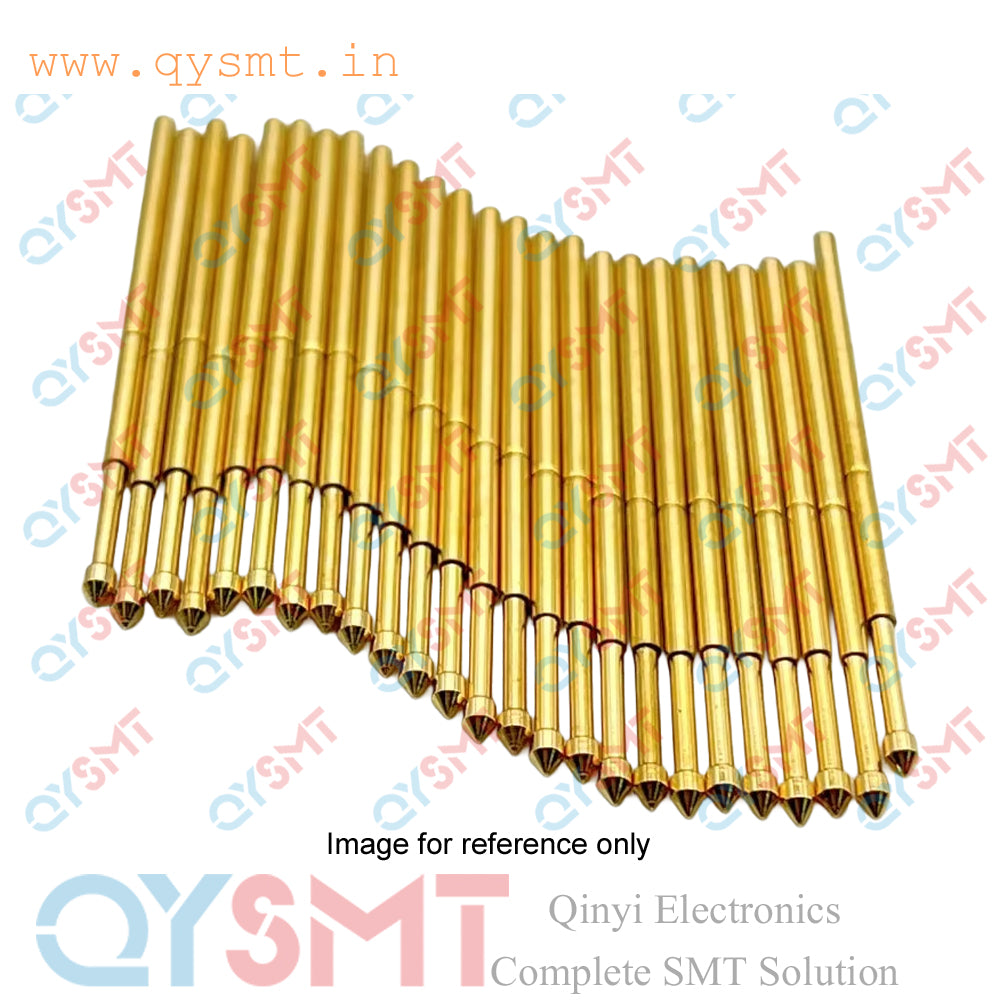

The PA160-E2 is a type of spring test probe, also known as a pogo pin, that is commonly used for in-circuit testing (ICT) of printed circuit boards (PCBs).
Key specifications

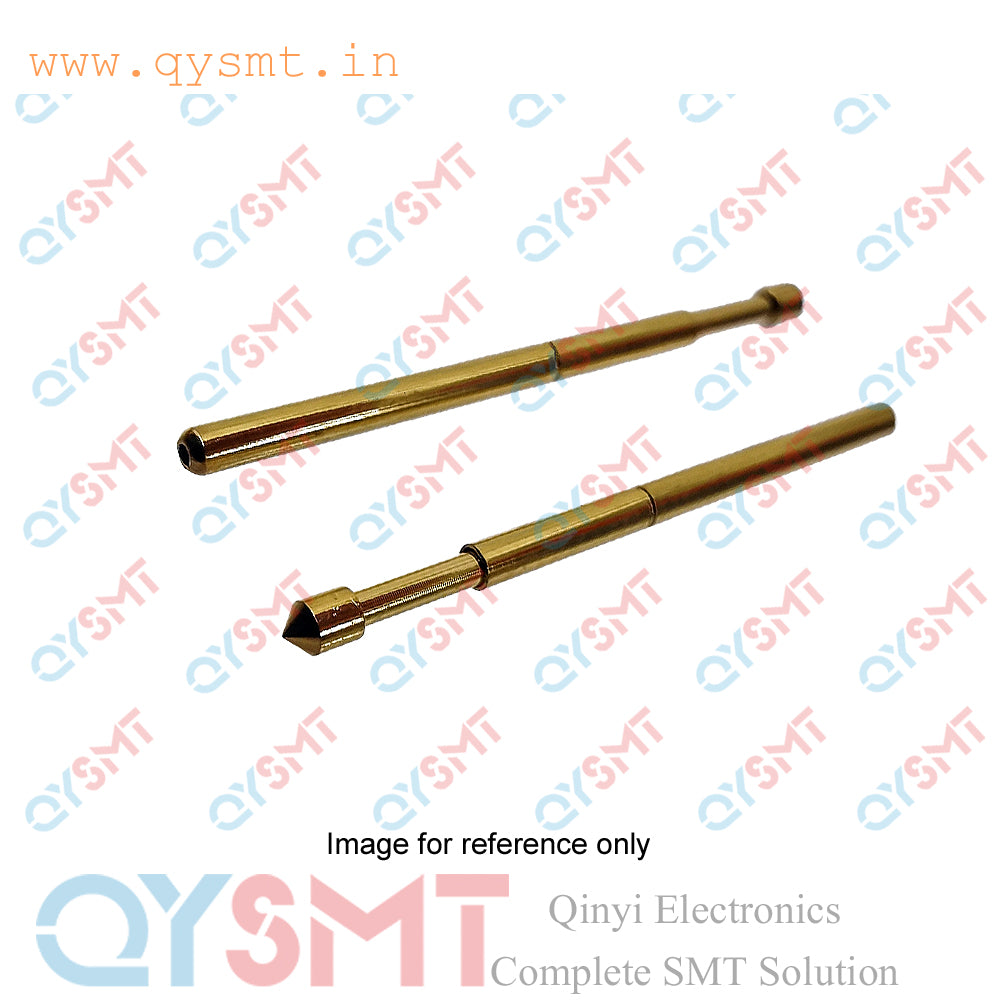

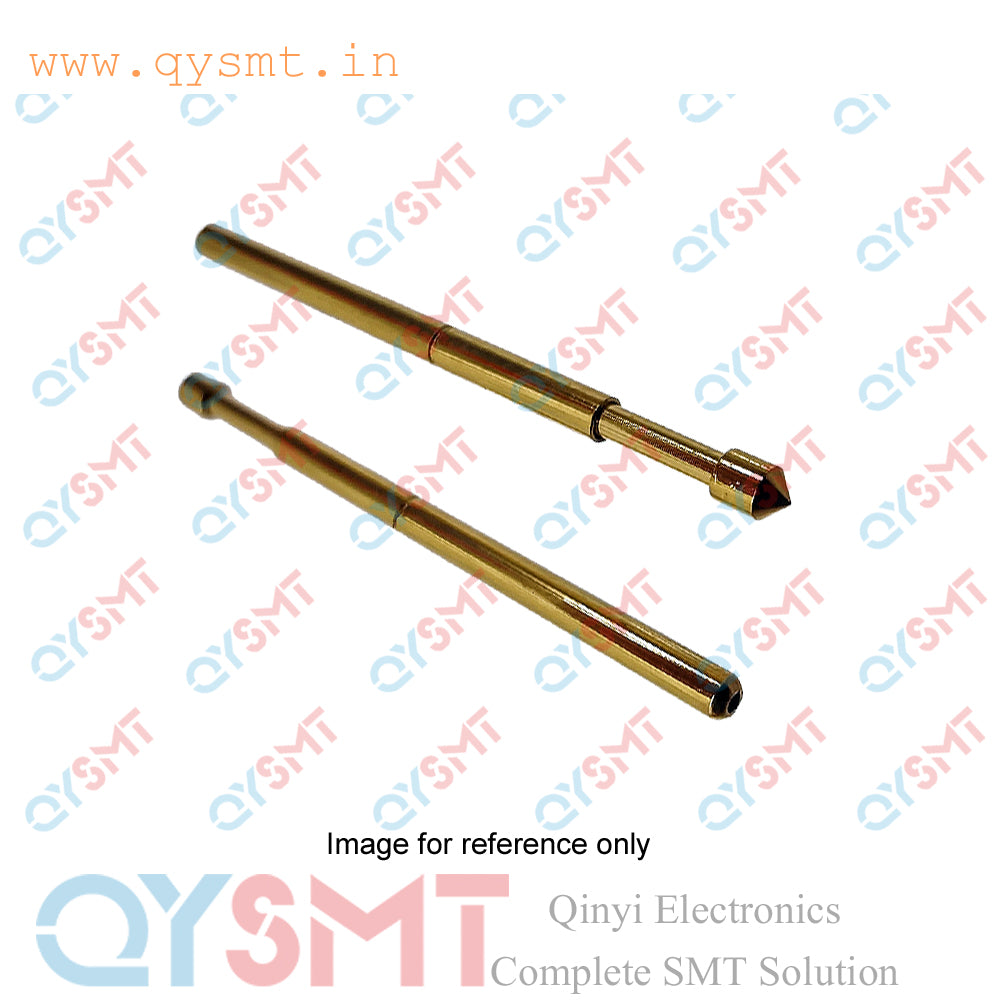

- Probe tip type: The "E2" designation indicates a specific tip style. It is a tapered head designed for testing through-hole components and for making contact with gold fingers and pads on PCBs.
- Total length: 24.5 mm.
- Barrel diameter: 1.36 mm.
- Spring pressure: 140 grams, providing a reliable and repeatable contact.
- Current rating: 3A.
- Current resistance: 50 milliohms (mΩ).
- Full stroke: 4.0 mm, which is the total distance the plunger can travel.
-
Material:
- Plunger: Heat-treated beryllium copper.
- Barrel: Gold-plated phosphor bronze.
- Spring: Gold-plated music wire.
- Minimum test distance: 1.91 mm.
- Drill size: A 1.7 mm hole is required to fit the probe's receptacle.
Usage
The PA160-E2 is typically part of a test fixture for ICT. During testing, the fixture positions a large array of these spring-loaded pins to simultaneously make contact with designated test points on a PCB. The probes then provide a connection for test equipment to perform electrical measurements.
