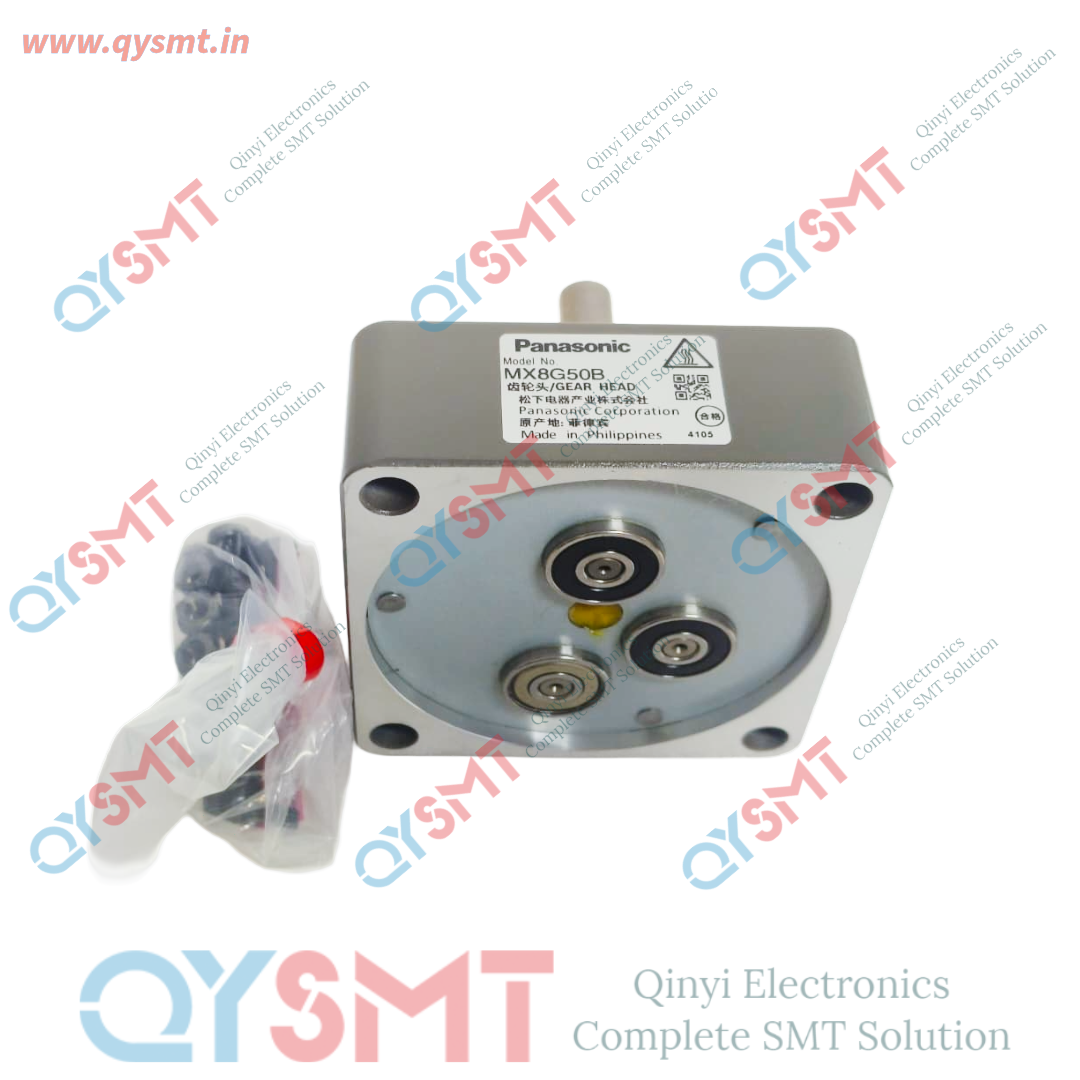

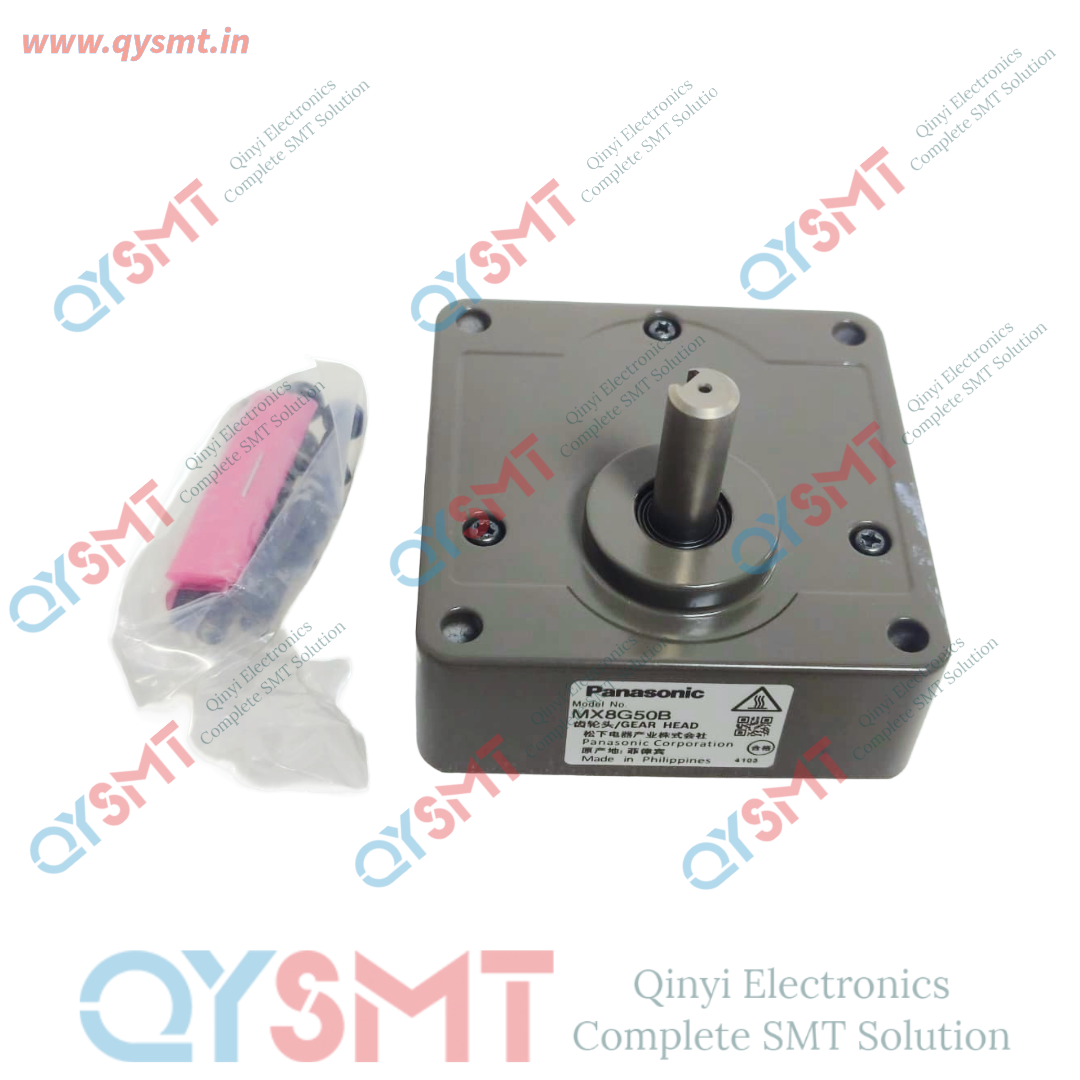

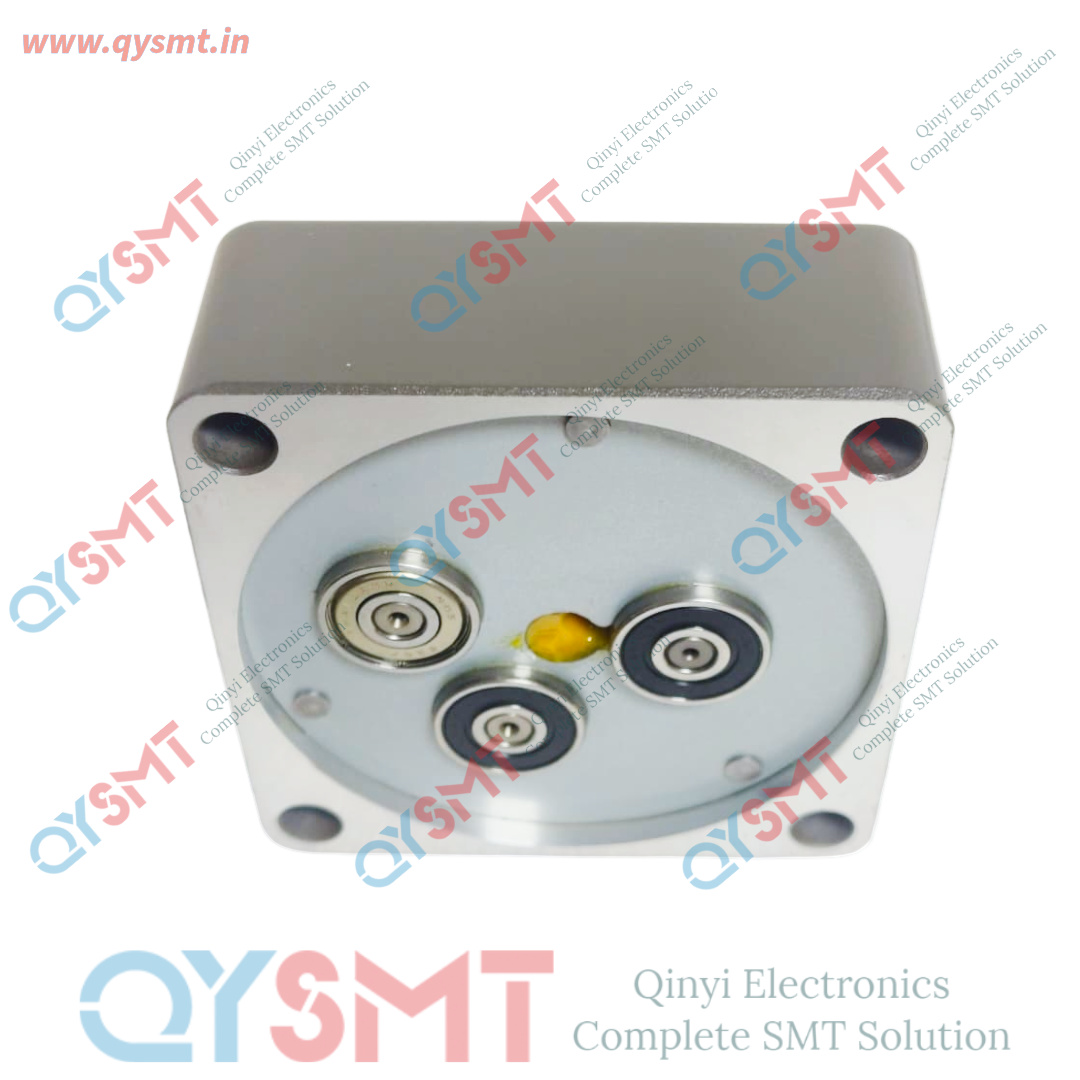

Panasonic MX8G50B SMT GEAR
Panasonic MX8G50B SMT GEAR
Contact Seller :- Call or Whatsapp +91 9319902096 harshita@qysmt.in
Contact Seller :- Call or Whatsapp +91 9319902096 harshita@qysmt.in
Call or Whatsapp
+91 9319902096
Email: harshita@qysmt.in
Core Technical Specifications
- Component Type: Spur Gearbox / Gear Head (Motor sold separately)
- Gear Reduction Ratio: 50:1
- Flange / Frame Size: 80 mm square
- Maximum Output Speed: 27 RPM (at standard 50Hz/60Hz motor inputs)
- Maximum Output Torque: 6.73 Nm (Newton-meters)
- Shaft Diameter: 10 mm
- Bearing Type: High-durability Ball Bearings
- Compatible Motors: Suited for 6W, 15W, 25W, and 40W Panasonic motors (such as the M8MX25GK4YGA series).
Application in SMT
In SMT electronics manufacturing lines, this specific 50:1 gear assembly is widely deployed to drive heavy-duty conveyor belts, PCB width adjustment mechanisms, and internal pick-and-place component feeders where low speed and high structural torque are mandatory. []
