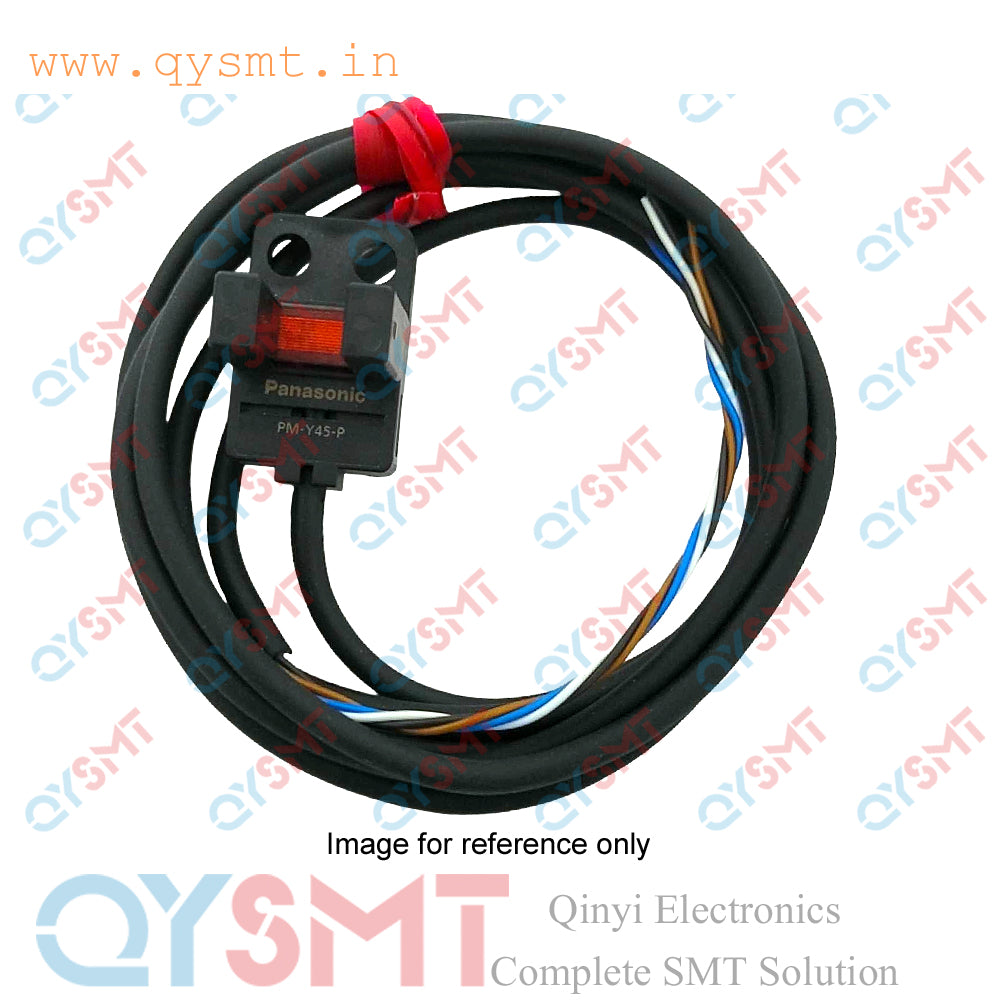

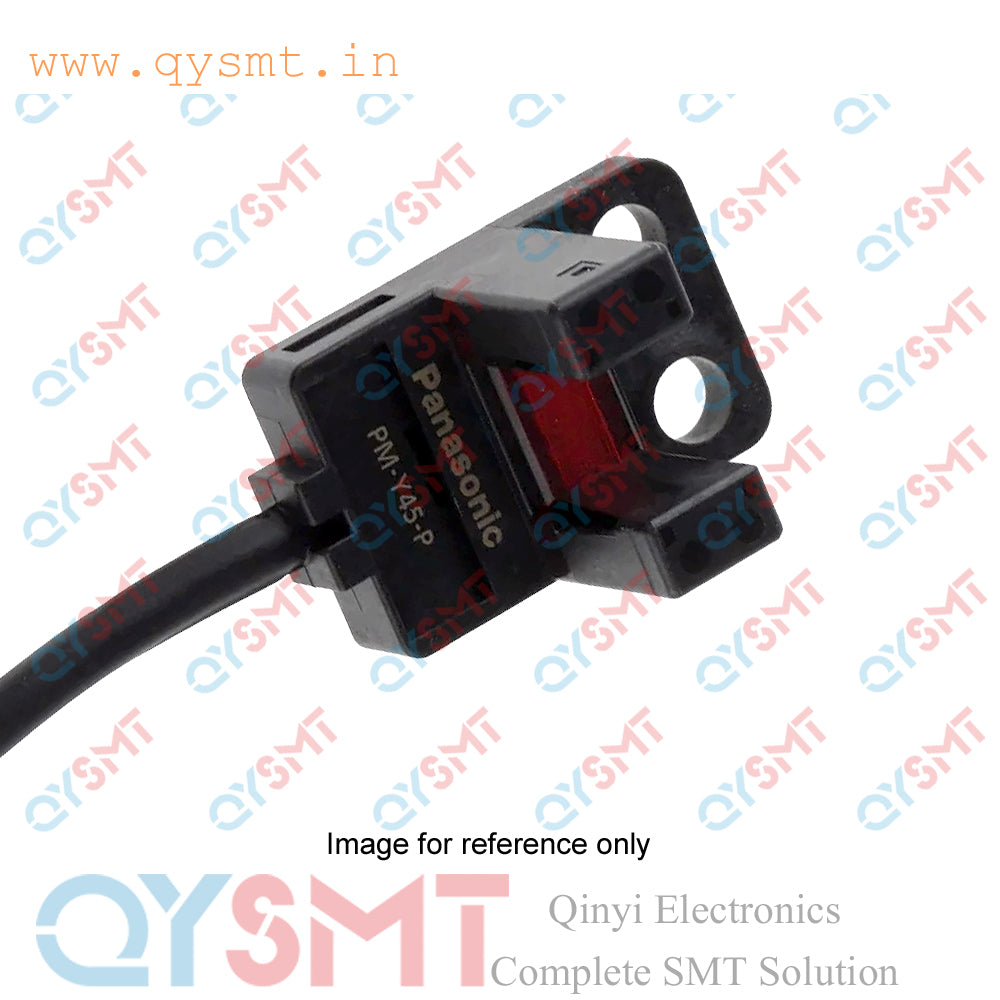

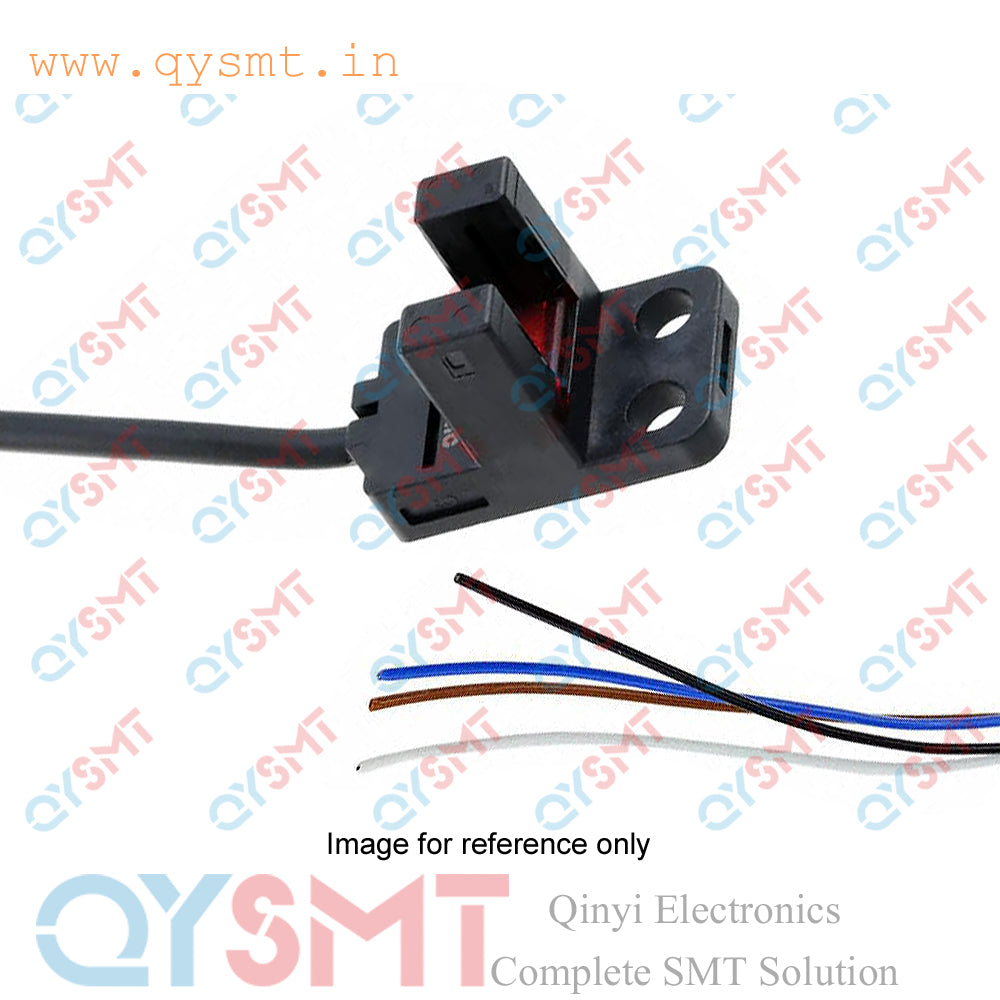

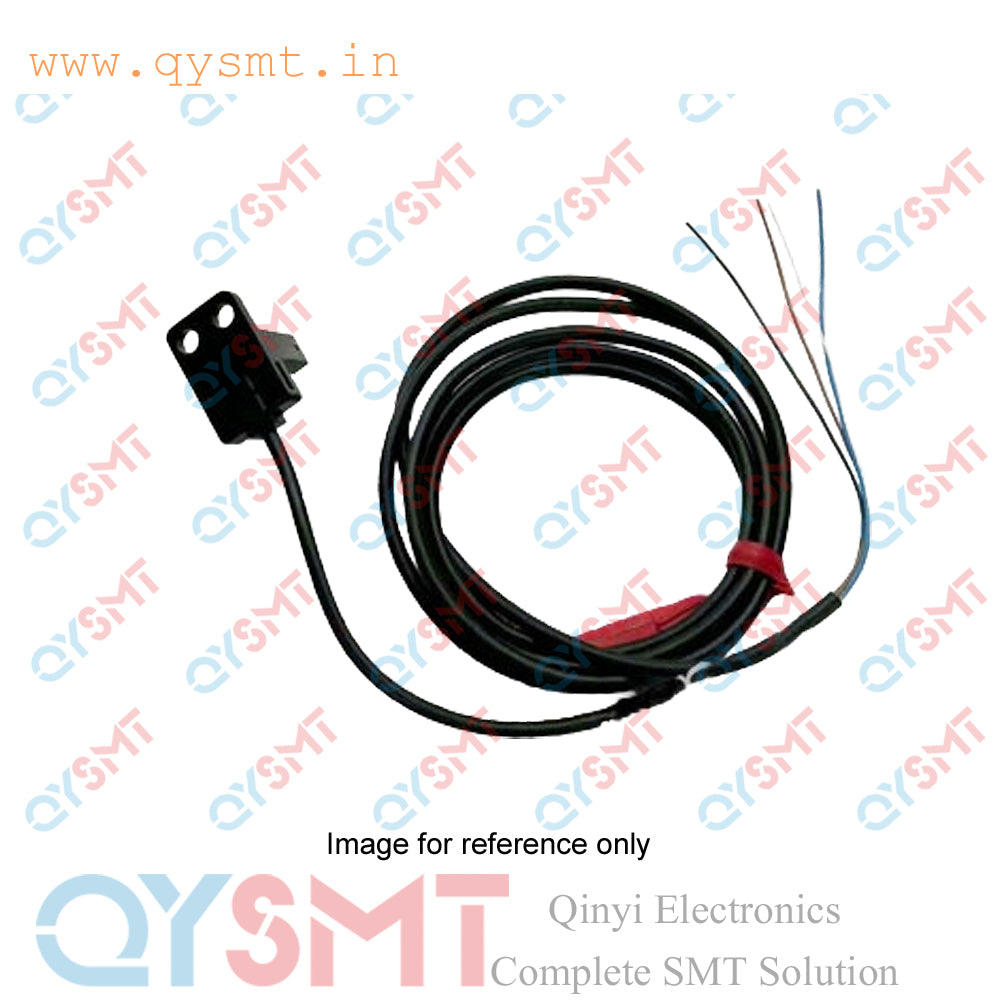

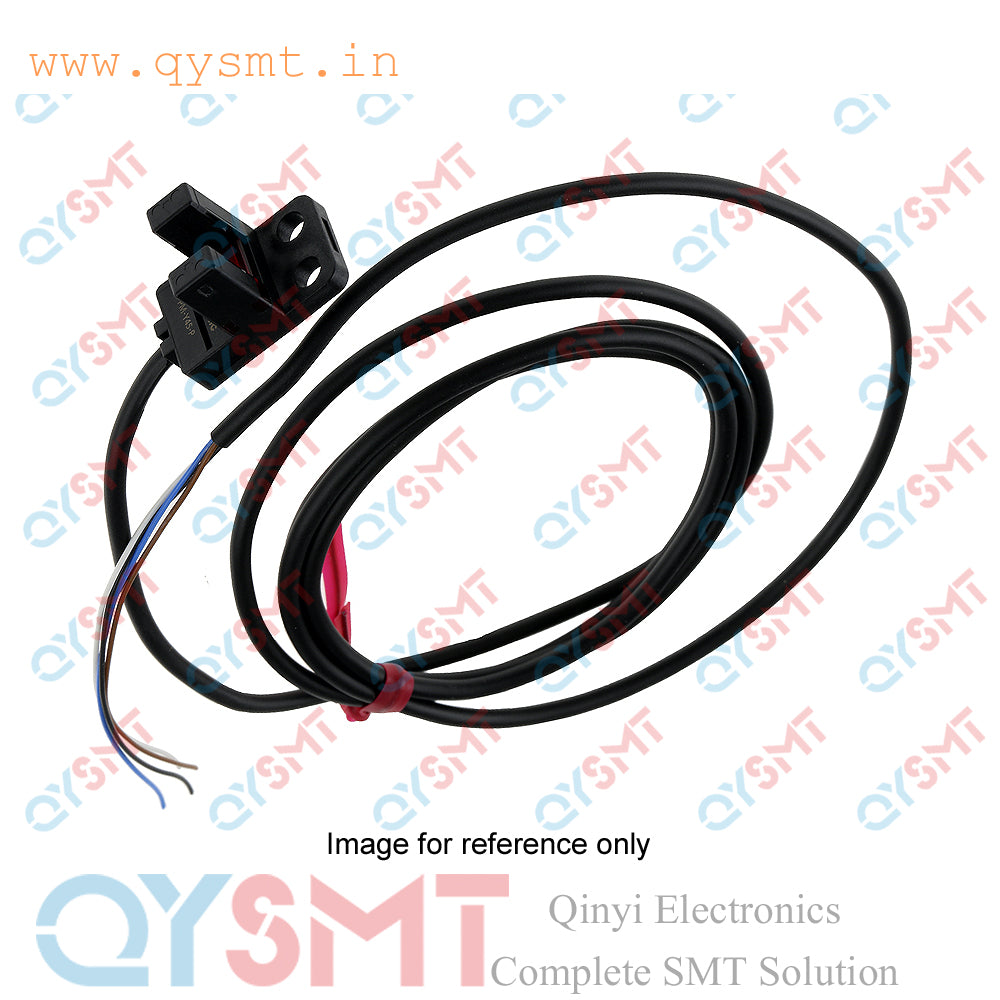

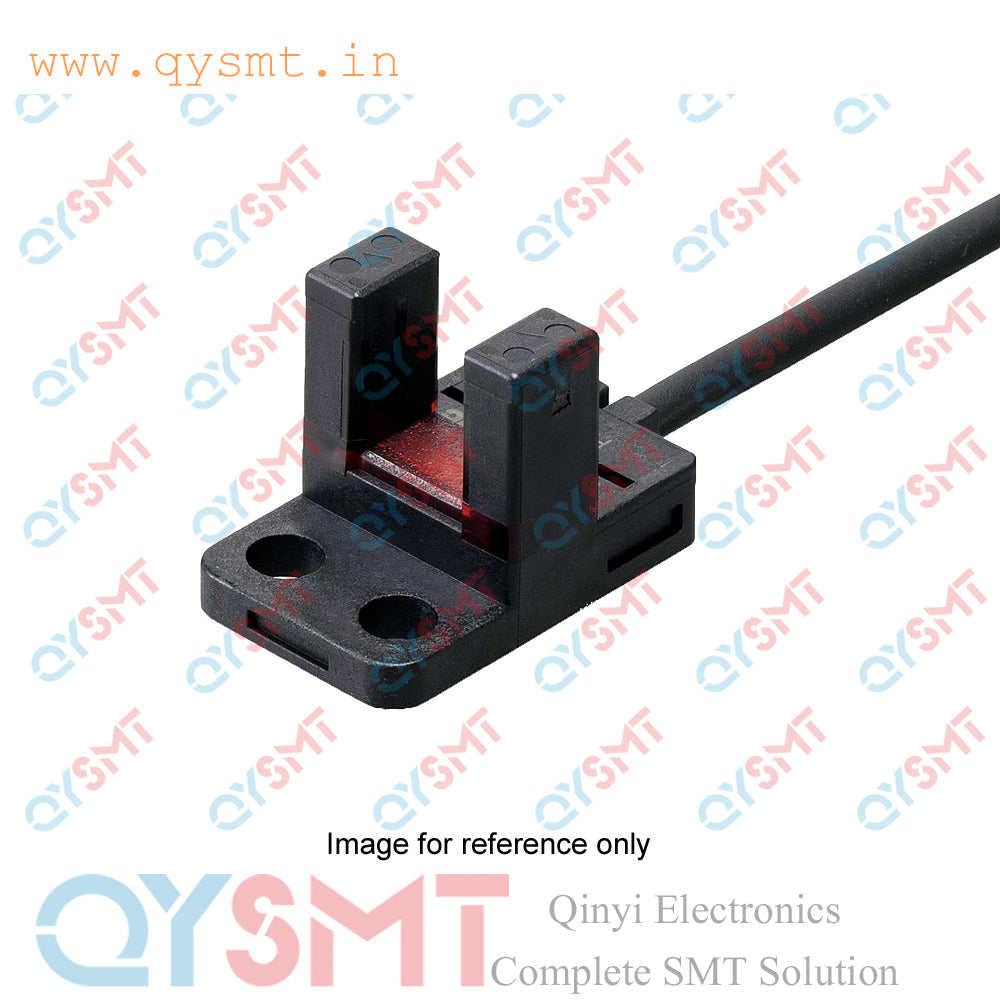

Panasonic PM-Y45-P U-shaped (fork-type) Micro Photoelectric Sensor

Through-beam, 6 mm (fixed) Sensing range, PNP open-collector transistor, Two outputs, one for Light-ON and one for Dark-ON, 5 to 24 V DC ±10% Supply voltage, Infrared LED, 855 nm

The Panasonic PM-Y45-P is a U-shaped (or fork-type) micro photoelectric sensor from the PM-45 series, with an integrated amplifier. It operates using a through-beam sensing method, where the emitter and receiver are built into a single housing and detect an object when it passes through the 6mm gap. The sensor provides a PNP open-collector output.

Technical specifications

• Sensing method: Through-beam (emitter and receiver in a single housing).
• Sensing range: 6 mm (fixed).
• Minimum detectable object: 0.8 x 1.2 mm opaque object.
• Response time:
  • Light received condition: 20 µs or less.
  • Light interrupted condition: 80 µs or less.
• Output:
  • Type: PNP open-collector transistor.
  • Outputs: Two outputs, one for Light-ON and one for Dark-ON.
  • Short-circuit protection: Incorporated.
• Supply voltage: 5 to 24 V DC ±10%.
• Current consumption: 15 mA or less.
• Light source: Infrared LED, 855 nm.
• Connection: 1-meter, 4-core cabtyre PVC cable.
• Ingress protection: IP64.
• Housing material:
  • Enclosure: PBT.
  • Display section: Polycarbonate.
• Operating temperature: -25 to +55 ℃ (-13 to +131 ℉).
