Spring Test Probe Conical Head P100-E3 Pogo Pin

P100-E3 Spring Test Needle Test Pin, Conical head test pin P100-E3 Pogo Pin

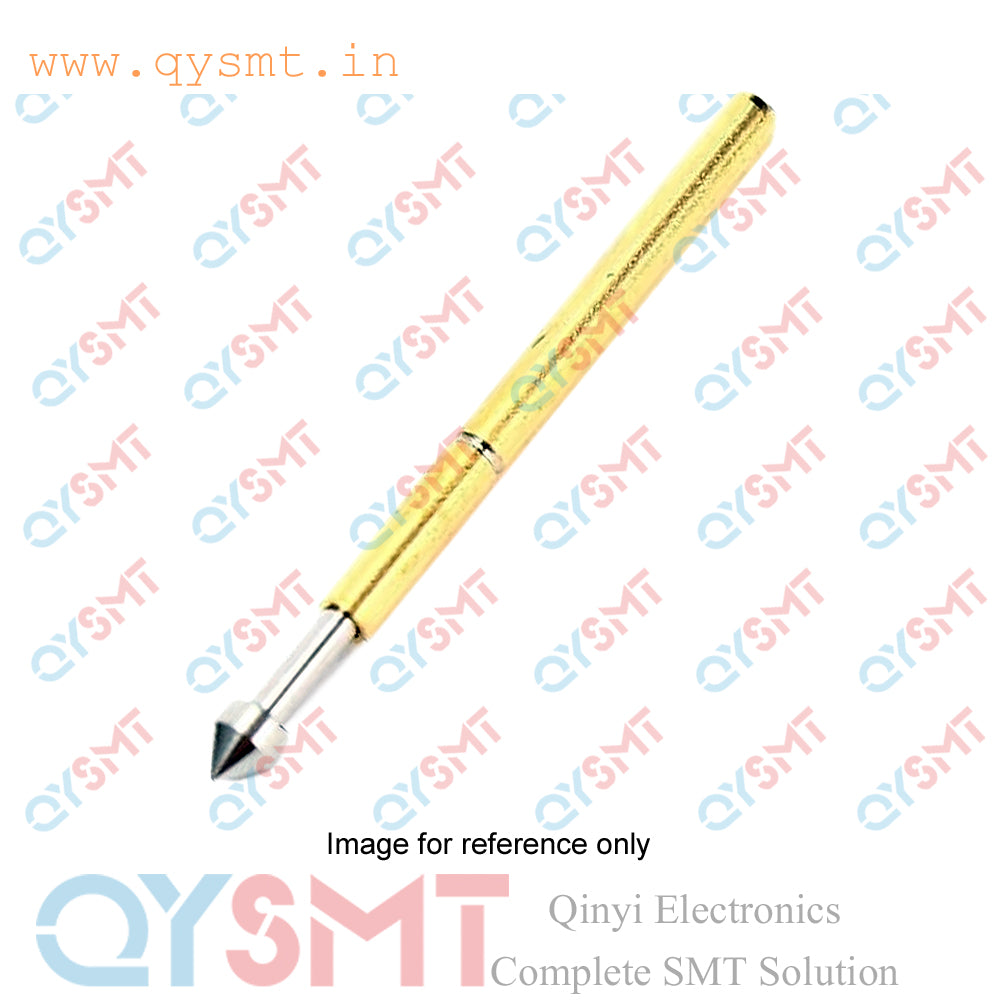

The P100-E3 Pogo Pin is a spring-loaded test probe used for establishing a temporary electrical connection in applications like circuit board testing. It is part of the P100 series and features a conical head. The pin is crafted from nickel-plated copper for excellent conductivity and corrosion resistance.

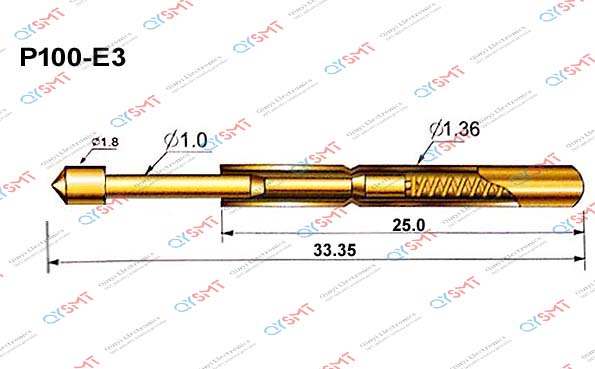

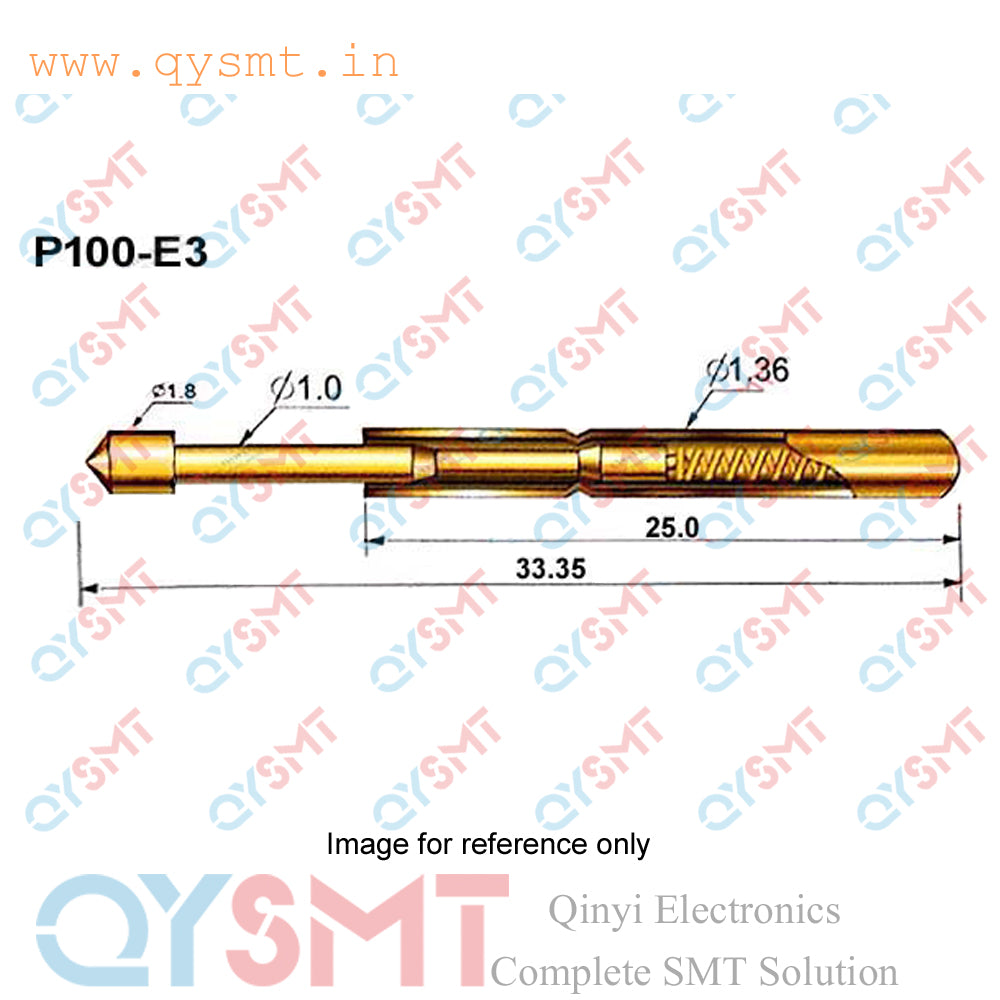

Specifications

• Head type: Conical head
• Head diameter: 1.80mm
• Pin diameter: 1.36mm
• Total length: 33.35mm
• Current rating: 3A
• Material: Nickel-plated copper
• Load type: Compression

Common applications

• In-Circuit Testing (ICT): For making contact with test pads on a printed circuit board (PCB) to check for manufacturing defects.
• Functional Testing: Can be integrated into test fixtures to ensure the final product operates as intended.
• Component Testing: Used for precise electrical measurements on small, dense components like microchips.
• Electrical DIY: A useful tool for hobbyists and professionals for reliable, temporary connections during electrical testing.
