Spring Test Probe Round Head P100-J1 Pogo Pin

Round Head Test Pin P100-J1 Spring Probe Test Tool

The P100-J1 pogo pin is a spring-loaded test probe with a round head, commonly used for testing printed circuit boards (PCBs) and creating temporary electrical connections. It is part of the P100 series of pogo pins and is designed for applications where a reliable, repeatable connection is necessary without soldering.

Key specifications

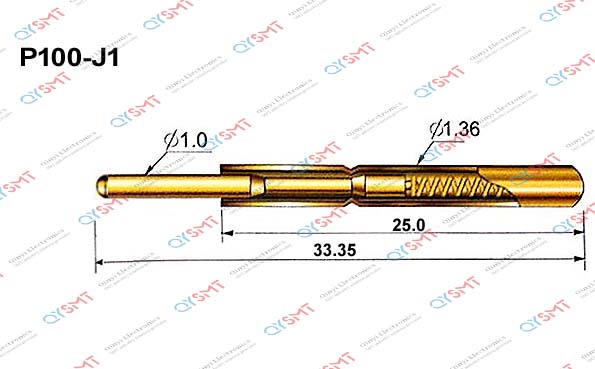

• Total length: 33.35 mm.
• Needle/plunger diameter: 1.0 mm.
• Body/barrel diameter: 1.36 mm.
• Current rating: 3A.
• Resistance: 50 milliohms.
• Tip shape: Round or spherical for testing pads.
• Material: Made with a beryllium copper or phosphor bronze plunger and barrel, and a music wire spring, with gold or nickel plating for corrosion resistance and low electrical resistance.
