Spring Test Probe Three-point Crown Head P100-LM3 Pogo Pin

P100-LM3 gold-plated Spring Test Needle Test Pin, Crown Head Test Pin P100-LM3 Pogo Pin

The P100-LM3 Pogo Pin is a spring-loaded test probe used for electrical testing of printed circuit boards (PCBs) and other electronic components. It is part of the P100 series of test pins and is characterized by its specific head shape and dimensions.

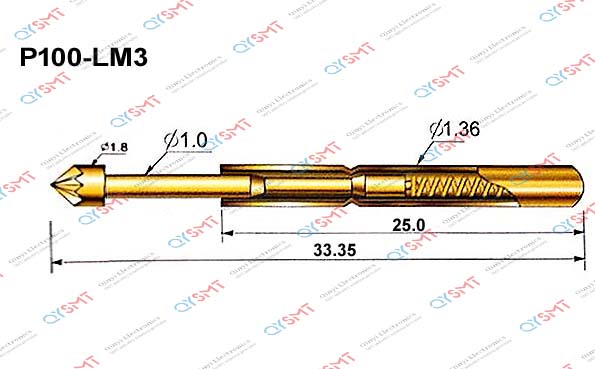

Product specifications

• Model Number: P100-LM3
• Head Style: Three-point crown head
• Head Diameter: 1.80mm
• Total Length: 33.35mm
• Needle Diameter: 1.36mm
• Material: Brass
• Stroke: The stroke is the distance the pin travels when compressed. The P100 series generally has a full stroke of 6.35mm, with a recommended stroke to maintain performance.
• Force: The spring force is typically around 180g for the P100-LM3  model.
• Usage: Primarily for electrical and PCB testing.
• Load Type: Compression.
