Spring Test Probe Concave Tip P156-A Pogo Pin
P156-A Cup-shaped Spring Test Needle Test Pin, test tool P156-A Pogo Pin
The P156-A is a spring-loaded test probe (also known as a pogo pin) used for creating temporary electrical connections during the testing of printed circuit boards (PCBs) and other electronic components. The "-A" in the model number designates its concave or "cup-shaped" tip, designed to make reliable contact with rounded or pointed components.

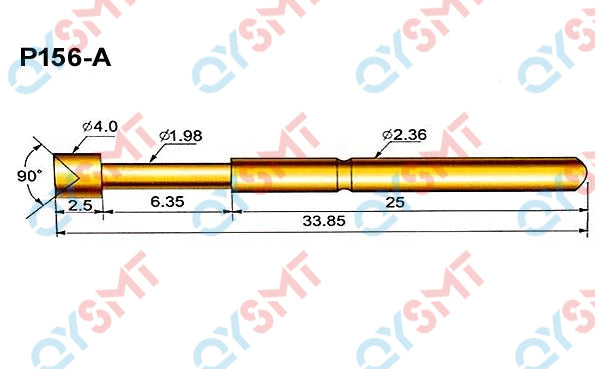

Key specifications
- Tip type: Concave or cup-shaped.
- Tip diameter: 4.0 mm.
- Barrel diameter: 2.36 mm.
- Total length: 34 mm.
- Construction materials: Brass with a gold-plated finish for good electrical conductivity.
- Current rating: 5A.
- Contact resistance: 50 milliohms.
Applications
- PCB testing: The P156-A is widely used in automated test equipment (ATE) fixtures to make temporary contact with test points, pads, or component leads on a PCB.
- Continuity testing: It can be used in manual or automated applications to check for continuity in a circuit.
- Semiconductor testing: These probes are used during the testing of semiconductors to ensure their proper functioning.
- Device programming: Pogo pins are sometimes used in custom jigs for programming or debugging boards that can't have headers soldered on.
